Power Transformers(6768)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
14A-56-36PWR XFMR LAMINATED 56VA TH |
513 | 21.76 |
RFQ |
Datasheet |
Box | One-4-All™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 3.12A, Series 1.56A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.00mm | 4000Vrms |
|
|
14A-56-28PWR XFMR LAMINATED 56VA TH |
331 | 21.76 |
RFQ |
Datasheet |
Box | One-4-All™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 4A, Series 2A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.00mm | 4000Vrms |
|
DP-241-7-24PWR XFMR LAMINATED 56VA CHAS MT |
261 | 21.82 |
RFQ |
Datasheet |
Box | Two-4-One™ | Active | Laminated Core | 115V, 230V | 24V | 2.4A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
70050KXFRMR TOROIDAL 15VA THRU HOLE |
257 | 21.89 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 7V, Series 14V | Parallel 2.142A, Series 1.071A | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms |
|
70034KXFRMR TOROIDAL 7VA THRU HOLE |
865 | 22.02 |
RFQ |
Datasheet |
Tray | 7XXXX | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 388mA, Series 194mA | Dual | Dual | No | 7VA | Through Hole | PC Pin | 49.70mm L x 49.70mm W | 23.10mm | 4000Vrms |
|
L01-6352PWR XFMR TORO 15VA TH |
2,821 | 22.11 |
RFQ |
Datasheet |
Tray | L01 | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.25A, Series 625mA | Dual | Dual | No | 15VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 26.30mm | 4000Vrms |
|
LP-40-1200PWR XFMR SEMI-TORO 48VA TH |
529 | 23.32 |
RFQ |
Datasheet |
Bulk | LP | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms |
|
|
LP-24-2000PWR XFMR SEMI-TORO 48VA TH |
3,084 | 23.32 |
RFQ |
Datasheet |
Bulk | LP | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms |
|
|
L01-6364PWR XFMR TORO 25VA TH |
150 | 25.51 |
RFQ |
Datasheet |
Tray | L01 | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.388A, Series 694mA | Dual | Dual | No | 25VA | Through Hole | PC Pin | 60.00mm L x 60.00mm W | 37.50mm | 4000Vrms |
|

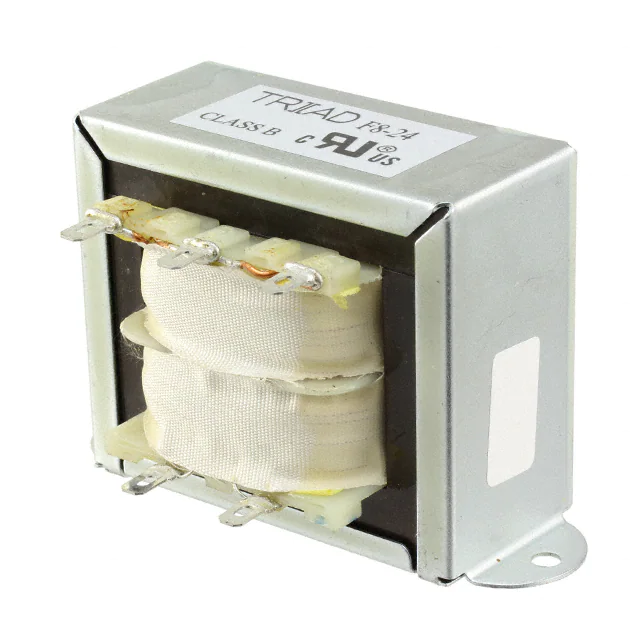

F8-24PWR XFMR LAMINATED 100VA CHAS MT |
161 | 26.32 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|

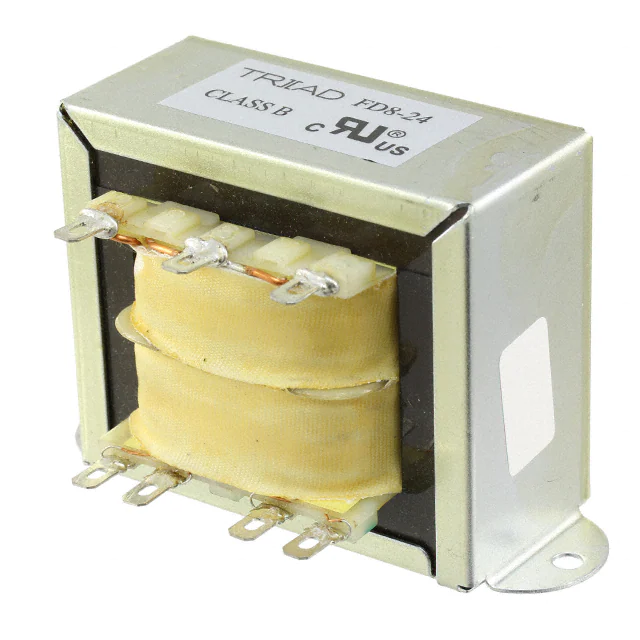

FD8-24PWR XFMR LAMINATED 100VA CHAS MT |
1,120 | 26.82 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 24V | 4A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|
62053PWR XFMR TORO 15VA CHAS MT |
124 | 27.97 |
RFQ |
Datasheet |
Tray | Standard Mini | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1A, Series 500mA | Dual | Dual | No | 15VA | Chassis Mount | Wire Leads | - | 24.00mm | 4000Vrms |
|
|
241-8-28PWR XFMR LAMINATED 100VA CHAS MT |
548 | 28.72 |
RFQ |
Datasheet |
Box | Two-4-One™ | Active | Laminated Core | 115V | 28V | 3.6A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
241-8-24PWR XFMR LAMINATED 100VA CHAS MT |
374 | 28.72 |
RFQ |
Datasheet |
Box | Two-4-One™ | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
241-8-12PWR XFMR LAMINATED 100VA CHAS MT |
140 | 28.72 |
RFQ |
Datasheet |
Box | Two-4-One™ | Active | Laminated Core | 115V | 12.6V | 8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
DP-241-8-20PWR XFMR LAMINATED 100VA CHAS MT |
219 | 29.44 |
RFQ |
Datasheet |
Box | Two-4-One™ | Active | Laminated Core | 115V, 230V | 20V | 5A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
DP-241-8-28PWR XFMR LAMINATED 100VA CHAS MT |
168 | 29.44 |
RFQ |
Datasheet |
Box | Two-4-One™ | Active | Laminated Core | 115V, 230V | 28V | 3.6A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
|
DP-241-8-120PWR XFMR LAMINATED 100VA CHAS MT |
157 | 29.44 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 120V | 850mA | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms |
|
A41-80-36PWR XFMR LAMINATED 80VA CHAS MT |
809 | 30.35 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms |
|
A41-80-230PWR XFMR LAMINATED 80VA CHAS MT |
270 | 30.35 |
RFQ |
Datasheet |
Box | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 700mA, Series 350mA | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms |
