| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPC-12-800B7PWR XFMR LAMINATED 10VA TH |
2,033 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 36.53mm W | 41.28mm | 1500Vrms |
|
|
DPC-230-20B46PWR XFMR LAMINATED 4.4VA TH |
2,627 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 40mA, Series 20mA | Dual | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms |
|
|
DPC-24-180B18PWR XFMR LAMINATED 4.4VA TH |
3,037 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 360mA, Series 180mA | Dual | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms |
|
|
DPC-120-35B38PWR XFMR LAMINATED 4.4VA TH |
3,304 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 70mA, Series 35mA | Dual | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms |
|

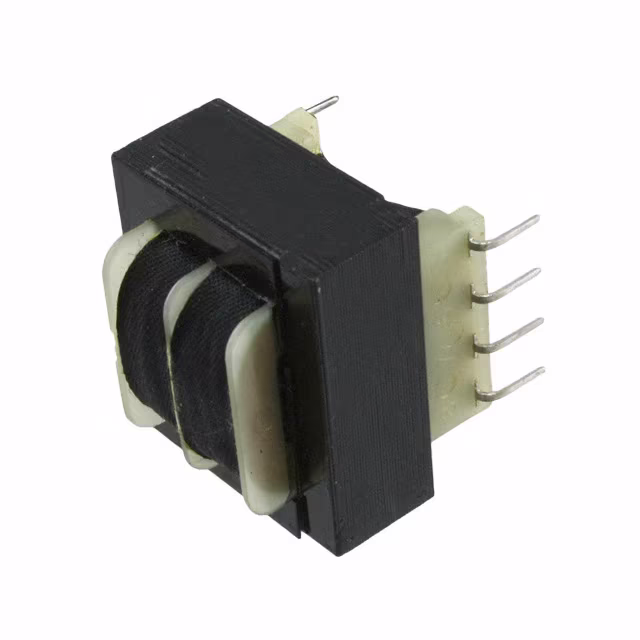

ST3-56B33PWR XFMR LAMINATED 2.4VA TH |
3,410 | 0.00 |
RFQ |
Datasheet |
Bulk | Split Bobbin Plug-In | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.05mm L x 28.70mm W | 30.23mm | 2500Vrms |
|
|
ST3-10B1PWR XFMR LAMINATED 2.4VA TH |
3,137 | 0.00 |
RFQ |
Datasheet |
Bulk | Split Bobbin Plug-In | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.05mm L x 28.70mm W | 30.23mm | 2500Vrms |
|
|
ST3-120B37PWR XFMR LAMINATED 2.4VA TH |
3,457 | 0.00 |
RFQ |
Datasheet |
Bulk | Split Bobbin Plug-In | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 40mA, Series 20mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.05mm L x 28.70mm W | 30.23mm | 2500Vrms |
|
|
DPC-10-440B2PWR XFMR LAMINATED 4.4VA TH |
3,872 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 880mA, Series 440mA | Dual | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms |
|
|
ST3-28B21PWR XFMR LAMINATED 2.4VA TH |
2,991 | 0.00 |
RFQ |
Datasheet |
Bulk | Split Bobbin Plug-In | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.05mm L x 28.70mm W | 30.23mm | 2500Vrms |
|
|
DPC-56-180B31PWR XFMR LAMINATED 10VA TH |
3,339 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 360mA, Series 180mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 36.53mm W | 41.28mm | 1500Vrms |
|
|
DPC-20-500B15PWR XFMR LAMINATED 10VA TH |
3,723 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1A, Series 500mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 36.53mm W | 41.28mm | 1500Vrms |
|
|
DPC-24-450B19PWR XFMR LAMINATED 10VA TH |
2,597 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 900mA, Series 450mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 36.53mm W | 41.28mm | 1500Vrms |
|
|
DST4-48B30PWR XFMR LAMINATED 6VA TH |
3,815 | 0.00 |
RFQ |
Datasheet |
Bulk | Split Bobbin Plug-In | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 250mA, Series 125mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.40mm L x 33.27mm W | 33.27mm | 2500Vrms |
|
|
PC-40-110B26PWR XFMR LAMINATED 4.4VA TH |
3,283 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 220mA, Series 110mA | Single | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms |
|
|
PC-28-160B50PWR XFMR LAMINATED 4.4VA TH |
2,973 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 320mA, Series 160mA | Single | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms |
|
|
PC-20-220B14PWR XFMR LAMINATED 4.4VA TH |
3,015 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 440mA, Series 220mA | Single | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms |
|
|
ST7-36B57PWR XFMR LAMINATED 36VA TH |
2,780 | 0.00 |
RFQ |
Datasheet |
Bulk | Split Bobbin Plug-In | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.80mm L x 55.63mm W | 39.62mm | 2500Vrms |
|
|
DPC-12-350B6PWR XFMR LAMINATED 4.4VA TH |
2,096 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 700mA, Series 350mA | Dual | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms |
|
|
ST7-12B52PWR XFMR LAMINATED 36VA TH |
2,137 | 0.00 |
RFQ |
Datasheet |
Bulk | Split Bobbin Plug-In | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.80mm L x 55.63mm W | 39.62mm | 2500Vrms |
|
|
DPC-16-260B10PWR XFMR LAMINATED 4.4VA TH |
2,399 | 0.00 |
RFQ |
Datasheet |
Bulk | PC Plug-In | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 520mA, Series 260mA | Dual | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms |
