Power Transformers(6768)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
186B28 PWR XFMR LAMINATED 5.6VA CHAS MT Hammond Manufacturing	2,783	16.06	RFQ	Datasheet	Box	186	Active	Laminated Core	115V, 230V	28V	200mA	Dual	Single	Yes	5.6VA	Chassis Mount	Solder, Quick Connect	60.20mm L x 41.28mm W	34.80mm	2000Vrms
186B16 PWR XFMR LAMINATED 6.4VA CHAS MT Hammond Manufacturing	2,115	16.06	RFQ	Datasheet	Box	186	Active	Laminated Core	115V, 230V	16V	400mA	Dual	Single	Yes	6.4VA	Chassis Mount	Solder, Quick Connect	60.20mm L x 41.28mm W	34.80mm	2000Vrms
186B20 PWR XFMR LAMINATED 6VA CHAS MT Hammond Manufacturing	2,299	16.06	RFQ	Datasheet	Box	186	Active	Laminated Core	115V, 230V	20V	300mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.20mm L x 41.28mm W	34.80mm	2000Vrms
DPC-24-450 PWR XFMR LAMINATED 10VA TH Signal Transformer	187	16.09	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 900mA, Series 450mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DP-241-5-36 PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,492	16.09	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	36V	350mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms
VPS36-700 PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,003	16.44	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 1.4A, Series 700mA	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	71.37mm	4000Vrms
VPS20-1250 PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,288	16.28	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
DP-241-4-12L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,910	16.29	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	12.6V	500mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms

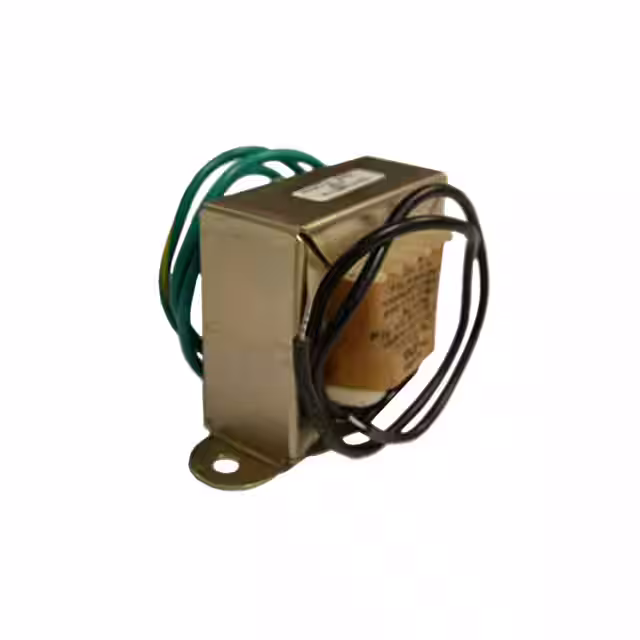

F-16X PWR XFMR LAMINATED 18.9VA CHAS Triad Magnetics	2,144	16.47	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	6.3V	3A	Single	Single	Yes	18.9VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	2500Vrms
FP230-50 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,518	16.54	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 120V, Series 230V	Parallel 100mA, Series 50mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FP30-400 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,293	16.54	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 800mA, Series 400mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms

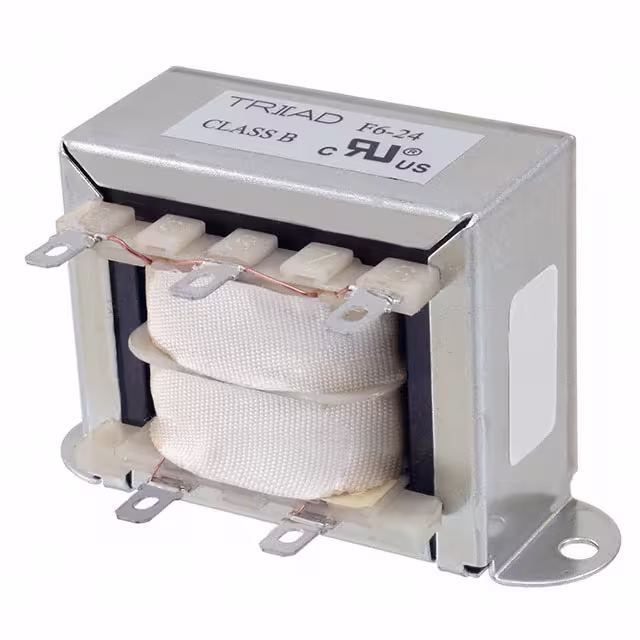

F6-24 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,123	16.62	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	24V	1.25A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC

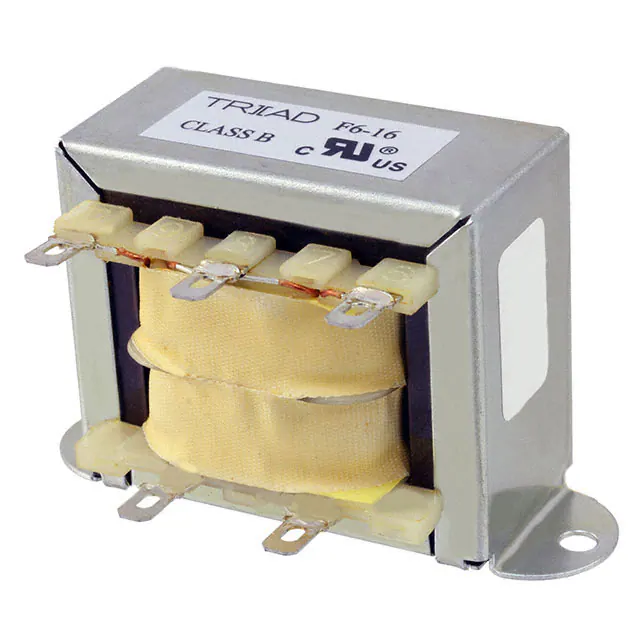

F6-16 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,316	16.62	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	16V	2A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC

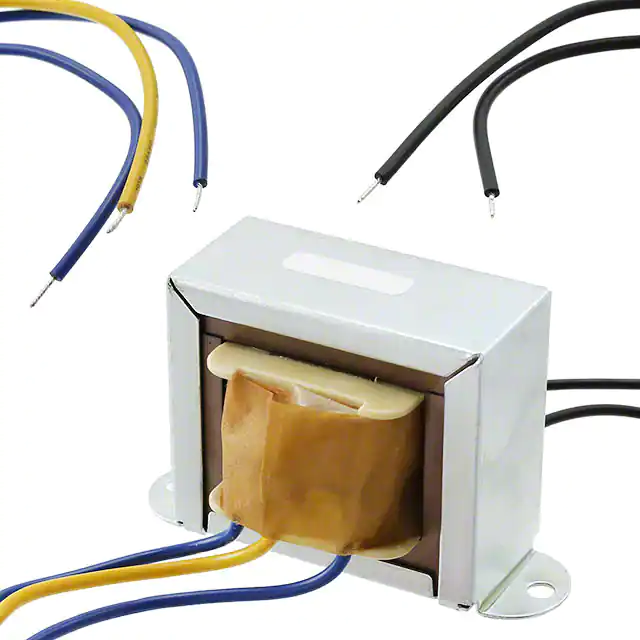

F-25X PWR XFMR LAMINATED 18.9VA CHAS Triad Magnetics	3,379	16.47	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12.6V	1.5A	Single	Single	Yes	18.9VA	Chassis Mount	Wire Leads	84.12mm L x 50.80mm W	49.20mm	1500Vrms
229E20 XFRMR SEMI-TORO 2VA THRU HOLE Hammond Manufacturing	3,906	16.52	RFQ	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 250mA, Series 125mA	Dual	Dual	No	2VA	Through Hole	PC Pin	39.62mm L x 47.75mm W	16.51mm	1750Vrms
FP24-500 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,613	16.54	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 1A, Series 500mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms

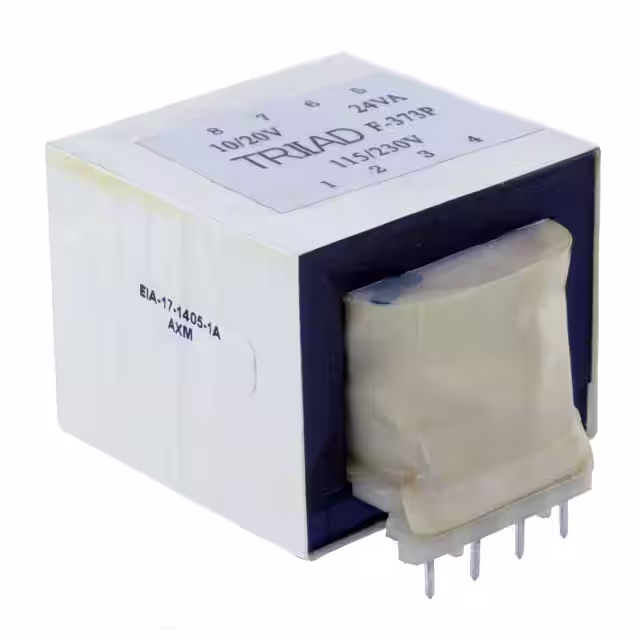

F-373P PWR XFMR LAMINATED 24VA TH Triad Magnetics	3,543	16.57	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	24VA	Through Hole	PC Pin	41.28mm L x 57.15mm W	34.93mm	1500Vrms
14A-20-12 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,818	16.65	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 3.2A, Series 1.6A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	41.30mm	4000Vrms
DP-241-5-24L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,821	16.99	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	24V	500mA	Dual	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
229A20 PWR XFMR SEMI-TORO 6VA TH Hammond Manufacturing	2,164	17.01	RFQ	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Dual	Dual	No	6VA	Through Hole	PC Pin	39.62mm L x 47.75mm W	21.59mm	1750Vrms
