| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

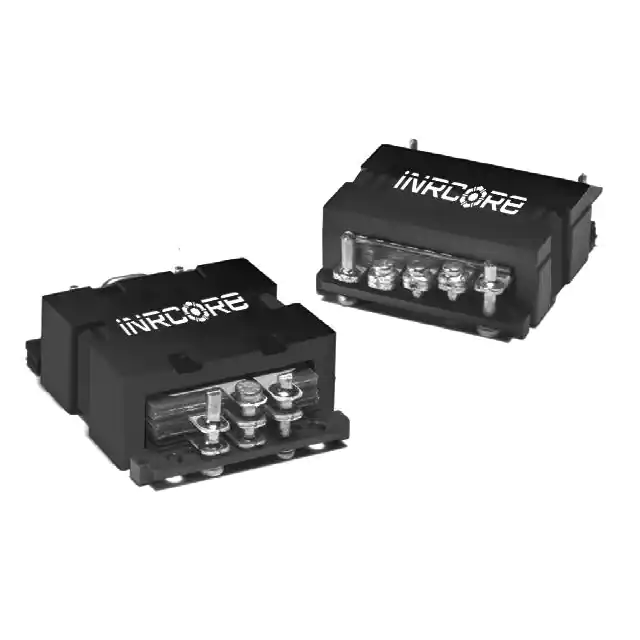

_iNRCORE_Product-Image.jpg)
|
R8305NLTTRANSFORMER PLANAR 345UH |
2,991 | 5.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 140W | Surface Mount | Solder, Quick Connect | 23.37mm L x 21.59mm W | 8.60mm | 1750VDC |
|
|
R8312NLTTRANSFORMER PLANAR 194UH |
2,961 | 5.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Planar | - | - | - | Dual | Dual, Multiple Taps | Yes | 140W | Surface Mount | Solder, Quick Connect | 23.37mm L x 21.59mm W | 8.60mm | 1750VDC |
|
|
R8308NLTTRANSFORMER PLANAR 240UH |
3,834 | 5.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Planar | - | - | - | Dual | Dual | No | 140W | Surface Mount | Solder, Quick Connect | 23.37mm L x 21.59mm W | 8.60mm | 1750VDC |
|
|
R8302NLTTRANSFORMER PLANAR 194UH |
2,284 | 5.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 140W | Surface Mount | Solder, Quick Connect | 23.37mm L x 21.59mm W | 8.60mm | 1750VDC |
|
|
R8309NLTTRANSFORMER PLANAR 290UH |
3,919 | 5.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Planar | - | - | - | Dual | Dual | No | 140W | Surface Mount | Solder, Quick Connect | 23.37mm L x 21.59mm W | 8.60mm | 1750VDC |
|
|
R8314NLTTRANSFORMER PLANAR 290UH |
2,745 | 5.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Planar | - | - | - | Dual | Dual, Multiple Taps | Yes | 140W | Surface Mount | Solder, Quick Connect | 23.37mm L x 21.59mm W | 9.70mm | 1750VDC |
|
|
R8306NLTTRANSFORMER PLANAR 153UH |
3,966 | 5.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Planar | - | - | - | Dual | Dual | No | 140W | Surface Mount | Solder, Quick Connect | 23.37mm L x 21.59mm W | 8.60mm | 1750VDC |
_iNRCORE_Product-Image.jpg)
|
R8249NLTRANSFORMER PLANAR 215UH |
2,072 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Dual, Multiple Taps | Yes | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
|
|
R8240NLTRANSFORMER PLANAR 120UH |
3,579 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
|
|
R8230NLTRANSFORMER PLANAR 54UH |
3,679 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
|
|
R8231NLTRANSFORMER PLANAR 85UH |
3,658 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
|
|
R8205NLTRANSFORMER PLANAR 480UH |
3,255 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 10.20mm | 1750VDC |
|
|
R8241NLTRANSFORMER PLANAR 165UH |
3,299 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
|
|
R8246NLTRANSFORMER PLANAR 215UH |
2,731 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
|
|
R8236NLTRANSFORMER PLANAR 120UH |
3,756 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
|
|
R8233NLTRANSFORMER PLANAR 165UH |
2,589 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
|
|
R8207NLTRANSFORMER PLANAR 660UH |
3,677 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 10.20mm | 1750VDC |
|
|
R8248NLTRANSFORMER PLANAR 215UH |
2,616 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
|
|
R8210NLTRANSFORMER PLANAR 340UH |
2,049 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 10.20mm | 1750VDC |
|
|
R8232NLTRANSFORMER PLANAR 120UH |
2,399 | 8.77 |
RFQ |
Datasheet |
Tube | - | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC |
