Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
186B24 PWR XFMR LAMINATED 6VA CHAS MT Hammond Manufacturing	2,130	16.06	RFQ	Datasheet	Box	186	Active	Laminated Core	115V, 230V	24V	250mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.20mm L x 41.28mm W	34.80mm	2000Vrms
164G36 PWR XFMR LAMINATED 12VA TH Hammond Manufacturing	598	16.63	RFQ	Datasheet	Bulk	164	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 700mA, Series 350mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	38.10mm	2500Vrms

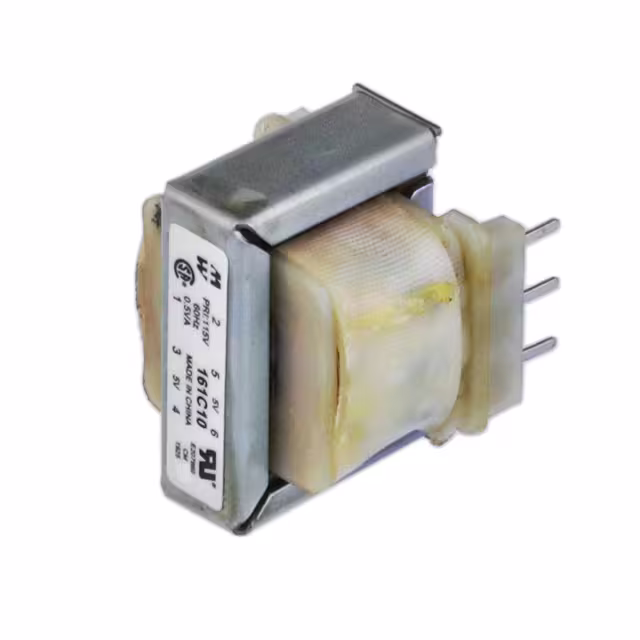

161C10 PWR XFMR LAMINATED 0.5VA TH Hammond Manufacturing	788	11.29	RFQ	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 100mA, Series 50mA	Single	Single, Multiple Taps	No	0.5VA	Through Hole	PC Pin	25.40mm L x 23.88mm W	21.34mm	2000Vrms

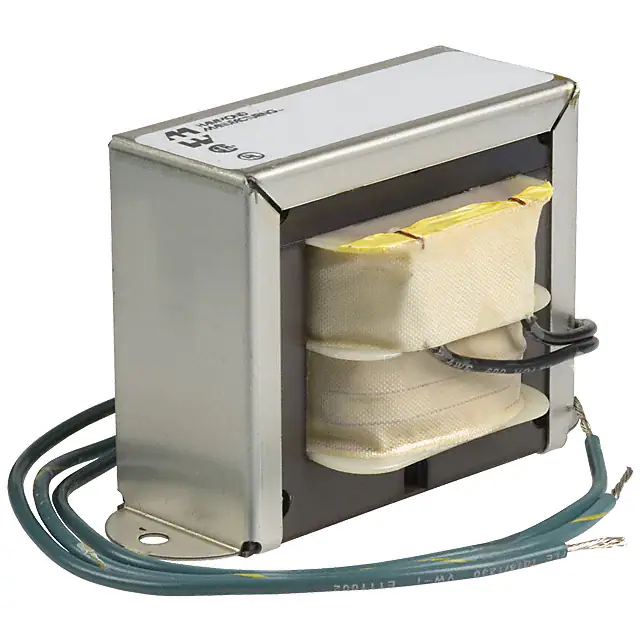

166JA12 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	138	16.38	RFQ	Datasheet	Box	166	Active	Laminated Core	115V	12V	1A	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.37mm L x 41.40mm W	42.93mm	2000Vrms
166LA12 PWR XFMR LAMINATED 24VA CHAS MT Hammond Manufacturing	187	17.72	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	12V	2A	Single	Single	Yes	24VA	Chassis Mount	Wire Leads	82.55mm L x 44.45mm W	50.80mm	2000Vrms
166J12 PWR XFMR LAMINATED 12.6VA CHAS Hammond Manufacturing	173	18.79	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12.6VA	Chassis Mount	Wire Leads	71.37mm L x 41.40mm W	42.93mm	2000Vrms

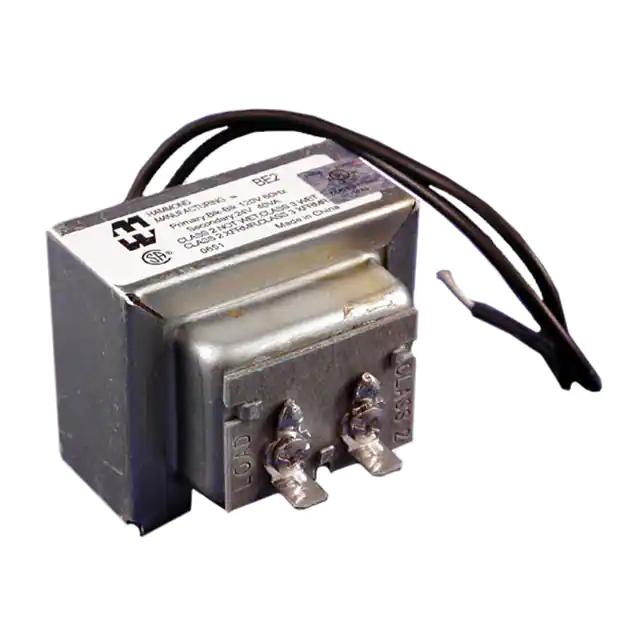

BE2F PWR XFMR LAMINATED 40VA CHAS MT Hammond Manufacturing	139	21.87	RFQ	Datasheet	Bulk	BE	Active	Laminated Core	120V	16.5V	2.42A	Single	Single	No	40VA	Chassis Mount	Wire Leads, Quick Connect	59.18mm L x 66.04mm W	50.29mm	-
166L16 PWR XFMR LAMINATED 35.2VA CHAS Hammond Manufacturing	119	25.60	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	16V	2.2A	Single	Single	Yes	35.2VA	Chassis Mount	Wire Leads	82.55mm L x 50.80mm W	50.80mm	2000Vrms

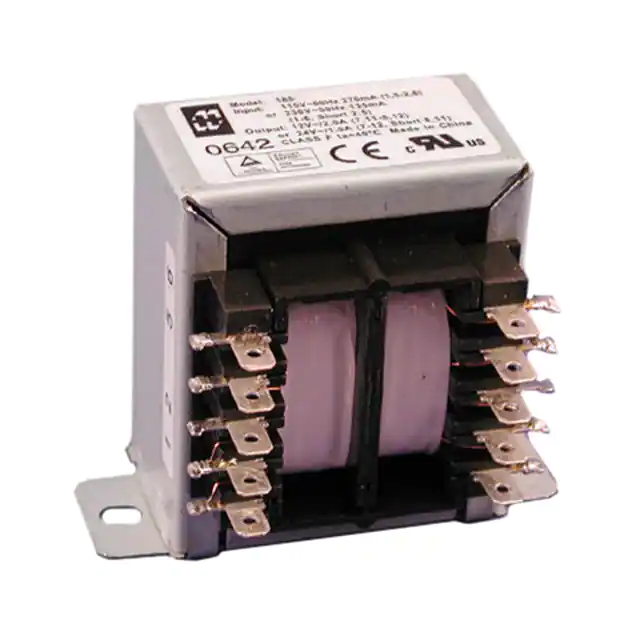

185D24 PWR XFMR LAMINATED 43VA CHAS MT Hammond Manufacturing	2,721	27.56	RFQ	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 3.6A, Series 1.8A	Dual	Dual	No	43VA	Chassis Mount	Solder, Quick Connect	79.25mm L x 56.39mm W	68.07mm	4000Vrms
166P18 PWR XFMR LAMINATED 90VA CHAS MT Hammond Manufacturing	124	42.68	RFQ	Datasheet	Bulk	166	Active	Laminated Core	115V	18V	5A	Single	Single	Yes	90VA	Chassis Mount	Wire Leads	102.36mm L x 63.50mm W	66.80mm	2000Vrms

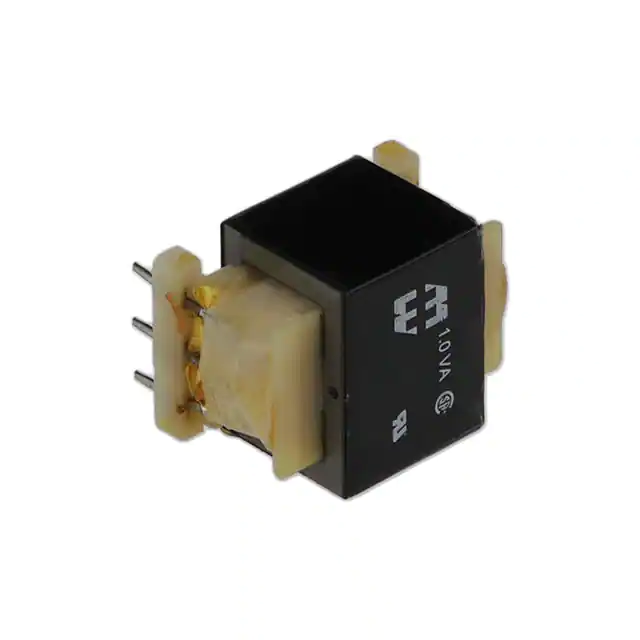

161D28 PWR XFMR LAMINATED 1VA TH Hammond Manufacturing	2,069	11.27	RFQ	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 60mA, Series 30mA	Single	Single, Multiple Taps	No	1VA	Through Hole	PC Pin	25.40mm L x 35.05mm W	21.08mm	2000Vrms
161FA12 PWR XFMR LAMINATED 1.2VA TH Hammond Manufacturing	3,933	11.98	RFQ	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 200mA, Series 100mA	Single	Single, Multiple Taps	No	1.2VA	Through Hole	PC Pin	35.05mm L x 30.23mm W	30.99mm	2000Vrms

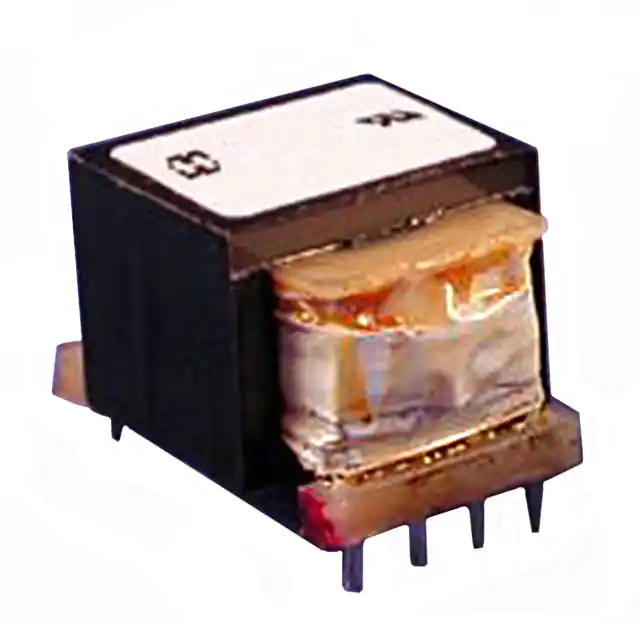

160D10 PWR XFMR LAMINATED 1VA TH Hammond Manufacturing	1,401	12.98	RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 180mA, Series 90mA	Dual	Single, Multiple Taps	No	1VA	Through Hole	PC Pin	25.40mm L x 35.05mm W	21.08mm	2000Vrms
160D24 PWR XFMR LAMINATED 1VA TH Hammond Manufacturing	4,295	12.98	RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 70mA, Series 35mA	Dual	Single, Multiple Taps	No	1VA	Through Hole	PC Pin	25.40mm L x 35.05mm W	21.08mm	2000Vrms

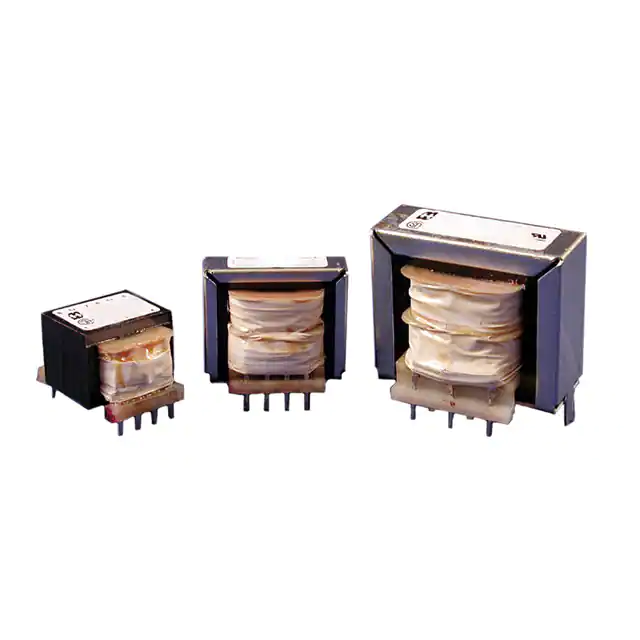

160D120 PWR XFMR LAMINATED 1VA TH Hammond Manufacturing	119	12.98	RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 16mA, Series 8mA	Dual	Single, Multiple Taps	No	1VA	Through Hole	PC Pin	25.40mm L x 35.05mm W	21.08mm	2000Vrms
160D12 PWR XFMR LAMINATED 1VA TH Hammond Manufacturing	422	12.98	RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 140mA, Series 70mA	Dual	Single, Multiple Taps	No	1VA	Through Hole	PC Pin	25.40mm L x 35.05mm W	21.08mm	2000Vrms
161F28 PWR XFMR LAMINATED 4.4VA TH Hammond Manufacturing	401	14.62	RFQ	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 320mA, Series 160mA	Single	Single, Multiple Taps	No	4.4VA	Through Hole	PC Pin	42.93mm L x 31.75mm W	36.83mm	2000Vrms
161FA16 PWR XFMR LAMINATED 4.4VA TH Hammond Manufacturing	133	14.62	RFQ	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 520mA, Series 260mA	Single	Single, Multiple Taps	No	4.4VA	Through Hole	PC Pin	42.93mm L x 31.75mm W	36.83mm	2000Vrms
160F28 PWR XFMR LAMINATED 4.4VA TH Hammond Manufacturing	270	14.95	RFQ	Datasheet	Bulk	160	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 320mA, Series 160mA	Dual	Single, Multiple Taps	No	4.4VA	Through Hole	PC Pin	42.93mm L x 31.75mm W	36.83mm	2000Vrms
162E20 XFRMR LAMINATED 2.4VA THRU HOLE Hammond Manufacturing	607	15.80	RFQ	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 240mA, Series 120mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
