| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3570-1411-053RELAY REED SIP SPST .5A 5V W/DIO |
172 | 3.07 |
RFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|
3572-1220-122RELAY REED DIP DPST .5A 12V W/ES |
378 | 3.30 |
RFQ |
Datasheet |
Tube | 3572 | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
3572-1220-054RELAY REED DIP DPST .5A 5V W/DIO |
160 | 3.30 |
RFQ |
Datasheet |
Tube | 3572 | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 35.7 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.6 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
3570-1419-123RELAY REED SIP SPST 1A 12V W/DI |
124 | 3.45 |
RFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|
3563-1231-123RELAY REED DIP SPDT .4A 12V W/DI |
126 | 6.13 |
RFQ |
Datasheet |
Tube | 3563 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
|
3563-1231-053RELAY REED DIP SPDT .4A 5V W/DIO |
186 | 6.17 |
RFQ |
Datasheet |
Tube | 3563 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
3570-1421-054RELAY REED SIP DPST .5A 5V EM/DI |
3,273 | 6.43 |
RFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 13.3 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C |
|
|
3563-1231-241RELAY REED DIP SPDT .4A 24V |
499 | 6.53 |
RFQ |
Datasheet |
Tube | 3563 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 11 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
|
3563-1231-052RELAY REED DIP SPDT .4A 5V W/ES |
190 | 6.75 |
RFQ |
Datasheet |
Tube | 3563 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
3570-1429-054RELAY REED SIP DPST 1A 5V EM/DI |
3,466 | 6.93 |
RFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 200VDC - Max | 13.3 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -40°C ~ 85°C |
|
BFS-1A-12CRELAY REED SPST .5A 12V |
161 | 8.85 |
RFQ |
Datasheet |
Tube | BFS | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C |
|
BFH-1C-12REED RELAY SPDT .5A 12V |
127 | 11.59 |
RFQ |
Datasheet |
Tube | BFH | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|

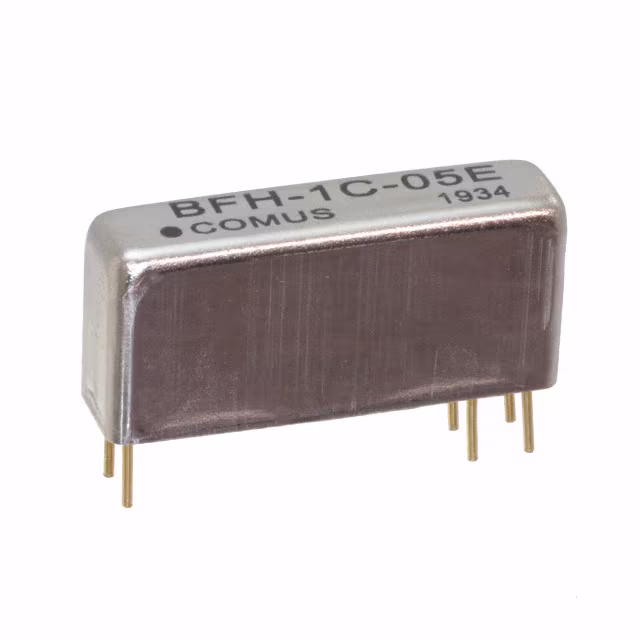

BFH-1C-05EREED RELAY SPDT .5A 5V |
120 | 12.11 |
RFQ |
Datasheet |
Tube | BFH | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 21.7 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
3570-1419-122RELAY REED SIP SPST 1A 12V W/EM |
576 | 3.71 |
RFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|
|
3563-1231-244RELAY REED DIP SPDT .4A 24V W/DI |
102 | 7.15 |
RFQ |
Datasheet |
Tube | 3563 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 11 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
BFH-3A-12RELAY REED 3PST .5A 12V |
489 | 9.84 |
RFQ |
Datasheet |
Tube | BFH | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C |
|
|
BFH-1C-05REED RELAY SPDT .5A 5V |
195 | 11.59 |
RFQ |
Datasheet |
Tube | BFH | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
BFH-1C-05CREED RELAY SPDT .5A 5V |
192 | 12.36 |
RFQ |
Datasheet |
Tube | BFH | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
3570-1333-051RELAY REED SIP SPST .5A 5V |
2,446 | 2.42 |
RFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|
|
3570-1411-121RELAY REED SIP SPST .5A 12V |
198 | 2.93 |
RFQ |
Datasheet |
Tube | 3570 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
