| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CouplerType | Frequency | CouplingFactor | Applications | InsertionLoss | Power-Max | Isolation | ReturnLoss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1B0364-3RF DIR COUPLER 500MHZ-1GHZ |
3,827 | 0.00 |
RFQ |
Tray | - | Obsolete | Standard | 500MHz ~ 1GHz | 3dB | Military | - | 280W | - | - | |
|
|
1H0360-3RF DIR COUPLER 225MHZ-400MHZ |
2,055 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 225MHz ~ 400MHz | 3dB | Military | 0.25dB | 420W | 23dB | 23dB |
|
|
1Z0261-3RF DIR COUPLER 88MHZ-108MHZ MOD |
2,793 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 88MHz ~ 108MHz | 3dB | Military | 0.25dB | 400W | 23dB | 23dB |
|
|
1Z0262-3RF DIR COUPLER 160MHZ-230MHZ MOD |
3,802 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 160MHz ~ 230MHz | 3dB | Military | 0.25dB | 560W | 23dB | 23dB |
|
|
1Z0263-3RF DIR COUPLER 200MHZ-400MHZ MOD |
2,629 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 200MHz ~ 400MHz | 3dB | Military | 0.25dB | 420W | 20dB | 23dB |
|
|
1G0618-6RF DIR COUPLER 8GHZ-12.4GHZ |
3,739 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 8GHz ~ 12.4GHz | 6dB | Military | 0.6dB | 20W | - | 14.5dB |
|
|
10616-30RF DIR COUPLER 2GHZ-4GHZ |
2,807 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 2GHz ~ 4GHz | 30dB | Military | 0.45dB | 100W | - | 19dB |
|
|
10616-6RF DIR COUPLER 2GHZ-4GHZ |
2,821 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 2GHz ~ 4GHz | 6dB | Military | 0.45dB | 20W | - | 19dB |
|
|
10870-10RF DIR COUPLER 500MHZ-2GHZ |
3,682 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 500MHz ~ 2GHz | 10dB | Military | 0.5dB | 50W | - | 19dB |
|
|
10930-10RF DIR COUPLER 800MHZ-1.6GHZ |
3,946 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 800MHz ~ 1.6GHz | 10dB | Military | 0.35dB | 50W | - | 20.8dB |
|
|
10930-6RF DIR COUPLER 800MHZ-1.6GHZ |
2,684 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 800MHz ~ 1.6GHz | 6dB | Military | 0.35dB | 20W | - | 20.8dB |
|

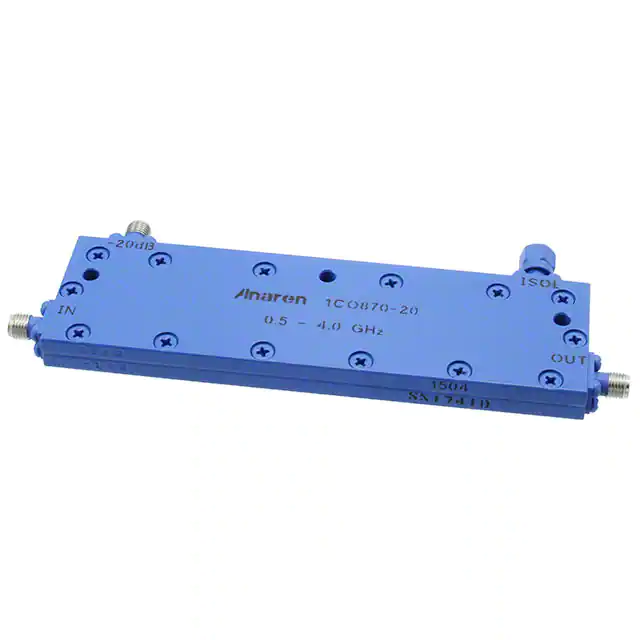

1C0870-20RF DIR COUPLER 500MHZ-4GHZ |
3,584 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 500MHz ~ 4GHz | 20dB | Military | 0.5dB | 100W | - | 17.68dB |
|
|
1G0617-10RF DIR COUPLER 4GHZ-8GHZ |
3,869 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 4GHz ~ 8GHz | 10dB | Military | 0.5dB | 5W | - | 16.5dB |
|
|
1G0617-20RF DIR COUPLER 4GHZ-8GHZ |
2,590 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 4GHz ~ 8GHz | 20dB | Military | 0.5dB | 100W | - | 16.5dB |
|
|
1G0618-10RF DIR COUPLER 8GHZ-12.4GHZ |
3,346 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 8GHz ~ 12.4GHz | 10dB | Military | 0.6dB | 50W | - | 14.5dB |
|
|
1G0618-20RF DIR COUPLER 8GHZ-12.4GHZ |
2,959 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 8GHz ~ 12.4GHz | 20dB | Military | 0.6dB | 100W | - | 14.5dB |
|
|
RFP-4015RF DIR COUPLER 800MHZ-1GHZ MOD |
2,755 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 800MHz ~ 1GHz | 3dB | Military | 0.3dB | 400W | 20dB | 19dB |
|
|
RFP-4047RF DIR COUPLER 300MHZ-500MHZ MOD |
2,900 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 300MHz ~ 500MHz | 3dB | Military | 0.3dB | 200W | 21dB | 20.8dB |
|
|
RFP-4053RF DIR COUPLER 130MHZ-180MHZ MOD |
2,237 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Standard | 130MHz ~ 180MHz | 3dB | Military | 0.3dB | 200W | 20dB | 19dB |
|
|
RFP-4113COUPLER 3DB 90DEG |
2,481 | 0.00 |
RFQ |
Tray | - | Obsolete | - | - | - | - | - | - | - | - |
