Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CouplerType	Frequency	CouplingFactor	Applications	InsertionLoss	Power-Max	Isolation	ReturnLoss
X4C20J1-03G IC RF 5G HYBRID COUPLER TTM Technologies, Inc.	2,188	1.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger® IV	Active	Standard	1.7GHz ~ 2.3GHz	-	Cellular	0.5dB	5W	20dB	20dB

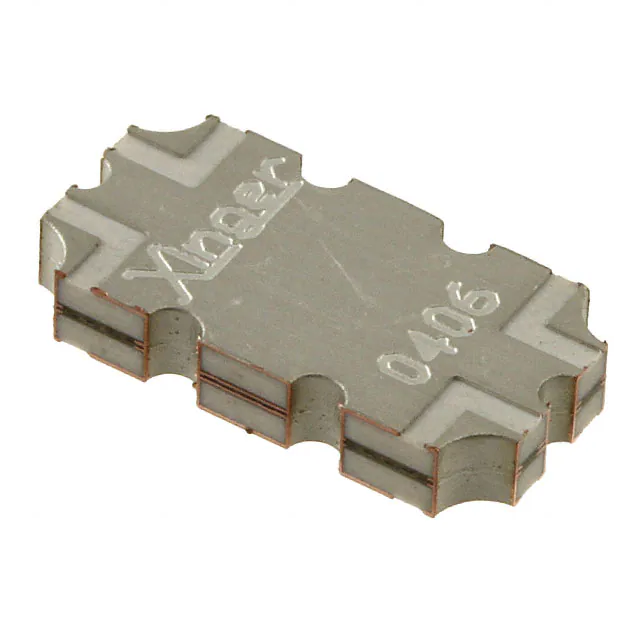

1M803S RF DIR COUPLER 4.8GHZ-6GHZ SMD TTM Technologies, Inc.	2,421	4.26	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger®	Active	Standard	4.8GHz ~ 6GHz	-	General Purpose	0.25dB	20W	20dB	-

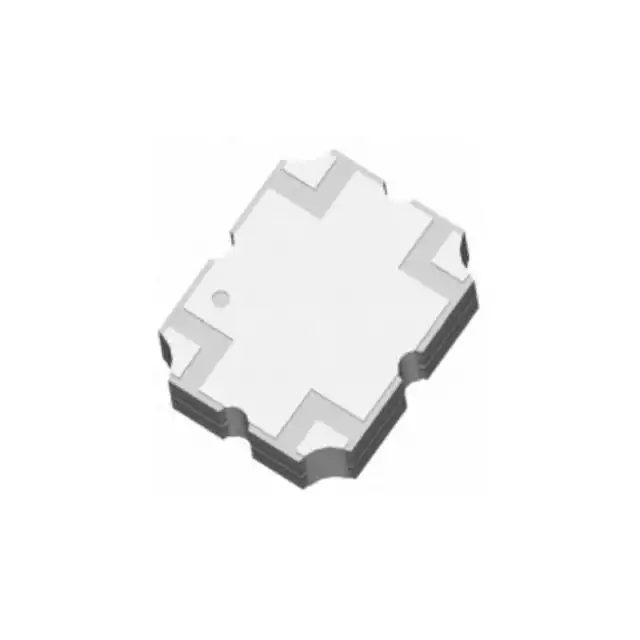

XC0900P-10S RF DIR COUPLER 800MHZ-1GHZ SMD TTM Technologies, Inc.	885	4.40	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger II®	Active	Standard	800MHz ~ 1GHz	10dB	General Purpose	0.38dB	55W	-	-

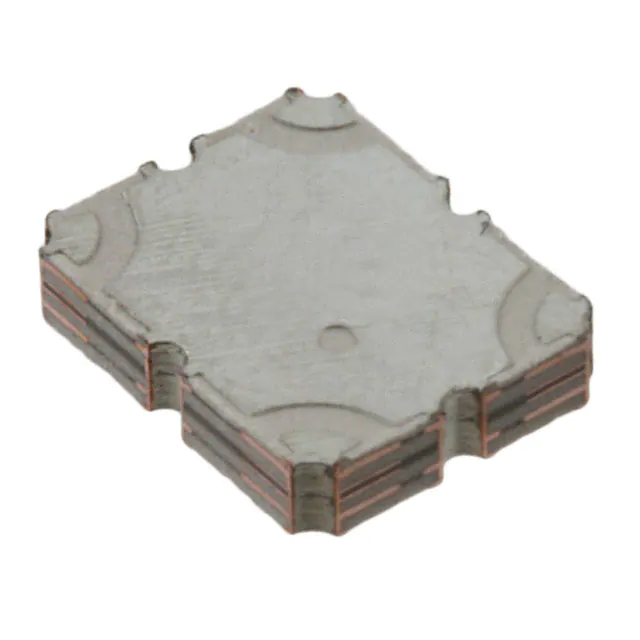

X3C19P2-03S RF DIR COUPLER 1.7GHZ-2GHZ SMD TTM Technologies, Inc.	527	4.65	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	1.7GHz ~ 2GHz	3dB	DCS, LTE, PCS, WCDMA	0.22dB	176W	23dB	24.9dB
X3C25P1-05S RF DIR COUPLER 2.3GHZ-2.7GHZ SMD TTM Technologies, Inc.	3,145	5.04	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	2.3GHz ~ 2.7GHz	5dB	General Purpose	0.18dB	60W	-	-

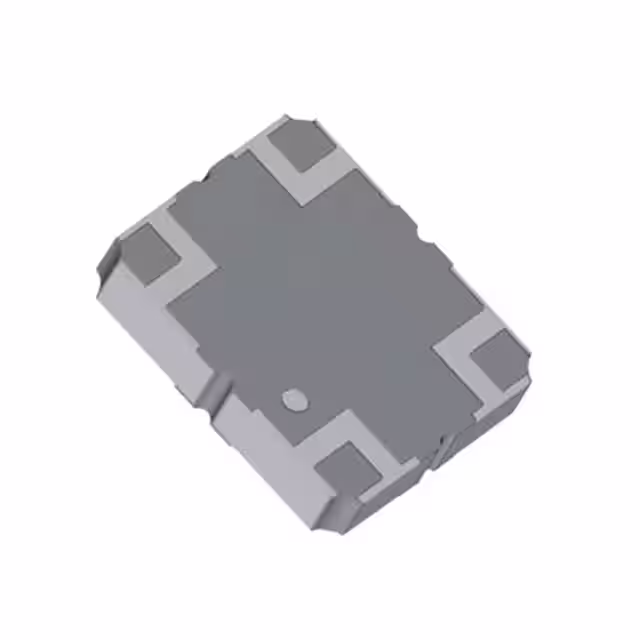

X3C21P1-05S RF DIR COUPLER 2GHZ-2.3GHZ SMD TTM Technologies, Inc.	546	5.04	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	2GHz ~ 2.3GHz	5dB	General Purpose	0.15dB	60W	-	-
X3C26P1-30S RF DIR COUPLER 2.3GHZ-2.9GHZ SMD TTM Technologies, Inc.	2,904	5.77	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	2.3GHz ~ 2.9GHz	30dB	LTE, WiMAX	0.1dB	200W	-	24.9dB
X3C09E2-20S RF DIR COUPLER 800MHZ-1GHZ 4SMD TTM Technologies, Inc.	2,955	6.41	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger III®	Active	Standard	800MHz ~ 1GHz	20dB	AMPS, CDMA, WCDMA	0.075dB	225W	-	20dB
X3C70F1-20S IC DIR COUPLR 5.5-8.5GHZ 20DB TTM Technologies, Inc.	2,062	6.64	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	5.5GHz ~ 8.5GHz	20 ± 1.5dB	General Purpose	0.25dB	20W	-	30dB
XC1500A-20S RF DIR COUPLER 1GHZ-2GHZ SMD TTM Technologies, Inc.	3,445	7.75	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger II®	Active	Standard	1GHz ~ 2GHz	20dB	General Purpose	0.19dB	160W	-	-
DC1722J5020AHF RF DIR COUPLER 1.7-2.2GHZ 0805 TTM Technologies, Inc.	787	1.12	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger®	Active	Standard	1.7GHz ~ 2.2GHz	19.9dB	General Purpose	0.17dB	2W	-	22.5dB

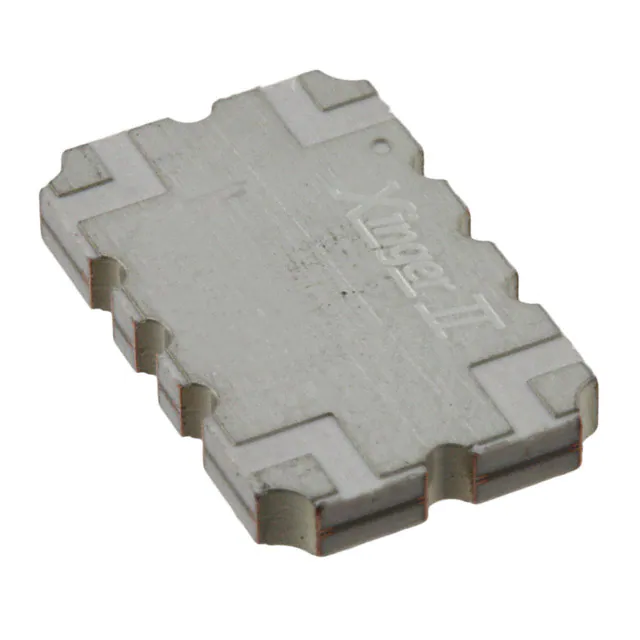

XC1900A-03S RF DIR COUPLER 1.4GHZ-2GHZ SMD TTM Technologies, Inc.	2,334	5.15	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger II®	Active	Standard	1.4GHz ~ 2GHz	3dB	AMPS	0.15dB	150W	25dB	24.9dB
1H0566-3 RF DIR COUPLER 2GHZ-4GHZ TTM Technologies, Inc.	3,367	332.12	RFQ	Datasheet	Tray	-	Obsolete	Standard	2GHz ~ 4GHz	3dB	Military	0.3dB	100W	23dB	19dB

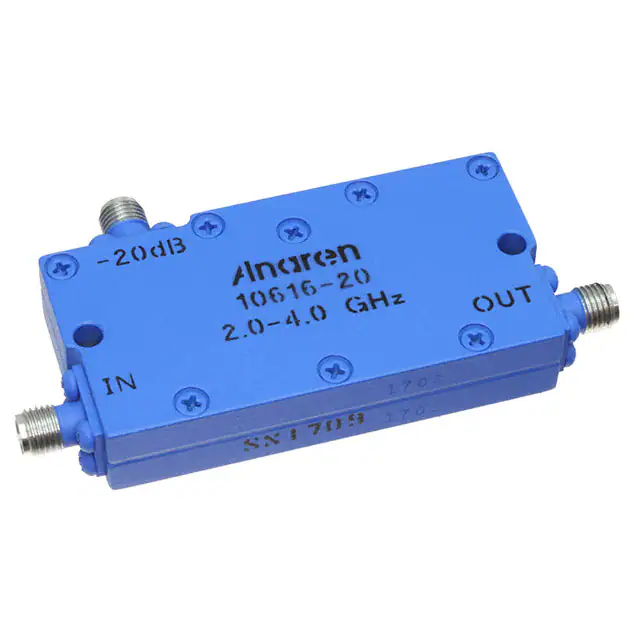

10616-20 RF DIR COUPLER 2GHZ-4GHZ TTM Technologies, Inc.	2,764	600.21	RFQ	Datasheet	Tray	-	Obsolete	Standard	2GHz ~ 4GHz	20dB	Military	0.45dB	100W	-	19dB
C0409J5003AHF RF DIR COUPLER 400-900MHZ 0805 TTM Technologies, Inc.	3,902	0.98	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger®	Active	Standard	400MHz ~ 900MHz	-	General Purpose	0.6dB	4W	24dB	-20dB
X4C30F1-30S IC DIR COUPLR 2-4GHZ 30DB TTM Technologies, Inc.	2,195	5.04	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	Standard	2GHz ~ 4GHz	30 ± 1.5dB	LTE, WiMAX	0.075dB	100W	-	30dB
C3337J5003AHF RF DIR COUPLER 3.3-3.7GHZ 0805 TTM Technologies, Inc.	3,486	0.39	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger®	Active	Standard	3.3GHz ~ 3.7GHz	3dB	General Purpose	0.2dB	4W	22dB	18dB
C1015J5003AHF RF DIR COUPLER 1GHZ-1.5GHZ 0805 TTM Technologies, Inc.	2,655	0.39	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Xinger®	Active	Standard	1GHz ~ 1.5GHz	3dB	General Purpose	0.5dB	4W	25dB	20dB
DC0710J5005AHF RF DIR COUPLER 700MHZ-1GHZ 0805 TTM Technologies, Inc.	2,318	0.46	RFQ		Tape & Reel (TR)	-	Active	Standard	700MHz ~ 1GHz	5.5dB	-	0.6dB	2W	-	-24dB
DC1417J5005AHF RF DIR COUPLER 1.4-1.7GHZ 0805 TTM Technologies, Inc.	3,397	0.46	RFQ	Datasheet	Tape & Reel (TR)	Xinger®	Active	Standard	1.4GHz ~ 1.7GHz	5.5dB	-	0.55dB	2W	-	-28dB
