Signal Relays, Up to 2 Amps(11714)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
J1MACD-12XL J1MACD-12XL = M39016/23-028L TE Connectivity Aerospace, Defense and Marine	2,323	69.12	RFQ		Bulk	1MA	Active	Through Hole	12VDC	SPDT (1 Form C)	1 A	115VAC, 28VDC - Max	24 mA	Non Latching	Diode	PC Pin	Sealed - Hermetically	-	7 VDC	0.63 VDC	2 ms	4 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
7-1617350-3 J1MACD-5XL=M39016/23-025L TE Connectivity Aerospace, Defense and Marine	3,803	69.12	RFQ		Bulk	1MA	Active	Through Hole	5VDC	SPDT (1 Form C)	1 A	115VAC, 28VDC - Max	79.4 mA	Non Latching	Diode	PC Pin	Sealed - Hermetically	-	2.8 VDC	0.23 VDC	2 ms	4 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
HCD-12B HCD-12B = .100 GRID W/DIODE CO TE Connectivity Aerospace, Defense and Marine	2,044	69.13	RFQ		Bulk	HCD, CII	Active	Through Hole	12VDC	DPDT (2 Form C)	1 A	-	-	-	-	PC Pin	Sealed - Hermetically	-	9 VDC	-	4 ms	6 ms	-55°C ~ 85°C	Silver Palladium (AgPd), Gold (Au)
4-1617118-4 J1MAP-9XM = M39016/7-018M TE Connectivity Aerospace, Defense and Marine	2,812	69.32	RFQ		Bulk	1MA	Active	Through Hole	9VDC	SPDT (1 Form C)	1 A	115VAC, 28VDC - Max	32.1 mA	Non Latching	-	PC Pin	Sealed - Hermetically	-	5.3 VDC	0.54 VDC	2 ms	2 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
J1MAW-5XL J1MAW-5XL=M39016/7-013L TE Connectivity Aerospace, Defense and Marine	3,927	69.32	RFQ		Bulk	1MA	Active	Through Hole	5VDC	SPDT (1 Form C)	1 A	115VAC, 28VDC - Max	79.4 mA	Non Latching	-	PC Pin	Sealed - Hermetically	-	2.8 VDC	0.23 VDC	2 ms	2 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
6-1617540-4 J1MAP-6XL=M39016/7-016L TE Connectivity Aerospace, Defense and Marine	3,199	69.32	RFQ		Bulk	1MA	Active	Through Hole	6VDC	SPDT (1 Form C)	1 A	115VAC, 28VDC - Max	48 mA	Non Latching	-	PC Pin	Sealed - Hermetically	-	3.5 VDC	0.28 VDC	2 ms	2 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
J1MAP-5XM J1MAP-5XM = M39016/7-014M TE Connectivity Aerospace, Defense and Marine	2,213	69.32	RFQ		Bulk	1MA	Active	Through Hole	5VDC	SPDT (1 Form C)	1 A	115VAC, 28VDC - Max	79.4 mA	Non Latching	-	PC Pin	Sealed - Hermetically	-	2.8 VDC	0.23 VDC	2 ms	2 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
JMGSCDD-26MW JMGSCDD-26MW = M39016/43-054M TE Connectivity Aerospace, Defense and Marine	3,470	69.49	RFQ		Bulk	Military, MIL-R-39016/43, MGSDD, CII	Active	Through Hole	26.5VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	9 mA	Non Latching	Diode	PC Pin	Sealed - Hermetically	-	15.2 VDC	1.7 VDC	4 ms	7.5 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
JMACD-26XLS JMACD-26XLS = M39016/15-105L TE Connectivity Aerospace, Defense and Marine	2,710	69.62	RFQ	Datasheet	Bulk	MAC	Active	Through Hole	26.5VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	17 mA	Non Latching	Diode	PC Pin	Sealed - Hermetically	-	14.2 VDC	1.37 VDC	2 ms	4 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
JMACD-18XLS JMACD-18XLS = M39016/15-104L TE Connectivity Aerospace, Defense and Marine	3,140	69.62	RFQ		Bulk	MAC	Active	Through Hole	18VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	20.5 mA	Non Latching	Diode	PC Pin	Sealed - Hermetically	-	10.5 VDC	0.91 VDC	2 ms	4 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
JMACD-26XMS JMACD-26XMS = M39016/15-105M TE Connectivity Aerospace, Defense and Marine	3,568	69.62	RFQ	Datasheet	Bulk	MAC	Active	Through Hole	26.5VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	17 mA	Non Latching	Diode	PC Pin	Sealed - Hermetically	-	14.2 VDC	1.37 VDC	2 ms	4 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
1617351-9 JMACD-5XLS=M39016/15-106L TE Connectivity Aerospace, Defense and Marine	2,507	80.78	RFQ		Bulk,Bulk	MAC	Active	Through Hole	5VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	100 mA	Non Latching	Diode	PC Pin	Sealed - Hermetically	-	2.7 VDC	0.22 VDC	2 ms	4 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
JMGAP-5L JMGAP-5L=M39016/17-025L TE Connectivity Aerospace, Defense and Marine	2,424	69.62	RFQ		Bulk	Military, MIL-R-39016/17, MGA, CII	Active	Through Hole	5VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	-	Non Latching	-	PC Pin	Sealed - Hermetically	-	2.7 VDC	0.22 VDC	2 ms	1.5 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
JMGAP-5M JMGAP-5M = M39016/17-025M TE Connectivity Aerospace, Defense and Marine	3,413	69.62	RFQ		Bulk	Military, MIL-R-39016/17, MGA, CII	Active	Through Hole	5VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	-	Non Latching	-	PC Pin	Sealed - Hermetically	-	2.7 VDC	0.22 VDC	2 ms	1.5 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
JMGAC-5L JMGAC-5L=M39016/17-031L TE Connectivity Aerospace, Defense and Marine	3,792	69.62	RFQ		Bulk	Military, MIL-R-39016/17, MGA, CII	Active	Through Hole	5VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	-	Non Latching	-	PC Pin	Sealed - Hermetically	-	2.7 VDC	0.22 VDC	2 ms	1.5 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
JMGAC-12L JMGAC-12L=M39016/17-034L TE Connectivity Aerospace, Defense and Marine	2,723	69.62	RFQ		Bulk	Military, MIL-R-39016/17, MGA, CII	Active	Through Hole	12VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	-	Non Latching	-	PC Pin	Sealed - Hermetically	-	7 VDC	0.63 VDC	2 ms	1.5 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
1-1617145-3 JMGAC-5M = M39016/17-031M TE Connectivity Aerospace, Defense and Marine	2,239	69.62	RFQ		Bulk	Military, MIL-R-39016/17, MGA, CII	Active	Through Hole	5VDC	DPDT (2 Form C)	1 A	-	-	-	-	PC Pin	Sealed - Hermetically	-	2.7 VDC	0.22 VDC	2 ms	1.5 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
1617147-2 JMGAP-12M = M39016/17-028M TE Connectivity Aerospace, Defense and Marine	3,024	69.62	RFQ		Bulk	Military, MIL-R-39016/17, MGA, CII	Active	Through Hole	12VDC	DPDT (2 Form C)	1 A	-	-	-	-	PC Pin	Sealed - Hermetically	-	7 VDC	0.63 VDC	2 ms	1.5 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)

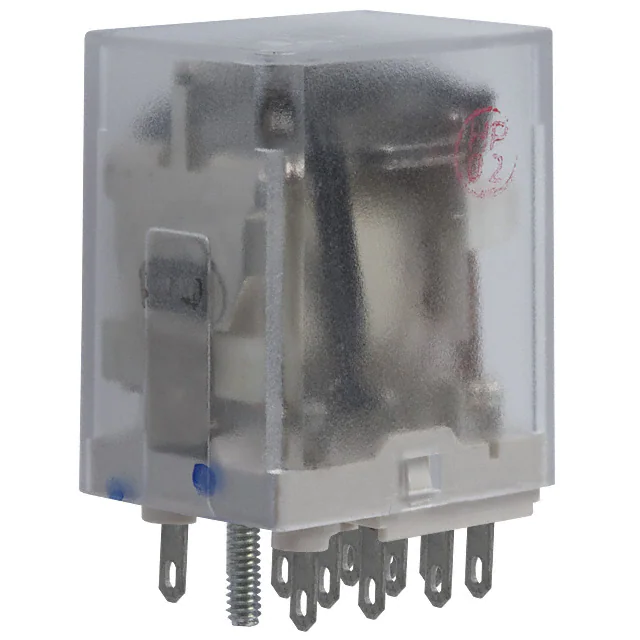

KHU-17A16-120 RELAY GEN PURPOSE 4PDT 1A 120VAC TE Connectivity Potter & Brumfield Relays	2,403	69.74	RFQ	Datasheet	Bulk	KHU	Active	Socketable	120VAC	4PDT (4 Form C)	1 A	240VAC - Max	10 mA	Non Latching	-	Plug In	-	Class B	102 VAC	-	13 ms	6 ms	-45°C ~ 70°C	Silver (Ag), Gold (Au)
JMGSC-18LW JMGSC-18LW = M39016/41-056L TE Connectivity Aerospace, Defense and Marine	2,944	69.80	RFQ		Bulk	Military, MIL-R-39016/41, MGS, CII	Active	Through Hole	18VDC	DPDT (2 Form C)	1 A	115VAC, 28VDC - Max	-	Non Latching	-	PC Pin	Sealed - Hermetically	-	9.8 VDC	0.92 VDC	4 ms	2 ms	-65°C ~ 125°C	Silver Palladium (AgPd), Gold (Au)
