Stepper Motors(861)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	CoilType	Voltage-Rated	CurrentRating(Amps)	StepsperRevolution	StepAngle	Accuracy	Torque-Holding(oz-in/mNm)	Size/Dimension	NEMAFrameSize	Diameter-Shaft	Length-ShaftandBearing	MountingHoleSpacing	TerminationStyle	OperatingTemperature	CoilResistance
WO-4209L-01S STEPPER MOTOR Lin Engineering	3,642	65.55	RFQ	Datasheet	Tray	-	Active	-	Bipolar	24VDC	840 mA	400	0.9°	-	62 / 438	Square - 1.669 x 1.669 (42.40mm x 42.40mm)	17	0.197 (5.00mm)	0.945 (24.00mm)	1.220 (31.00mm)	Wire Leads	-20°C ~ 50°C	7.6 Ohms
SH2141-5511 STPR MTR BIPOLAR 6.3V 0.3A/PHASE Sanyo	2,150	153.94	RFQ	Datasheet	Bulk	SH	Active	Hybrid, Dual Shaft	Bipolar	24VDC	300 mA	200	1.8°	-	0.92 / 6.5	Square - 0.551 x 0.551 (14.00mm x 14.00mm)	-	0.157 (4.00mm)	0.591 (15.00mm)	0.453 (11.50mm)	Wire Leads	-10°C ~ 50°C	21 Ohms

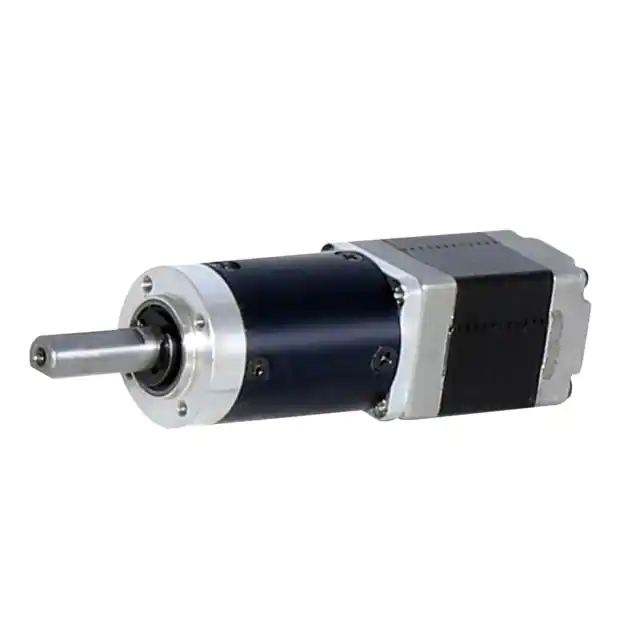

MOT-I-81511 NEMA8 Hybrid Planetary Stepper M ISL Products International	3,637	160.00	RFQ	Datasheet	Bag	MOT	Active	Hybrid Gear Motor	Bipolar	4.32VDC	800 mA	200	1.8°	-	220.25 / 1555	Round - 0.866 Dia (22.00mm)	8	0.236 (6.00mm)	3.854 (97.90mm)	0.709 (18.00mm)	Wire Leads	-20°C ~ 50°C	5.4 Ohms
A4K-M564 STEPPER MOTOR 5PHASE 60MM 1.4A Autonics	2,958	179.95	RFQ		Box	AK	Active	-	Unipolar	24VDC	1.4 A	500	0.72°	-	59.48 / 420	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	-	0.315 (8.00mm)	0.945 (24.00mm)	1.969 (50.00mm)	Wire Leads	-10°C ~ 50°C	0.8 Ohms
A2K-S544W STEPPER MOTOR 5PHASE 42MM 0.75A Autonics	3,254	185.95	RFQ		Box	AK	Active	-	Unipolar	24VDC	750 mA	500	0.72°	-	25.49 / 180	Square - 1.654 x 1.654 (42.00mm x 42.00mm)	-	0.197 (5.00mm)	0.787 (20.00mm)	1.220 (31.00mm)	Wire Leads	-10°C ~ 50°C	2.2 Ohms
A4K-M564W STEPPER MOTOR 5PHASE 60MM 1.4A Autonics	2,180	185.95	RFQ		Box	AK	Active	-	Unipolar	24VDC	1.4 A	500	0.72°	-	59.48 / 420	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	-	0.315 (8.00mm)	0.945 (24.00mm)	1.969 (50.00mm)	Wire Leads	-10°C ~ 50°C	0.8 Ohms
SS2421-50XE100 STPR MTR BIPOLAR 3.5V 1A/PHASE Sanyo	3,159	250.45	RFQ	Datasheet	Bulk	SS	Active	Hybrid	Bipolar	3.5VDC	1 A	200	1.8°	±0.09%	11.75 / 83	Square - 1.654 x 1.654 (42.00mm x 42.00mm)	-	0.197 (5.00mm)	0.276 (7.00mm)	1.220 (31.00mm)	Wire Leads	-10°C ~ 50°C	3.5 Ohms
A16K-M569W STEPPER MOTOR 5PHASE 60MM 1.4A Autonics	3,455	254.95	RFQ		Box	AK	Active	-	Unipolar	24VDC	1.4 A	500	0.72°	-	235.1 / 1660	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	-	0.315 (8.00mm)	0.945 (24.00mm)	1.969 (50.00mm)	Wire Leads	-10°C ~ 50°C	1.8 Ohms
AH1K-S543 STEPPER MOTOR 5PHASE 42MM 0.75A Autonics	3,691	276.95	RFQ		Box	AHK	Active	-	Unipolar	24VDC	750 mA	500	0.72°	-	18.41 / 130	Square - 1.654 x 1.654 (42.00mm x 42.00mm)	-	-	-	1.220 (31.00mm)	Wire Leads	-10°C ~ 50°C	1.7 Ohms
AH4K-S564W STEPPER MOTOR 5PHASE 60MM 0.75A Autonics	2,863	316.95	RFQ		Box	AHK	Active	-	Unipolar	24VDC	750 mA	500	0.72°	-	59.48 / 420	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	-	-	-	1.969 (50.00mm)	Wire Leads	-10°C ~ 50°C	2.6 Ohms
A10K-S545-G5 STEPPER MOTOR 5PHASE 42MM 0.75A Autonics	2,054	364.95	RFQ		Box	AK-G	Active	-	Unipolar	24VDC	750 mA	2500	0.144°	-	141.64 / 1000	Square - 1.654 x 1.654 (42.00mm x 42.00mm)	-	0.315 (8.00mm)	1.102 (28.00mm)	1.220 (31.00mm)	Wire Leads	-10°C ~ 50°C	2.2 Ohms
AH16K-M569 STEPPER MOTOR 5PHASE 60MM 1.4A Autonics	2,794	371.95	RFQ		Box	AHK	Active	-	Unipolar	24VDC	1.4 A	500	0.72°	-	235.1 / 1660	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	-	-	-	1.969 (50.00mm)	Wire Leads	-10°C ~ 50°C	1.8 Ohms
AH16K-G569 STEPPER MOTOR 5PHASE 60MM 2.8A Autonics	3,805	371.95	RFQ		Box	AHK	Active	-	Unipolar	24VDC	2.8 A	500	0.72°	-	235.1 / 1660	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	-	-	-	1.969 (50.00mm)	Wire Leads	-10°C ~ 50°C	0.56 Ohms
5718X-15P-HP05 NEMA 23 - 1 STACK STEPPER + 5:1 Lin Engineering	2,126	399.48	RFQ	Datasheet	Box	5718	Active	Hybrid	Bipolar	24VDC	-	2000	-	-	501 / 3,535	Square - 2.25 x 2.25 (57.20mm x 57.20mm)	23	0.63 (16mm)	1.16 (29.5mm)	1.949 (49.50mm)	Wire Leads	-20°C ~ 50°C	300 mOhms
5718X-15P-HP10 NEMA 23 - 1 STACK STEPPER + 10:1 Lin Engineering	3,275	399.48	RFQ	Datasheet	Box	5718	Active	Hybrid	Bipolar	24VDC	-	4000	-	-	1,000 / 7,060	Square - 2.25 x 2.25 (57.20mm x 57.20mm)	23	0.63 (16mm)	1.16 (29.5mm)	1.949 (49.50mm)	Wire Leads	-20°C ~ 50°C	300 mOhms
A16K-G569-B STEPPER MOTOR 5PHASE 60MM 2.8A Autonics	2,973	399.95	RFQ		Box	AK	Active	-	Unipolar	24VDC	2.8 A	500	0.72°	-	235.1 / 1660	Square - 2.362 x 2.362 (60.00mm x 60.00mm)	-	0.315 (8.00mm)	0.945 (24.00mm)	1.969 (50.00mm)	Wire Leads	-10°C ~ 50°C	0.56 Ohms
5718M-02P-HP05 NEMA 23 - 2 STACK STEPPER + 5:1 Lin Engineering	4,000	407.92	RFQ	Datasheet	Box	5718	Active	Hybrid	Bipolar	24VDC	-	2000	-	-	866 / 6,114	Square - 2.25 x 2.25 (57.20mm x 57.20mm)	23	0.63 (16mm)	1.16 (29.5mm)	1.949 (49.50mm)	Wire Leads	-20°C ~ 50°C	500 mOhms
5718M-02P-HP10 NEMA 23 - 2 STACK STEPPER + 10:1 Lin Engineering	2,172	407.92	RFQ	Datasheet	Box	5718	Active	Hybrid	Bipolar	24VDC	-	4000	-	-	1,730 / 12,211	Square - 2.25 x 2.25 (57.20mm x 57.20mm)	23	0.63 (16mm)	1.16 (29.5mm)	1.949 (49.50mm)	Wire Leads	-20°C ~ 50°C	500 mOhms
5718L-01P-HP10 NEMA 23 - 3 STACK STEPPER + 10:1 Lin Engineering	2,863	412.70	RFQ	Datasheet	Box	5718	Active	Hybrid	Bipolar	24VDC	-	4000	-	-	2,939 / 20,750	Square - 2.25 x 2.25 (57.20mm x 57.20mm)	23	0.63 (16mm)	1.16 (29.5mm)	1.949 (49.50mm)	Wire Leads	-20°C ~ 50°C	1.1 Ohms
5718L-01P-HP05 NEMA 23 - 3 STACK STEPPER + 5:1 Lin Engineering	3,797	412.70	RFQ	Datasheet	Box	5718	Active	Hybrid	Bipolar	24VDC	-	2000	-	-	1,470 / 10,400	Square - 2.25 x 2.25 (57.20mm x 57.20mm)	23	0.63 (16mm)	1.16 (29.5mm)	1.949 (49.50mm)	Wire Leads	-20°C ~ 50°C	1.1 Ohms
