Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
PA3856.001NL XFMR,FORWARD,EEP13,SMT NPB Pulse Electronics Power	2,567	0.00	RFQ	Datasheet	Tray	EP13Plus	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
PA3856.006NL XFMR,FORWARD,EEP13,SMT NPB Pulse Electronics Power	659	0.00	RFQ	Datasheet	Tray	-	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.695 W (14.50mm x 17.65mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
PA0273NL XFRMR FORWARD 50W 230UH SMD Pulse Electronics Power	2,167	0.00	RFQ	Datasheet	Tray	-	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	36 ~ 72V	12V @ 100mA	1500Vrms	-	250kHz	-40°C ~ 130°C	Surface Mount	0.860 L x 0.930 W (21.84mm x 23.62mm)	0.450 (11.43mm)	0.860 L x 1.150 W (21.84mm x 29.21mm)
PA0273NLT XFRMR FORWARD 50W 230UH SMD Pulse Electronics Power	2,598	4.61	RFQ	Datasheet	Tape & Reel (TR)	-	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	36 ~ 72V	12V @ 100mA	1500Vrms	-	250kHz	-40°C ~ 130°C	Surface Mount	0.860 L x 0.930 W (21.84mm x 23.62mm)	0.450 (11.43mm)	0.860 L x 1.150 W (21.84mm x 29.21mm)
PH0801CNLT XFMR, ER19 PLANAR, 4:4:4, SMT Pulse Electronics Power	3,226	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0803CNLT XFMR, ER19 PLANAR, 5:5:4:3, SMT Pulse Electronics Power	3,634	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0804CNLT XFMR, ER19 PLANAR, 5:6:4, SMT Pulse Electronics Power	2,493	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0805CNLT XFMR, ER19 PLANAR, 6:6:4, SMT Pulse Electronics Power	3,561	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0806CNLT XFMR, ER19 PLANAR, 4:4:1:1, SMT Pulse Electronics Power	2,327	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0807CNLT XFMR, ER19 PLANAR, 4:5:1:1, SMT Pulse Electronics Power	2,950	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0808CNLT XFMR, ER19 PLANAR, 5:5:1:1, SMT Pulse Electronics Power	3,771	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0809CNLT XFMR, ER19 PLANAR, 5:6:1:1 SMT Pulse Electronics Power	2,003	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0810CNLT XFMR, ER19 PLANAR, 6:6:1:1 SMT Pulse Electronics Power	2,702	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0811CNLT XFMR, ER19 PLANAR, 4:4:2:1, SMT Pulse Electronics Power	3,504	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0812CNLT XFMR, ER19 PLANAR, 4:5:2:1, SMT Pulse Electronics Power	3,411	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.358 (9.10mm)	-
PH0813CNLT XFMR, ER19 PLANAR, 5:5:2:1, SMT Pulse Electronics Power	2,544	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0814CNLT XFMR, ER19 PLANAR, 5:6:2:1, SMT Pulse Electronics Power	2,489	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.378 (9.60mm)	-
PH0815CNLT XFMR, ER19 PLANAR, 6:6:2:1, SMT Pulse Electronics Power	2,810	6.79	RFQ	Datasheet	Tape & Reel (TR)	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.64mm)	0.398 (10.10mm)	-

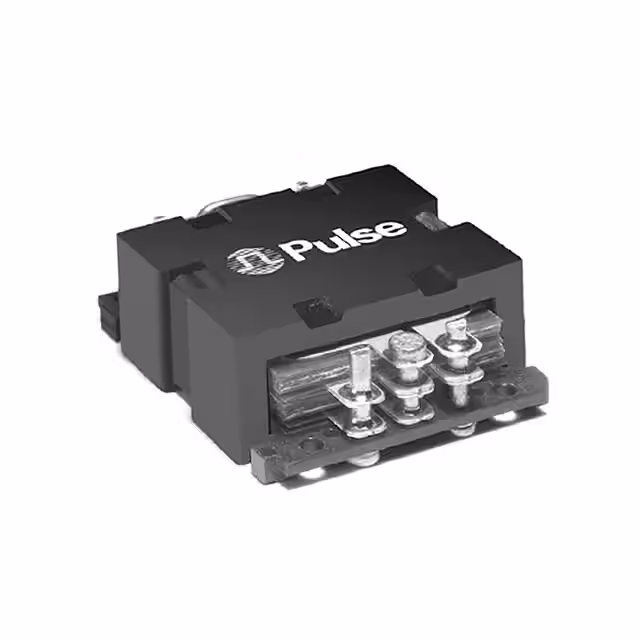

PA0803NL XFMR DC/DC CONV SMD Pulse Electronics Power	2,565	0.00	RFQ	Datasheet	Tray	PA08XXNL	Active	For DC/DC Converters	-	-	-	18 ~ 76V	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.920 W (21.60mm x 23.37mm)	0.348 (8.85mm)	0.850 L x 0.920 W (21.60mm x 23.37mm)
PH0803CNL XFMR DC/DC CONV SMD Pulse Electronics Power	2,695	0.00	RFQ	Datasheet	Tray	PH08XXCNL	Active	For DC/DC Converters	-	-	-	-	-	1500Vrms	-	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	0.850 L x 0.970 W (21.59mm x 24.65mm)	0.368 (9.35mm)	0.850 L x 0.970 W (21.59mm x 24.65mm)
