Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Size/Dimension	Height-Seated(Max)	NumberofTerminations

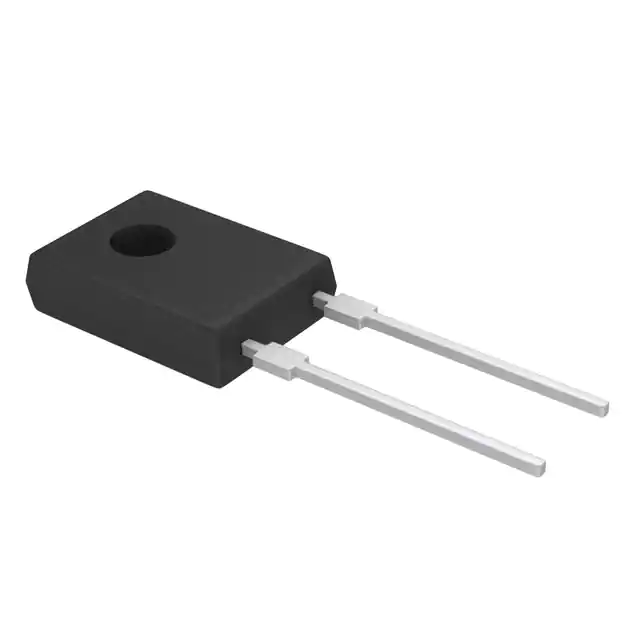

PF1262-270RF1 RES 270 OHM 1% 20W TO126 Riedon	440	3.53	RFQ	Datasheet	TO-126-2	Tube	PF1262	Active	270 Ohms	±1%	20W	Thin Film	Current Sense, Flame Proof, Safety	±50ppm/°C	-55°C ~ 175°C	TO-126	0.335 L x 0.122 W (8.50mm x 3.10mm)	0.472 (12.00mm)
PF1262-7R5F1 RES 7.5 OHM 1% 20W TO126 Riedon	211	3.53	RFQ	Datasheet	TO-126-2	Tube	PF1262	Active	7.5 Ohms	±1%	20W	Thin Film	Current Sense, Flame Proof, Safety	±100ppm/°C	-55°C ~ 175°C	TO-126	0.335 L x 0.122 W (8.50mm x 3.10mm)	0.472 (12.00mm)
PF1262-0R33F1 RES 0.33 OHM 1% 20W TO126 Riedon	169	3.53	RFQ	Datasheet	TO-126-2	Tube	PF1262	Active	330 mOhms	±1%	20W	Thin Film	Current Sense, Flame Proof, Safety	±100ppm/°C	-55°C ~ 175°C	TO-126	0.335 L x 0.122 W (8.50mm x 3.10mm)	0.472 (12.00mm)
PF1262-0R15F1 RES 0.15 OHM 1% 20W TO126 Riedon	2,476	3.53	RFQ	Datasheet	TO-126-2	Tube	PF1262	Active	150 mOhms	±1%	20W	Thin Film	Current Sense, Flame Proof, Safety	±100ppm/°C	-55°C ~ 175°C	TO-126	0.335 L x 0.122 W (8.50mm x 3.10mm)	0.472 (12.00mm)
PF1262-1KF1 RES 1K OHM 1% 20W TO126 Riedon	2,342	3.53	RFQ	Datasheet	TO-126-2	Tube	PF1262	Active	1 kOhms	±1%	20W	Thin Film	Current Sense, Flame Proof, Safety	±50ppm/°C	-55°C ~ 175°C	TO-126	0.335 L x 0.122 W (8.50mm x 3.10mm)	0.472 (12.00mm)
PF1262-0R05J1 RES 0.05 OHM 5% 20W TO126 Riedon	2,438	3.53	RFQ	Datasheet	TO-126-2	Tube	PF1262	Active	50 mOhms	±5%	20W	Thin Film	Current Sense, Flame Proof, Safety	±250ppm/°C	-55°C ~ 175°C	TO-126	0.335 L x 0.122 W (8.50mm x 3.10mm)	0.472 (12.00mm)
SP1879-2K87B RES 2.87K OHM AXIAL Riedon	100	37.75	RFQ		-	Bulk	SP	Active	2.87 kOhms	-	-	Wirewound	-	-	-	-	-	-
PF2203-0R1F1 RES 0.1 OHM 1% 35W TO220 Riedon	3,379	3.23	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	100 mOhms	±1%	35W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±100ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2203-0R2F1 RES 0.2 OHM 1% 35W TO220 Riedon	3,295	3.23	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	200 mOhms	±1%	35W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±100ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2203-50KF1 RES 50K OHM 1% 35W TO220 Riedon	2,336	3.23	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	50 kOhms	±1%	35W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-4R7F1 RES 4.7 OHM 1% 50W TO220 Riedon	2,436	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	4.7 Ohms	±1%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±100ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-5RF1 RES 5 OHM 1% 50W TO220 Riedon	2,291	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	5 Ohms	±1%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±100ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-10RF1 RES 10 OHM 1% 50W TO220 Riedon	2,145	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	10 Ohms	±1%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-100RF1 RES 100 OHM 1% 50W TO220 Riedon	3,853	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	100 Ohms	±1%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2472-2RF1 RES 2 OHM 1% 100W TO247 Riedon	2,466	8.85	RFQ	Datasheet	TO-247-2	Tube	PF2470	Active	2 Ohms	±1%	100W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±100ppm/°C	-55°C ~ 155°C	TO-247	0.630 L x 0.189 W (16.00mm x 4.80mm)	0.787 (20.00mm)
PF2472-20RF1 RES 20 OHM 1% 100W TO247 Riedon	2,096	8.85	RFQ	Datasheet	TO-247-2	Tube	PF2470	Active	20 Ohms	±1%	100W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-247	0.630 L x 0.189 W (16.00mm x 4.80mm)	0.787 (20.00mm)
PF2472-50RF1 RES 50 OHM 1% 100W TO247 Riedon	3,081	8.85	RFQ	Datasheet	TO-247-2	Tube	PF2470	Active	50 Ohms	±1%	100W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-247	0.630 L x 0.189 W (16.00mm x 4.80mm)	0.787 (20.00mm)
PF2472-1KF1 RES 1K OHM 1% 100W TO247 Riedon	3,117	8.85	RFQ	Datasheet	TO-247-2	Tube	PF2470	Active	1 kOhms	±1%	100W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-247	0.630 L x 0.189 W (16.00mm x 4.80mm)	0.787 (20.00mm)
PF2472-2KF1 RES 2K OHM 1% 100W TO247 Riedon	2,344	8.85	RFQ	Datasheet	TO-247-2	Tube	PF2470	Active	2 kOhms	±1%	100W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-247	0.630 L x 0.189 W (16.00mm x 4.80mm)	0.787 (20.00mm)
FPR2A-1RF1 RES 1 OHM 1% 30W TO218 Riedon	2,287	12.79	RFQ	Datasheet	TO-247-2 Variant	Tube	FPR	Active	1 Ohms	±1%	30W	Metal Foil	Current Sense, Non-Inductive	±30ppm/°C	-40°C ~ 130°C	TO-218 (TO-247)	0.610 L x 0.181 W (15.50mm x 4.60mm)	0.949 (24.10mm)
