Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Size/Dimension	Height-Seated(Max)	NumberofTerminations
PF2203-4R7F1 RES 4.7 OHM 1% 35W TO220 Riedon	3,991	3.23	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	4.7 Ohms	±1%	35W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±100ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2203-0R02J1 RES 0.02 OHM 5% 35W TO220 Riedon	3,021	3.23	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	20 mOhms	±5%	35W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±250ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2203-15RF1 RES 15 OHM 1% 35W TO220 Riedon	2,035	3.23	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	15 Ohms	±1%	35W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2203-51RF1 RES 51 OHM 1% 35W TO220 Riedon	3,113	3.23	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	51 Ohms	±1%	35W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-0R02J1 RES 0.02 OHM 5% 50W TO220 Riedon	2,190	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	20 mOhms	±5%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±250ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-0R05J1 RES 0.05 OHM 5% 50W TO220 Riedon	2,649	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	50 mOhms	±5%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±250ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-500RF1 RES 500 OHM 1% 50W TO220 Riedon	2,674	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	500 Ohms	±1%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-7K5F1 RES 7.5K OHM 1% 50W TO220 Riedon	3,425	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	7.5 kOhms	±1%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-0R75F1 RES 0.75 OHM 1% 50W TO220 Riedon	3,100	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	750 mOhms	±1%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±100ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
PF2205-1KF1 RES 1K OHM 1% 50W TO220 Riedon	3,227	4.61	RFQ	Datasheet	TO-220-2	Tube	PF2200	Active	1 kOhms	±1%	50W	Thin Film	Current Sense, Flame Proof, Pulse Withstanding, Safety	±50ppm/°C	-55°C ~ 155°C	TO-220	0.417 L x 0.177 W (10.60mm x 4.50mm)	0.591 (15.00mm)
101-5KB RES 5K OHM 0.1% 1/4W AXIAL Riedon	2,205	5.13	RFQ	Datasheet	Axial	Bulk	100/SM/PC Precision	Active	5 kOhms	±0.1%	0.25W, 1/4W	Wirewound	Flame Proof, Moisture Resistant, Non-Inductive, Safety	±10ppm/°C	-55°C ~ 145°C	-	0.252 Dia x 0.500 L (6.40mm x 12.70mm)	-
SM10-1KB RES 1K OHM 0.1% 0.3W RADIAL Riedon	2,510	5.13	RFQ	Datasheet	Radial	Bulk	100/SM/PC Precision	Active	1 kOhms	±0.1%	0.3W	Wirewound	Flame Proof, Moisture Resistant, Non-Inductive, Safety	±10ppm/°C	-55°C ~ 145°C	-	0.299 L x 0.102 W (7.60mm x 2.60mm)	0.344 (8.74mm)
101-2K5B RES 2.5K OHM 0.1% 1/4W AXIAL Riedon	2,013	5.13	RFQ	Datasheet	Axial	Bulk	100/SM/PC Precision	Active	2.5 kOhms	±0.1%	0.25W, 1/4W	Wirewound	Flame Proof, Moisture Resistant, Non-Inductive, Safety	±10ppm/°C	-55°C ~ 145°C	-	0.252 Dia x 0.500 L (6.40mm x 12.70mm)	-
SM10-250RB RES 250 OHM 0.1% 0.3W RADIAL Riedon	2,242	5.13	RFQ	Datasheet	Radial	Bulk	100/SM/PC Precision	Active	250 Ohms	±0.1%	0.3W	Wirewound	Flame Proof, Moisture Resistant, Non-Inductive, Safety	±10ppm/°C	-55°C ~ 145°C	-	0.299 L x 0.102 W (7.60mm x 2.60mm)	0.344 (8.74mm)
101-2K5X RES 2.5K OHM 0.01% 1/4W AXIAL Riedon	2,272	6.17	RFQ	Datasheet	Axial	Bulk	100/SM/PC Precision	Active	2.5 kOhms	±0.01%	0.25W, 1/4W	Wirewound	Flame Proof, Moisture Resistant, Non-Inductive, Safety	±10ppm/°C	-55°C ~ 145°C	-	0.252 Dia x 0.500 L (6.40mm x 12.70mm)	-
101-25KX RES 25K OHM 0.01% 1/4W AXIAL Riedon	3,750	6.17	RFQ	Datasheet	Axial	Bulk	100/SM/PC Precision	Active	25 kOhms	±0.01%	0.25W, 1/4W	Wirewound	Flame Proof, Moisture Resistant, Non-Inductive, Safety	±10ppm/°C	-55°C ~ 145°C	-	0.252 Dia x 0.500 L (6.40mm x 12.70mm)	-

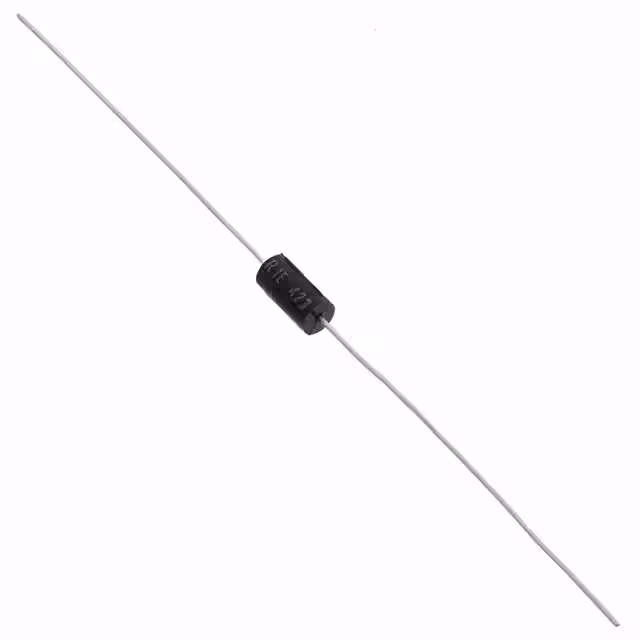

SM15-500RX RES 500 OHM 0.01% 0.175W AXIAL Riedon	2,917	6.17	RFQ	Datasheet	Axial	Bulk	100/SM/PC Precision	Active	500 Ohms	±0.01%	0.175W	Wirewound	Flame Proof, Moisture Resistant, Non-Inductive, Safety	±10ppm/°C	-55°C ~ 145°C	-	0.185 Dia x 0.374 L (4.70mm x 9.50mm)	-
SM15-50KX RES 50K OHM 0.01% 0.175W AXIAL Riedon	3,769	6.17	RFQ	Datasheet	Axial	Bulk	100/SM/PC Precision	Active	50 kOhms	±0.01%	0.175W	Wirewound	Flame Proof, Moisture Resistant, Non-Inductive, Safety	±10ppm/°C	-55°C ~ 145°C	-	0.185 Dia x 0.374 L (4.70mm x 9.50mm)	-
101-50KX RES 50K OHM 0.01% 1/4W AXIAL Riedon	3,371	6.17	RFQ	Datasheet	Axial	Bulk	100/SM/PC Precision	Active	50 kOhms	±0.01%	0.25W, 1/4W	Wirewound	Flame Proof, Moisture Resistant, Non-Inductive, Safety	±10ppm/°C	-55°C ~ 145°C	-	0.252 Dia x 0.500 L (6.40mm x 12.70mm)	-
FPR2B-5RF1 RES 5 OHM 1% 15W TO220 Riedon	2,270	9.45	RFQ	Datasheet	TO-220-2	Tube	FPR	Active	5 Ohms	±1%	15W	Metal Foil	Current Sense, Non-Inductive	±50ppm/°C	-40°C ~ 130°C	TO-220	0.400 L x 0.157 W (10.16mm x 4.00mm)	0.598 (15.20mm)
