Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Resistance	Tolerance	Power(Watts)	Composition	Features	TemperatureCoefficient	OperatingTemperature	Size/Dimension	Height-Seated(Max)	NumberofTerminations
TEH140M750RFE RES 750 OHM 1% 140W TO247 Ohmite	113	14.64	RFQ	Datasheet	TO-247-2	Tube	TEH140	Active	750 Ohms	±1%	140W	Thick Film	Non-Inductive, Pulse Withstanding	100ppm/°C	-55°C ~ 175°C	TO-247	0.630 L x 0.189 W (16.00mm x 4.80mm)	0.925 (23.50mm)
CS3FR002E RES 0.002 OHM 1% 3W 4SIP Ohmite	269	16.32	RFQ	Datasheet	4-SIP	Bulk	CS3	Active	2 mOhms	±1%	3W	Metal Element	Current Sense, Moisture Resistant, Non-Inductive	±60ppm/°C	-55°C ~ 150°C	-	0.854 L x 0.211 W (21.70mm x 5.35mm)	0.654 (16.60mm)
CS3FR001E RES 0.001 OHM 1% 3W 4SIP Ohmite	174	16.32	RFQ	Datasheet	4-SIP	Bulk	CS3	Active	1 mOhms	±1%	3W	Metal Element	Current Sense, Moisture Resistant, Non-Inductive	±60ppm/°C	-55°C ~ 150°C	-	0.854 L x 0.211 W (21.70mm x 5.35mm)	0.654 (16.60mm)
CS3FR003E RES 0.003 OHM 1% 3W 4SIP Ohmite	112	16.32	RFQ	Datasheet	4-SIP	Bulk	CS3	Active	3 mOhms	±1%	3W	Metal Element	Current Sense, Moisture Resistant, Non-Inductive	±60ppm/°C	-55°C ~ 150°C	-	0.854 L x 0.211 W (21.70mm x 5.35mm)	0.654 (16.60mm)
CS5DR002E RES 0.002 OHM 0.5% 5W 4ESIP Ohmite	216	22.40	RFQ	Datasheet	4-ESIP	Bulk	CS5	Active	2 mOhms	±0.5%	5W	Metal Element	Current Sense, Non-Inductive	±30ppm/°C	-25°C ~ 150°C	-	1.500 L x 0.330 W (38.10mm x 8.38mm)	0.953 (24.20mm)

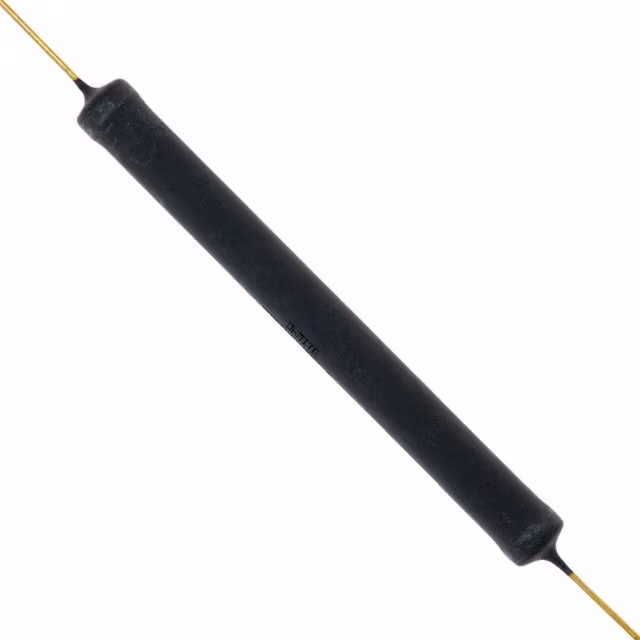

MOX94025005FVE RES 50M OHM 1% 10W AXIAL Ohmite	300	27.86	RFQ	Datasheet	Axial	Bulk	Super-Mox	Active	50 MOhms	±1%	11.7W	Metal Oxide Film	High Voltage, Moisture Resistant, Non-Inductive	±50ppm/°C	-55°C ~ 225°C	Axial	0.315 Dia x 3.031 L (8.00mm x 77.00mm)	-
MOX94021007FTE RES 1 GOHM 1% 10W AXIAL Ohmite	111	27.86	RFQ	Datasheet	Axial	Bulk	Super-Mox	Active	1 GOhms	±1%	11.7W	Metal Oxide Film	High Voltage, Moisture Resistant, Non-Inductive	±100ppm/°C	-55°C ~ 225°C	Axial	0.315 Dia x 3.031 L (8.00mm x 77.00mm)	-
AY220KE RES 22 OHM 10% 4.5W RADIAL Ohmite	250	32.80	RFQ	Datasheet	Radial	Bulk	PulsEater® A	Active	22 Ohms	±10%	4.5W	Ceramic	Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety	-	-55°C ~ 150°C	Radial Lead	0.984 L x 0.827 W (25.00mm x 21.00mm)	1.102 (28.00mm)
MOX95022505FTE RES 25M OHM 1% 13.5W AXIAL Ohmite	205	33.14	RFQ	Datasheet	Axial	Bulk	Super-Mox	Active	25 MOhms	±1%	12.5W	Metal Oxide Film	High Voltage, Moisture Resistant, Non-Inductive	±100ppm/°C	-55°C ~ 225°C	Axial	0.327 Dia x 4.016 L (8.30mm x 102.00mm)	-

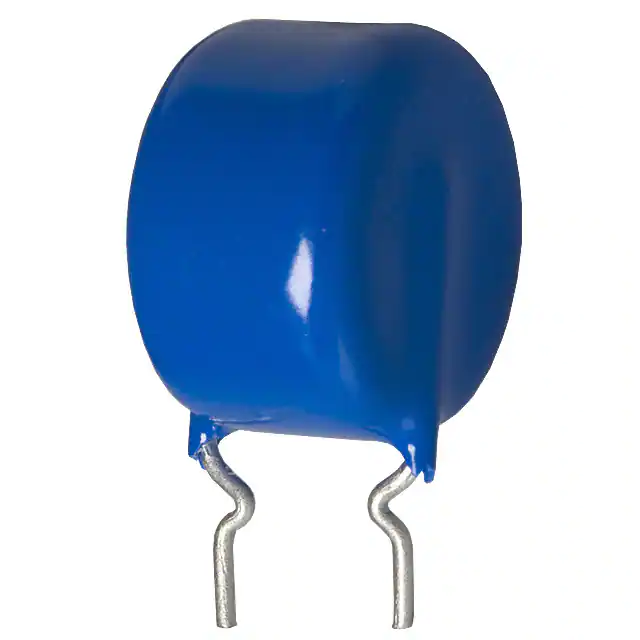

AX101KE RES 100 OHM 10% 3.5W RADIAL Ohmite	260	34.28	RFQ	Datasheet	Radial	Bulk	PulsEater® A	Active	100 Ohms	±10%	3.5W	Ceramic	Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety	-	-55°C ~ 150°C	Radial Lead	0.591 L x 0.827 W (15.00mm x 21.00mm)	1.102 (28.00mm)
MOX96021005FVE RES 10M OHM 1% 16W AXIAL Ohmite	534	36.98	RFQ	Datasheet	Axial	Bulk	Super-Mox	Active	10 MOhms	±1%	15.5W	Metal Oxide Film	High Voltage, Moisture Resistant, Non-Inductive	±50ppm/°C	-55°C ~ 225°C	Axial	0.335 Dia x 4.803 L (8.50mm x 122.00mm)	-
TWW3JR47E RES 470M OHM 5% 3W RADIAL Ohmite	1,500	0.88	RFQ	Datasheet	Radial	Bulk	TWW	Active	470 mOhms	±5%	3W	Wirewound	Flame Proof, Safety	±400ppm/°C	-55°C ~ 275°C	Radial	0.492 L x 0.354 W (12.50mm x 9.00mm)	1.024 (26.00mm)

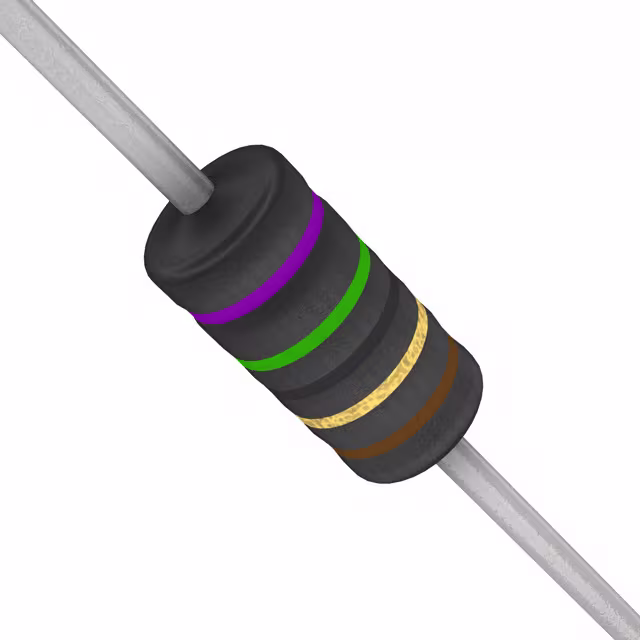

WNA75RFET RES 75 OHM 1% 1/2W AXIAL Ohmite	3,823	2.60	RFQ	Datasheet	Axial	Tape & Reel (TR),Cut Tape (CT)	WN	Active	75 Ohms	±1%	0.5W, 1/2W	Wirewound	Non-Inductive	±20ppm/°C	-55°C ~ 150°C	Axial	0.100 Dia x 0.200 L (2.54mm x 5.08mm)	-
TWW15J100E RES 10 OHM 5% 15W RADIAL Ohmite	4,999	2.63	RFQ	Datasheet	Radial	Box	TWW	Active	100 Ohms	±5%	15W	Wirewound	Flame Proof, Safety	±400ppm/°C	-55°C ~ 275°C	Radial	0.787 L x 0.512 W (20.00mm x 13.00mm)	1.535 (39.00mm)
TWW15J470E RES 470 OHM 5% 15W RADIAL Ohmite	4,304	2.63	RFQ	Datasheet	Radial	Box	TWW	Active	470 Ohms	±5%	15W	Wirewound	Flame Proof, Safety	±350ppm/°C	-55°C ~ 275°C	Radial	0.787 L x 0.512 W (20.00mm x 13.00mm)	1.535 (39.00mm)
TA205PA1R00JE RES 1 OHM 5% 5W POWERCHIP Ohmite	420	4.46	RFQ	Datasheet	Radial	Bulk	Power Chip® TA	Active	1 Ohms	±5%	5W	Thick Film	-	±450ppm/°C	-55°C ~ 180°C	Powerchip®	0.500 L x 0.100 W (12.70mm x 2.54mm)	1.020 (25.91mm)

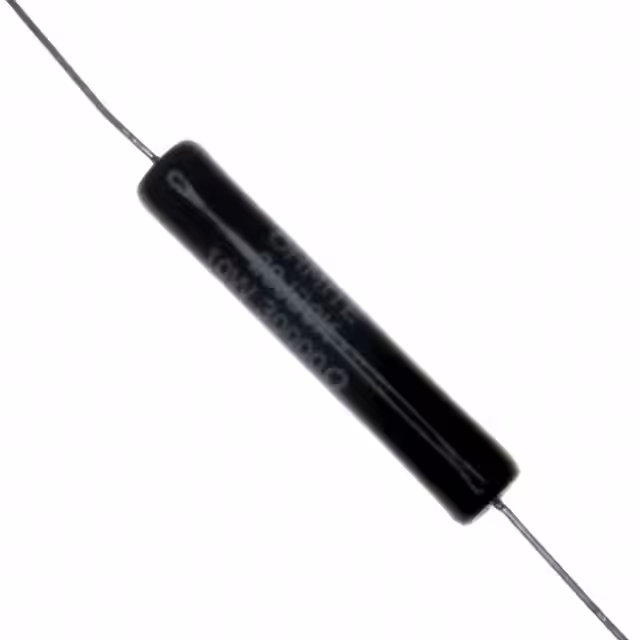

20J30K RES 30K OHM 5% 10W AXIAL Ohmite	191	4.54	RFQ	Datasheet	Axial	Bulk	20	Active	30 kOhms	±5%	10W	Wirewound	Flame Retardant Coating, Safety	±30ppm/°C	-	Axial	0.394 Dia x 1.858 L (10.00mm x 47.20mm)	-

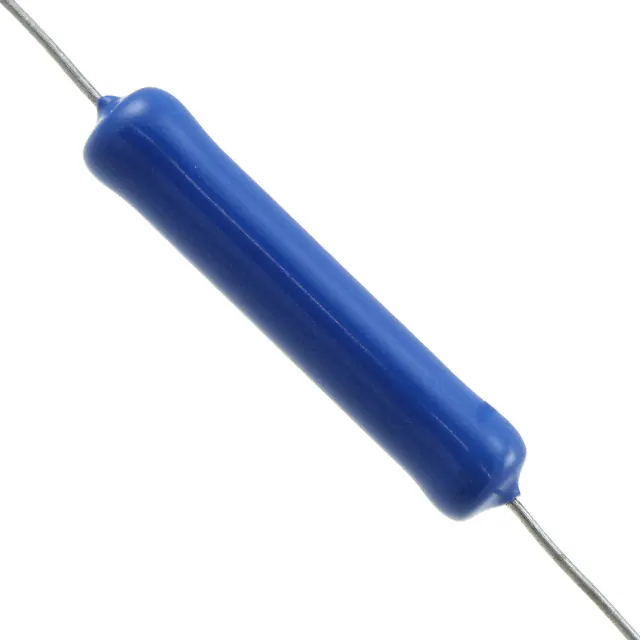

EY681KE RES 680 OHM 10% 2.5W AXIAL Ohmite	110	4.70	RFQ	Datasheet	Axial	Bulk	EY	Active	680 Ohms	±10%	2.5W	Ceramic	Moisture Resistant	-1500/ -900ppm/°C	-40°C ~ 110°C	-	0.370 Dia x 1.819 L (9.40mm x 46.20mm)	-
TA205PA6R80JE RES 6.8 OHM 5% 5W POWERCHIP Ohmite	144	4.74	RFQ	Datasheet	Radial	Bulk	Power Chip® TA	Active	6.8 Ohms	±5%	5W	Thick Film	-	±100ppm/°C	-55°C ~ 180°C	Powerchip®	0.500 L x 0.100 W (12.70mm x 2.54mm)	1.020 (25.91mm)

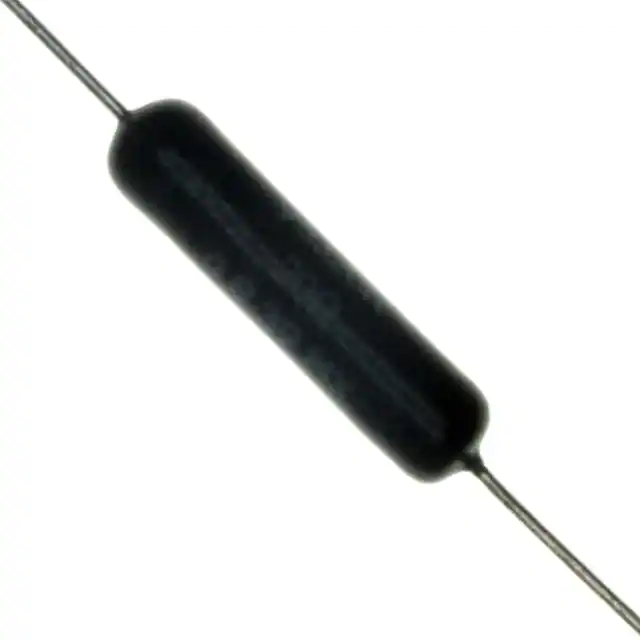

95J20R RES 20 OHM 5% 5W AXIAL Ohmite	134	5.41	RFQ	Datasheet	Axial	Bulk	90	Active	20 Ohms	±5%	5W	Wirewound	Flame Retardant Coating, Safety	±30ppm/°C	-	Axial	0.264 Dia x 0.969 L (6.70mm x 24.60mm)	-
