| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Structure | NumberofSCRsDiodes | Voltage-OffState | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Current-NonRepSurge5060Hz(Itsm) | Current-Hold(Ih)(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VVZB120-12IO23-PHASE BRIDGE RECT 1600V 120A |
3,602 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.2 kV | 120 A | - | 1.5 V | 100 mA | 750A @ 50MHz | 200 mA | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MCC500-16IO1THYRISTOR DIODE MOD 1600V M##500 |
3,767 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 545 A | 1294 A | 3 V | 300 mA | 16500A @ 50Hz | 1 A | -40°C ~ 125°C (TJ) | Chassis Mount |
|

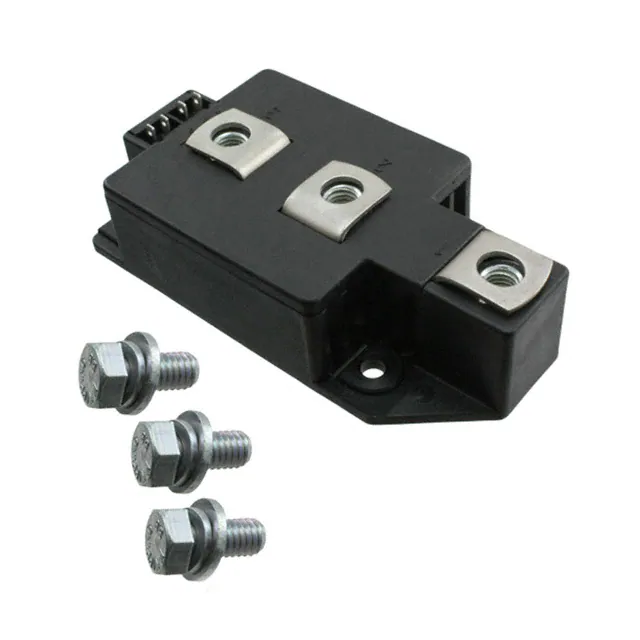

MCC250-16IO1MOD THYRISTOR DUAL 1600V Y2-DCB |
3,301 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 287 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
|
|
VVZB120-16IO23-PHASE BRIDGE RECT 1600V 120A |
3,432 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | 120 A | - | 1.5 V | 100 mA | 750A @ 50MHz | 200 mA | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FCC21-12IOTHYRISTOR PHASE CTRL 3HV I4-PAC |
3,583 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 21 A | - | 1.4 V | 55 mA | 300A @ 50Hz | 100 mA | -40°C ~ 125°C (TJ) | Through Hole |
|
|
HVL900-12IO1IC CTLR AC 900A 1200V HVL |
3,618 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1-Phase Controller - All SCRs | 2 SCRs | 1.2 kV | - | 900 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
|
|
HVL900-14IO1IC CTLR AC 900A 1400V HVL |
3,342 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1-Phase Controller - All SCRs | 2 SCRs | 1.4 kV | - | 900 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
|
|
HVL900-16IO1IC CTLR AC 900A 1600V HVL |
3,855 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1-Phase Controller - All SCRs | 2 SCRs | 1.6 kV | - | 900 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
|
|
HVL900-18IO1IC CTLR AC 900A 1800V HVL |
3,249 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1-Phase Controller - All SCRs | 2 SCRs | 1.8 kV | - | 900 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
|
|
MCC170-12IO1MOD THYRISTOR DUAL 1200V Y1-CU |
2,681 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 203 A | 350 A | 2 V | 150 mA | 5400A, 5800A | 150 mA | -40°C ~ 130°C (TJ) | Chassis Mount |
|
|
MCC170-14IO1MOD THYRISTOR DUAL 1400V Y1-CU |
3,660 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 203 A | 350 A | 2 V | 150 mA | 5400A, 5800A | 150 mA | -40°C ~ 130°C (TJ) | Chassis Mount |
|
|
MCC170-16IO1MOD THYRISTOR DUAL 1600V Y1-CU |
2,254 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 203 A | 350 A | 2 V | 150 mA | 5400A, 5800A | 150 mA | -40°C ~ 130°C (TJ) | Chassis Mount |
|
|
MCC170-18IO1MOD THYRISTOR DUAL 1800V Y1-CU |
2,291 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 203 A | 350 A | 2 V | 150 mA | 5400A, 5800A | 150 mA | -40°C ~ 130°C (TJ) | Chassis Mount |
|
MCC21-08IO8BMOD THYRISTOR DUAL 800V TO-240AA |
2,692 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 21 A | 33 A | 1 V | 65 mA | 320A, 350A | 100 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MCC21-12IO8BMOD THYRISTOR DUAL 1200V TO240AA |
2,586 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 21 A | 33 A | 1 V | 65 mA | 320A, 350A | 100 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
|
MCC220-08IO1MOD THYRISTOR DUAL 800V Y2-DCB |
2,856 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 250 A | 400 A | 2 V | 150 mA | 8500A, 9000A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
|
|
MCC220-12IO1MOD THYRISTOR DUAL 1200V Y2-DCB |
2,522 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 250 A | 400 A | 2 V | 150 mA | 8500A, 9000A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
|
|
MCC220-14IO1MOD THYRISTOR DUAL 1400V Y2-DCB |
2,043 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 250 A | 400 A | 2 V | 150 mA | 8500A, 9000A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
|

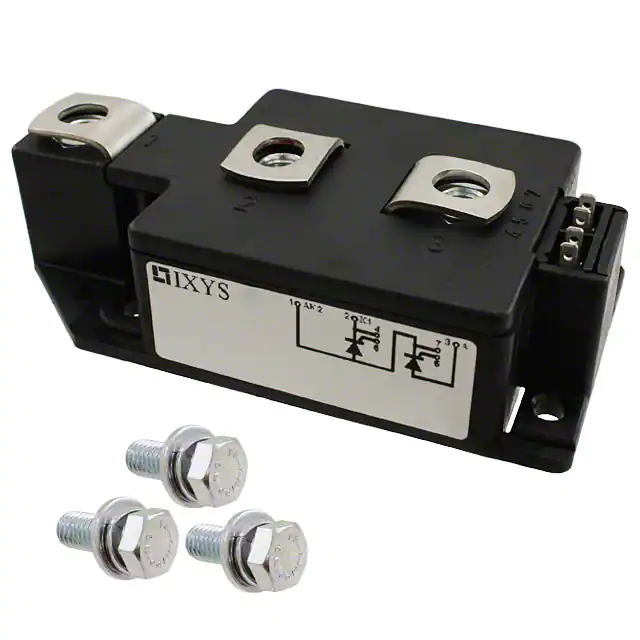

MCC220-16IO1MOD THYRISTOR DUAL 1600V Y2-DCB |
2,646 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 250 A | 400 A | 2 V | 150 mA | 8500A, 9000A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
|
|
MCC220-18IO1MOD THYRISTOR DUAL 1800V Y2-DCB |
3,104 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 250 A | 400 A | 2 V | 150 mA | 8500A, 9000A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount |
