| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SX040KSCR 600V 4A DPAK |
3,798 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 600 V | 800 mV | 200 µA | 1.5 V | - | 4 A | 6 mA | 5 µA | 30A @ 50Hz | Sensitive Gate | -40°C ~ 110°C (TJ) | Surface Mount |
|
|
SCT151K-650RSCR 650V 12A DPAK |
351 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 650 V | 1.5 V | 15 mA | 1.6 V | - | 12 A | 30 mA | 10 µA | 120A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Surface Mount |
|
SCT151B-650RSCR 650V 12A TO220B |
237 | 0.65 |
RFQ |
Datasheet |
Tube | - | Active | 650 V | 1.5 V | 15 mA | 1.6 V | - | 12 A | 30 mA | 10 µA | 120A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
,TO-226_straightlead.jpg)
|
SX011USCR 800V 1A TO92 |
2,276 | 0.54 |
RFQ |
Datasheet |
Bulk | - | Active | 800 V | 800 mV | 200 µA | 1.7 V | - | 1 A | 4 mA | 5 µA | 12A @ 50Hz | Sensitive Gate | -40°C ~ 150°C (TJ) | Through Hole |
|
SX020VSCR 600V 2A SOT223 |
2,162 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 600 V | 800 mV | 200 µA | 1.5 V | - | 2 A | 5 mA | 5 µA | 20A @ 50Hz | Sensitive Gate | -40°C ~ 110°C (TJ) | Surface Mount |
|
SX008LSCR 600V 800MA SOT23-3 |
3,983 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 600 V | 800 mV | 200 µA | 1.5 V | - | 800 mA | 5 mA | 5 µA | 8A @ 50Hz | Sensitive Gate | -40°C ~ 110°C (TJ) | Surface Mount |
|
|
SCT151K-800RSCR 800V 12A DPAK |
2,991 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 800 V | 1.5 V | 15 mA | 1.6 V | - | 12 A | 30 mA | 10 µA | 120A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Surface Mount |
|

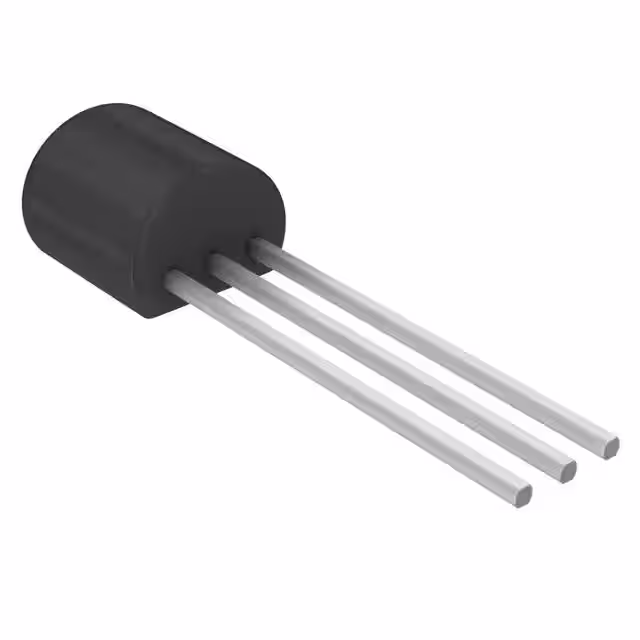

SX014CRSCR 900V 1.25A TO92CR |
2,435 | 0.94 |
RFQ |
Datasheet |
Bulk | - | Active | 900 V | 800 mV | 200 µA | 1.5 V | - | 1.25 A | 4 mA | 5 µA | 20A @ 50Hz | Sensitive Gate | -40°C ~ 110°C (TJ) | Through Hole |
|
SCT655ZSCR 600V 55A TO3P |
431 | 4.76 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.5 V | 50 mA | 1.6 V | - | 55 A | 80 mA | 10 µA | 520A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
|
SCT1255ZSCR 1.2KV 55A TO3P |
197 | 4.91 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 50 mA | 1.6 V | - | 55 A | 120 mA | 10 µA | 520A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
|
SCT855ZSCR 800V 55A TO3P |
428 | 4.97 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 1.5 V | 50 mA | 1.6 V | - | 55 A | 80 mA | 10 µA | 520A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
SCT612BSCR 600V 12A TO220C |
986 | 0.87 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.5 V | 15 mA | 1.55 V | - | 12 A | 50 mA | 5 µA | 140A @ 50Hz | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
|
SCT812BSCR 800V 12A TO220C |
328 | 0.87 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 1.5 V | 15 mA | 1.55 V | - | 12 A | 50 mA | 5 µA | 140A @ 50Hz | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
SCT616BSCR 600V 16A TO220B |
927 | 0.92 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.3 V | 15 mA | 1.55 V | - | 16 A | 50 mA | 5 µA | 180A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
|
SCT825BSCR 800V 25A TO220C |
627 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 1.3 V | 40 mA | 1.55 V | - | 25 A | 80 mA | 10 µA | 300A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
|
SCT1225BSCR 1.2KV 25A TO220B |
971 | 2.26 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 40 mA | 1.6 V | - | 25 A | 120 mA | 10 µA | 300A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
|
SCT640BSCR 600V 40A TO220B |
967 | 2.47 |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.5 V | 35 mA | 1.55 V | - | 40 A | 75 mA | 10 µA | 460A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|

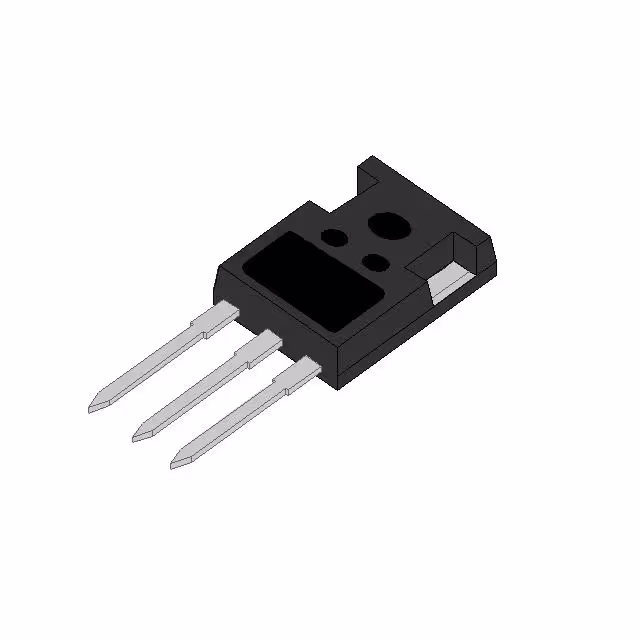

SCT1655SJSCR 1.6KV 55A TO247J |
2,503 | 3.67 |
RFQ |
Datasheet |
Tube | - | Active | 1.6 kV | 1.5 V | 70 mA | 1.8 V | 35 A | 55 A | 200 mA | 10 µA | 550A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
|
SCT1255SJSCR 1.2KV 55A TO247J |
2,567 | 4.50 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 50 mA | 1.6 V | - | 55 A | 120 mA | 10 µA | 520A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
SCT1275CSSCR 1.2KV 75A TO247S |
387 | 7.02 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.3 V | 70 mA | 1.5 V | - | 75 A | 120 mA | 50 µA | 800A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
