| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Voltage-CollectorEmitterBreakdown(Max) | Frequency-Transition | NoiseFigure(dBTyp@f) | Gain | Power-Max | DCCurrentGain(hFE)(Min)@IcVce | Current-Collector(Ic)(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS2441RF TRANS NPN 65V 1.15GHZ M112 |
2,111 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 65V | 1.025GHz ~ 1.15GHz | - | 6.5dB | 1458W | 5 @ 250mA, 5V | 22A | 200°C (TJ) | Chassis Mount |
|
|
MS2472RF TRANS NPN 65V 1.15GHZ M112 |
3,267 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 65V | 1.025GHz ~ 1.15GHz | - | 5.6dB | 1350W | 5 @ 250mA, 5V | 40A | 200°C (TJ) | Chassis Mount |
|
|
MS2473RF TRANS NPN 65V 1.09GHZ M112 |
2,004 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 65V | 1.09GHz | - | 6dB | 2300W | 5 @ 1A, 5V | 46A | 200°C (TJ) | Chassis Mount |
|
|
MS2552RF TRANS NPN 65V 1.15GHZ 2NLFL |
2,216 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 65V | 1.025GHz ~ 1.15GHz | - | 6.7dB | 880W | 15 @ 1A, 5V | 24A | 250°C (TJ) | Chassis Mount |
|
|
MS2553CRF TRANS NPN 25V 1.15GHZ M220 |
3,071 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 25V | 1.025GHz ~ 1.15GHz | - | 10.5dB | 175W | 20 @ 500mA, 5V | 4A | 200°C (TJ) | Chassis Mount |
; ; 3.jpg)
|
MRF544RF TRANS NPN 70V 1.5GHZ TO39 |
3,084 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 70V | 1.5GHz | - | 13.5dB | 3.5W | 15 @ 50mA, 6V | 400mA | - | Through Hole |
|
MRF553GRF TRNS NPN 16V 175MHZ PWR MACRO |
3,008 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 16V | 175MHz | - | 11dB ~ 13dB | 3W | 30 @ 250mA, 5V | 500mA | - | Surface Mount |
|

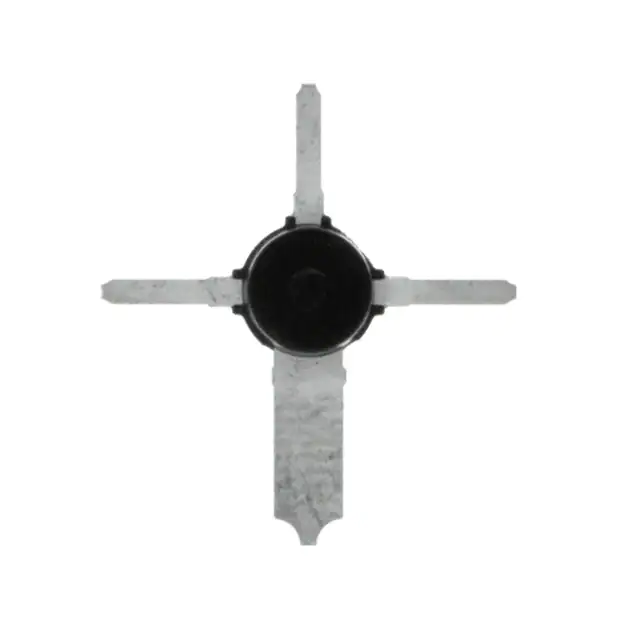

MRF555RF TRANS NPN 16V POWER MACRO |
3,789 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 16V | - | - | 11dB ~ 13dB | 3W | 30 @ 250mA, 5V | 500mA | - | Surface Mount |
|

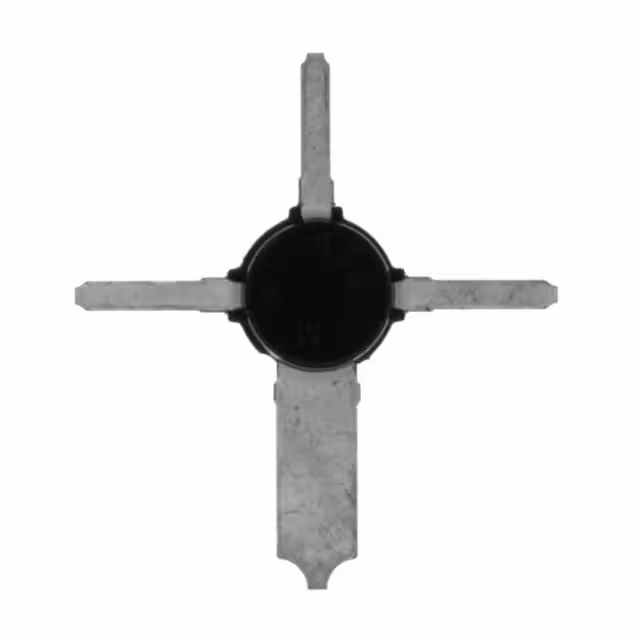

MRF555TRF TRANS NPN 16V POWER MACRO |
3,922 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 16V | - | - | 11dB ~ 12.5dB | 3W | 50 @ 100mA, 5V | 500mA | - | Surface Mount |
|

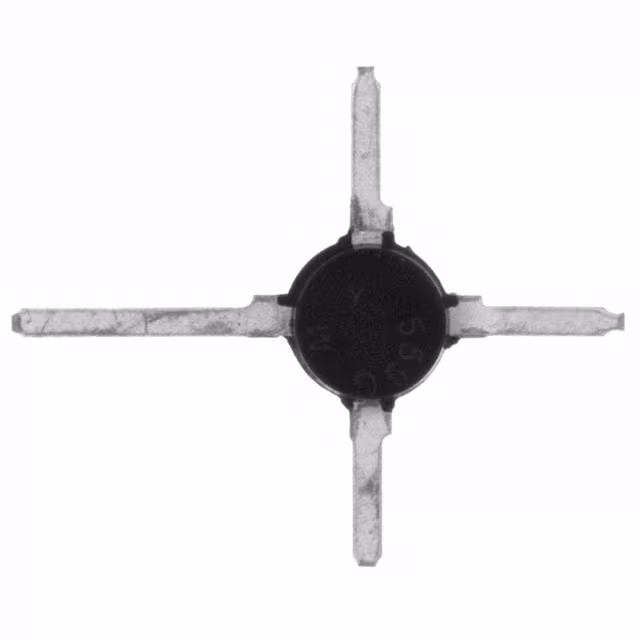

MRF559GRF TRANS NPN 16V 870MHZ MICRO X |
2,241 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 16V | 870MHz | - | 9.5dB | 2W | 30 @ 50mA, 10V | 150mA | - | Surface Mount |
|
|

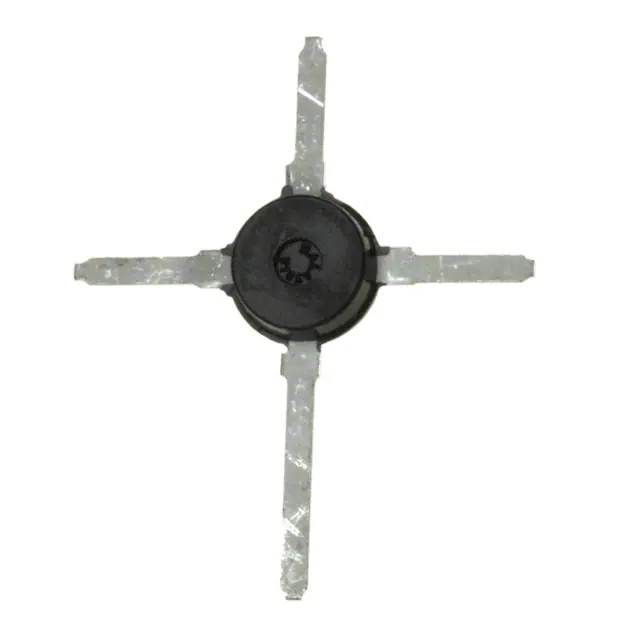

MRF581RF TRANS NPN 18V 5GHZ MICRO X |
3,439 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 18V | 5GHz | 3dB ~ 3.5dB @ 500MHz | 13dB ~ 15.5dB | 1.25W | 50 @ 50mA, 5V | 200mA | 150°C (TJ) | Surface Mount |
|

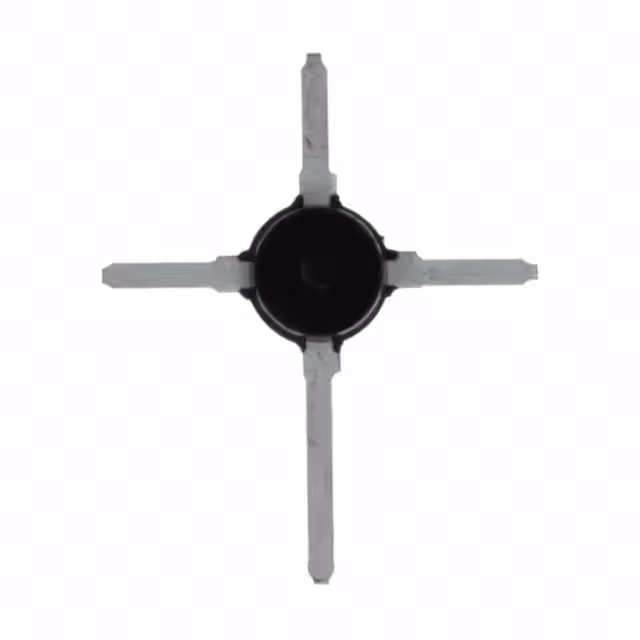

MRF581ARF TRANS NPN 15V 5GHZ MICRO X |
2,470 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 15V | 5GHz | 3dB ~ 3.5dB @ 500MHz | 13dB ~ 15.5dB | 1.25W | 90 @ 50mA, 5V | 200mA | 150°C (TJ) | Surface Mount |
|

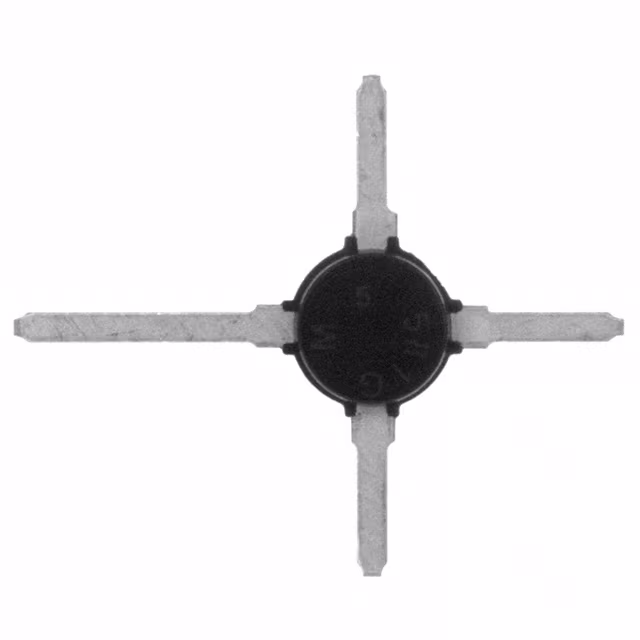

MRF581GRF TRANS NPN 18V 5GHZ MICRO X |
2,037 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 18V | 5GHz | 3dB ~ 3.5dB @ 500MHz | 13dB ~ 15.5dB | 1.25W | 50 @ 50mA, 5V | 200mA | 150°C (TJ) | Surface Mount |
|
MRF904RF TRANS NPN 15V 4GHZ TO72 |
2,772 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 15V | 4GHz | 1.5dB @ 450MHz | 6.5dB ~ 10.5dB | 200mW | 30 @ 5mA, 5V | 30mA | 200°C (TJ) | Through Hole |
|
MRF5812GR2RF TRANS NPN 15V 5GHZ 8SO |
3,750 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 15V | 5GHz | 2dB ~ 3dB @ 500MHz | 13dB ~ 15.5dB | 1.25W | 50 @ 50mA, 5V | 200mA | - | Surface Mount |
|
|
MRF5812GR1RF TRANS NPN 15V 5GHZ 8SO |
2,434 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 15V | 5GHz | 2dB ~ 3dB @ 500MHz | 13dB ~ 15.5dB | 1.25W | 50 @ 50mA, 5V | 200mA | - | Surface Mount |
|

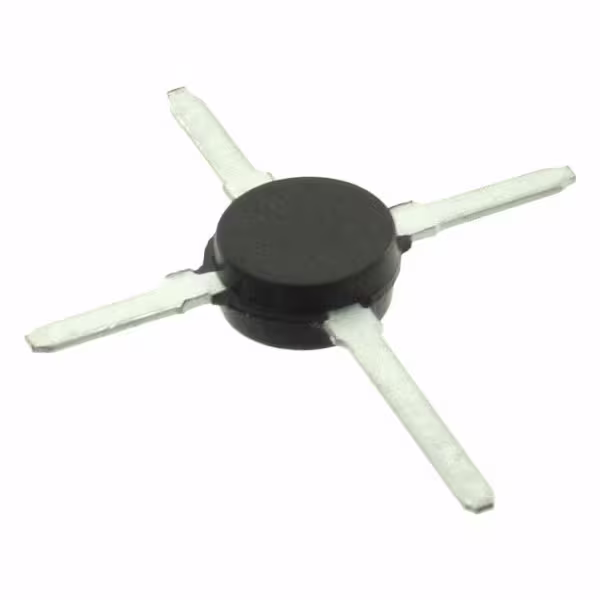

MRF581AGRF TRANS NPN 15V 5GHZ MACRO X |
3,130 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 15V | 5GHz | 3dB ~ 3.5dB @ 500MHz | 13dB ~ 15.5dB | 1.25W | 90 @ 50mA, 5V | 200mA | 150°C (TJ) | Surface Mount |
|
|
MS2554RF TRANS NPN 65V 1.15GHZ M218 |
3,126 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 65V | 1.025GHz ~ 1.15GHz | - | 6.2dB | 600W | 15 @ 1A, 5V | 17.8A | 200°C (TJ) | Chassis Mount |
|
|
0510-50ARF TRANS 27V 1GHZ 55AV |
2,230 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | 27V | 500MHz ~ 1GHz | - | 7dB | 50W | 10 @ 500mA, 5V | 3.7A | 200°C (TJ) | Chassis Mount |
|
|
0910-150MRF TRANS NPN 65V 1GHZ 55KT |
3,774 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 65V | 890MHz ~ 1GHz | - | 8.1dB ~ 8.5dB | 400W | - | 12A | 200°C (TJ) | Chassis Mount |
