Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransistorType	Current-Collector(Ic)(Max)	Voltage-CollectorEmitterBreakdown(Max)	VceSaturation(Max)@IbIc	Current-CollectorCutoff(Max)	DCCurrentGain(hFE)(Min)@IcVce	Power-Max	Frequency-Transition	OperatingTemperature	MountingType
2N1711 TRANS NPN 130V 1A TO39 Solid State Inc.	2,239	0.50	RFQ	Datasheet	Box	-	Active	NPN	1 A	130 V	500mV @ 15mA, 150mA	10nA	100 @ 150mA, 10V	800 mW	70MHz	200°C (TJ)	Through Hole
2N3019 TRANS NPN 80V 1A TO39 Solid State Inc.	3,933	0.50	RFQ	Datasheet	Box	-	Active	NPN	1 A	80 V	500mV @ 50mA, 500mA	10nA (ICBO)	100 @ 150mA, 10V	800 mW	100MHz	200°C (TJ)	Through Hole
2N2219A TRANS NPN 40V 0.8A TO39 Solid State Inc.	2,948	0.50	RFQ	Datasheet	Box	-	Active	NPN	800 mA	40 V	1V @ 50mA, 500mA	10nA	75 @ 10mA, 10V	800 mW	300MHz	-65°C ~ 200°C (TJ)	Through Hole
2N2905A TRANS PNP 40V 0.6A TO39 Solid State Inc.	2,943	0.50	RFQ	Datasheet	Box	-	Active	PNP	600 mA	40 V	1.6V @ 50mA, 500mA	50nA	100 @ 150mA, 10V	600 mW	200MHz	-65°C ~ 200°C (TJ)	Through Hole

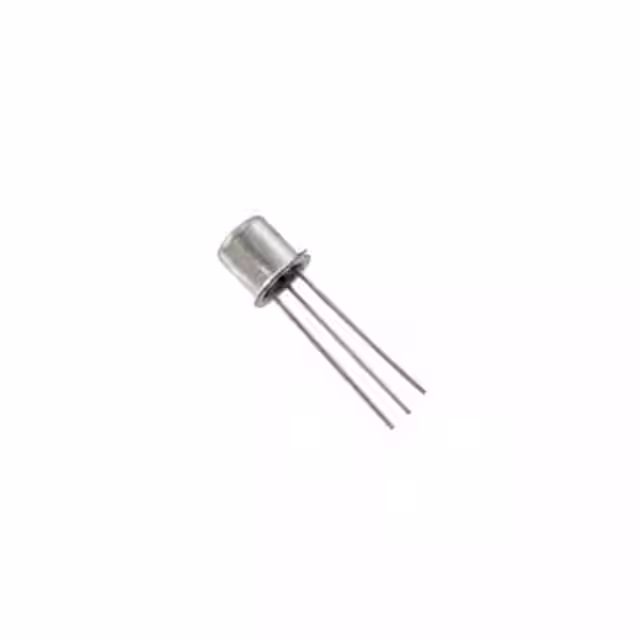

2N2907A TRANS PNP 40V 0.6A TO18 Solid State Inc.	3,869	0.50	RFQ	Datasheet	Box	-	Active	PNP	600 mA	40 V	1.6V @ 50mA, 500mA	50nA	100 @ 150mA, 10V	400 mW	200MHz	-65°C ~ 200°C (TJ)	Through Hole

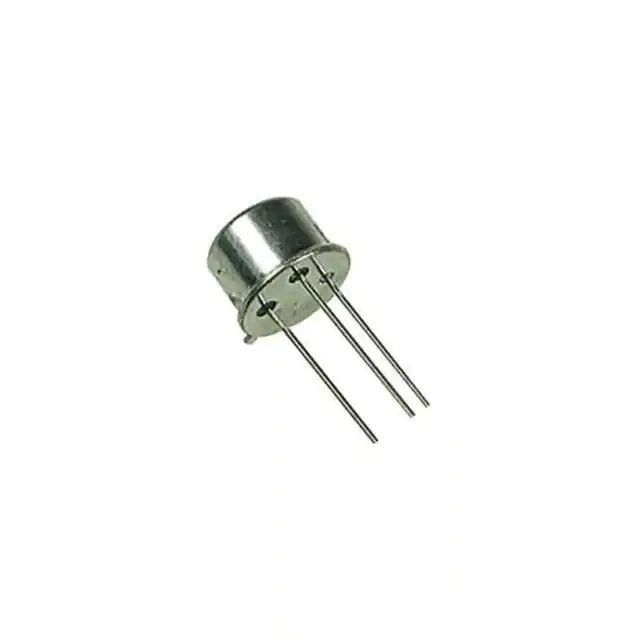

2N3440 TRANS NPN 250V 1A TO39 Solid State Inc.	2,510	0.54	RFQ	Datasheet	Box	-	Active	NPN	1 A	250 V	500mV @ 4mA, 50mA	50µA	40 @ 20mA, 10V	1 W	15MHz	-65°C ~ 200°C (TJ)	Through Hole
2N5415 TRANS PNP 200V 1A TO39 Solid State Inc.	3,945	0.85	RFQ	Datasheet	Box	-	Active	PNP	1 A	200 V	2.5V @ 5mA, 50mA	50µA	30 @ 50mA, 10V	1 W	15MHz	200°C (TJ)	Through Hole

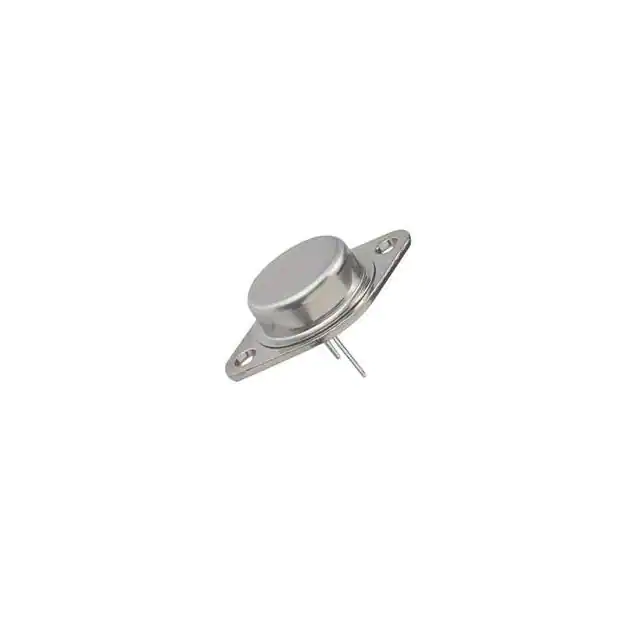

2N3771 TRANS NPN 40V 30A TO3 Solid State Inc.	540	1.50	RFQ	Datasheet	Box	-	Active	NPN	30 A	40 V	4V @ 6A, 30A	10mA	15 @ 15A, 4V	150 W	200kHz	200°C (TJ)	Through Hole

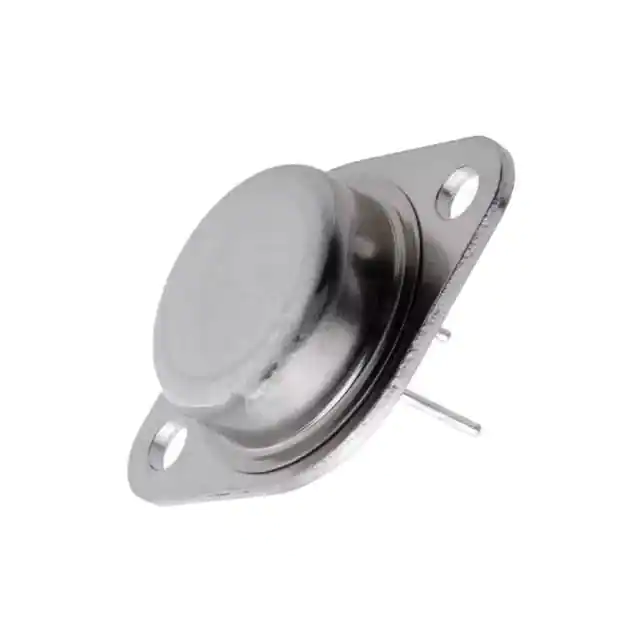

MJ16018 TRANS NPN 750V 10A TO3 Solid State Inc.	200	12.50	RFQ	Datasheet	Box	-	Active	NPN	10 A	750 V	5V @ 5A, 10A	250µA	4 @ 5A, 5V	175 W	-	150°C (TJ)	Through Hole
2N4033 TRANS PNP TO39 Solid State Inc.	2,627	0.50	RFQ		Bulk	-	Active	PNP	-	-	-	-	-	-	-	-	Through Hole

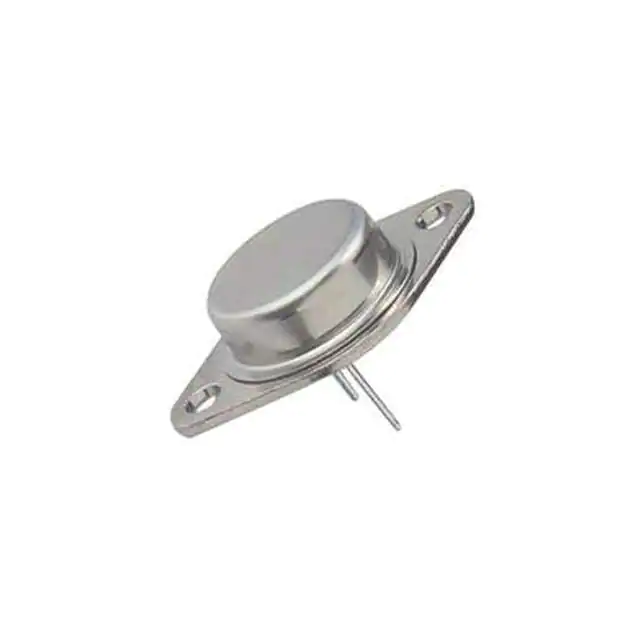

2N3773 TRANS NPN 140V 16A TO3 Solid State Inc.	500	2.20	RFQ	Datasheet	Bulk	-	Active	NPN	16 A	140 V	4V @ 3.2A, 16A	10mA	15 @ 8A, 4V	150 W	-	-65°C ~ 200°C (TJ)	Through Hole

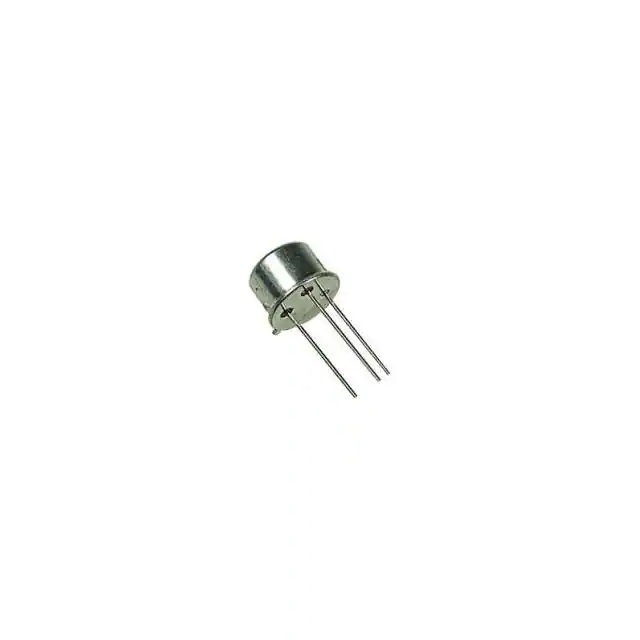

2N5338 TRANS NPN 100V 5A TO5 Solid State Inc.	2,299	3.95	RFQ		Box	-	Active	NPN	5 A	100 V	1.2V @ 500mA, 5A	10µA (ICBO)	30 @ 2A, 2V	6 W	30MHz	-65°C ~ 200°C (TJ)	Through Hole
MJ10024 TRANS NPN DARL 750V 20A TO3 Solid State Inc.	360	8.95	RFQ	Datasheet	Bulk	SWITCHMODE	Active	NPN - Darlington	20 A	750 V	5V @ 5A, 20A	250µA	50 @ 5A, 5V	250 W	-	-65°C ~ 200°C (TJ)	Through Hole

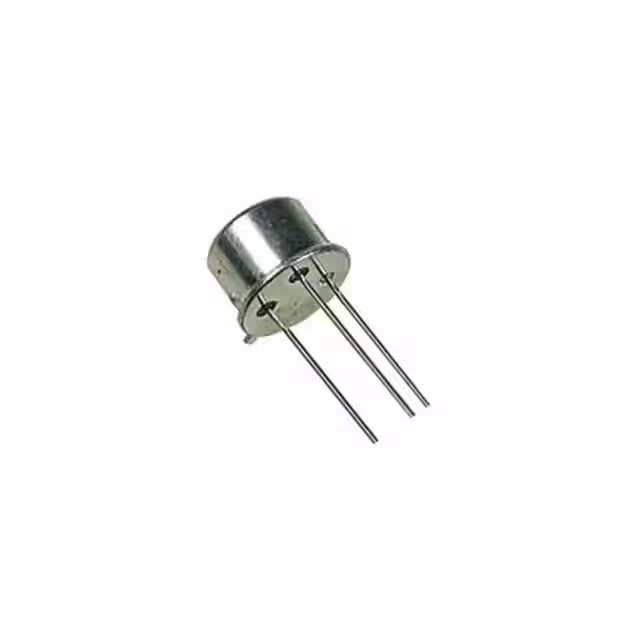

2N3110 TRANS NPN 40V 1A TO39 Solid State Inc.	2,145	0.50	RFQ	Datasheet	Box	-	Active	NPN	1 A	40 V	1V @ 100mA, 1A	10nA	40 @ 150mA, 1V	800 mW	60MHz	-65°C ~ 200°C (TJ)	Through Hole

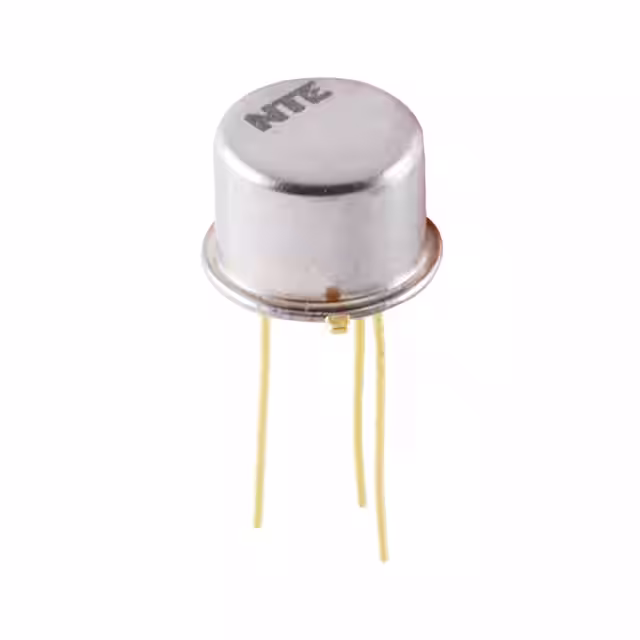

2N2102 TRANS NPN 65V 1A TO39 Solid State Inc.	680	0.50	RFQ	Datasheet	Box	-	Active	NPN	1 A	65 V	500mV @ 15mA, 150mA	2nA (ICBO)	40 @ 150mA, 10V	1 mW	60MHz	-65°C ~ 200°C (TJ)	Through Hole
2N1893 TRANS NPN 80V 0.5A TO5 Solid State Inc.	460	0.50	RFQ	Datasheet	Box	-	Active	NPN	500 mA	80 V	5V @ 15A, 150A	10nA (ICBO)	-	800 mW	-	-65°C ~ 200°C (TJ)	Through Hole

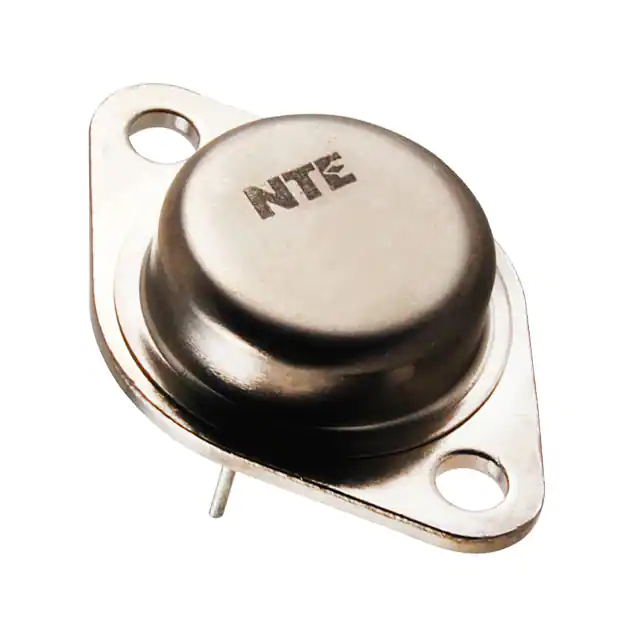

2N3055 TRANS NPN 60V 15A TO3 Solid State Inc.	3,448	0.98	RFQ	Datasheet	Box	-	Active	NPN	15 A	60 V	3V @ 3.3A, 10A	700µA	20 @ 4A, 4V	115 W	2.5MHz	-65°C ~ 200°C (TJ)	Through Hole
2N5320 TRANS NPN 75V 2A TO39 Solid State Inc.	520	0.99	RFQ	Datasheet	Box	-	Active	NPN	2 A	75 V	500mV @ 50mA, 500mA	100µA	30 @ 500mA, 4V	10 W	-	-65°C ~ 200°C (TJ)	Through Hole
TIP117 TRANS PNP DARL 100V 2A TO220 Solid State Inc.	420	0.32	RFQ	Datasheet	Bulk	-	Active	PNP - Darlington	2 A	100 V	2.5V @ 8mA, 2A	2mA	1000 @ 1A, 4V	50 W	-	-65°C ~ 150°C (TJ)	Through Hole
D45C11 TRANS PNP 80V 4A TO220 Solid State Inc.	400	0.50	RFQ	Datasheet	Bulk	-	Active	PNP	4 A	80 V	500mV @ 50mA, 1A	10µA	40 @ 200mA, 1V	30 W	40MHz	-55°C ~ 150°C (TJ)	Through Hole
