| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KSP8599CTATRANS PNP 80V 0.5A TO92-3 |
3,430 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 500 mA | 80 V | 400mV @ 5mA, 100mA | 100nA | 100 @ 1mA, 5V | 625 mW | 150MHz | 150°C (TJ) | Through Hole |
|
|
MPSH24TRANS NPN 30V 0.05A TO92-3 |
2,424 | 1.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | NPN | 50 mA | 30 V | - | 50nA (ICBO) | 30 @ 8mA, 10V | 625 mW | 400MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MPSA20TRANS NPN 40V 0.1A TO92 |
3,830 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 100 mA | 40 V | 250mV @ 1mA, 10mA | 100nA (ICBO) | 40 @ 5mA, 10V | 625 mW | 125MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
FMBS549TRANS PNP 30V 1A SUPERSOT-6 |
3,876 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 1 A | 30 V | 750mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 500mA, 2V | 700 mW | 100MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
2N4401_D11ZTRANS NPN 40V 0.6A TO92-3 |
3,830 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 600 mA | 40 V | 750mV @ 50mA, 500mA | - | 100 @ 150mA, 1V | 625 mW | 250MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
KST63MTFTRANS PNP DARL 30V 0.5A SOT23-3 |
3,475 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP - Darlington | 500 mA | 30 V | 1.5V @ 100µA, 100mA | 100nA (ICBO) | 10000 @ 100mA, 5V | 350 mW | 125MHz | - | Surface Mount |
|
|
MMBT2907ATRANS PNP 60V 0.6A SOT23-3 |
3,887 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 600 mA | 60 V | 1.6V @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 350 mW | 200MHz | 150°C (TJ) | Surface Mount |
|
KSH31CTMTRANS NPN 100V 3A TO252-3 |
3,007 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 3 A | 100 V | 1.2V @ 375mA, 3A | 50µA | 10 @ 3A, 4V | 1.56 W | 3MHz | 150°C (TJ) | Surface Mount |
|
FSBCW30TRANS PNP 32V 0.5A SOT23-3 |
3,374 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 500 mA | 32 V | 300mV @ 500µA, 10mA | 100nA (ICBO) | 215 @ 2mA, 5V | 500 mW | - | -55°C ~ 150°C (TJ) | Surface Mount |
,TO-226_straightlead.jpg)
|
PN4355TRANS PNP 60V 0.8A TO92-3 |
3,848 | 1.00 |
RFQ |
Bulk | - | Obsolete | PNP | 800 mA | 60 V | 1V @ 100mA, 1A | 50nA (ICBO) | 100 @ 10mA, 10V | 625 mW | - | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
MMBT2907AKTRANS PNP 60V 0.6A SOT23-3 |
2,049 | 1.00 |
RFQ |
Bulk | - | Obsolete | PNP | 600 mA | 60 V | 1.6V @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 350 mW | 200MHz | -55°C ~ 150°C (TJ) | Surface Mount | |
|
2SD1683TTRANS NPN 50V 4A TO225-3 |
2,296 | 1.00 |
RFQ |
Datasheet |
Bulk | 2SD1683 | Obsolete | NPN | 4 A | 50 V | 500mV @ 100mA, 2A | 1µA (ICBO) | 200 @ 100mA, 2V | 1.5 W | 150MHz | 150°C (TJ) | Through Hole |
|
MPSA13TRANS NPN DARL 30V 0.5A TO92 |
2,813 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN - Darlington | 500 mA | 30 V | 1.5V @ 100µA, 100mA | 100nA (ICBO) | 10000 @ 100mA, 5V | 625 mW | 125MHz | -55°C ~ 150°C (TJ) | Through Hole |
|
KSA614OTRANS PNP 55V 3A TO220-3 |
3,178 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 3 A | 55 V | 500mV @ 100mA, 1A | 50µA (ICBO) | 70 @ 500mA, 5V | 25 W | - | 150°C (TJ) | Through Hole |
|
|
2N5771TRANS PNP 15V 0.2A TO92-3 |
3,450 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 200 mA | 15 V | 600mV @ 5mA, 50mA | 10nA | 50 @ 10mA, 300mV | 350 mW | - | -55°C ~ 150°C (TJ) | Through Hole |
|
|
KSB834YTRANS PNP 60V 3A TO220-3 |
3,718 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 3 A | 60 V | 1V @ 300mA, 3A | 100µA (ICBO) | 100 @ 500mA, 5V | 1.5 W | 9MHz | 150°C (TJ) | Through Hole |
|

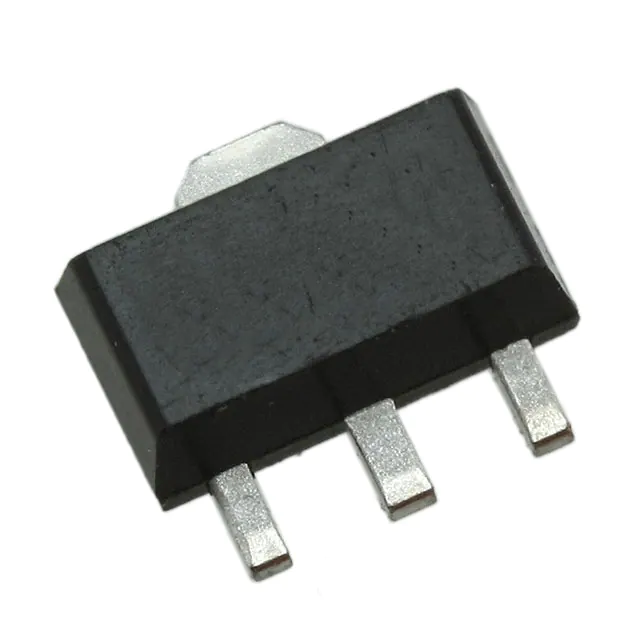

FJC1963RTFTRANS NPN 30V 3A SOT89-3 |
2,237 | 1.00 |
RFQ |
Bulk | - | Obsolete | NPN | 3 A | 30 V | 450mV @ 150mA, 1.5A | 500nA | 180 @ 500mA, 2V | 500 mW | - | 150°C (TJ) | Surface Mount | |
|
|
SS8550BTATRANS PNP 25V 1.5A TO92-3 |
2,034 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 1.5 A | 25 V | 500mV @ 80mA, 800mA | 100nA (ICBO) | 85 @ 100mA, 1V | 1 W | 200MHz | 150°C (TJ) | Through Hole |
|
|
KSC839CYTATRANS NPN 30V 0.1A TO92-3 |
3,460 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN | 100 mA | 30 V | 400mV @ 1mA, 10mA | 100nA (ICBO) | 120 @ 2mA, 12V | 250 mW | 200MHz | 150°C (TJ) | Through Hole |
|
|
KSC1507YTSTUTRANS NPN 300V 200UA TO220-3 |
3,594 | 1.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | NPN | 200 µA | 300 V | 2V @ 5mA, 50mA | 100µA (ICBO) | 120 @ 10mA, 10V | 15 W | 80MHz | 150°C (TJ) | Through Hole |
