| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | FETFeature | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | InputCapacitance(Ciss)(Max)@Vds | Power-Max | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

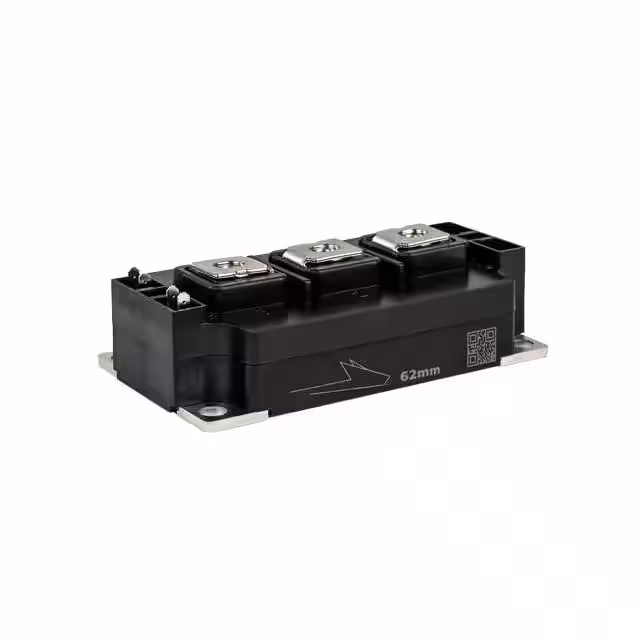

CAS175M12BM3175A 1200V SIC HALF-BRIDGE MODUL |
2,831 | 510.20 |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Dual) Common Source | Silicon Carbide (SiC) | 1200V (1.2kV) | 228A (Tc) | 10.4mOhm @ 175A, 15V | 3.6V @ 43mA | 422nC @ 15V | 12900pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount |
|
WAS175M12BM3SIC, MODULE, 175A, 1200V, 62MM |
3,054 | 0.00 |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 228A (Tc) | 10.4mOhm @ 175A, 15V | 3.6V @ 43mA | 422nC @ 15V | 12900pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount |
|

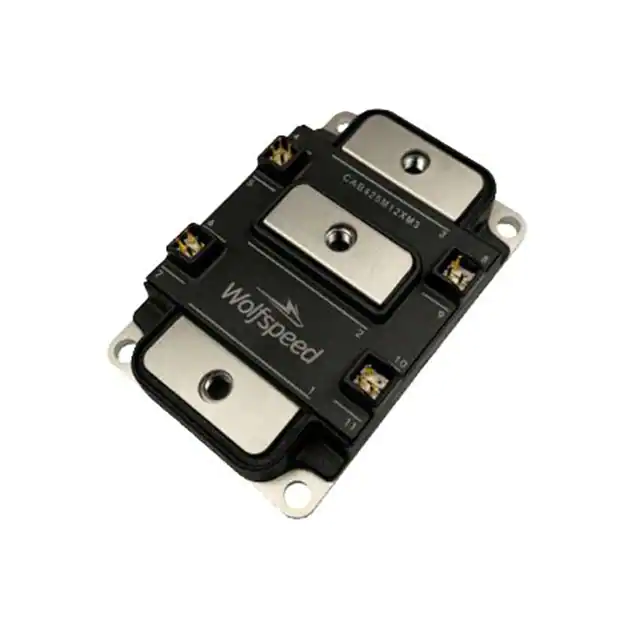

CAB425M12XM31.2KV, 425A SWITCHING LOSS OPTIM |
3,398 | 764.97 |
RFQ |
Datasheet |
Bulk | CAB425M12XM3 | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 450A | 4.2mOhm @ 425A, 15V | 3.6V @ 115mA | 1135nC @ 15V | 30.7nF @ 800V | 50mW | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
CAS350M12BM3350A 1200V SIC HALF-BRIDGE MODUL |
2,553 | 830.48 |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Dual) Common Source | Silicon Carbide (SiC) | 1200V (1.2kV) | 417A (Tc) | 5.2mOhm @ 350A, 15V | 3.6V @ 85mA | 844nC @ 15V | 25700pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
WAS350M12BM3SIC, MODULE, 350A, 1200V, 62MM |
3,716 | 0.00 |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 417A (Tc) | 5.2mOhm @ 350A, 15V | 3.6V @ 85mA | 844nC @ 15V | 25700pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount |
|

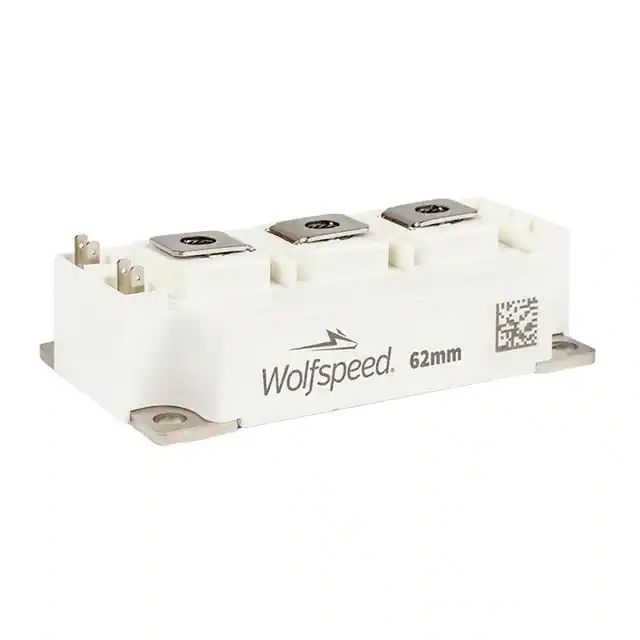

CAB530M12BM31200V, 530A H-BRIDGE SIC MODULE |
3,875 | 936.54 |
RFQ |
Datasheet |
Tray | - | Active | 2 N-Channel | Silicon Carbide (SiC) | 1200V (1.2kV) | 530A | 3.55mOhm @ 530A, 15V | 3.6V @ 140mA | 1362nC @ 4V | 39600pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
CAS530M12BM3530A 1200V SIC HALF-BRIDGE MODUL |
3,960 | 938.32 |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Dual) Common Source | Silicon Carbide (SiC) | 1200V (1.2kV) | 630A (Tc) | 3.47mOhm @ 530A, 15V | 3.6V @ 127mA | 1362nC @ 15V | 38900pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
WAS530M12BM3SIC, MODULE, 530A, 1200V, 62MM |
3,007 | 0.00 |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 630A (Tc) | 3.47mOhm @ 530A, 15V | 3.6V @ 127mA | 1362nC @ 15V | 38900pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount |
|

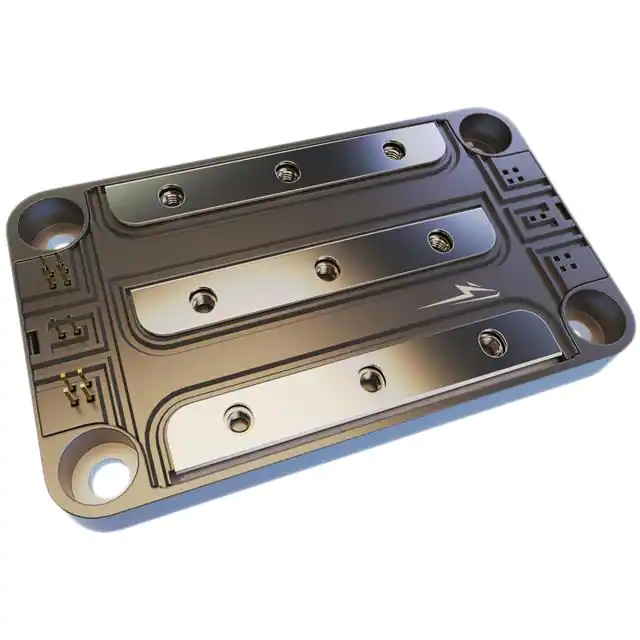

CAB760M12HM3R760A 1200V SIC HALF-BRIDGE MODUL |
3,486 | 2792.73 |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 1.015kA (Tc) | 1.73mOhm @ 760A, 15V | 3.6V @ 280mA | 2724nC @ 15V | 79400pF @ 800V | 50mW | -40°C ~ 175°C (TJ) | Chassis Mount |
|
CAS380M17HM3380A 1700V SIC HALF-BRIDGE |
3,172 | 4213.86 |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Dual) | Silicon Carbide (SiC) | 1700V (1.7kV) | 532A (Tc) | 3.74mOhm @ 380A, 15V | 3.6V @ 152mA | 1494nC @ 15V | 4700pF @ 1200V | 50mW | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
CAB650M17HM3650A 1700V SIC HALF-BRIDGE |
2,081 | 4518.66 |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Dual) | Silicon Carbide (SiC) | 1700V (1.7kV) | 916A (Tc) | 1.86mOhm @ 650A, 15V | 3.6V @ 305mA | 2988nC @ 15V | 97300pF @ 1200V | 50mW | -40°C ~ 175°C (TJ) | Chassis Mount |
|
CAR600M12HN6600A 1200V HALF-BRIDGE RECTIFIER |
3,411 | 2894.08 |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 908A (Tc) | - | - | - | 45300pF @ 0V | 50mW | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
CAR600M17HN6600A 1700V HALF-BRIDGE RECTIFIER |
3,525 | 3046.48 |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1700V (1.7kV) | 986A (Tc) | - | - | - | 55700pF @ 0V | 50mW | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
CAB500M17HM3500A 1700V SIC HALF-BRIDGE |
3,392 | 3619.50 |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Dual) | Silicon Carbide (SiC) | 1700V (1.7kV) | 653A (Tc) | 2.6mOhm @ 500A, 15V | 3.6V @ 203mA | 1992nC @ 15V | 64900pF @ 1200V | 50mW | -40°C ~ 175°C (TJ) | Chassis Mount |
|
CAS100H12AM1MOSFET 2N-CH 1200V 168A MODULE |
2,910 | 0.00 |
RFQ |
Datasheet |
Bulk | Z-FET™ | Obsolete | 2 N-Channel (Half Bridge) | Standard | 1200V (1.2kV) | 168A | 20mOhm @ 20A, 20V | 3.1V @ 50mA | - | 9500pF @ 800V | 568W | - | Chassis Mount |
|
CAS325M12HM2MOSFET 2N-CH 1200V 444A MODULE |
3,605 | 0.00 |
RFQ |
Datasheet |
Bulk | Z-REC™ | Obsolete | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 444A (Tc) | 4.3mOhm @ 400A, 20V | 4V @ 105mA | 1127nC @ 20V | 19500pF @ 1000V | 3000W | 175°C (TJ) | - |
