Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FETType	Technology	DraintoSourceVoltage(Vdss)	Current-ContinuousDrain(Id)@25°C	DriveVoltage(MaxRdsOnMinRdsOn)	RdsOn(Max)@IdVgs	Vgs(th)(Max)@Id	GateCharge(Qg)(Max)@Vgs	Vgs(Max)	InputCapacitance(Ciss)(Max)@Vds	FETFeature	PowerDissipation(Max)	OperatingTemperature	MountingType
SIHB120N60E-T5-GE3 N-CHANNEL 600V Vishay Siliconix	800	5.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	E	Active	N-Channel	MOSFET (Metal Oxide)	600 V	25A (Tc)	10V	120mOhm @ 12A, 10V	5V @ 250µA	45 nC @ 10 V	±30V	1562 pF @ 100 V	-	179W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount

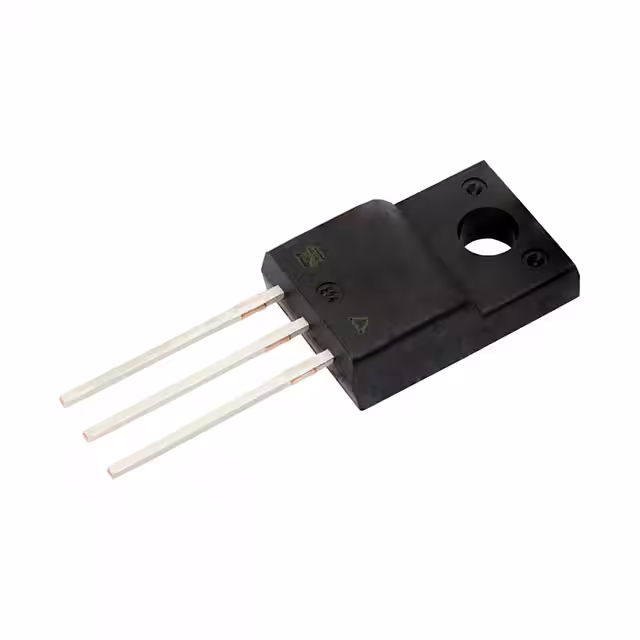

SIHA24N65EF-GE3 N-CHANNEL 650V Vishay Siliconix	1,000	6.19	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	E	Active	N-Channel	MOSFET (Metal Oxide)	650 V	10A (Tc)	10V	156mOhm @ 12A, 10V	4V @ 250µA	122 nC @ 10 V	±30V	2774 pF @ 100 V	-	39W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
SIHA24N80AE-GE3 MOSFET N-CH 800V 9A TO220 Vishay Siliconix	757	3.62	RFQ		Tube	-	Active	N-Channel	MOSFET (Metal Oxide)	800 V	9A (Tc)	-	184mOhm @ 10A, 10V	4V @ 250µA	89 nC @ 10 V	±30V	1836 pF @ 100 V	-	35W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
SIHP11N80E-BE3 N-CHANNEL 800V Vishay Siliconix	958	3.70	RFQ	Datasheet	Tube	E	Active	N-Channel	MOSFET (Metal Oxide)	800 V	12A (Tc)	10V	440mOhm @ 5.5A, 10V	4V @ 250µA	88 nC @ 10 V	±30V	1670 pF @ 100 V	-	179W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
SIHP25N50E-BE3 N-CHANNEL 500V Vishay Siliconix	2,996	3.36	RFQ	Datasheet	Tube	-	Active	N-Channel	MOSFET (Metal Oxide)	500 V	26A (Tc)	10V	145mOhm @ 12A, 10V	4V @ 250µA	86 nC @ 10 V	±30V	1980 pF @ 100 V	-	250W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IRFBC40LCPBF-BE3 MOSFET N-CH 600V 6.2A TO220AB Vishay Siliconix	846	4.60	RFQ	Datasheet	Tube	-	Active	N-Channel	MOSFET (Metal Oxide)	600 V	6.2A (Tc)	-	1.2Ohm @ 3.7A, 10V	4V @ 250µA	39 nC @ 10 V	±30V	1100 pF @ 25 V	-	125W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
SIHP25N60EFL-BE3 N-CHANNEL 600V Vishay Siliconix	978	4.96	RFQ	Datasheet	Tube	E	Active	N-Channel	MOSFET (Metal Oxide)	600 V	25A (Tc)	10V	146mOhm @ 12.5A, 10V	5V @ 250µA	75 nC @ 10 V	±30V	2274 pF @ 100 V	-	250W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
SIHP22N60AE-BE3 N-CHANNEL 600V Vishay Siliconix	2,000	3.93	RFQ	Datasheet	Tube	E	Active	N-Channel	MOSFET (Metal Oxide)	600 V	20A (Tc)	10V	180mOhm @ 11A, 10V	4V @ 250µA	96 nC @ 10 V	±30V	1451 pF @ 100 V	-	179W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
SIHK045N60E-T1-GE3 E SERIES POWER MOSFET POWERPAK 1 Vishay Siliconix	2,000	10.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	E	Active	N-Channel	MOSFET (Metal Oxide)	600 V	48A (Tc)	10V	49mOhm @ 17A, 10V	5V @ 250µA	98 nC @ 10 V	±30V	4013 pF @ 100 V	-	278W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount

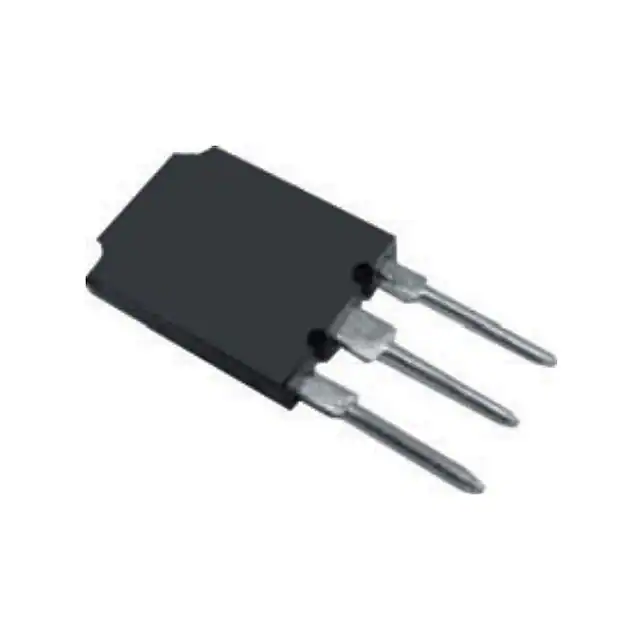

SIHFPS38N60L-GE3 POWER MOSFET SUPER-247, 150 M @ Vishay Siliconix	380	8.28	RFQ	Datasheet	Tube	-	Active	N-Channel	MOSFET (Metal Oxide)	600 V	38A (Tc)	10V	150mOhm @ 23A, 10V	5V @ 250µA	320 nC @ 10 V	±30V	7990 pF @ 25 V	-	540W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
SIHS36N50D-GE3 D SERIES POWER MOSFET SUPER-247 Vishay Siliconix	3,057	0.00	RFQ	Datasheet	Tube	D	Active	N-Channel	MOSFET (Metal Oxide)	500 V	36A (Tc)	10V	130mOhm @ 18A, 10V	5V @ 250µA	125 nC @ 10 V	±30V	3233 pF @ 100 V	-	446W (Tc)	-55°C ~ 150°C (TJ)
IRFP27N60KPBF MOSFET N-CH 600V 27A TO247-3 Vishay Siliconix	5,085	10.27	RFQ	Datasheet	Tube	-	Active	N-Channel	MOSFET (Metal Oxide)	600 V	27A (Tc)	10V	220mOhm @ 16A, 10V	5V @ 250µA	180 nC @ 10 V	±30V	4660 pF @ 25 V	-	500W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
SIHS90N65E-GE3 E SERIES POWER MOSFET SUPER-247 Vishay Siliconix	508	508.00	RFQ	Datasheet	Tube	E	Active	N-Channel	MOSFET (Metal Oxide)	650 V	87A (Tc)	10V	29mOhm @ 45A, 10V	4V @ 250µA	591 nC @ 10 V	±30V	11826 pF @ 100 V	-	625W (Tc)	-55°C ~ 150°C (TJ)
SI4776DY-T1-GE3 MOSFET N-CHANNEL 30V 11.9A 8SO Vishay Siliconix	1,146	0.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SkyFET®, TrenchFET®	Obsolete	N-Channel	MOSFET (Metal Oxide)	30 V	11.9A (Tc)	4.5V, 10V	16mOhm @ 10A, 10V	2.3V @ 1mA	17.5 nC @ 10 V	±20V	521 pF @ 15 V	-	4.1W (Tc)	-55°C ~ 150°C (TA)	Surface Mount
SIUD412ED-T1-GE3 MOSFET N-CH 12V 500MA PPAK 0806 Vishay Siliconix	258	0.41	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TrenchFET®	Active	N-Channel	MOSFET (Metal Oxide)	12 V	500mA (Tc)	1.2V, 4.5V	340mOhm @ 500mA, 4.5V	900mV @ 250µA	0.71 nC @ 4.5 V	±5V	21 pF @ 6 V	-	1.25W (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
SI2304DDS-T1-GE3 MOSFET N-CH 30V 3.3A/3.6A SOT23 Vishay Siliconix	2,311	0.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TrenchFET®	Active	N-Channel	MOSFET (Metal Oxide)	30 V	3.3A (Ta), 3.6A (Tc)	4.5V, 10V	60mOhm @ 3.2A, 10V	2.2V @ 250µA	6.7 nC @ 10 V	±20V	235 pF @ 15 V	-	1.1W (Ta), 1.7W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
SI2377EDS-T1-GE3 MOSFET P-CH 20V 4.4A SOT23-3 Vishay Siliconix	3,885	0.46	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TrenchFET®	Active	P-Channel	MOSFET (Metal Oxide)	20 V	4.4A (Tc)	1.5V, 4.5V	61mOhm @ 3.2A, 4.5V	1V @ 250µA	21 nC @ 8 V	±8V	-	-	1.25W (Ta), 1.8W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
SI8812DB-T2-E1 MOSFET N-CH 20V 4MICROFOOT Vishay Siliconix	2,760	0.46	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TrenchFET®	Active	N-Channel	MOSFET (Metal Oxide)	20 V	2.3A (Ta)	1.2V, 4.5V	59mOhm @ 1A, 4.5V	1V @ 250µA	17 nC @ 8 V	±5V	-	-	500mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
SI1302DL-T1-GE3 MOSFET N-CH 30V 600MA SC70-3 Vishay Siliconix	2,867	0.46	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TrenchFET®	Active	N-Channel	MOSFET (Metal Oxide)	30 V	600mA (Ta)	4.5V, 10V	480mOhm @ 600mA, 10V	3V @ 250µA	1.4 nC @ 10 V	±20V	-	-	280mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
SI3429EDV-T1-GE3 MOSFET P-CH 20V 8A/8A 6TSOP Vishay Siliconix	3,670	0.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TrenchFET®	Active	P-Channel	MOSFET (Metal Oxide)	20 V	8A (Ta), 8A (Tc)	1.8V, 4.5V	21mOhm @ 4A, 4.5V	1V @ 250µA	118 nC @ 10 V	±8V	4085 pF @ 50 V	-	4.2W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
