| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

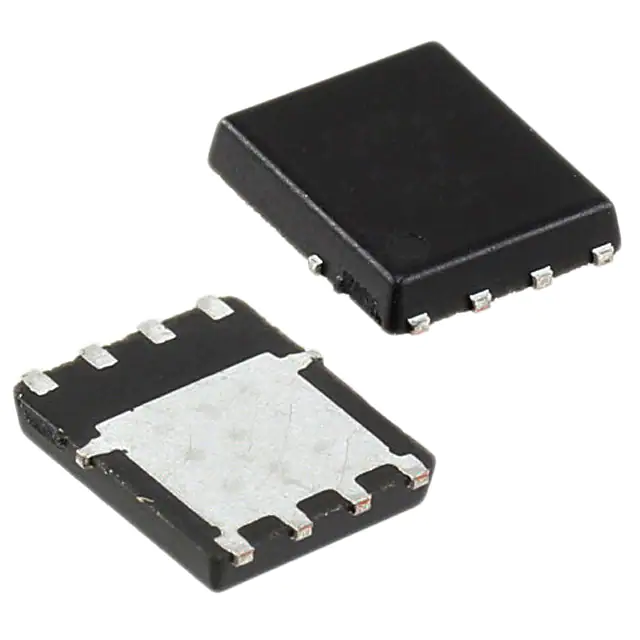

SIR418DP-T1-GE3MOSFET N-CH 40V 40A PPAK SO-8 |
33,465 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 5mOhm @ 20A, 10V | 2.4V @ 250µA | 75 nC @ 10 V | ±20V | 2410 pF @ 20 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIR696DP-T1-GE3MOSFET N-CH 125V 60A PPAK SO-8 |
11,378 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ThunderFET® | Active | N-Channel | MOSFET (Metal Oxide) | 125 V | 60A (Tc) | 7.5V, 10V | 11.5mOhm @ 20A, 10V | 4.5V @ 250µA | 38 nC @ 10 V | ±20V | 1410 pF @ 75 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI4874BDY-T1-E3MOSFET N-CH 30V 12A 8SO |
9,562 | 1.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 7mOhm @ 16A, 10V | 3V @ 250µA | 25 nC @ 4.5 V | ±20V | 3230 pF @ 15 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIR606BDP-T1-RE3MOSFET N-CH 100V 10.9A PPAK |
38,109 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 10.9A (Ta), 38.7A (Tc) | 7.5V, 10V | 17.4mOhm @ 10A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 1470 pF @ 50 V | - | 5W (Ta), 62.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SQD50N04-5M6_T4GE3MOSFET N-CH 40V 50A TO252AA |
39,988 | 1.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 10V | 5.6mOhm @ 20A, 10V | 3.5V @ 250µA | 85 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SIR165DP-T1-GE3MOSFET P-CH 30V 60A PPAK SO-8 |
15,070 | 1.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen III | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 4.5V, 10V | 4.6mOhm @ 15A, 10V | 2.3V @ 250µA | 138 nC @ 10 V | ±20V | 4930 pF @ 15 V | - | 69.4W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIR878BDP-T1-RE3MOSFET N-CH 100V 12A/42.5A PPAK |
10,552 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Ta), 42.5A (Tc) | 7.5V, 10V | 14.4mOhm @ 15A, 10V | 3.4V @ 250µA | 38 nC @ 10 V | ±20V | 1850 pF @ 50 V | - | 5W (Ta), 62.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIR106ADP-T1-RE3MOSFET N-CH 100V 16.1A/65.8 PPAK |
18,371 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 16.1A (Ta), 65.8 (Tc) | 7.5V, 10V | 8mOhm @ 15A, 10V | 4V @ 250µA | 52 nC @ 10 V | ±20V | 2440 pF @ 50 V | - | 5W (Ta), 83.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI4463BDY-T1-E3MOSFET P-CH 20V 9.8A 8SO |
9,726 | 1.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 9.8A (Ta) | 2.5V, 10V | 11mOhm @ 13.7A, 10V | 1.4V @ 250µA | 56 nC @ 4.5 V | ±12V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7336ADP-T1-E3MOSFET N-CH 30V 30A PPAK SO-8 |
12,773 | 1.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Ta) | 4.5V, 10V | 3mOhm @ 25A, 10V | 3V @ 250µA | 50 nC @ 4.5 V | ±20V | 5600 pF @ 15 V | - | 5.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

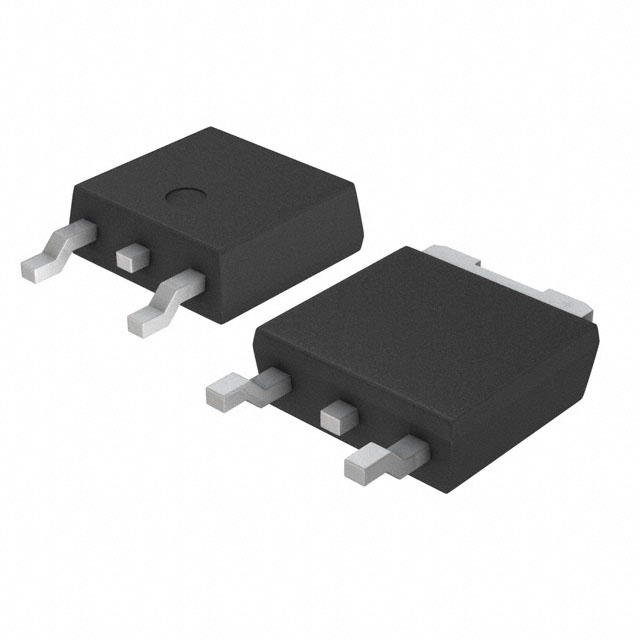

IRFR9020TRPBFMOSFET P-CH 50V 9.9A DPAK |
12,053 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 9.9A (Tc) | 10V | 280mOhm @ 5.7A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 490 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRF9510STRLPBFMOSFET P-CH 100V 4A D2PAK |
13,190 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 4A (Tc) | 10V | 1.2Ohm @ 2.4A, 10V | 4V @ 250µA | 8.7 nC @ 10 V | ±20V | 200 pF @ 25 V | - | 3.7W (Ta), 43W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
.jpg)
|

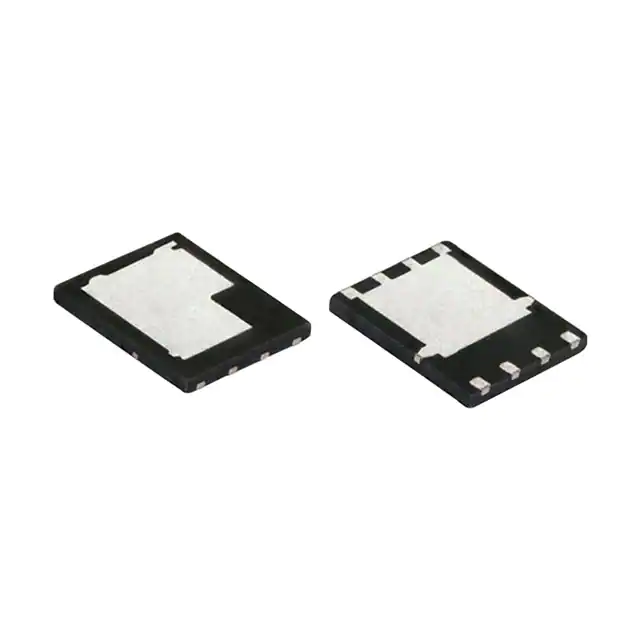

SIDR870ADP-T1-GE3MOSFET N-CH 100V 95A PPAK SO-8DC |
16,843 | 2.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 95A (Tc) | 4.5V, 10V | 6.6mOhm @ 20A, 10V | 3V @ 250µA | 80 nC @ 10 V | ±20V | 2866 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI4421DY-T1-E3MOSFET P-CH 20V 10A 8SO |
1,799 | 2.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 10A (Ta) | 1.8V, 4.5V | 8.75mOhm @ 14A, 4.5V | 800mV @ 850µA | 125 nC @ 4.5 V | ±8V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI7141DP-T1-GE3MOSFET P-CH 20V 60A PPAK SO-8 |
3,254 | 2.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 60A (Tc) | 4.5V, 10V | 1.9mOhm @ 25A, 10V | 2.3V @ 250µA | 400 nC @ 10 V | ±20V | 14300 pF @ 10 V | - | 6.25W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIR680LDP-T1-RE3MOSFET N-CH 80V 31.8A/130A PPAK |
5,325 | 2.45 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 31.8A (Ta), 130A (Tc) | 4.5V, 10V | 2.8mOhm @ 20A, 10V | 2.5V @ 250µA | 135 nC @ 10 V | ±20V | 7250 pF @ 40 V | - | 6.25W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
SIDR870ADP-T1-RE3N-CHANNEL 100-V (D-S) MOSFET |
35,890 | 2.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 21.8A (Ta), 95A (Tc) | 4.5V, 10V | 6.6mOhm @ 20A, 10V | 3V @ 250µA | 80 nC @ 10 V | ±20V | 2866 pF @ 50 V | - | 6.25W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SUD50P10-43L-E3MOSFET P-CH 100V 37.1A TO252 |
2,459 | 2.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 37.1A (Tc) | 4.5V, 10V | 43mOhm @ 9.2A, 10V | 3V @ 250µA | 160 nC @ 10 V | ±20V | 4600 pF @ 50 V | - | 8.3W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF540STRLPBFMOSFET N-CH 100V 28A D2PAK |
19,600 | 2.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 28A (Tc) | 10V | 77mOhm @ 17A, 10V | 4V @ 250µA | 72 nC @ 10 V | ±20V | 1700 pF @ 25 V | - | 3.7W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF530PBFMOSFET N-CH 100V 14A TO220AB |
15,019 | 1.47 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Tc) | 10V | 160mOhm @ 8.4A, 10V | 4V @ 250µA | 26 nC @ 10 V | ±20V | 670 pF @ 25 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
