| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8447DB-T2-E1MOSFET P-CH 20V 11A 6MICRO FOOT |
125 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 11A (Tc) | 1.7V, 4.5V | 75mOhm @ 1A, 4.5V | 1.2V @ 250µA | 25 nC @ 10 V | ±12V | 600 pF @ 10 V | - | 2.77W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIUD403ED-T1-GE3MOSFET P-CH 20V 500MA PPAK 0806 |
115 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen III | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.5V, 4.5V | 1.25Ohm @ 300mA, 4.5V | 900mV @ 250µA | 1 nC @ 4.5 V | ±8V | 31 pF @ 10 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI4774DY-T1-GE3MOSFET N-CHANNEL 30V 16A 8SO |
131 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SkyFET®, TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Tc) | 4.5V, 10V | 9.5mOhm @ 10A, 10V | 2.3V @ 1mA | 14.3 nC @ 4.5 V | ±20V | 1025 pF @ 15 V | Schottky Diode (Body) | 5W (Tc) | -55°C ~ 150°C (TA) | Surface Mount |
|
SI8465DB-T2-E1MOSFET P-CH 20V 4MICROFOOT |
490 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 2.5V, 4.5V | 104mOhm @ 1.5A, 4.5V | 1.5V @ 250µA | 18 nC @ 10 V | ±12V | 450 pF @ 10 V | - | 780mW (Ta), 1.8W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

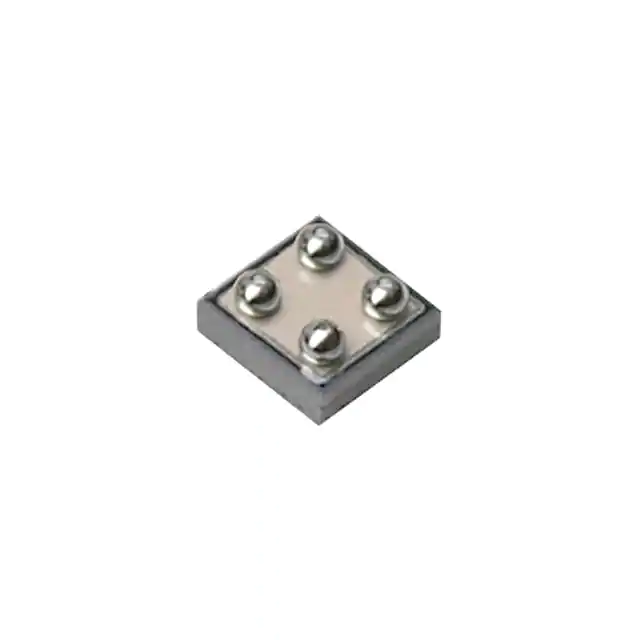

SI8824EDB-T2-E1MOSFET N-CH 20V 2.1A MICROFOOT |
188 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.1A (Ta) | 1.2V, 4.5V | 75mOhm @ 1A, 4.5V | 800mV @ 250µA | 6 nC @ 4.5 V | ±5V | 400 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI2303CDS-T1-BE3MOSFET P-CH 30V 1.9A/2.7A SOT23 |
904 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.9A (Ta), 2.7A (Tc) | 4.5V, 10V | 190mOhm @ 1.9A, 10V | 3V @ 250µA | 8 nC @ 10 V | ±20V | 155 pF @ 15 V | - | 1W (Ta), 2.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI1032X-T1-GE3MOSFET N-CH 20V 200MA SC89-3 |
150 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 200mA (Ta) | 1.5V, 4.5V | 5Ohm @ 200mA, 4.5V | 1.2V @ 250µA | 0.75 nC @ 4.5 V | ±6V | - | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SI8819EDB-T2-E1MOSFET P-CH 12V 2.9A 4MICRO FOOT |
3,859 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 2.9A (Ta) | 1.5V, 3.7V | 80mOhm @ 1.5A, 3.7V | 900mV @ 250µA | 17 nC @ 8 V | ±8V | 650 pF @ 6 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SISH472DN-T1-GE3MOSFET N-CH 30V 15A/20A PPAK |
472 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 20A (Tc) | 4.5V, 10V | 8.9mOhm @ 15A, 10V | 2.5V @ 250µA | 30 nC @ 10 V | ±20V | 997 pF @ 15 V | - | 3.5W (Ta), 28W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIRA28BDP-T1-GE3MOSFET N-CH 30V 18A/38A PPAK SO8 |
749 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta), 38A (Tc) | 4.5V, 10V | 7.5mOhm @ 10A, 10V | 2.4V @ 250µA | 14 nC @ 10 V | +20V, -16V | 582 pF @ 15 V | - | 3.8W (Ta), 17W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIHFL110TR-BE3MOSFET N-CH 100V 1.5A SOT223 |
147 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.5A (Tc) | - | 540mOhm @ 900mA, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIR472ADP-T1-GE3MOSFET N-CH 30V 18A PPAK SO-8 |
710 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Tc) | 4.5V, 10V | 9mOhm @ 15A, 10V | 2.3V @ 250µA | 28 nC @ 10 V | ±20V | 1040 pF @ 15 V | - | 3.3W (Ta), 14.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SQA410EJ-T1_GE3MOSFET N-CH 20V 7.8A PPAK SC70-6 |
125 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.8A (Tc) | 1.8V, 4.5V | 28mOhm @ 5A, 4.5V | 1.1V @ 250µA | 8 nC @ 4.5 V | ±8V | 485 pF @ 10 V | - | 13.6W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SIA468DJ-T1-GE3MOSFET N-CH 30V 37.8A PPAK SC70 |
947 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 37.8A (Tc) | 4.5V, 10V | 8.4mOhm @ 11A, 10V | 2.4V @ 250µA | 16 nC @ 4.5 V | +20V, -16V | 1290 pF @ 15 V | - | 19W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI2312BDS-T1-E3MOSFET N-CH 20V 3.9A SOT23-3 |
490 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.9A (Ta) | 1.8V, 4.5V | 31mOhm @ 5A, 4.5V | 850mV @ 250µA | 12 nC @ 4.5 V | ±8V | - | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI4812BDY-T1-GE3MOSFET N-CH 30V 7.3A 8SO |
3,394 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | LITTLE FOOT® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.3A (Ta) | 4.5V, 10V | 16mOhm @ 9.5A, 10V | 3V @ 250µA | 13 nC @ 5 V | ±20V | - | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SIRA26DP-T1-RE3MOSFET N-CH 25V 60A PPAK SO-8 |
2,713 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 60A (Tc) | 4.5V, 10V | 2.65mOhm @ 15A, 10V | 2.5V @ 250µA | 44 nC @ 10 V | +16V, -12V | 2247 pF @ 10 V | - | 43.1W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SQ3469EV-T1_BE3P-CHANNEL 20-V (D-S) 175C MOSFET |
133 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 8A (Tc) | 4.5V, 10V | 36mOhm @ 6.7A, 10V | 2.5V @ 25µA | 27 nC @ 10 V | ±20V | 1020 pF @ 10 V | - | 5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SI4396DY-T1-GE3MOSFET N-CH 30V 16A 8SO |
398 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Tc) | 4.5V, 10V | 11.5mOhm @ 10A, 10V | 2.6V @ 250µA | 45 nC @ 10 V | ±20V | 1675 pF @ 15 V | - | 3.1W (Ta), 5.4W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SI2328DS-T1-GE3MOSFET N-CH 100V 1.15A SOT23-3 |
3,686 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.15A (Ta) | 10V | 250mOhm @ 1.5A, 10V | 4V @ 250µA | 5 nC @ 10 V | ±20V | - | - | 730mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
