| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RRH075P03TB1MOSFET P-CH 30V 7.5A 8SOP |
3,430 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4V, 10V | 21mOhm @ 7.5A, 10V | 2.5V @ 1mA | 21 nC @ 5 V | ±20V | 1900 pF @ 10 V | - | 650mW (Ta) | 150°C (TJ) | Surface Mount |
|
RSD131P10TLMOSFET P-CH 100V 13A CPT3 |
2,002 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Tc) | 4V, 10V | 200mOhm @ 6.5A, 10V | 2.5V @ 1mA | 40 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 850mW (Ta), 20W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RSD221N06TLMOSFET N-CH 60V 22A CPT3 |
3,329 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Tc) | 4V, 10V | 26mOhm @ 22A, 10V | 3V @ 1mA | 30 nC @ 10 V | ±20V | 1500 pF @ 10 V | - | 850mW (Ta), 20W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RDD020N60TLMOSFET N-CH 600V 2A CPT3 |
2,476 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Ta) | 10V | - | - | - | ±30V | - | - | 20W (Tc) | 150°C (TJ) | Surface Mount |
|
RCJ120N25TLMOSFET N-CH 250V 12A LPT |
900 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RCD100N20TLMOSFET N-CH 200V 10A CPT3 |
2,887 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 10A (Tc) | 10V | 182mOhm @ 5A, 10V | 5.25V @ 1mA | 25 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 850mW (Ta), 20W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RSH125N03TB1MOSFET N-CH 30V 12.5A 8SOP |
3,060 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12.5A (Ta) | 4V, 10V | 9.1mOhm @ 12.5A, 10V | 2.5V @ 1mA | 28 nC @ 5 V | ±20V | 1670 pF @ 10 V | - | 2W (Ta) | - | Surface Mount |
|
|
RSD220N06TLMOSFET N-CH 60V 22A CPT3 |
3,135 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Ta) | 4V, 10V | - | - | - | ±20V | - | - | 20W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RRH100P03TB1MOSFET P-CH 30V 10A 8SOP |
2,803 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 12.6mOhm @ 10A, 10V | 2.5V @ 1mA | 39 nC @ 5 V | ±20V | 3600 pF @ 10 V | - | 650mW (Ta) | 150°C (TJ) | Surface Mount |
|
R5005CNXMOSFET N-CH 500V 5A TO220 |
2,477 | 0.82 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 1.6Ohm @ 2.5A, 10V | 4.5V @ 1mA | 10.8 nC @ 10 V | ±30V | 320 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
RSS070N05FRATBMOSFET N-CH 45V 7A 8SOP |
3,013 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 7A (Ta) | 4V, 10V | 25mOhm @ 7A, 10V | 2.5V @ 1mA | 16.8 nC @ 5 V | ±20V | 1000 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|

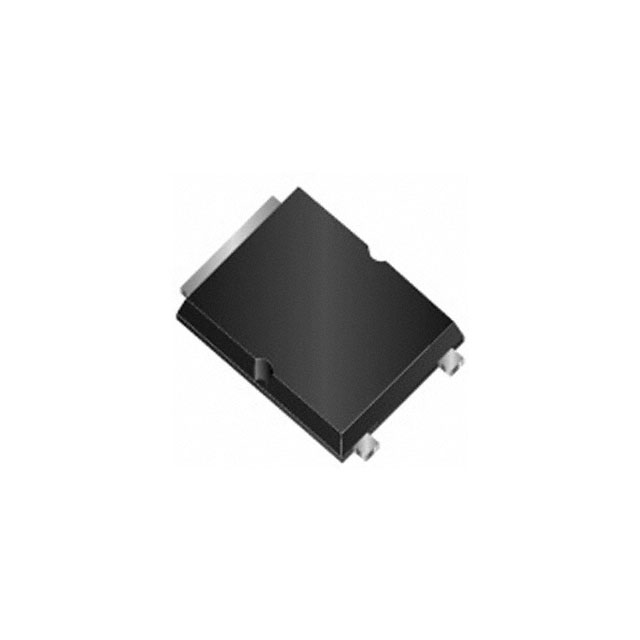

RZY200P01TLMOSFET P-CH 12V 20A TCPT3 |
2,799 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 20A (Ta) | - | - | - | - | ±10V | - | - | 20W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RCJ100N25TLMOSFET N-CH 250V 10A LPT |
848 | 1.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RSD130P10TLMOSFET P-CH 100V 13A CPT3 |
3,793 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Ta) | 4V, 10V | - | - | - | ±20V | - | - | 20W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RCJ160N20TLMOSFET N-CH 200V 16A LPTS |
2,859 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 16A (Tc) | 10V | 180mOhm @ 8A, 10V | 5.25V @ 1mA | 26 nC @ 10 V | ±30V | 1370 pF @ 25 V | - | 1.56W (Ta), 40W (Tc) | 150°C (TJ) | Surface Mount |
|
|
R4008ANDTLMOSFET N-CH 400V 8A CPT3 |
3,104 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 8A (Ta) | 10V | 950mOhm @ 4A, 10V | 4.5V @ 1mA | 15 nC @ 10 V | ±30V | 500 pF @ 25 V | - | 20W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RSH140N03TB1MOSFET N-CH 30V 14A 8SOP |
2,704 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta) | 4V, 10V | - | - | - | ±20V | - | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
|
R5205CNDTLMOSFET N-CH 525V 5A CPT3 |
2,300 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 5A (Ta) | 10V | 1.6Ohm @ 2.5A, 10V | 4.5V @ 1mA | 10.8 nC @ 10 V | ±30V | 320 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Surface Mount |
|
|
RSJ300N10TLMOSFET N-CH 100V 30A LPTS |
2,292 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 30A (Ta) | 4V, 10V | 52mOhm @ 15A, 10V | 2.5V @ 1mA | 50 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | Surface Mount |
|
|
R5011FNJTLMOSFET N-CH 500V 11A LPT |
1,965 | 1.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 11A (Tc) | 10V | 520mOhm @ 5.5A, 10V | 4V @ 1mA | 30 nC @ 10 V | ±30V | 950 pF @ 25 V | - | 50W (Tc) | 150°C (TJ) | Surface Mount |
