| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCT3105KLGC11SICFET N-CH 1200V 24A TO247N |
183 | 22.40 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 24A (Tc) | 18V | 137mOhm @ 7.6A, 18V | 5.6V @ 3.81mA | 51 nC @ 18 V | +22V, -4V | 574 pF @ 800 V | - | 134W | 175°C (TJ) | Through Hole |
|
|
SCT3060ALHRC11SICFET N-CH 650V 39A TO247N |
126 | 26.52 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 39A (Tc) | 18V | 78mOhm @ 13A, 18V | 5.6V @ 6.67mA | 58 nC @ 18 V | +22V, -4V | 852 pF @ 500 V | - | 165W | 175°C (TJ) | Through Hole |
|
RD3P050SNFRATLMOSFET N-CH 100V 5A TO252 |
2,500 | 1.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 5A (Ta) | 4V, 10V | 190mOhm @ 5A, 10V | 2.5V @ 1mA | 14 nC @ 10 V | ±20V | 530 pF @ 25 V | - | 15W (Tc) | 150°C (TJ) | Surface Mount |
|
|
R6006KND3TL1MOSFET N-CH 600V 6A TO252 |
4,868 | 2.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 830mOhm @ 3A, 10V | 5.5V @ 1mA | 12 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 70W (Tc) | 150°C (TJ) | Surface Mount |
|
R6007JNXC7GMOSFET N-CH 600V 7A TO220FM |
2,036 | 3.06 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 15V | 780mOhm @ 3.5A, 15V | 7V @ 1mA | 17.5 nC @ 15 V | ±30V | 475 pF @ 100 V | - | 46W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
R6009JNXC7GMOSFET N-CH 600V 9A TO220FM |
1,909 | 3.55 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 15V | 585mOhm @ 4.5A, 15V | 7V @ 1.38mA | 22 nC @ 15 V | ±30V | 645 pF @ 100 V | - | 53W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
R6009ENXMOSFET N-CH 600V 9A TO220FM |
400 | 3.72 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 535mOhm @ 2.8A, 10V | 4V @ 1mA | 23 nC @ 10 V | ±20V | 430 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
|
R6024ENXMOSFET N-CH 600V 24A TO220FM |
472 | 3.99 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 165mOhm @ 11.3A, 10V | 4V @ 1mA | 70 nC @ 10 V | ±20V | 1650 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
|
R6020JNXC7GMOSFET N-CH 600V 20A TO220FM |
1,955 | 6.17 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 15V | 234mOhm @ 10A, 15V | 7V @ 3.5mA | 45 nC @ 15 V | ±30V | 1500 pF @ 100 V | - | 76W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
R6025JNXC7GMOSFET N-CH 600V 25A TO220FM |
1,975 | 7.27 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 15V | 182mOhm @ 12.5A, 15V | 7V @ 4.5mA | 57 nC @ 15 V | ±30V | 1900 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
R6030JNXC7GMOSFET N-CH 600V 30A TO220FM |
1,617 | 7.88 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 15V | 143mOhm @ 15A, 15V | 7V @ 5.5mA | 74 nC @ 15 V | ±30V | 2500 pF @ 100 V | - | 95W (Tc) | 150°C (TJ) | Through Hole |
|
R6020KNZ4C13MOSFET N-CH 600V 20A TO247 |
547 | 8.30 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 196mOhm @ 9.5A, 10V | 5V @ 1mA | 40 nC @ 10 V | ±20V | 1550 pF @ 25 V | - | 231W (Tc) | 150°C (TJ) | Through Hole |
|
R6020JNZ4C13MOSFET N-CH 600V 20A TO247G |
412 | 8.85 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 15V | 234mOhm @ 10A, 15V | 7V @ 3.5mA | 45 nC @ 15 V | ±30V | 1500 pF @ 100 V | - | 252W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
R6520KNZ4C13MOSFET N-CH 650V 20A TO247 |
419 | 8.96 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 205mOhm @ 9.5A, 10V | 5V @ 630µA | 40 nC @ 10 V | ±20V | 1550 pF @ 25 V | - | 231W (Tc) | 150°C (TJ) | Through Hole |
|
|
R6025JNZ4C13MOSFET N-CH 600V 25A TO247G |
597 | 9.96 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 15V | 182mOhm @ 12.5A, 15V | 7V @ 4.5mA | 57 nC @ 15 V | ±30V | 1900 pF @ 100 V | - | 306W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

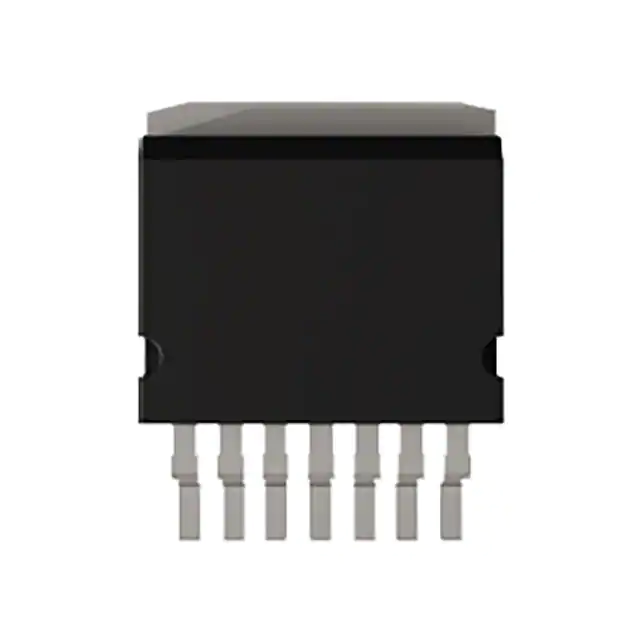

SCT3105KW7TLSICFET N-CH 1200V 23A TO263-7 |
1,959 | 16.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 23A (Tc) | - | 137mOhm @ 7.6A, 18V | 5.6V @ 3.81mA | 51 nC @ 18 V | +22V, -4V | 574 pF @ 800 V | - | 125W | 175°C (TJ) | Surface Mount |
|
|
SCT3060AW7TLSICFET N-CH 650V 38A TO263-7 |
1,481 | 19.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 38A (Tc) | - | 78mOhm @ 13A, 18V | 5.6V @ 6.67mA | 58 nC @ 18 V | +22V, -4V | 852 pF @ 500 V | - | 159W | 175°C (TJ) | Surface Mount |
|
|
R6042JNZ4C13MOSFET N-CH 600V 42A TO247G |
175 | 12.98 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 42A (Tc) | 15V | 104mOhm @ 21A, 15V | 7V @ 5.5mA | 100 nC @ 15 V | ±30V | 3500 pF @ 100 V | - | 495W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
R6050JNZ4C13MOSFET N-CH 600V 50A TO247G |
596 | 18.72 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 50A (Tc) | 15V | 83mOhm @ 25A, 15V | 7V @ 5mA | 120 nC @ 15 V | ±30V | 4500 pF @ 100 V | - | 615W (Tc) | 150°C (TJ) | Through Hole |
|
|
R6076ENZ4C13MOSFET N-CH 600V 76A TO247 |
599 | 21.36 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 76A (Tc) | 10V | 42mOhm @ 44.4A, 10V | 4V @ 1mA | 260 nC @ 10 V | ±20V | 6500 pF @ 25 V | - | 735W (Tc) | 150°C (TJ) | Through Hole |
