| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
ES6U41T2RMOSFET N-CH 30V 1.5A 6WEMT |
3,823 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 2.5V, 4.5V | 240mOhm @ 1.5A, 4.5V | 1.5V @ 1mA | 2.2 nC @ 4.5 V | ±12V | 80 pF @ 10 V | Schottky Diode (Isolated) | 700mW (Ta) | 150°C (TJ) | Surface Mount |
|
R6015KNZC8MOSFET N-CHANNEL 600V 15A TO3PF |
2,282 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 290mOhm @ 6.5A, 10V | 5V @ 1mA | 27.5 nC @ 10 V | ±20V | 1050 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

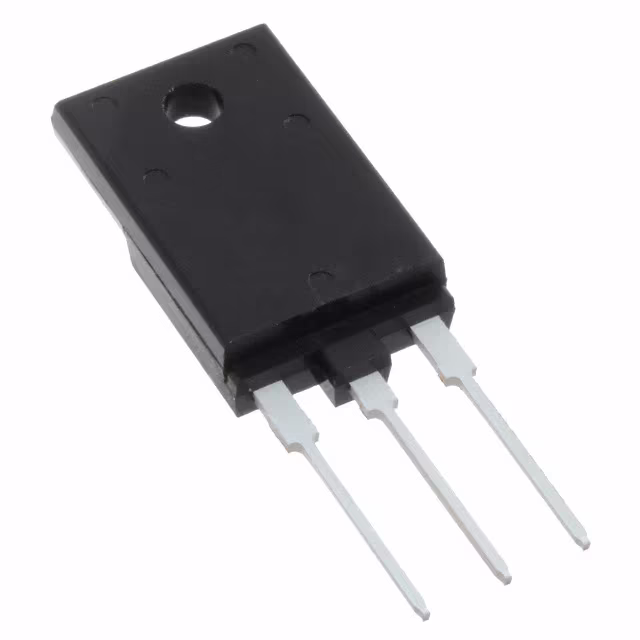

R6020KNZC8MOSFET N-CHANNEL 600V 20A TO3PF |
3,261 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 196mOhm @ 9.5A, 10V | 5V @ 1mA | 40 nC @ 10 V | ±20V | 1550 pF @ 25 V | - | 68W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
R6030KNZ1C9MOSFET N-CHANNEL 600V 30A TO247 |
3,459 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 130mOhm @ 14.5A, 10V | 5V @ 1mA | 56 nC @ 10 V | ±20V | 2350 pF @ 25 V | - | 305W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
R6030KNZC8MOSFET N-CHANNEL 600V 30A TO3PF |
3,512 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 130mOhm @ 14.5A, 10V | 5V @ 1mA | 56 nC @ 10 V | ±20V | 2350 pF @ 25 V | - | 86W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
R6035KNZ1C9MOSFET N-CHANNEL 600V 35A TO247 |
3,182 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 35A (Tc) | 10V | 102mOhm @ 18.1A, 10V | 5V @ 1mA | 72 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 379W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
R6035KNZC8MOSFET N-CHANNEL 600V 35A TO3PF |
3,373 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 35A (Tc) | 10V | 102mOhm @ 18.1A, 10V | 5V @ 1mA | 72 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 102W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

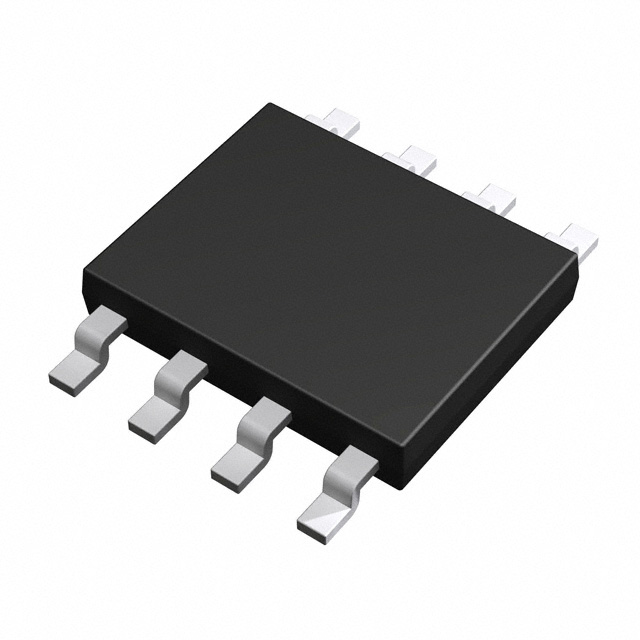

RSS090P03FU7TBMOSFET P-CH 30V 9A 8SOP |
3,199 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4V, 10V | 14mOhm @ 9A, 10V | 2.5V @ 1mA | 39 nC @ 5 V | ±20V | 4000 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
|
RSS060P05FRATBMOSFET P-CH 45V 6A 8SOP |
3,740 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 45 V | 6A (Ta) | 4V, 10V | 36mOhm @ 6A, 10V | 2.5V @ 1mA | 32.2 nC @ 5 V | ±20V | 2700 pF @ 10 V | - | 2W (Ta) | 150°C | Surface Mount |
|
|
RSS065N06FRATBMOSFET N-CH 60V 6.5A 8SOP |
2,118 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 6.5A (Ta) | 4V, 10V | 37mOhm @ 6.5A, 10V | 2.5V @ 1mA | 16 nC @ 5 V | ±20V | 900 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount |
|
RQ3P300BETB1MOSFET N-CH 100V 10A/36A 8HSMT |
3,064 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Ta), 36A (Tc) | 10V | 21mOhm @ 10A, 10V | 4V @ 200µA | 19.1 nC @ 10 V | ±20V | 1250 pF @ 50 V | - | 2W (Ta), 32W (Tc) | 150°C (TJ) | Surface Mount |
|
R6515KNZC8MOSFET N-CH 650V 15A TO3 |
3,819 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 315mOhm @ 6.5A, 10V | 5V @ 430µA | 27.5 nC @ 10 V | ±20V | 1050 pF @ 25 V | - | 60W (Tc) | 150°C (TJ) | Through Hole |
|
|
R6046ANZ1C9MOSFET N-CH 600V 46A TO247 |
448 | 15.79 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 46A (Tc) | 10V | 90mOhm @ 23A, 10V | 4.5V @ 1mA | 150 nC @ 10 V | ±30V | 6000 pF @ 25 V | - | 120W (Tc) | 150°C (TJ) | Through Hole |
|
|
R6046FNZ1C9MOSFET N-CH 600V 46A TO247 |
282 | 11.33 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 46A (Tc) | 10V | 98mOhm @ 23A, 10V | 5V @ 1mA | 150 nC @ 10 V | ±30V | 6230 pF @ 25 V | - | 120W (Tc) | 150°C (TJ) | Through Hole |
|
RRH050P03GZETBMOSFET P-CH 30V 5A 8SOIC |
398 | 0.87 |
RFQ |
Datasheet |
Cut Tape (CT) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

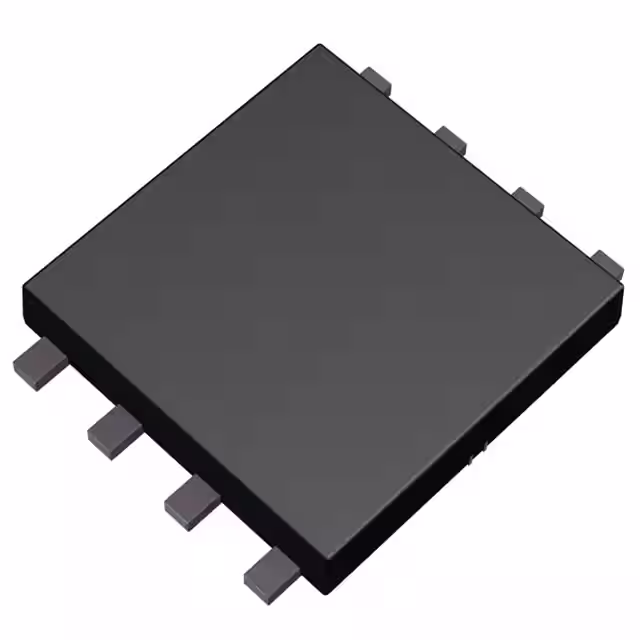

RMW150N03TBMOSFET N-CH 30V 15A 8PSOP |
1,738 | 0.92 |
RFQ |
Datasheet |
Cut Tape (CT) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RP1E050RPTRMOSFET P-CH 30V 5A MPT6 |
2,411 | 0.90 |
RFQ |
Datasheet |
Cut Tape (CT) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RS1E300GNTBMOSFET N-CH 30V 30A 8-HSOP |
3,457 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | * | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RMW180N03TBMOSFET N-CH 30V 18A 8PSOP |
2,415 | 1.02 |
RFQ |
Datasheet |
Cut Tape (CT) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RMW130N03TBMOSFET N-CH 30V 13A 8PSOP |
4,815 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
