Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	FETType	Technology	DraintoSourceVoltage(Vdss)	Current-ContinuousDrain(Id)@25°C	DriveVoltage(MaxRdsOnMinRdsOn)	RdsOn(Max)@IdVgs	Vgs(th)(Max)@Id	GateCharge(Qg)(Max)@Vgs	Vgs(Max)	InputCapacitance(Ciss)(Max)@Vds	FETFeature	PowerDissipation(Max)	OperatingTemperature	MountingType
IXFH160N15T MOSFET N-CH 150V 160A TO247AD IXYS	3,511	RFQ	Datasheet	Tube	TrenchHV™	Obsolete	N-Channel	MOSFET (Metal Oxide)	150 V	160A (Tc)	10V	9.6mOhm @ 500mA, 10V	5V @ 1mA	160 nC @ 10 V	±30V	8800 pF @ 25 V	-	830W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
IXTA32N20T MOSFET N-CH 200V 32A TO263 IXYS	3,184	RFQ	Datasheet	Tube	Trench	Active	N-Channel	MOSFET (Metal Oxide)	200 V	32A (Tc)	10V	72mOhm @ 16A, 10V	4.5V @ 250µA	38 nC @ 10 V	±20V	1760 pF @ 25 V	-	200W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount

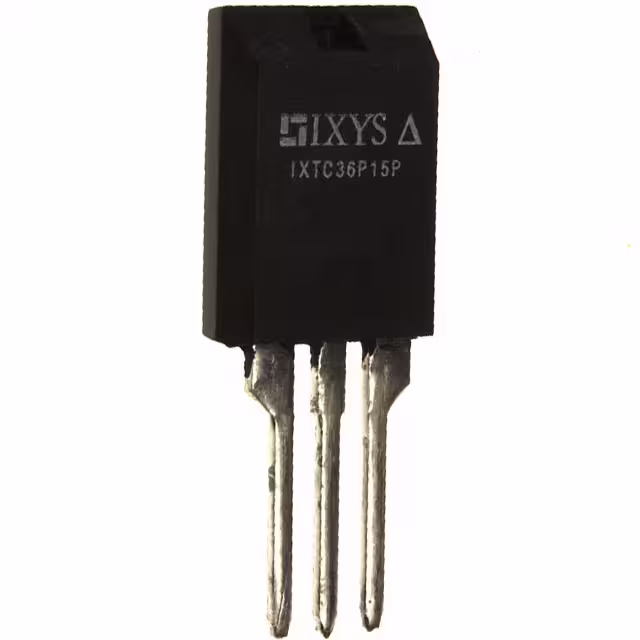

IXTC36P15P MOSFET P-CH 150V 22A ISOPLUS220 IXYS	3,386	RFQ	Datasheet	Tube	PolarP™	Obsolete	P-Channel	MOSFET (Metal Oxide)	150 V	22A (Tc)	10V	120mOhm @ 18A, 10V	5V @ 250µA	55 nC @ 10 V	±20V	2950 pF @ 25 V	-	150W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
IXTP32N20T MOSFET N-CH 200V 32A TO220AB IXYS	3,380	RFQ	Datasheet	Tube	Trench	Active	N-Channel	MOSFET (Metal Oxide)	200 V	32A (Tc)	10V	72mOhm @ 16A, 10V	4.5V @ 250µA	38 nC @ 10 V	±20V	1760 pF @ 25 V	-	200W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
IXTP90N075T2 MOSFET N-CH 75V 90A TO220AB IXYS	2,742	RFQ	Datasheet	Tube	TrenchT2™	Obsolete	N-Channel	MOSFET (Metal Oxide)	75 V	90A (Tc)	10V	10mOhm @ 25A, 10V	4V @ 250µA	54 nC @ 10 V	±20V	3290 pF @ 25 V	-	180W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
IXTQ102N15T MOSFET N-CH 150V 102A TO3P IXYS	3,570	RFQ	Datasheet	Tube	-	Obsolete	N-Channel	MOSFET (Metal Oxide)	150 V	102A (Tc)	10V	18mOhm @ 500mA, 10V	5V @ 1mA	87 nC @ 10 V	±20V	5220 pF @ 25 V	-	455W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
IXTR90P10P MOSFET P-CH 100V 57A ISOPLUS247 IXYS	3,622	RFQ	Datasheet	Tube	PolarP™	Active	P-Channel	MOSFET (Metal Oxide)	100 V	57A (Tc)	10V	27mOhm @ 45A, 10V	4V @ 250µA	120 nC @ 10 V	±20V	5800 pF @ 25 V	-	190W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXTU12N06T MOSFET N-CH 60V 12A TO251 IXYS	3,402	RFQ	Datasheet	Tube	Trench	Active	N-Channel	MOSFET (Metal Oxide)	60 V	12A (Tc)	10V	85mOhm @ 6A, 10V	4V @ 25µA	3.4 nC @ 10 V	±20V	256 pF @ 25 V	-	33W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
IXTY12N06T MOSFET N-CH 60V 12A TO252 IXYS	2,142	RFQ	Datasheet	Tube	TrenchMV™	Obsolete	N-Channel	MOSFET (Metal Oxide)	60 V	12A (Tc)	10V	85mOhm @ 6A, 10V	4V @ 25µA	3.4 nC @ 10 V	±20V	256 pF @ 25 V	-	33W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
IRFP250 MOSFET N-CH 200V 30A TO247AD IXYS	3,126	RFQ	Datasheet	Tube	-	Obsolete	N-Channel	MOSFET (Metal Oxide)	200 V	30A (Tc)	10V	85mOhm @ 18A, 10V	4V @ 250µA	140 nC @ 10 V	±20V	2970 pF @ 25 V	-	190W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IRFP470 MOSFET N-CH 500V 24A TO247AD IXYS	2,038	RFQ	Datasheet	Tube	MegaMOS™	Obsolete	N-Channel	MOSFET (Metal Oxide)	500 V	24A (Tc)	10V	230mOhm @ 12A, 10V	4V @ 250µA	190 nC @ 10 V	±20V	4200 pF @ 25 V	-	300W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFB30N120Q2 MOSFET N-CH 1200V 30A ISOPLUS264 IXYS	2,813	RFQ		Tube	HiPerFET™, Q2 Class	Active	N-Channel	MOSFET (Metal Oxide)	1200 V	30A (Tc)	-	-	-	-	-	-	-	-	-	Through Hole
IXFC13N50 MOSFET N-CH 500V 12A ISOPLUS220 IXYS	3,951	RFQ	Datasheet	Tube	HiPerFET™	Obsolete	N-Channel	MOSFET (Metal Oxide)	500 V	12A (Tc)	10V	400mOhm @ 6.5A, 10V	4V @ 2.5mA	120 nC @ 10 V	±20V	2800 pF @ 25 V	-	140W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFC15N80Q MOSFET N-CH 800V 13A ISOPLUS220 IXYS	3,315	RFQ	Datasheet	Tube	HiPerFET™	Obsolete	N-Channel	MOSFET (Metal Oxide)	800 V	13A (Tc)	10V	650mOhm @ 500mA, 10V	4.5V @ 4mA	90 nC @ 10 V	±20V	4300 pF @ 25 V	-	230W (Tc)	-40°C ~ 150°C (TJ)	Through Hole
IXFC24N50 MOSFET N-CH 500V 21A ISOPLUS220 IXYS	2,722	RFQ	Datasheet	Tube	HiPerFET™	Obsolete	N-Channel	MOSFET (Metal Oxide)	500 V	21A (Tc)	10V	230mOhm @ 12A, 10V	4V @ 4mA	135 nC @ 10 V	±20V	4200 pF @ 25 V	-	230W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFC26N50 MOSFET N-CH 500V 23A ISOPLUS220 IXYS	3,667	RFQ	Datasheet	Tube	HiPerFET™	Obsolete	N-Channel	MOSFET (Metal Oxide)	500 V	23A (Tc)	10V	200mOhm @ 13A, 10V	4V @ 4mA	135 nC @ 10 V	±20V	4200 pF @ 25 V	-	230W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFC40N30Q MOSFET N-CH 300V ISOPLUS220 IXYS	2,167	RFQ		Tube	-	Obsolete	N-Channel	MOSFET (Metal Oxide)	300 V	-	-	-	-	-	-	-	-	-	-	Through Hole
IXFC60N20 MOSFET N-CH 200V 60A ISOPLUS220 IXYS	3,836	RFQ	Datasheet	Tube	HiPerFET™	Obsolete	N-Channel	MOSFET (Metal Oxide)	200 V	60A (Tc)	10V	33mOhm @ 30A, 10V	4V @ 4mA	155 nC @ 10 V	±20V	5200 pF @ 25 V	-	230W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFC80N08 MOSFET N-CH 80V 80A ISOPLUS220 IXYS	2,677	RFQ	Datasheet	Tube	HiPerFET™	Obsolete	N-Channel	MOSFET (Metal Oxide)	80 V	80A (Tc)	10V	11mOhm @ 40A, 10V	4V @ 4mA	180 nC @ 10 V	±20V	4800 pF @ 25 V	-	230W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFC80N085 MOSFET N-CH 85V 80A ISOPLUS220 IXYS	3,878	RFQ	Datasheet	Tube	HiPerFET™	Obsolete	N-Channel	MOSFET (Metal Oxide)	85 V	80A (Tc)	10V	11mOhm @ 40A, 10V	4V @ 4mA	180 nC @ 10 V	±20V	4800 pF @ 25 V	-	230W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
