Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FETType	Technology	DraintoSourceVoltage(Vdss)	Current-ContinuousDrain(Id)@25°C	DriveVoltage(MaxRdsOnMinRdsOn)	RdsOn(Max)@IdVgs	Vgs(th)(Max)@Id	GateCharge(Qg)(Max)@Vgs	Vgs(Max)	InputCapacitance(Ciss)(Max)@Vds	FETFeature	PowerDissipation(Max)	OperatingTemperature	MountingType
IXFH80N25X3 MOSFET N-CH 250V 80A TO247 IXYS	3,176	11.66	RFQ	Datasheet	Tube	HiPerFET™, Ultra X3	Active	N-Channel	MOSFET (Metal Oxide)	250 V	80A (Tc)	10V	16mOhm @ 40A, 10V	4.5V @ 1.5mA	83 nC @ 10 V	±20V	5430 pF @ 25 V	-	390W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXTT440N055T2 MOSFET N-CH 55V 440A TO268 IXYS	3,682	15.11	RFQ	Datasheet	Tube	TrenchT2™	Active	N-Channel	MOSFET (Metal Oxide)	55 V	440A (Tc)	10V	1.8mOhm @ 100A, 10V	4V @ 250µA	405 nC @ 10 V	±20V	25000 pF @ 25 V	-	1000W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
IXFK102N30P MOSFET N-CH 300V 102A TO264AA IXYS	3,742	16.10	RFQ	Datasheet	Bulk	HiPerFET™, Polar	Active	N-Channel	MOSFET (Metal Oxide)	300 V	102A (Tc)	10V	33mOhm @ 500mA, 10V	5V @ 4mA	224 nC @ 10 V	±20V	7500 pF @ 25 V	-	700W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFX120N30P3 MOSFET N-CH 300V 120A PLUS247-3 IXYS	2,305	17.94	RFQ	Datasheet	Tube	HiPerFET™, Polar3™	Active	N-Channel	MOSFET (Metal Oxide)	300 V	120A (Tc)	10V	27mOhm @ 60A, 10V	5V @ 4mA	150 nC @ 10 V	±20V	8630 pF @ 25 V	-	1130W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFT15N100Q3 MOSFET N-CH 1000V 15A TO268 IXYS	3,972	19.29	RFQ	Datasheet	Tube	HiPerFET™, Q3 Class	Active	N-Channel	MOSFET (Metal Oxide)	1000 V	15A (Tc)	10V	1.05Ohm @ 7.5A, 10V	6.5V @ 4mA	64 nC @ 10 V	±30V	3250 pF @ 25 V	-	690W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXFT26N100XHV MOSFET N-CH 1000V 26A TO268HV IXYS	2,354	20.57	RFQ	Datasheet	Tube	HiPerFET™, Ultra X	Active	N-Channel	MOSFET (Metal Oxide)	1000 V	26A (Ta)	10V	320mOhm @ 500mA, 10V	6V @ 4mA	113 nC @ 10 V	±30V	3290 pF @ 25 V	-	860mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
IXFR15N100Q3 MOSFET N-CH 1000V 10A ISOPLUS247 IXYS	3,351	22.63	RFQ	Datasheet	Tube	HiPerFET™, Q3 Class	Active	N-Channel	MOSFET (Metal Oxide)	1000 V	10A (Tc)	10V	1.2Ohm @ 7.5A, 10V	6.5V @ 4mA	64 nC @ 10 V	±30V	3250 pF @ 25 V	-	400W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFT70N30Q3 MOSFET N-CH 300V 70A TO268 IXYS	3,670	23.01	RFQ	Datasheet	Tube	HiPerFET™, Q3 Class	Active	N-Channel	MOSFET (Metal Oxide)	300 V	70A (Tc)	10V	54mOhm @ 35A, 10V	6.5V @ 4mA	98 nC @ 10 V	±20V	4735 pF @ 25 V	-	830W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXFX64N60Q3 MOSFET N-CH 600V 64A PLUS247-3 IXYS	3,725	24.78	RFQ	Datasheet	Tube	HiPerFET™	Obsolete	N-Channel	MOSFET (Metal Oxide)	600 V	64A (Tc)	10V	95mOhm @ 32A, 10V	6.5V @ 4mA	190 nC @ 10 V	±30V	9930 pF @ 25 V	-	1250W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFT150N25X3HV MOSFET N-CH 250V 150A TO268HV IXYS	3,710	26.59	RFQ	Datasheet	Tube	HiPerFET™, Ultra X3	Active	N-Channel	MOSFET (Metal Oxide)	250 V	150A (Tc)	10V	9mOhm @ 75A, 10V	4.5V @ 4mA	154 nC @ 10 V	±20V	10400 pF @ 25 V	-	780W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXFX48N60Q3 MOSFET N-CH 600V 48A PLUS247-3 IXYS	2,918	28.12	RFQ	Datasheet	Tube	HiPerFET™, Q3 Class	Active	N-Channel	MOSFET (Metal Oxide)	600 V	48A (Tc)	10V	140mOhm @ 24A, 10V	6.5V @ 4mA	140 nC @ 10 V	±30V	7020 pF @ 25 V	-	1000W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFX64N50Q3 MOSFET N-CH 500V 64A PLUS247-3 IXYS	2,496	28.12	RFQ	Datasheet	Tube	HiPerFET™, Q3 Class	Active	N-Channel	MOSFET (Metal Oxide)	500 V	64A (Tc)	10V	85mOhm @ 32A, 10V	6.5V @ 4mA	145 nC @ 10 V	±30V	6950 pF @ 25 V	-	1000W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXTX20N150 MOSFET N-CH 1500V 20A PLUS247-3 IXYS	3,352	30.13	RFQ	Datasheet	Tube	-	Active	N-Channel	MOSFET (Metal Oxide)	1500 V	20A (Tc)	10V	1Ohm @ 10A, 10V	4.5V @ 1mA	215 nC @ 10 V	±30V	7800 pF @ 25 V	-	1250W (Tc)	-55°C ~ 150°C (TJ)	Through Hole

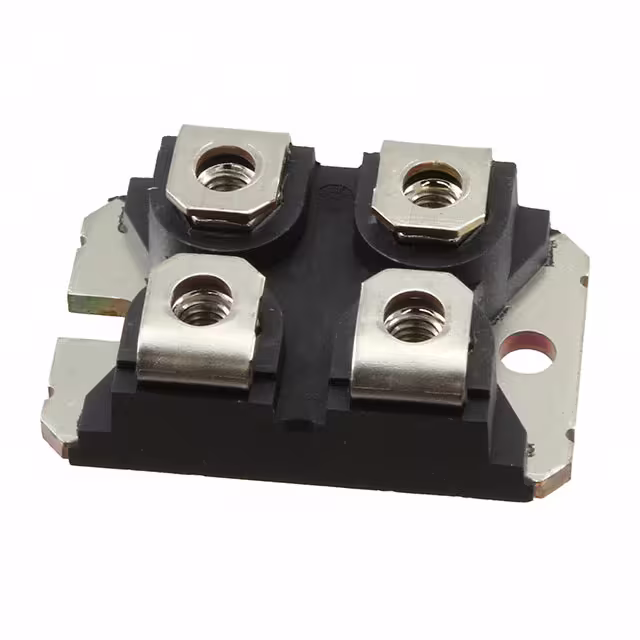

IXFN94N50P2 MOSFET N-CH 500V 68A SOT227B IXYS	3,876	30.58	RFQ	Datasheet	Tube	HiPerFET™, PolarP2™	Active	N-Channel	MOSFET (Metal Oxide)	500 V	68A (Tc)	10V	55mOhm @ 500mA, 10V	5V @ 8mA	220 nC @ 10 V	±30V	13700 pF @ 25 V	-	780W (Tc)	-55°C ~ 150°C (TJ)	Chassis Mount
MKE38RK600DFEL-TRR MOSFET N-CH 600V 50A SMPD IXYS	3,757	30.77	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CoolMOS™	Active	N-Channel	MOSFET (Metal Oxide)	600 V	50A (Tc)	10V	45mOhm @ 44A, 10V	3.5V @ 3mA	190 nC @ 10 V	±20V	6800 pF @ 100 V	-	-	-55°C ~ 150°C (TJ)	Surface Mount
IXFX80N50Q3 MOSFET N-CH 500V 80A PLUS247-3 IXYS	2,654	32.99	RFQ	Datasheet	Tube	HiPerFET™, Q3 Class	Active	N-Channel	MOSFET (Metal Oxide)	500 V	80A (Tc)	10V	65mOhm @ 40A, 10V	6.5V @ 8mA	200 nC @ 10 V	±30V	10000 pF @ 25 V	-	1250W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFK80N50Q3 MOSFET N-CH 500V 80A TO264AA IXYS	3,354	33.18	RFQ	Datasheet	Tube	HiPerFET™, Q3 Class	Active	N-Channel	MOSFET (Metal Oxide)	500 V	80A (Tc)	10V	65mOhm @ 40A, 10V	6.5V @ 8mA	200 nC @ 10 V	±30V	10000 pF @ 25 V	-	1250W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFR32N80Q3 MOSFET N-CH 800V 24A ISOPLUS247 IXYS	2,127	35.69	RFQ	Datasheet	Tube	HiPerFET™, Q3 Class	Active	N-Channel	MOSFET (Metal Oxide)	800 V	24A (Tc)	10V	300mOhm @ 16A, 10V	6.5V @ 4mA	140 nC @ 10 V	±30V	6940 pF @ 25 V	-	500W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFL210N30P3 MOSFET N-CH 300V 108A ISOPLUS264 IXYS	2,855	35.69	RFQ	Datasheet	Tube	HiPerFET™, Polar3™	Active	N-Channel	MOSFET (Metal Oxide)	300 V	108A (Tc)	10V	16mOhm @ 105A, 10V	5V @ 8mA	268 nC @ 10 V	±20V	16200 pF @ 25 V	-	520W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFB70N60Q2 MOSFET N-CH 600V 70A PLUS264 IXYS	3,325	35.79	RFQ	Datasheet	Tube	HiPerFET™, Q2 Class	Not For New Designs	N-Channel	MOSFET (Metal Oxide)	600 V	70A (Tc)	10V	88mOhm @ 35A, 10V	5.5V @ 8mA	265 nC @ 10 V	±30V	12000 pF @ 25 V	-	890W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
