Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FETType	Technology	DraintoSourceVoltage(Vdss)	Current-ContinuousDrain(Id)@25°C	DriveVoltage(MaxRdsOnMinRdsOn)	RdsOn(Max)@IdVgs	Vgs(th)(Max)@Id	GateCharge(Qg)(Max)@Vgs	Vgs(Max)	InputCapacitance(Ciss)(Max)@Vds	FETFeature	PowerDissipation(Max)	OperatingTemperature	MountingType
IXFA90N20X3-TRL MOSFET N-CH 200V 90A TO263 IXYS	3,094	6.52	RFQ		Tape & Reel (TR)	HiPerFET™, Ultra X3	Active	N-Channel	MOSFET (Metal Oxide)	200 V	90A (Tc)	10V	12.8mOhm @ 45A, 10V	4.5V @ 1.5mA	78 nC @ 10 V	±20V	5420 pF @ 25 V	-	390W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXFA72N30X3-TRL MOSFET N-CH 300V 72A TO263 IXYS	3,084	6.52	RFQ		Tape & Reel (TR)	HiPerFET™, Ultra X3	Active	N-Channel	MOSFET (Metal Oxide)	300 V	72A (Tc)	10V	19mOhm @ 36A, 10V	4.5V @ 1.5mA	82 nC @ 10 V	±20V	5400 pF @ 25 V	-	390W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXFH96N15P MOSFET N-CH 150V 96A TO247AD IXYS	2,136	6.59	RFQ	Datasheet	Box	HiPerFET™, Polar	Active	N-Channel	MOSFET (Metal Oxide)	150 V	96A (Tc)	10V	24mOhm @ 500mA, 10V	5V @ 4mA	110 nC @ 10 V	±20V	3500 pF @ 25 V	-	480W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
IXFA18N60X MOSFET N-CH 600V 18A TO263AA IXYS	2,737	6.61	RFQ	Datasheet	Tube	HiPerFET™, Ultra X	Active	N-Channel	MOSFET (Metal Oxide)	600 V	18A (Tc)	10V	230mOhm @ 9A, 10V	4.5V @ 1.5mA	35 nC @ 10 V	±30V	1440 pF @ 25 V	-	320W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXTH22N50P MOSFET N-CH 500V 22A TO247 IXYS	3,397	6.61	RFQ	Datasheet	Tube	Polar	Active	N-Channel	MOSFET (Metal Oxide)	500 V	22A (Tc)	10V	270mOhm @ 11A, 10V	5.5V @ 250µA	50 nC @ 10 V	±30V	2630 pF @ 25 V	-	350W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXTH300N04T2 MOSFET N-CH 40V 300A TO247 IXYS	3,438	6.68	RFQ	Datasheet	Tube	TrenchT2™	Active	N-Channel	MOSFET (Metal Oxide)	40 V	300A (Tc)	10V	2.5mOhm @ 50A, 10V	4V @ 250µA	145 nC @ 10 V	±20V	10700 pF @ 25 V	-	480W (Tc)	-55°C ~ 175°C (TJ)	Through Hole

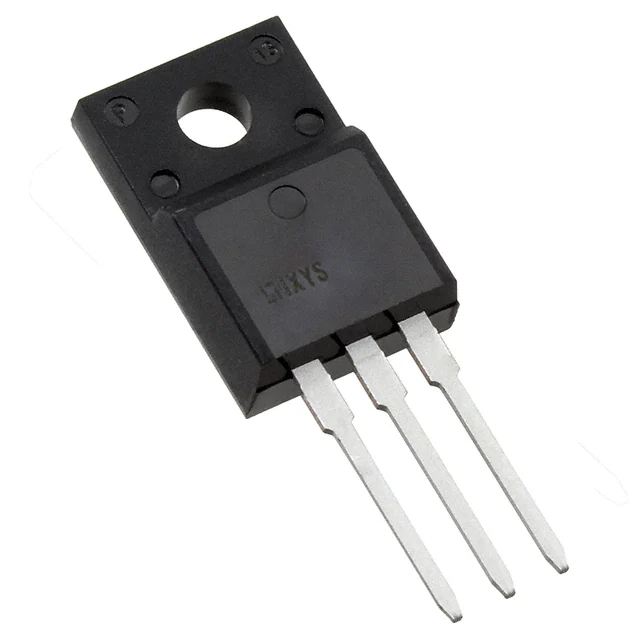

IXFP30N25X3M MOSFET N-CH 250V 30A TO220 IXYS	2,496	6.70	RFQ	Datasheet	Tube	HiPerFET™, Ultra X3	Active	N-Channel	MOSFET (Metal Oxide)	250 V	30A (Tc)	10V	60mOhm @ 15A, 10V	4.5V @ 500µA	21 nC @ 10 V	±20V	1450 pF @ 25 V	-	36W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFA6N120P-TRL MOSFET N-CH 1200V 6A TO263 IXYS	2,166	6.71	RFQ	Datasheet	Tape & Reel (TR)	HiPerFET™, Polar	Active	N-Channel	MOSFET (Metal Oxide)	1200 V	6A (Tc)	10V	2.4Ohm @ 500mA, 10V	5V @ 1mA	92 nC @ 10 V	±30V	2830 pF @ 25 V	-	250W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXFT14N80P MOSFET N-CH 800V 14A TO268 IXYS	2,309	6.77	RFQ	Datasheet	Tube	HiPerFET™, Polar	Active	N-Channel	MOSFET (Metal Oxide)	800 V	14A (Tc)	10V	720mOhm @ 500mA, 10V	5.5V @ 4mA	61 nC @ 10 V	±30V	3900 pF @ 25 V	-	400W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXTP02N50D MOSFET N-CH 500V 200MA TO220AB IXYS	3,428	6.77	RFQ	Datasheet	Tube	Depletion	Active	N-Channel	MOSFET (Metal Oxide)	500 V	200mA (Tc)	10V	30Ohm @ 50mA, 0V	5V @ 25µA	-	±20V	120 pF @ 25 V	Depletion Mode	1.1W (Ta), 25W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFH22N60P MOSFET N-CH 600V 22A TO247AD IXYS	3,280	6.87	RFQ	Datasheet	Tube	HiPerFET™, Polar	Active	N-Channel	MOSFET (Metal Oxide)	600 V	22A (Tc)	10V	350mOhm @ 11A, 10V	5.5V @ 4mA	58 nC @ 10 V	±30V	3600 pF @ 25 V	-	400W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFT26N60P MOSFET N-CH 600V 26A TO268 IXYS	2,404	6.92	RFQ	Datasheet	Tube	HiPerFET™, Polar	Active	N-Channel	MOSFET (Metal Oxide)	600 V	26A (Tc)	10V	270mOhm @ 500mA, 10V	5V @ 4mA	72 nC @ 10 V	±30V	4150 pF @ 25 V	-	460W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXTT34N65X2HV MOSFET N-CH 650V 34A TO268HV IXYS	3,871	6.92	RFQ	Datasheet	Tube	Ultra X2	Active	N-Channel	MOSFET (Metal Oxide)	650 V	34A (Tc)	10V	96mOhm @ 17A, 10V	5V @ 250µA	54 nC @ 10 V	±30V	3000 pF @ 25 V	-	540W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXTH32N65X MOSFET N-CH 650V 32A TO247 IXYS	3,103	6.97	RFQ	Datasheet	Tube	Ultra X	Active	N-Channel	MOSFET (Metal Oxide)	650 V	32A (Tc)	10V	135mOhm @ 16A, 10V	5.5V @ 250µA	54 nC @ 10 V	±30V	2205 pF @ 25 V	-	500W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXFH16N50P3 MOSFET N-CH 500V 16A TO247AD IXYS	3,334	7.02	RFQ	Datasheet	Tube	HiPerFET™, Polar3™	Active	N-Channel	MOSFET (Metal Oxide)	500 V	16A (Tc)	10V	360mOhm @ 8A, 10V	5V @ 2.5mA	29 nC @ 10 V	±30V	1515 pF @ 25 V	-	330W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
IXTT64N25P MOSFET N-CH 250V 64A TO268 IXYS	3,379	7.09	RFQ	Datasheet	Tube	Polar	Active	N-Channel	MOSFET (Metal Oxide)	250 V	64A (Tc)	10V	49mOhm @ 500mA, 10V	5V @ 250µA	105 nC @ 10 V	±20V	3450 pF @ 25 V	-	400W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
IXTT74N20P MOSFET N-CH 200V 74A TO268 IXYS	2,314	7.09	RFQ	Datasheet	Tube	Polar	Active	N-Channel	MOSFET (Metal Oxide)	200 V	74A (Tc)	10V	34mOhm @ 37A, 10V	5V @ 250µA	107 nC @ 10 V	±20V	3300 pF @ 25 V	-	480W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
IXTA90N20X3 MOSFET N-CH 200V 90A TO263 IXYS	3,434	7.14	RFQ		Tube	Ultra X3	Active	N-Channel	MOSFET (Metal Oxide)	200 V	90A (Tc)	10V	12mOhm @ 45A, 10V	4.5V @ 250µA	78 nC @ 10 V	±20V	5420 pF @ 25 V	-	390W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
IXFH110N15T2 MOSFET N-CH 150V 110A TO247AD IXYS	2,227	7.14	RFQ	Datasheet	Tube	HiPerFET™, TrenchT2™	Active	N-Channel	MOSFET (Metal Oxide)	150 V	110A (Tc)	10V	13mOhm @ 500mA, 10V	4.5V @ 250µA	150 nC @ 10 V	±20V	8600 pF @ 25 V	-	480W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
IXTT110N10P MOSFET N-CH 100V 110A TO268 IXYS	2,156	7.37	RFQ	Datasheet	Tube	Polar	Active	N-Channel	MOSFET (Metal Oxide)	100 V	110A (Tc)	10V	15mOhm @ 500mA, 10V	5V @ 250µA	110 nC @ 10 V	±20V	3550 pF @ 25 V	-	480W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
