| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTP5N60PMOSFET N-CH 600V 5A TO220AB |
3,606 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.7Ohm @ 2.5A, 10V | 5.5V @ 50µA | 14.2 nC @ 10 V | ±30V | 750 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTA5N60PMOSFET N-CH 600V 5A TO263 |
3,836 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.7Ohm @ 2.5A, 10V | 5.5V @ 50µA | 14.2 nC @ 10 V | ±30V | 750 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTP7N60PMOSFET N-CH 600V 7A TO220AB |
2,364 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 1.1Ohm @ 3.5A, 10V | 5.5V @ 100µA | 20 nC @ 10 V | ±30V | 1080 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP10N60PMMOSFET N-CH 600V 5A TO220AB |
2,312 | 0.00 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 740mOhm @ 5A, 10V | 5V @ 100µA | 32 nC @ 10 V | ±30V | 1610 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTI10N60PMOSFET N-CH 600V 10A TO262 |
2,467 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 740mOhm @ 5A, 10V | 5V @ 100µA | 32 nC @ 10 V | ±30V | 1610 pF @ 25 V | - | 200W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTV18N60PMOSFET N-CH 600V 18A PLUS220 |
3,400 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 420mOhm @ 9A, 10V | 5.5V @ 250µA | 49 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTV18N60PSMOSFET N-CH 600V 18A PLUS-220SMD |
3,599 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 420mOhm @ 9A, 10V | 5.5V @ 250µA | 49 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTV22N60PMOSFET N-CH 600V 22A PLUS220 |
3,794 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | 5.5V @ 250µA | 62 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTV22N60PSMOSFET N-CH 600V 22A PLUS-220SMD |
2,172 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | 5.5V @ 250µA | 62 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

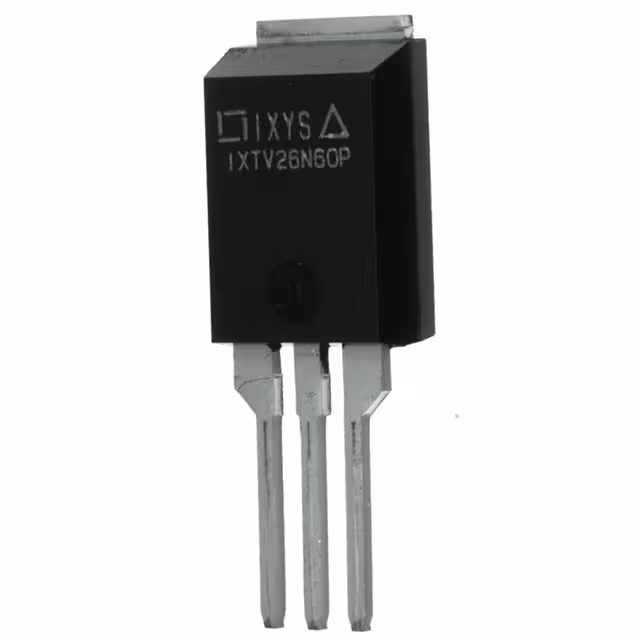

IXTV26N60PMOSFET N-CH 600V 26A PLUS220 |
3,480 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | 5V @ 250µA | 72 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTV26N60PSMOSFET N-CH 600V 26A PLUS-220SMD |
2,882 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | 5V @ 250µA | 72 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTQ26N60PMOSFET N-CH 600V 26A TO3P |
3,971 | 0.00 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | 5V @ 250µA | 72 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

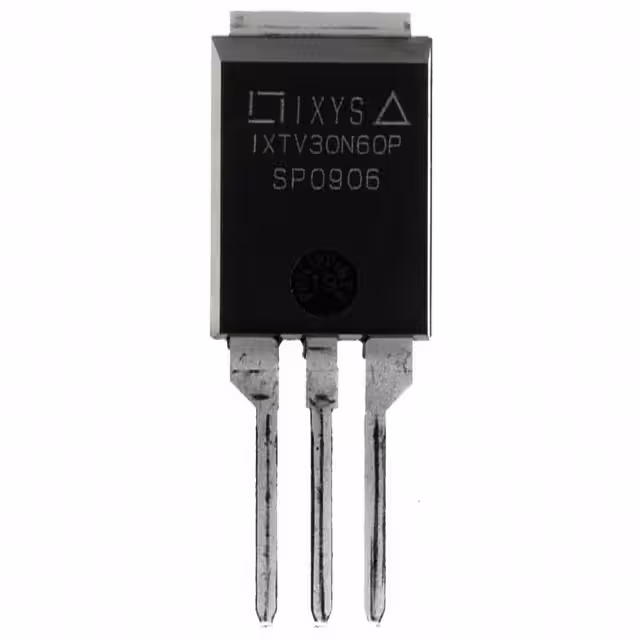

IXTV30N60PMOSFET N-CH 600V 30A PLUS220 |
3,210 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±30V | 5050 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTV30N60PSMOSFET N-CH 600V 30A PLUS-220SMD |
2,137 | 0.00 |
RFQ |
Datasheet |
Tube | PolarHV™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±30V | 5050 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTT30N60PMOSFET N-CH 600V 30A TO268 |
3,055 | 0.00 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±30V | 5050 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

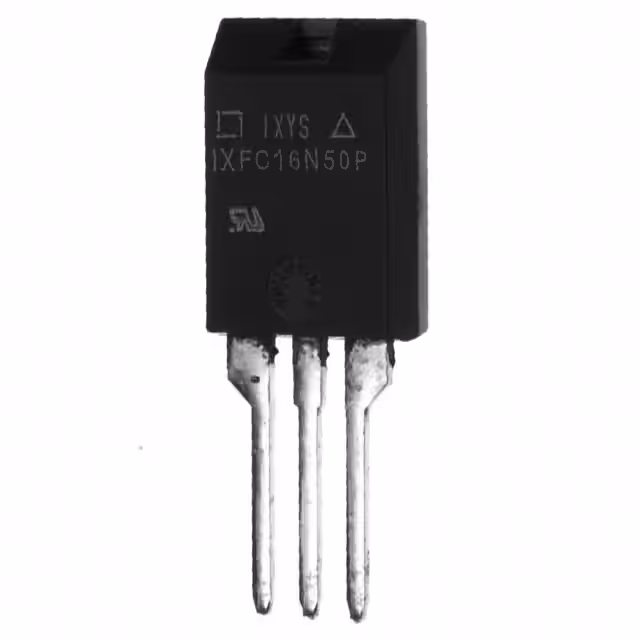

IXFC16N50PMOSFET N-CH 500V 10A ISOPLUS220 |
2,862 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 10A (Tc) | 10V | 450mOhm @ 8A, 10V | 5.5V @ 2.5mA | 43 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

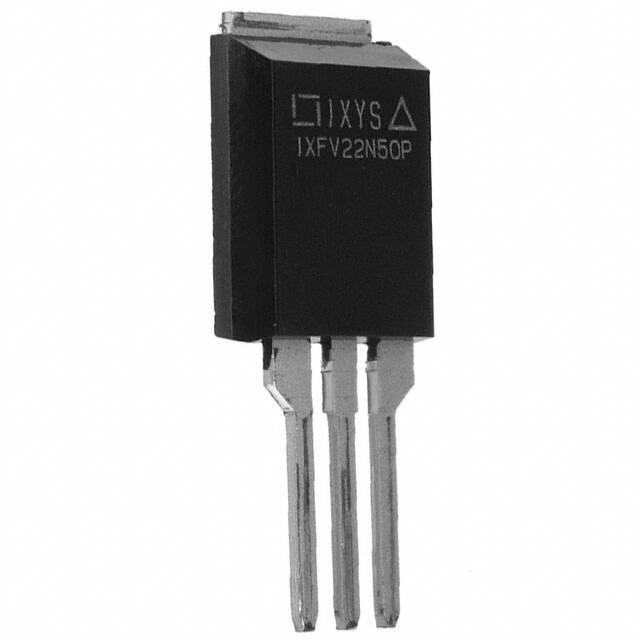

IXFV22N50PMOSFET N-CH 500V 22A PLUS220 |
3,144 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFV22N50PSMOSFET N-CH 500V 22A PLUS-220SMD |
3,137 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFV26N50PMOSFET N-CH 500V 26A PLUS220 |
2,253 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 4mA | 60 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFV26N50PSMOSFET N-CH 500V 26A PLUS-220SMD |
3,853 | 0.00 |
RFQ |
Datasheet |
Tube | HiPerFET™, PolarHT™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 4mA | 60 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
