Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FETType	Technology	DraintoSourceVoltage(Vdss)	Current-ContinuousDrain(Id)@25°C	DriveVoltage(MaxRdsOnMinRdsOn)	RdsOn(Max)@IdVgs	Vgs(th)(Max)@Id	GateCharge(Qg)(Max)@Vgs	Vgs(Max)	InputCapacitance(Ciss)(Max)@Vds	FETFeature	PowerDissipation(Max)	OperatingTemperature	MountingType
BSS123K-13 BSS FAMILY SOT23 T&R 10K Diodes Incorporated	2,185	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	100 V	230mA (Ta)	4.5V, 10V	6Ohm @ 170mA, 10V	2V @ 1mA	1.3 nC @ 10 V	±20V	38 pF @ 50 V	-	500mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN3020UFDF-13 MOSFET N-CH 30V 15A 6UDFN Diodes Incorporated	2,103	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	30 V	15A (Tc)	1.5V, 4.5V	19mOhm @ 4.5A, 4.5V	1V @ 250µA	27 nC @ 8 V	±12V	1304 pF @ 15 V	-	2.03W (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN3025LSS-13 MOSFET N CH 30V 7.2A 8-SO Diodes Incorporated	3,960	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	30 V	7.2A (Ta)	4.5V, 10V	20mOhm @ 10A, 10V	2V @ 250µA	13.2 nC @ 10 V	±20V	641 pF @ 15 V	-	1.4W (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN4020LFDEQ-13 MOSFET BVDSS: 31V~40V U-DFN2020- Diodes Incorporated	3,490	0.14	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q101	Active	N-Channel	MOSFET (Metal Oxide)	40 V	8.6A (Ta)	4.5V, 10V	21mOhm @ 8A, 10V	2.4V @ 250µA	25.3 nC @ 10 V	±20V	1201 pF @ 20 V	-	850mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN3025LFV-7 MOSFET N-CH 30V 25A POWERDI3333 Diodes Incorporated	3,573	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	30 V	25A (Tc)	4.5V, 10V	18mOhm @ 7A, 10V	2V @ 250µA	9.8 nC @ 10 V	±20V	500 pF @ 15 V	-	900mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN2022UFDF-13 MOSFET N-CH 20V 7.9A 6UDFN Diodes Incorporated	2,518	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	20 V	7.9A (Ta)	1.5V, 4.5V	22mOhm @ 4A, 4.5V	1V @ 250µA	18 nC @ 8 V	±8V	907 pF @ 10 V	-	660mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN63D1LT-13 MOSFET N-CH 60V 320MA SOT523 Diodes Incorporated	3,437	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	60 V	320mA (Ta)	5V, 10V	2Ohm @ 500mA, 10V	2.5V @ 1mA	392 nC @ 4.5 V	±20V	30 pF @ 25 V	-	330mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN10H220L-13 MOSFET N-CH 100V 1.4A SOT23 Diodes Incorporated	3,846	0.14	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	N-Channel	MOSFET (Metal Oxide)	100 V	1.4A (Ta)	4.5V, 10V	220mOhm @ 1.6A, 10V	2.5V @ 250µA	8.3 nC @ 10 V	±16V	401 pF @ 25 V	-	1.3W (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMP2305UVT-7 MOSFET P-CH 20V 4.2A SOT23-3 Diodes Incorporated	3,727	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	P-Channel	MOSFET (Metal Oxide)	20 V	4.2A (Ta)	1.8V, 4.5V	60mOhm @ 4.2A, 4.5V	900mV @ 250µA	7.6 nC @ 4.5 V	±8V	727 pF @ 20 V	-	1.4W	-55°C ~ 150°C (TJ)	Surface Mount
DMN6070SY-13 MOSFET N-CH 60V 4.1A SOT89-3 Diodes Incorporated	3,776	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	60 V	4.1A (Ta)	4.5V, 10V	85mOhm @ 2.5A, 10V	3V @ 250µA	12.3 nC @ 10 V	±20V	588 pF @ 30 V	-	2.1W (Ta)	-55°C ~ 150°C (TJ)	Surface Mount

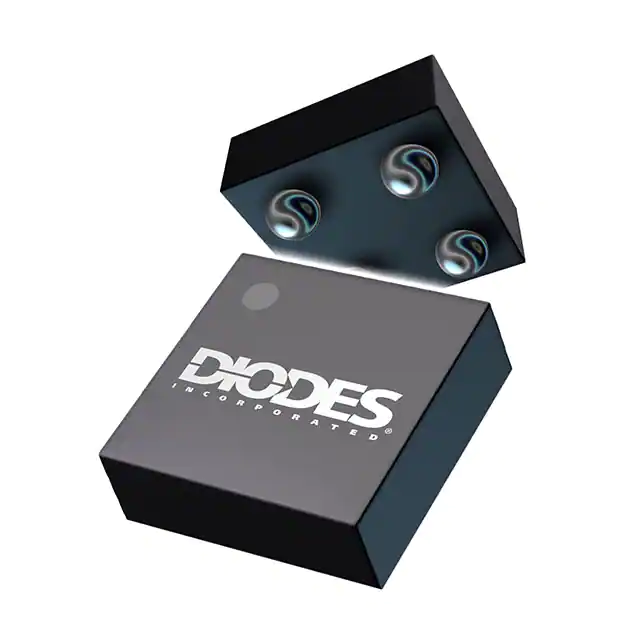

DMN2080UCB4-7 MOSFET N-CH 20V 3A X2-WLB0606-4 Diodes Incorporated	2,305	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	20 V	3A (Ta)	1.5V, 4.5V	56mOhm @ 1A, 4.5V	1V @ 250µA	7.4 nC @ 4.5 V	±8V	540 pF @ 10 V	-	710mW	-55°C ~ 150°C (TJ)	Surface Mount
DMN2230U-7 MOSFET N-CH 20V 2A SOT23-3 Diodes Incorporated	2,082	0.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	N-Channel	MOSFET (Metal Oxide)	20 V	2A (Ta)	1.8V, 4.5V	110mOhm @ 2.5A, 4.5V	1V @ 250µA	-	±12V	188 pF @ 10 V	-	600mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMPH6250SQ-13 MOSFET P-CH 60V 2.4A SOT23 T&R Diodes Incorporated	2,806	0.14	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q101	Active	P-Channel	MOSFET (Metal Oxide)	60 V	2.4A (Ta)	4.5V, 10V	155mOhm @ 2A, 10V	3V @ 250µA	8.3 nC @ 10 V	±20V	512 pF @ 30 V	-	920mW	-55°C ~ 175°C (TJ)	Surface Mount
DMP3045LVT-7 MOSFET BVDSS: 25V~30V TSOT26 T&R Diodes Incorporated	2,599	0.14	RFQ	Datasheet	Tape & Reel (TR)	-	Active	P-Channel	MOSFET (Metal Oxide)	30 V	5.4A (Ta)	4.5V, 10V	42mOhm @ 4.9A, 10V	2.1V @ 250µA	14.3 nC @ 10 V	±20V	749 pF @ 15 V	-	1.2W (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN3016LFDFQ-7 MOSFET BVDSS: 25V~30V U-DFN2020- Diodes Incorporated	3,468	0.15	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q101	Active	N-Channel	MOSFET (Metal Oxide)	30 V	10A (Ta)	4.5V, 10V	12mOhm @ 11A, 10V	2V @ 250µA	25.1 nC @ 10 V	±20V	1415 pF @ 15 V	-	730mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN2026UVT-7 MOSFET N-CH 20V 6.2A TSOT-26 Diodes Incorporated	3,366	0.15	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	N-Channel	MOSFET (Metal Oxide)	20 V	6.2A (Tc)	2.5V, 4.5V	24mOhm @ 6.2A, 4.5V	1.5V @ 250µA	18.4 nC @ 8 V	±10V	887 pF @ 10 V	-	1.15W (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMP6350S-13 MOSFET P-CH 60V 1.5A SOT23 Diodes Incorporated	2,837	0.15	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q101	Active	P-Channel	MOSFET (Metal Oxide)	60 V	1.5A (Ta)	4.5V, 10V	350mOhm @ 900mA, 10V	3V @ 250µA	4.1 nC @ 10 V	±20V	206 pF @ 30 V	-	720mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN2015UFDF-13 MOSFET N-CH 20V 15.2A 6UDFN Diodes Incorporated	2,118	0.15	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	20 V	15.2A (Ta)	1.5V, 4.5V	9mOhm @ 8.5A, 4.5V	1.2V @ 250µA	42.3 nC @ 10 V	±12V	1439 pF @ 10 V	-	1.8W (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN3028L-13 MOSFET BVDSS: 25V~30V SOT23 T&R Diodes Incorporated	2,049	0.15	RFQ	Datasheet	Tape & Reel (TR)	-	Active	N-Channel	MOSFET (Metal Oxide)	30 V	6.2A (Ta)	2.5V, 10V	25mOhm @ 4A, 10V	1.8V @ 250µA	10.9 nC @ 10 V	±20V	680 pF @ 15 V	-	860mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
DMN1008UFDF-7 MOSFET N-CH 12V 12.2A 6UDFN Diodes Incorporated	2,002	0.15	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q101	Active	N-Channel	MOSFET (Metal Oxide)	12 V	12.2A (Ta)	2.5V, 4.5V	8mOhm @ 5A, 4.5V	1V @ 250µA	23.4 nC @ 8 V	±8V	995 pF @ 6 V	-	700mW (Ta)	-55°C ~ 150°C (TJ)	Surface Mount
