| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMTH4008LFDFW-13MOSFET N-CH 40V 11.6A 6UDFN |
3,242 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 11.6A (Ta) | 4.5V, 10V | 11.5mOhm @ 10A, 10V | 3V @ 250µA | 14.2 nC @ 10 V | ±20V | 1030 pF @ 20 V | - | 990mW (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
DMTH4008LPS-13MOSFET N-CH 40V PWRDI5060 |
3,404 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 14.4A (Ta), 64.8A (Tc) | 5V, 10V | 8.8mOhm @ 10A, 10V | 3V @ 250µA | 15.3 nC @ 10 V | ±20V | 1088 pF @ 20 V | - | 2.99W (Ta), 55.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
DMT10H025SK3-13MOSFET N-CH 100V 41.2A TO252 T&R |
2,540 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 41.2A (Tc) | 6V, 10V | 23mOhm @ 20A, 10V | 4V @ 250µA | 21.4 nC @ 10 V | ±20V | 1544 pF @ 50 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMT2004UFG-13MOSFET N-CH 24V 70A POWERDI3333 |
2,485 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 24 V | 70A (Tc) | 2.5V, 10V | 5mOhm @ 12A, 10V | 1.45V @ 250µA | 53.7 nC @ 10 V | ±12V | 1683 pF @ 15 V | - | 2.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMT2004UFG-7MOSFET N-CH 24V 70A POWERDI3333 |
2,808 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 24 V | 70A (Tc) | 2.5V, 10V | 5mOhm @ 12A, 10V | 1.45V @ 250µA | 53.7 nC @ 10 V | ±12V | 1683 pF @ 15 V | - | 2.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN6068SEQ-13MOSFET BVDSS: 41V~60V SOT223 T&R |
2,582 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 4.1A (Ta) | 4.5V, 10V | 68mOhm @ 12A, 10V | 3V @ 250µA | 10.3 nC @ 10 V | ±20V | 502 pF @ 30 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3010LK3-13MOSFET N-CH 30V 13.1A/43A TO252 |
3,938 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13.1A (Ta), 43A (Tc) | 4.5V, 10V | 9.5mOhm @ 18A, 10V | 2.5V @ 250µA | 37 nC @ 10 V | ±20V | 2075 pF @ 15 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP3017SFK-13MOSFET P-CH 30V 10.4A 6UDFN |
3,678 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 10.4A (Ta) | 4.5V, 10V | 14mOhm @ 9.5A, 10V | 3V @ 250µA | 90 nC @ 10 V | ±25V | 4414 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG7430LFGQ-7MOSFET N-CH 30V 10.5A PWRDI3333 |
2,577 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.5A (Ta) | 4.5V, 10V | 11mOhm @ 20A, 10V | 2.5V @ 250µA | 26.7 nC @ 10 V | ±20V | 1281 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN10A08E6TCMOSFET N-CH 100V 1.5A SOT26 |
3,516 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.5A (Ta) | 6V, 10V | 250mOhm @ 3.2A, 10V | 4V @ 250µA | 7.7 nC @ 10 V | ±20V | 405 pF @ 50 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP3013SFK-7MOSFET P-CH 30V DFN2523-6 |
3,956 | 0.26 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | 10.5A (Ta) | - | - | - | - | - | - | - | - | - | - | |
|
|
DMW2013UFDEQ-13MOSFET BVDSS: 8V~24V U-DFN2020-6 |
3,129 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 10.5A (Ta) | 1.5V, 4.5V | 11mOhm @ 8.5A, 4.5V | 1.1V @ 250µA | 52.6 nC @ 8 V | ±8V | 2508 pF @ 10 V | - | 810mW (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
Type-UX~~8.jpg)
|
DMTH10H072LPS-13MOSFET BVDSS: 61V~100V POWERDI50 |
3,527 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Tc) | 4.5V, 10V | 57mOhm @ 4.5A, 10V | 3V @ 250µA | 5.1 nC @ 10 V | ±20V | 266 pF @ 50 V | - | 1.5W (Ta), 51.7W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
|
DMP2023UFDF-13MOSFET P-CH 20V 7.6A 6UDFN |
2,185 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.6A (Ta) | 1.5V, 4.5V | 27mOhm @ 7A, 4.5V | 1V @ 250µA | 27 nC @ 4.5 V | ±8V | 1837 pF @ 15 V | - | 730mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

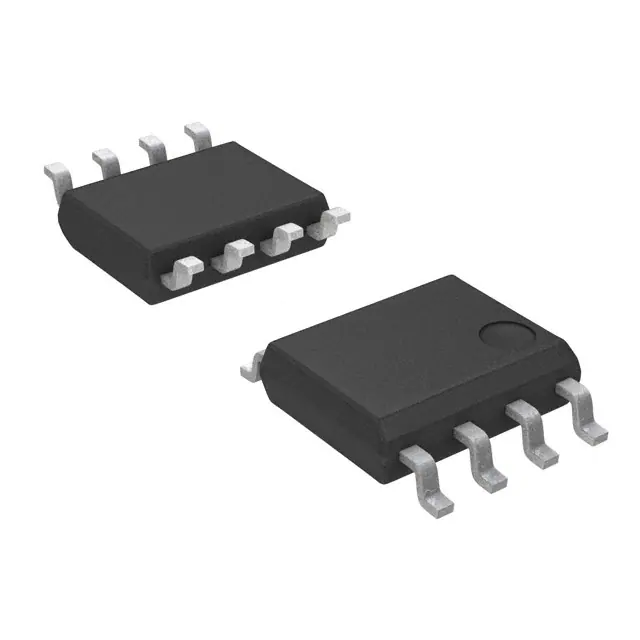

DMN6022SSS-13MOSFET N-CH 6.9A 8SO |
2,379 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6.9A (Ta) | 6V, 10V | 29mOhm @ 5A, 10V | 3V @ 250µA | 14 nC @ 10 V | ±20V | 2110 pF @ 30 V | - | 2.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2027UPS-13MOSFET N-CH 20V 10A PWRDI5060 |
3,573 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 10A (Ta), 36A (Tc) | 2.5V, 4.5V | 12.5mOhm @ 9.4A, 4.5V | 1.3V @ 250µA | 11.6 nC @ 4.5 V | ±12V | 1091 pF @ 10 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMNH6042SPS-13MOSFET N-CH 60V 24A PWRDI5060-8 |
3,837 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Tc) | 4.5V, 10V | 50mOhm @ 5.1A, 10V | 3V @ 250µA | 8.8 nC @ 10 V | ±20V | 584 pF @ 25 V | - | 1.5W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMT2004UPS-13MOSFET N-CH 24V 80A PWRDI5060-8 |
2,466 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 24 V | 80A (Tc) | 2.5V, 10V | 5mOhm @ 20A, 10V | 1.45V @ 250µA | 53.7 nC @ 10 V | ±12V | 1683 pF @ 15 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
Type-UX;-;-8.jpg)
|
DMTH6016LFVW-13MOSFET N-CH 60V 41A POWERDI3333 |
2,820 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 41A (Tc) | 4.5V, 10V | 16mOhm @ 20A, 10V | 2.5V @ 250µA | 15.1 nC @ 10 V | ±20V | 939 pF @ 30 V | - | 1.2W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
|
|
DMTH6016LFVW-7MOSFET N-CH 60V 41A POWERDI3333 |
2,701 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 41A (Tc) | 4.5V, 10V | 16mOhm @ 20A, 10V | 2.5V @ 250µA | 15.1 nC @ 10 V | ±20V | 939 pF @ 30 V | - | 1.2W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
