| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZVN4306GVTAMOSFET N-CH 60V 2.1A SOT223 |
2,837 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.1A (Ta) | 5V, 10V | 330mOhm @ 3A, 10V | 3V @ 1mA | - | ±20V | 350 pF @ 25 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
Type-UX~~8.jpg)
|

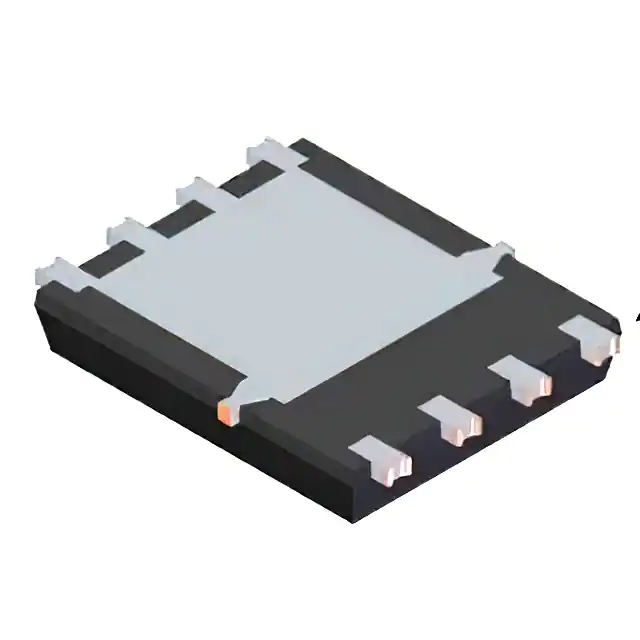

DMP4006SPSW-13MOSFET BVDSS: 41V~60V POWERDI506 |
3,255 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 115A (Tc) | 6V, 10V | 5.2mOhm @ 9.8A, 10V | 3V @ 250µA | 162 nC @ 10 V | ±20V | 6855 pF @ 20 V | - | 3.4W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount, Wettable Flank |
|
DMNH10H028SK3Q-13MOSFET N-CH 100V 55A TO252 |
2,216 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 55A (Tc) | 10V | 28mOhm @ 20A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±20V | 2245 pF @ 50 V | - | 2W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMNH4006SK3-13MOSFET N-CH 40V 18A/90A TO252 |
3,121 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 18A (Ta), 90A (Tc) | 10V | 6mOhm @ 86A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±20V | 2280 pF @ 25 V | - | 2.2W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
DMTH6004SPS-13MOSFET N-CH 60V 25A PWRDI5060 |
2,960 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 25A (Ta), 100A (Tc) | 10V | 3.1mOhm @ 50A, 10V | 4V @ 250µA | 95.4 nC @ 10 V | ±20V | 4556 pF @ 30 V | - | 2.1W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMP6018LPS-13MOSFET BVDSS: 41V~60V POWERDI506 |
2,794 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 4.5V, 10V | 18mOhm @ 17A, 10V | 2.5V @ 250µA | 13.7 nC @ 10 V | ±20V | 3505 pF @ 30 V | - | 2.6W (Ta), 113W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMJ70H1D3SJ3MOSFET N-CH 700V 4.6A TO251 |
3,282 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 4.6A (Tc) | 10V | 1.3Ohm @ 2.5A, 10V | 4V @ 250µA | 13.9 nC @ 10 V | ±30V | 351 pF @ 50 V | - | 41W (Tc) | -55°C ~ 155°C (TJ) | Through Hole |
|
|
DMT15H017LPSW-13MOSFET BVDSS: 101V~250V POWERDI5 |
2,482 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 9.4A (Ta), 58A (Tc) | 4.5V, 10V | 17.5mOhm @ 20A, 10V | 2.6V @ 250µA | 50 nC @ 10 V | ±20V | 3369 pF @ 75 V | - | 1.3W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount, Wettable Flank |
|
DMT6002LPS-13MOSFET N-CH 60V 100A PWRDI5060-8 |
3,828 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 6V, 10V | 2mOhm @ 50A, 10V | 3V @ 250µA | 130.8 nC @ 10 V | ±20V | 6555 pF @ 30 V | - | 2.3W | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMTH41M8SPS-13MOSFET N-CH 40V 100A PWRDI5060-8 |
2,670 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 1.8mOhm @ 30A, 10V | 4V @ 250µA | 79.5 nC @ 10 V | ±20V | 6968 pF @ 20 V | - | 3.03W | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMT61M8SPS-13MOSFET BVDSS: 41V~60V POWERDI506 |
3,326 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 205A (Tc) | 10V | 1.6mOhm @ 30A, 10V | 4V @ 250µA | 130.6 nC @ 10 V | ±20V | 8306 pF @ 30 V | - | 2.7W (Ta), 139W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMTH41M8SPSQ-13MOSFET N-CH 40V 100A PWRDI5060-8 |
3,149 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 1.8mOhm @ 30A, 10V | 4V @ 250µA | 79.5 nC @ 10 V | ±20V | 6968 pF @ 20 V | - | 3.03W | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMTH8003SPS-13MOSFET N-CH 80V 100A PWRDI5060-8 |
3,661 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 6V, 10V | 3.9mOhm @ 30A, 10V | 4V @ 250µA | 124.3 nC @ 10 V | ±20V | 8952 pF @ 40 V | - | 2.9W | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMTH10H4M6SPS-13MOSFET BVDSS: 61V~100V POWERDI50 |
3,564 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Ta), 100A (Tc) | 10V | 4.6mOhm @ 30A, 10V | 4V @ 250µA | 66 nC @ 10 V | ±20V | 4327 pF @ 50 V | - | 2.7W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMTH84M1SPS-13MOSFET BVDSS: 61V~100V POWERDI50 |
3,103 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 6V, 10V | 4mOhm @ 20A, 10V | 4V @ 250µA | - | ±20V | 4209 pF @ 40 V | - | 1.6W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMTH8004LPS-13MOSFET BVDSS: 61V~100V POWERDI50 |
2,821 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 4.5V, 10V | 3.8mOhm @ 20A, 10V | 2.8V @ 250µA | 81 nC @ 10 V | ±20V | 4979 pF @ 40 V | - | 1.5W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMT10H4M5LPS-13MOSFET BVDSS: 61V-100V POWERDI50 |
2,009 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Ta), 100A (Tc) | 4.5V, 10V | 4.3mOhm @ 30A, 10V | 2.5V @ 250µA | 80 nC @ 10 V | ±20V | 4843 pF @ 50 V | - | 2.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMT61M5SPSW-13MOSFET BVDSS: 41V~60V POWERDI506 |
3,973 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 215A (Tc) | 10V | 1.5mOhm @ 30A, 10V | 4V @ 250µA | 130.6 nC @ 10 V | ±20V | 8306 pF @ 30 V | - | 2.7W (Ta), 139W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMT10H009LH3MOSFET N-CH 100V 84A TO251 |
2,653 | 0.95 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 84A (Tc) | 4.5V, 10V | 9mOhm @ 20A, 10V | 2.5V @ 250µA | 20.2 nC @ 4.5 V | ±20V | 2309 pF @ 50 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMT10H9M9SH3MOSFET BVDSS: 61V~100V TO251 TUB |
2,048 | 0.95 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 84A (Tc) | 6V, 10V | 9mOhm @ 20A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 2085 pF @ 50 V | - | 114W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
