| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPW60R045CPFKSA1MOSFET N-CH 650V 60A TO247-3 |
117 | 23.48 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 60A (Tc) | 10V | 45mOhm @ 44A, 10V | 3.5V @ 3mA | 190 nC @ 10 V | ±20V | 6800 pF @ 100 V | - | 431W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

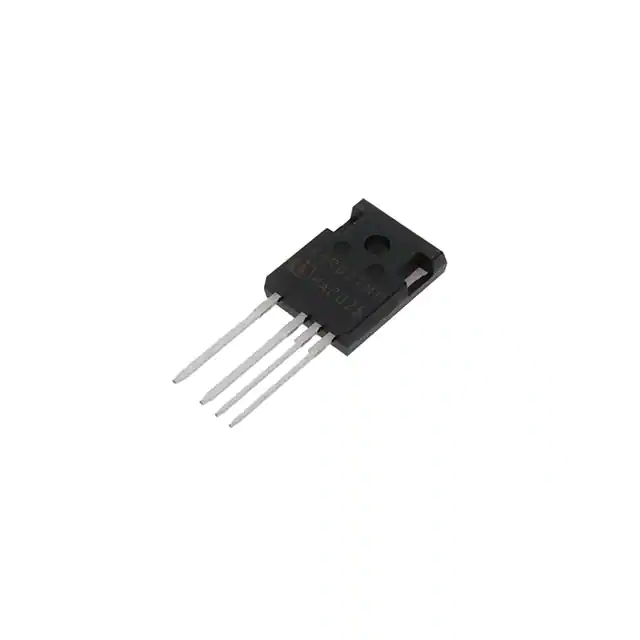

IMZA65R027M1HXKSA1MOSFET 650V NCH SIC TRENCH |
116 | 28.76 |
RFQ |
Tube | - | Active | - | - | - | 59A (Tc) | - | - | - | - | - | - | - | - | - | - | |
|
IPW65R019C7FKSA1MOSFET N-CH 650V 75A TO247-3 |
279 | 29.95 |
RFQ |
Datasheet |
Tube | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 75A (Tc) | 10V | 19mOhm @ 58.3A, 10V | 4V @ 2.92mA | 215 nC @ 10 V | ±20V | 9900 pF @ 400 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SN7002IXTSA1SMALL SIGNAL MOSFETS PG-SOT23-3 |
4,456 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 1.8V @ 26µA | 0.9 nC @ 10 V | ±20V | 32 pF @ 30 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSS84PWH6327XTSA1MOSFET P-CH 60V 150MA SOT323-3 |
2,147 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 150mA (Ta) | 4.5V, 10V | 8Ohm @ 150mA, 10V | 2V @ 20µA | 1.5 nC @ 10 V | ±20V | 19.1 pF @ 25 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SN7002WH6327XTSA1MOSFET N-CH 60V 230MA SOT323-3 |
2,332 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 4.5V, 10V | 5Ohm @ 230mA, 10V | 1.8V @ 26µA | 1.5 nC @ 10 V | ±20V | 45 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ISS55EP06LMXTSA1MOSFET P-CH 60V 180MA SOT23-3 |
63,685 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 180mA (Ta) | 4.5V, 10V | 5.5Ohm @ 180mA, 10V | 2V @ 11µA | 0.59 nC @ 10 V | ±20V | 18 pF @ 30 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS223PWH6327XTSA1MOSFET P-CH 20V 390MA SOT323-3 |
21,192 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 390mA (Ta) | 2.5V, 4.5V | 1.2Ohm @ 390mA, 4.5V | 1.2V @ 1.5µA | 0.62 nC @ 4.5 V | ±12V | 56 pF @ 15 V | - | 250mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS7728NH6327XTSA2MOSFET N-CH 60V 200MA SOT23-3 |
91,423 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 2.3V @ 26µA | 1.5 nC @ 10 V | ±20V | 56 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSD316SNH6327XTSA1MOSFET N-CH 30V 1.4A SOT363-6 |
2,954 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.4A (Ta) | 4.5V, 10V | 160mOhm @ 1.4A, 10V | 2V @ 3.7µA | 0.6 nC @ 5 V | ±20V | 94 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS806NEH6327XTSA1MOSFET N-CH 20V 2.3A SOT23-3 |
7,708 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.3A (Ta) | 1.8V, 2.5V | 57mOhm @ 2.3A, 2.5V | 750mV @ 11µA | 1.7 nC @ 2.5 V | ±8V | 529 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRLML2030TRPBFMOSFET N-CH 30V 2.7A SOT23 |
3,216 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Ta) | 4.5V, 10V | 100mOhm @ 2.7A, 10V | 2.3V @ 25µA | 1 nC @ 4.5 V | ±20V | 110 pF @ 15 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS315PH6327XTSA1MOSFET P-CH 30V 1.5A SOT23-3 |
4,277 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 4.5V, 10V | 150mOhm @ 1.5A, 10V | 2V @ 11µA | 2.3 nC @ 5 V | ±20V | 282 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLML9303TRPBFMOSFET P-CH 30V 2.3A SOT23 |
12,791 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.3A (Ta) | 4.5V, 10V | 165mOhm @ 2.3A, 10V | 2.4V @ 10µA | 2 nC @ 4.5 V | ±20V | 160 pF @ 25 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS205NH6327XTSA1MOSFET N-CH 20V 2.5A SOT23-3 |
20,418 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 2.5V, 4.5V | 50mOhm @ 2.5A, 4.5V | 1.2V @ 11µA | 3.2 nC @ 4.5 V | ±12V | 419 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ISS17EP06LMXTSA1MOSFET P-CH 60V 300MA SOT23-3 |
74,272 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 1.7Ohm @ 300mA, 10V | 2V @ 34µA | 1.79 nC @ 10 V | ±20V | 55 pF @ 30 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS119NH6327XTSA1MOSFET N-CH 100V 190MA SOT23-3 |
54,174 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 190mA (Ta) | 4.5V, 10V | 6Ohm @ 190mA, 10V | 2.3V @ 13µA | 0.6 nC @ 10 V | ±20V | 20.9 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS215PH6327XTSA1MOSFET P-CH 20V 1.5A SOT23-3 |
2,372 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.5A (Ta) | 2.5V, 4.5V | 150mOhm @ 1.5A, 4.5V | 1.2V @ 11µA | 3.6 nC @ 4.5 V | ±12V | 346 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLML2246TRPBFMOSFET P-CH 20V 2.6A SOT23 |
55,159 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.6A (Ta) | 2.5V, 4.5V | 135mOhm @ 2.6A, 4.5V | 1.1V @ 10µA | 2.9 nC @ 4.5 V | ±12V | 220 pF @ 16 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS159NH6327XTSA2MOSFET N-CH 60V 230MA SOT23-3 |
24,145 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 0V, 10V | 3.5Ohm @ 160mA, 10V | 2.4V @ 26µA | 1.4 nC @ 5 V | ±20V | 39 pF @ 25 V | Depletion Mode | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
