| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF4104MOSFET N-CH 40V 75A TO220AB |
2,262 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 5.5mOhm @ 75A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF540ZMOSFET N-CH 100V 36A TO220AB |
3,095 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Tc) | 10V | 26.5mOhm @ 22A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1770 pF @ 25 V | - | 92W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRLIB4343MOSFET N-CH 55V 19A TO220AB FP |
2,172 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 19A (Tc) | 4.5V, 10V | 50mOhm @ 4.7A, 10V | 1V @ 250µA | 42 nC @ 10 V | ±20V | 740 pF @ 50 V | - | 39W (Tc) | -40°C ~ 175°C (TJ) | Through Hole |
|
64-9146MOSFET N-CH 20V 32A DIRECTFET |
2,786 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 32A (Ta), 180A (Tc) | 4.5V, 10V | 1.8mOhm @ 15A, 10V | 2.5V @ 250µA | 71 nC @ 4.5 V | ±12V | 6580 pF @ 10 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF3305MOSFET N-CH 55V 75A TO220AB |
2,659 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 8mOhm @ 75A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 3650 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB4215MOSFET N-CH 60V 115A TO220AB |
2,538 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115A (Tc) | 10V | 9mOhm @ 54A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 4080 pF @ 25 V | - | 270W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRLL024ZMOSFET N-CH 55V 5A SOT223 |
2,711 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 5A (Tc) | 4.5V, 10V | 60mOhm @ 3A, 10V | 3V @ 250µA | 11 nC @ 5 V | ±16V | 380 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

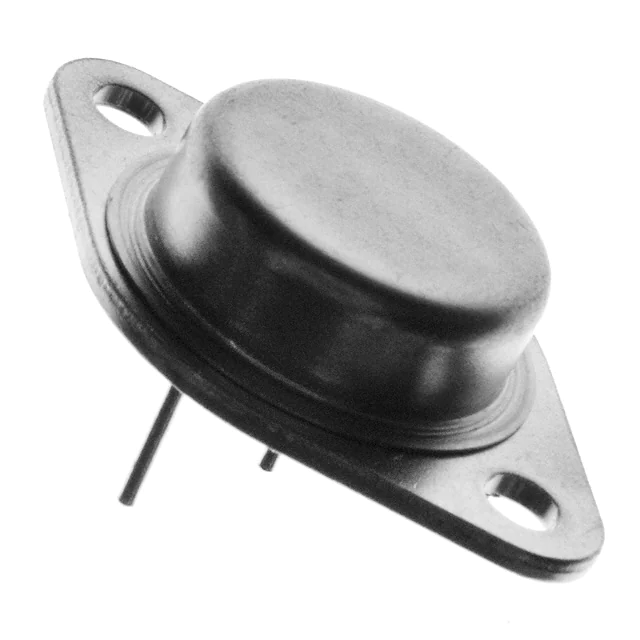

IRF450MOSFET N-CH 500V 12A TO204AA |
3,456 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 500mOhm @ 12A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF2804STRL-7PMOSFET N-CH 40V 160A D2PAK |
2,717 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 1.6mOhm @ 160A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 6930 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFP4232PBFMOSFET N-CH 250V 60A TO247AC |
2,205 | 0.00 |
RFQ |
Datasheet |
Bag | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 60A (Tc) | 10V | 35.7mOhm @ 42A, 10V | 5V @ 250µA | 240 nC @ 10 V | ±20V | 7290 pF @ 25 V | - | 430W (Tc) | -40°C ~ 175°C (TJ) | Through Hole |
|
IRF7495PBFMOSFET N-CH 100V 7.3A 8SO |
3,377 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.3A (Ta) | 10V | 22mOhm @ 4.4A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±20V | 1530 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFB3307MOSFET N-CH 75V 130A TO220AB |
2,269 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 130A (Tc) | 10V | 6.3mOhm @ 75A, 10V | 4V @ 150µA | 180 nC @ 10 V | ±20V | 5150 pF @ 50 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB3507MOSFET N-CH 75V 97A TO220AB |
2,073 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 97A (Tc) | 10V | 8.8mOhm @ 58A, 10V | 4V @ 100µA | 130 nC @ 10 V | ±20V | 3540 pF @ 50 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB3507PBFMOSFET N-CH 75V 97A TO220AB |
3,741 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 97A (Tc) | 10V | 8.8mOhm @ 58A, 10V | 4V @ 100µA | 130 nC @ 10 V | ±20V | 3540 pF @ 50 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB4410MOSFET N-CH 100V 96A TO220AB |
2,482 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 96A (Tc) | 10V | 10mOhm @ 58A, 10V | 4V @ 150µA | 180 nC @ 10 V | ±20V | 5150 pF @ 50 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB4610MOSFET N-CH 100V 73A TO220AB |
3,191 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 73A (Tc) | 10V | 14mOhm @ 44A, 10V | 4V @ 100µA | 140 nC @ 10 V | ±20V | 3550 pF @ 50 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRFS3307MOSFET N-CH 75V 130A D2PAK |
2,507 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 130A (Tc) | 10V | 6.3mOhm @ 75A, 10V | 4V @ 150µA | 180 nC @ 10 V | ±20V | 5150 pF @ 50 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS4410MOSFET N-CH 100V 96A D2PAK |
2,962 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 96A (Tc) | 10V | 10mOhm @ 58A, 10V | 4V @ 150µA | 180 nC @ 10 V | ±20V | 5150 pF @ 50 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS4610MOSFET N-CH 100V 73A D2PAK |
3,291 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 73A (Tc) | 10V | 14mOhm @ 44A, 10V | 4V @ 100µA | 140 nC @ 10 V | ±20V | 3550 pF @ 50 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS4610PBFMOSFET N-CH 100V 73A D2PAK |
3,568 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 73A (Tc) | 10V | 14mOhm @ 44A, 10V | 4V @ 100µA | 140 nC @ 10 V | ±20V | 3550 pF @ 50 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
