| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BTS113ANKSA1MOSFET N-CH 60V 11.5A TO220AB |
3,770 | 0.00 |
RFQ |
Datasheet |
Tube | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11.5A (Tc) | 4.5V | 170mOhm @ 5.8A, 4.5V | 2.5V @ 1mA | - | ±10V | 560 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
BTS113AE3045ANTMA1MOSFET N-CH 60V 11.5A TO220AB |
3,774 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11.5A (Tc) | 4.5V | 170mOhm @ 5.8A, 4.5V | 2.5V @ 1mA | - | ±10V | 560 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BTS113AE3064NKSA1MOSFET N-CH 60V 11.5A TO220AB |
3,560 | 0.68 |
RFQ |
Datasheet |
Tube,Tube | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11.5A (Tc) | 4.5V | 170mOhm @ 5.8A, 4.5V | 2.5V @ 1mA | - | ±10V | 560 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

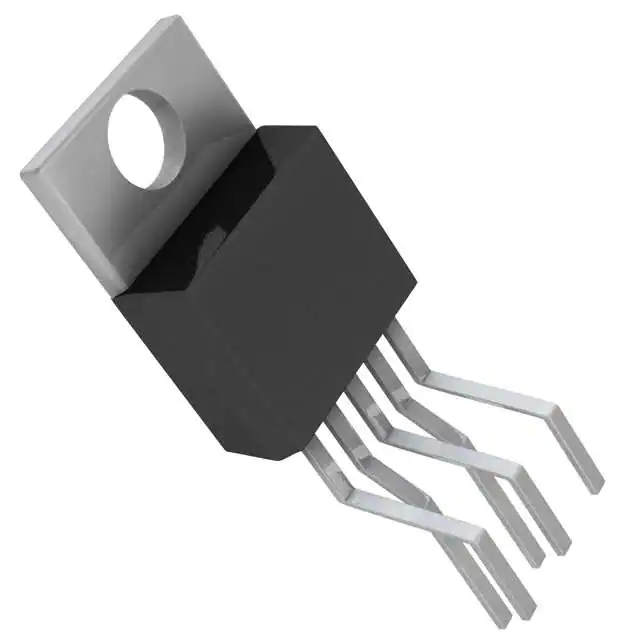

BTS244ZNKSA1MOSFET N-CH 55V 35A TO220-5-3 |
2,478 | 0.00 |
RFQ |
Datasheet |
Tube | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 35A (Tc) | 4.5V, 10V | 13mOhm @ 19A, 10V | 2V @ 130µA | 130 nC @ 10 V | ±20V | 2660 pF @ 25 V | Temperature Sensing Diode | 170W (Tc) | -40°C ~ 175°C (TJ) | Through Hole |
|
BTS244Z E3043MOSFET N-CH 55V 35A TO220-5-43 |
3,711 | 0.00 |
RFQ |
Datasheet |
Tube | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 35A (Tc) | 4.5V, 10V | 13mOhm @ 19A, 10V | 2V @ 130µA | 130 nC @ 10 V | ±20V | 2660 pF @ 25 V | Temperature Sensing Diode | 170W (Tc) | -40°C ~ 175°C (TJ) | Through Hole |
.jpg)
|
BTS244Z E3062AMOSFET N-CH 55V 35A TO220-5-62 |
3,122 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 35A (Tc) | 4.5V, 10V | 13mOhm @ 19A, 10V | 2V @ 130µA | 130 nC @ 10 V | ±20V | 2660 pF @ 25 V | Temperature Sensing Diode | 170W (Tc) | -40°C ~ 175°C (TJ) | Surface Mount |
|
|
BTS247ZAKSA1MOSFET N-CH 55V 33A TO220-5-3 |
2,477 | 0.00 |
RFQ |
Datasheet |
Tube | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 33A (Tc) | 4.5V, 10V | 18mOhm @ 12A, 10V | 2V @ 90µA | 90 nC @ 10 V | ±20V | 1730 pF @ 25 V | Temperature Sensing Diode | 120W (Tc) | -40°C ~ 175°C (TJ) | Through Hole |
|
|
BTS247ZE3043AKSA1MOSFET N-CH 55V 33A TO220-5-43 |
8,000 | 0.91 |
RFQ |
Datasheet |
Tube,Tube | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 33A (Tc) | 4.5V, 10V | 18mOhm @ 12A, 10V | 2V @ 90µA | 90 nC @ 10 V | ±20V | 1730 pF @ 25 V | Temperature Sensing Diode | 120W (Tc) | -40°C ~ 175°C (TJ) | Through Hole |
|

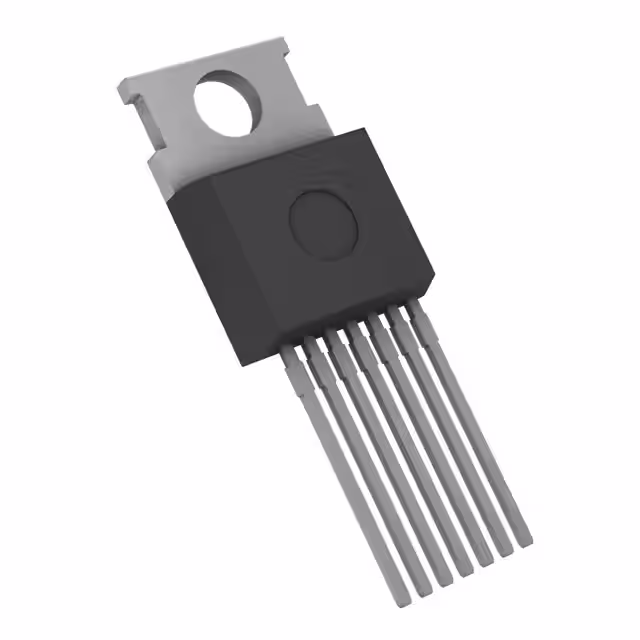

BTS282ZAKSA1MOSFET N-CH 49V 80A TO220-7 |
3,016 | 1.00 |
RFQ |
Datasheet |
Tube,Tube | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 49 V | 80A (Tc) | 4.5V, 10V | 6.5mOhm @ 36A, 10V | 2V @ 240µA | 232 nC @ 10 V | ±20V | 4800 pF @ 25 V | Temperature Sensing Diode | 300W (Tc) | -40°C ~ 175°C (TJ) | Through Hole |
|

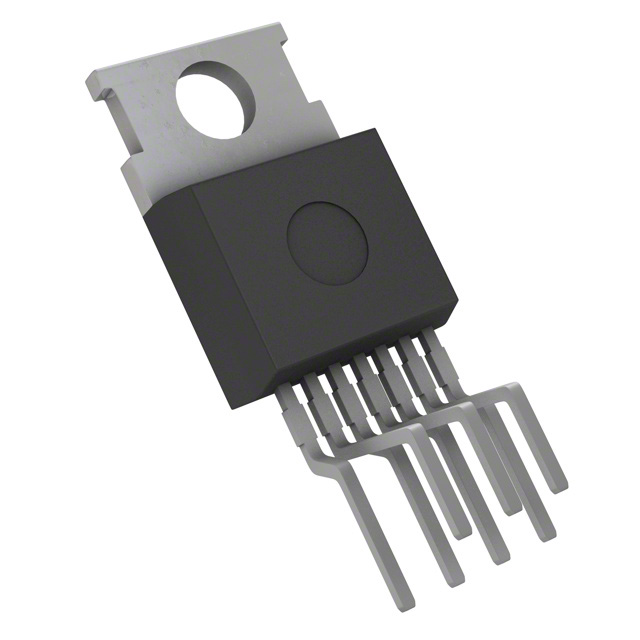

BTS282Z E3230MOSFET N-CH 49V 80A TO220-7 |
3,653 | 0.00 |
RFQ |
Datasheet |
Tube | TEMPFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 49 V | 80A (Tc) | 4.5V, 10V | 6.5mOhm @ 36A, 10V | 2V @ 240µA | 232 nC @ 10 V | ±20V | 4800 pF @ 25 V | Temperature Sensing Diode | 300W (Tc) | -40°C ~ 175°C (TJ) | Through Hole |
|
|
BUZ30A E3045AMOSFET N-CH 200V 21A D2PAK |
3,214 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 21A (Tc) | 10V | 130mOhm @ 13.5A, 10V | 4V @ 1mA | - | ±20V | 1900 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUZ31MOSFET N-CH 200V 14.5A TO220-3 |
3,111 | 0.00 |
RFQ |
Datasheet |
Tube | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 14.5A (Tc) | 5V | 200mOhm @ 9A, 5V | 4V @ 1mA | - | ±20V | 1120 pF @ 25 V | - | 95W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
BUZ31 E3045AMOSFET N-CH 200V 14.5A D2PAK |
3,915 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 14.5A (Tc) | 10V | 200mOhm @ 9A, 5V | 4V @ 1mA | - | ±20V | 1120 pF @ 25 V | - | 95W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUZ31 E3046MOSFET N-CH 200V 14.5A TO262-3 |
2,242 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 14.5A (Tc) | 5V | 200mOhm @ 9A, 5V | 4V @ 1mA | - | ±20V | 1120 pF @ 25 V | - | 95W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
BUZ31LMOSFET N-CH 200V 13.5A TO220-3 |
3,463 | 0.00 |
RFQ |
Datasheet |
Tube | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 13.5A (Tc) | 5V | 200mOhm @ 7A, 5V | 2V @ 1mA | - | ±20V | 1600 pF @ 25 V | - | 95W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
BUZ31L E3044AMOSFET N-CH 200V 13.5A TO220-3 |
2,588 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 13.5A (Tc) | 5V | 200mOhm @ 7A, 5V | 2V @ 1mA | - | ±20V | 1600 pF @ 25 V | - | 95W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
BUZ32MOSFET N-CH 200V 9.5A TO220-3 |
2,554 | 1.00 |
RFQ |
Datasheet |
Tube,Tube | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.5A (Tc) | 10V | 400mOhm @ 6A, 10V | 4V @ 1mA | - | ±20V | 530 pF @ 25 V | - | 75W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
BUZ32 E3045AMOSFET N-CH 200V 9.5A D2PAK |
3,004 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.5A (Tc) | 10V | 400mOhm @ 6A, 10V | 4V @ 1mA | - | ±20V | 530 pF @ 25 V | - | 75W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUZ32H3045AATMA1MOSFET N-CH 200V 9.5A TO263-3 |
3,357 | 0.00 |
RFQ |
Datasheet |
Tube | SIPMOS® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 9.5A (Tc) | 10V | 400mOhm @ 6A, 10V | 4V @ 1mA | - | ±20V | 530 pF @ 25 V | - | 75W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUZ73E3046XKMOSFET N-CH 200V 7A TO220-3 |
3,776 | 0.00 |
RFQ |
Datasheet |
Tube | SIPMOS® | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 200 V | 7A (Tc) | 10V | 400mOhm @ 4.5A, 10V | 4V @ 1mA | - | ±20V | 530 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
