| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

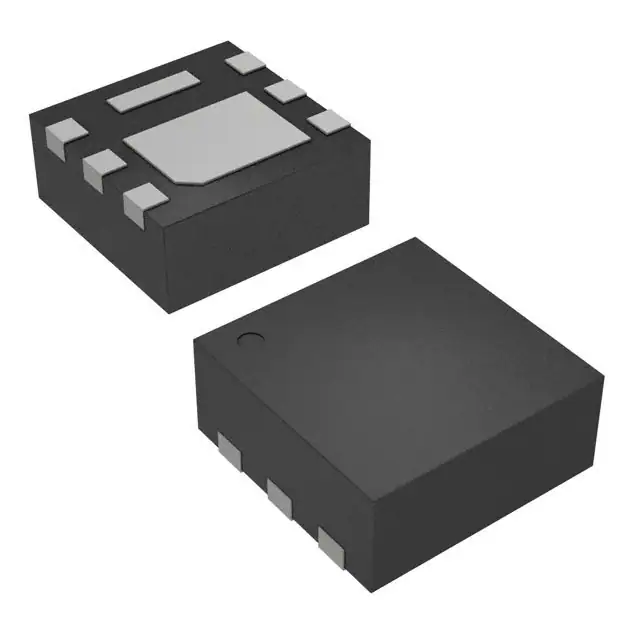

IRL80HS120MOSFET N-CH 80V 12.5A 6PQFN |
13,396 | 1.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 12.5A (Tc) | 4.5V, 10V | 32mOhm @ 7.5A, 10V | 2V @ 10µA | 7 nC @ 4.5 V | ±20V | 540 pF @ 25 V | - | 11.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF6716MTRPBFIRF6716 - 12V-300V N-CHANNEL POW |
33,845 | 1.36 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 39A (Ta), 180A (Tc) | 4.5V, 10V | 1.6mOhm @ 40A, 10V | 2.4V @ 100µA | 59 nC @ 4.5 V | ±20V | 5150 pF @ 13 V | - | 3.6W (Ta), 78W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IPP024N06N3GPOWER FIELD-EFFECT TRANSISTOR, 1 |
13,836 | 1.38 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IPLK60R1K5PFD7ATMA1MOSFET N-CH 600V 3.8A THIN-PAK |
4,878 | 1.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ PFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.8A (Tc) | 10V | 1.5Ohm @ 700mA, 10V | 4.5V @ 40µA | 4.6 nC @ 10 V | ±20V | 169 pF @ 400 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSC014N04LSTATMA1MOSFET N-CH 40V 33A/100A TDSON |
4,213 | 2.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 33A (Ta), 100A (Tc) | 4.5V, 10V | 1.4mOhm @ 50A, 10V | 2V @ 250µA | 85 nC @ 10 V | ±20V | 6020 pF @ 20 V | - | 3W (Ta), 115W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPB530N15N3GATMA1MOSFET N-CH 150V 21A D2PAK |
1,750 | 2.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 150 V | 21A (Tc) | 8V, 10V | 53mOhm @ 18A, 10V | 4V @ 35µA | 12 nC @ 10 V | ±20V | 887 pF @ 75 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFH8303TRPBFMOSFET N-CH 30V 43A/100A 8PQFN |
2,666 | 2.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET®, StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 43A (Ta), 100A (Tc) | 4.5V, 10V | 1.1mOhm @ 50A, 10V | 2.2V @ 150µA | 179 nC @ 10 V | ±20V | 7736 pF @ 24 V | - | 3.7W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF2807STRLPBFMOSFET N-CH 75V 82A D2PAK |
1,402 | 2.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 82A (Tc) | 10V | 13mOhm @ 43A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 3820 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF6794MTR1PBFMOSFET N-CH 25V 32A DIRECTFET |
624 | 2.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 32A (Ta), 200A (Tc) | 4.5V, 10V | 1.7mOhm @ 32A, 10V | 2.35V @ 100µA | 47 nC @ 4.5 V | ±20V | 4420 pF @ 13 V | Schottky Diode (Body) | 2.8W (Ta), 100W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
ISC0805NLSATMA1MOSFET N-CH 100V 13A/71A TDSON |
3,802 | 2.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ 5 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Ta), 71A (Tc) | 4.5V, 10V | 7.8mOhm @ 50A, 10V | 2.3V @ 40µA | 33 nC @ 10 V | ±20V | 2200 pF @ 50 V | - | 2.5W (Ta), 74W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPLK60R1K0PFD7ATMA1MOSFET N-CH 600V 5.2A THIN-PAK |
4,280 | 1.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ PFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.2A (Tc) | 10V | 1Ohm @ 1A, 10V | 4.5V @ 50µA | 6 nC @ 10 V | ±20V | 230 pF @ 400 V | - | 31.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF6678MOSFET N-CH 30V 30A DIRECTFET |
4,885 | 2.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Ta), 150A (Tc) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.25V @ 250µA | 65 nC @ 4.5 V | ±20V | 5640 pF @ 15 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IPD50N10S3L16ATMA1MOSFET N-CH 100V 50A TO252-3 |
2,286 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 4.5V, 10V | 15mOhm @ 50A, 10V | 2.4V @ 60µA | 64 nC @ 10 V | ±20V | 4180 pF @ 25 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
BSC009NE2LSATMA1MOSFET N-CH 25V 41A/100A TDSON |
159 | 2.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 41A (Ta), 100A (Tc) | 4.5V, 10V | 0.9mOhm @ 30A, 10V | 2.2V @ 250µA | 126 nC @ 10 V | ±20V | 5800 pF @ 12 V | - | 2.5W (Ta), 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPB123N10N3GATMA1MOSFET N-CH 100V 58A D2PAK |
1,457 | 2.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 58A (Tc) | 6V, 10V | 12.3mOhm @ 46A, 10V | 3.5V @ 46µA | 35 nC @ 10 V | ±20V | 2500 pF @ 50 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
BSC040N08NS5ATMA1MOSFET N-CH 80V 100A TDSON |
4,690 | 2.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 6V, 10V | 4mOhm @ 50A, 10V | 3.8V @ 67µA | 54 nC @ 10 V | ±20V | 3900 pF @ 40 V | - | 2.5W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPL60R360P6SATMA1MOSFET N-CH 600V 11.3A 8THINPAK |
3,701 | 2.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11.3A (Tc) | 10V | 360mOhm @ 4.5A, 10V | 4.5V @ 370µA | 22 nC @ 10 V | ±20V | 1010 pF @ 100 V | - | 89.3W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IPB35N10S3L26ATMA1MOSFET N-CH 100V 35A D2PAK |
1,460 | 2.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 4.5V, 10V | 26.3mOhm @ 35A, 10V | 2.4V @ 39µA | 39 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPD60R360CFD7ATMA1MOSFET N-CH 650V 7A TO252-3-313 |
1,896 | 2.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 360mOhm @ 2.9A, 10V | 4.5V @ 140µA | 14 nC @ 10 V | ±20V | 679 pF @ 400 V | - | 43W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPB100N04S4H2ATMA1MOSFET N-CH 40V 100A TO263-3 |
1,001 | 2.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 2.4mOhm @ 100A, 10V | 4V @ 70µA | 90 nC @ 10 V | ±20V | 7180 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
