| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHD71NQ03LT,118MOSFET N-CH 30V 75A DPAK |
2,246 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 5V, 10V | 10mOhm @ 25A, 10V | 2.5V @ 1mA | 13.2 nC @ 5 V | ±20V | 1220 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
PSMN1R6-60CLJMOSFET N-CH 60V DPAK |
3,951 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PSMN2R1-60CSJMOSFET N-CH 60V DPAK |
2,804 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
PH2230DLSXMOSFET N-CH LFPAK5 POWER-SO8 |
2,024 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | |
|
PHM10030DLSXMOSFET N-CH LFPAK33 |
2,429 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | |
|
PSMN1R6-40YLC:115MOSFET N-CH 40V 100A LFPAK56 |
2,241 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 4.5V, 10V | 1.55mOhm @ 25A, 10V | 1.95V @ 1mA | 126 nC @ 10 V | ±20V | 7790 pF @ 20 V | - | 288W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BUK9880-55,135MOSFET N-CH 55V 7.5A SOT223 |
3,024 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 7.5A (Tc) | 5V | 80mOhm @ 5A, 5V | 2V @ 1mA | - | ±10V | 650 pF @ 25 V | - | 8.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PHK04P02T,518MOSFET P-CH 16V 4.66A 8SO |
3,102 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 16 V | 4.66A (Tc) | 2.5V, 10V | 120mOhm @ 1A, 4.5V | 600mV @ 1mA (Typ) | 7.2 nC @ 4.5 V | ±8V | 528 pF @ 12.8 V | - | 5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUK98150-55/CUFMOSFET N-CH 55V 5.5A SOT223 |
2,272 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | TrenchMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 5.5A (Tc) | 5V | 150mOhm @ 5A, 5V | 2V @ 1mA | - | ±10V | 330 pF @ 25 V | - | 8.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUK9840-55/CUXMOSFET N-CH 55V 5A/10.7A SOT223 |
3,195 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | TrenchMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 5A (Ta), 10.7A (Tc) | 5V | 40mOhm @ 5A, 5V | 2V @ 1mA | - | ±10V | 1400 pF @ 25 V | - | 8.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUK9880-55/CUFMOSFET N-CH 55V 7.5A SOT223 |
3,160 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 7.5A (Tc) | 5V | 80mOhm @ 5A, 5V | 2V @ 1mA | - | ±10V | 650 pF @ 25 V | - | 8.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

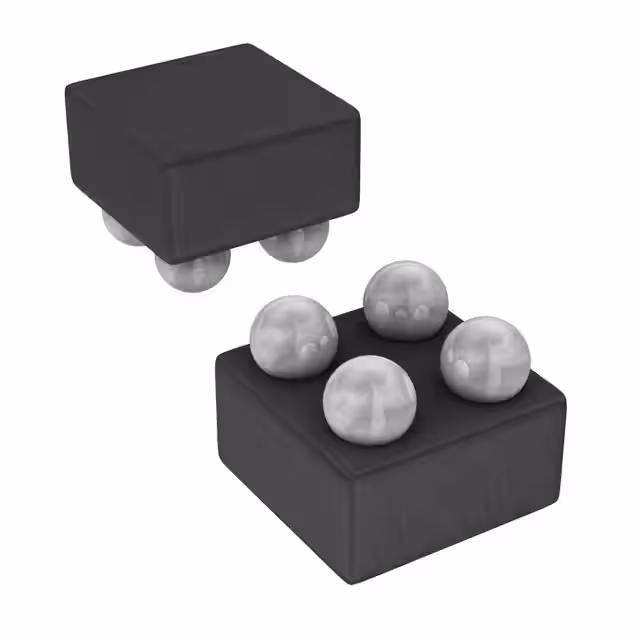

PMCM440VNEZMOSFET N-CH 12V 3.9A 4WLCSP |
2,213 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 3.9A (Ta) | 4.5V | 67mOhm @ 3A, 4.5V | 900mV @ 250µA | 8.2 nC @ 4.5 V | ±8V | 360 pF @ 6 V | - | 400mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMCM650VNEZMOSFET N-CH 12V 6.4A 6WLCSP |
3,586 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 6.4A (Ta) | 4.5V | 25mOhm @ 3A, 4.5V | 900mV @ 250µA | 15.4 nC @ 4.5 V | ±8V | 1060 pF @ 6 V | - | 556mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMZ290UNEYLMOSFET N-CH 20V 1A DFN1006-3 |
606,550 | 0.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 1.8V, 4.5V | 380mOhm @ 500mA, 4.5V | 950mV @ 250µA | 0.68 nC @ 4.5 V | ±8V | 83 pF @ 10 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUK7880-55/CUFMOSFET N-CH 55V 3.5A SOT223 |
2,195 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 3.5A (Ta) | 10V | 80mOhm @ 5A, 10V | 4V @ 1mA | - | ±16V | 500 pF @ 25 V | - | 8.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BUK9213-60EJMOSFET N-CH 60V DPAK |
2,323 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BUK9214-80EJMOSFET N-CH 80V DPAK |
2,478 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BUK9216-100EJMOSFET N-CH 100V DPAK |
3,421 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BUK9222-100EJMOSFET N-CH 100V DPAK |
3,671 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BUK9223-60EJMOSFET N-CH 60V DPAK |
2,093 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | - | - | - | 75A | - | - | - | - | - | - | - | - | - | - |
