Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FETType	Technology	DraintoSourceVoltage(Vdss)	Current-ContinuousDrain(Id)@25°C	DriveVoltage(MaxRdsOnMinRdsOn)	RdsOn(Max)@IdVgs	Vgs(th)(Max)@Id	GateCharge(Qg)(Max)@Vgs	Vgs(Max)	InputCapacitance(Ciss)(Max)@Vds	FETFeature	PowerDissipation(Max)	OperatingTemperature	MountingType
STFW2N105K5 MOSFET N-CH 1050V 2A ISOWATT STMicroelectronics	775	3.00	RFQ	Datasheet	Tube	SuperMESH5™	Active	N-Channel	MOSFET (Metal Oxide)	1050 V	2A (Tc)	10V	8Ohm @ 750mA, 10V	5V @ 100µA	10 nC @ 10 V	30V	115 pF @ 100 V	-	30W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STP150NF04 MOSFET N-CH 40V 80A TO220AB STMicroelectronics	826	3.19	RFQ	Datasheet	Tube	STripFET™ II	Active	N-Channel	MOSFET (Metal Oxide)	40 V	80A (Tc)	10V	7mOhm @ 40A, 10V	4V @ 250µA	150 nC @ 10 V	±20V	3650 pF @ 25 V	-	300W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
STF20N90K5 MOSFET N-CH 900V 20A TO220FP STMicroelectronics	2,842	7.06	RFQ	Datasheet	Tube	MDmesh™ K5	Active	N-Channel	MOSFET (Metal Oxide)	900 V	20A (Tc)	10V	250mOhm @ 10A, 10V	5V @ 100µA	40 nC @ 10 V	±30V	1500 pF @ 100 V	-	40W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STN1NF10 MOSFET N-CH 100V 1A SOT-223 STMicroelectronics	488	0.76	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	STripFET™ II	Obsolete	N-Channel	MOSFET (Metal Oxide)	100 V	1A (Tc)	10V	800mOhm @ 500mA, 10V	4V @ 250µA	6 nC @ 10 V	±20V	105 pF @ 25 V	-	2.5W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
STF7N52DK3 MOSFET N-CH 525V 6A TO220FP STMicroelectronics	947	1.44	RFQ	Datasheet	Tube	SuperFREDmesh3™	Obsolete	N-Channel	MOSFET (Metal Oxide)	525 V	6A (Tc)	10V	1.15Ohm @ 3A, 10V	4.5V @ 50µA	33 nC @ 10 V	±30V	870 pF @ 50 V	-	25W (Tc)	150°C (TJ)	Through Hole
STF11N50M2 MOSFET N-CH 500V 8A TO220FP STMicroelectronics	391	1.45	RFQ	Datasheet	Tube	MDmesh™ II Plus	Obsolete	N-Channel	MOSFET (Metal Oxide)	500 V	8A (Tc)	10V	530mOhm @ 4A, 10V	4V @ 250µA	12 nC @ 10 V	±25V	395 pF @ 100 V	-	25W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STP78N75F4 MOSFET N-CH 75V 78A TO220AB STMicroelectronics	496	0.97	RFQ	Datasheet	Tube	DeepGATE™, STripFET™	Obsolete	N-Channel	MOSFET (Metal Oxide)	75 V	78A (Tc)	10V	11mOhm @ 39A, 10V	4V @ 250µA	76 nC @ 10 V	±20V	5015 pF @ 25 V	-	150W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
STP3LN62K3 MOSFET N-CH 620V 2.5A TO220 STMicroelectronics	964	0.98	RFQ	Datasheet	Tube	SuperMESH3™	Obsolete	N-Channel	MOSFET (Metal Oxide)	620 V	2.5A (Tc)	10V	3Ohm @ 1.25A, 10V	4.5V @ 50µA	17 nC @ 10 V	±30V	386 pF @ 50 V	-	45W (Tc)	150°C (TJ)	Through Hole
STB4NK60Z-1 MOSFET N-CH 600V 4A I2PAK STMicroelectronics	3,598	1.02	RFQ	Datasheet	Tube	SuperMESH™	Not For New Designs	N-Channel	MOSFET (Metal Oxide)	600 V	4A (Tc)	10V	2Ohm @ 2A, 10V	4.5V @ 50µA	26 nC @ 10 V	±30V	510 pF @ 25 V	-	70W (Tc)	150°C (TJ)	Through Hole
STD100NH02LT4 MOSFET N-CH 24V 60A DPAK STMicroelectronics	8,622	2.23	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	STripFET™ II	Obsolete	N-Channel	MOSFET (Metal Oxide)	24 V	60A (Tc)	5V, 10V	4.8mOhm @ 30A, 10V	1.8V @ 250µA	84 nC @ 10 V	±20V	3940 pF @ 15 V	-	100W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
STU65N3LLH5 MOSFET N CH 30V 65A IPAK STMicroelectronics	436	1.07	RFQ	Datasheet	Tube	STripFET™ V	Obsolete	N-Channel	MOSFET (Metal Oxide)	30 V	65A (Tc)	4.5V, 10V	7.3mOhm @ 32.5A, 10V	3V @ 250µA	8 nC @ 4.5 V	±22V	1290 pF @ 25 V	-	50W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
STP6N65M2 MOSFET N-CH 650V 4A TO220 STMicroelectronics	957	1.25	RFQ	Datasheet	Tube	MDmesh™	Obsolete	N-Channel	MOSFET (Metal Oxide)	650 V	4A (Tc)	10V	1.35Ohm @ 2A, 10V	4V @ 250µA	9.8 nC @ 10 V	±25V	226 pF @ 100 V	-	60W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STP4NK50ZD MOSFET N-CH 500V 3A TO220AB STMicroelectronics	103	1.35	RFQ	Datasheet	Tube	SuperMESH™	Obsolete	N-Channel	MOSFET (Metal Oxide)	500 V	3A (Tc)	10V	2.7Ohm @ 1.5A, 10V	4.5V @ 50µA	12 nC @ 10 V	±30V	310 pF @ 25 V	-	45W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STU6N65M2 MOSFET N-CH 650V 4A IPAK STMicroelectronics	645	1.36	RFQ	Datasheet	Tube	MDmesh™	Active	N-Channel	MOSFET (Metal Oxide)	650 V	4A (Tc)	10V	1.35Ohm @ 2A, 10V	4V @ 250µA	9.8 nC @ 10 V	±25V	226 pF @ 100 V	-	60W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STP7N65M2 MOSFET N-CH 650V 5A TO220 STMicroelectronics	965	1.48	RFQ	Datasheet	Tube	MDmesh™	Obsolete	N-Channel	MOSFET (Metal Oxide)	650 V	5A (Tc)	10V	1.15Ohm @ 2.5A, 10V	4V @ 250µA	9 nC @ 10 V	±25V	270 pF @ 100 V	-	60W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STU5N60M2 MOSFET N-CH 600V 3.7A IPAK STMicroelectronics	851	1.48	RFQ	Datasheet	Tube	MDmesh™ II Plus	Active	N-Channel	MOSFET (Metal Oxide)	600 V	3.7A (Tc)	10V	1.4Ohm @ 1.85A, 10V	4V @ 250µA	4.5 nC @ 10 V	±25V	165 pF @ 100 V	-	45W (Tc)	150°C (TJ)	Through Hole
STP90N6F6 MOSFET N-CH 60V 84A TO220 STMicroelectronics	852	1.53	RFQ	Datasheet	Tube	DeepGATE™, STripFET™ VI	Obsolete	N-Channel	MOSFET (Metal Oxide)	60 V	84A (Tc)	10V	6.8mOhm @ 38.5A, 10V	4V @ 250µA	74.9 nC @ 10 V	±20V	4295 pF @ 25 V	-	136W (Tc)	175°C (TJ)	Through Hole

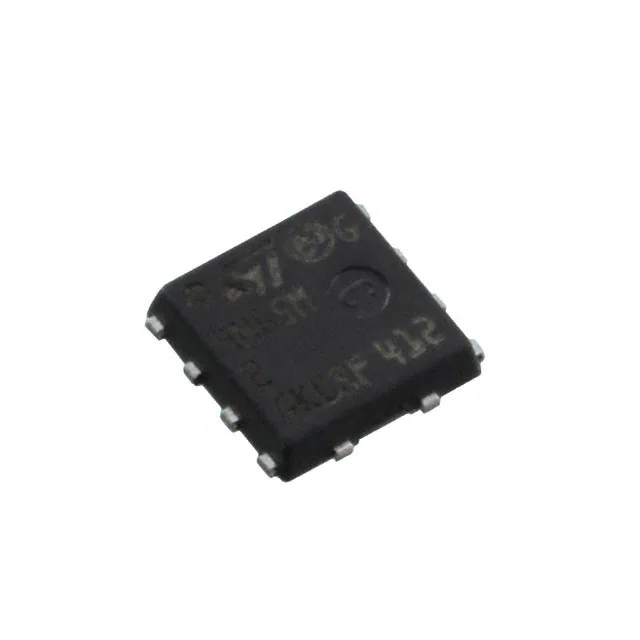

STL9N65M2 MOSFET N-CH 650V POWERFLAT 5X5 H STMicroelectronics	1,000	1.54	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	-	-	-	4.5A (Tc)	-	-	-	-	-	-	-	-	-	Surface Mount
STU9N65M2 MOSFET N-CH 650V 5A IPAK STMicroelectronics	889	1.54	RFQ	Datasheet	Tube	MDmesh™	Obsolete	N-Channel	MOSFET (Metal Oxide)	650 V	5A (Tc)	10V	900mOhm @ 2.5A, 10V	4V @ 250µA	10 nC @ 10 V	±25V	315 pF @ 100 V	-	60W (Tc)	150°C (TJ)	Through Hole
STP3N62K3 MOSFET N-CH 620V 2.7A TO220AB STMicroelectronics	340	1.55	RFQ	Datasheet	Tube	SuperMESH3™	Obsolete	N-Channel	MOSFET (Metal Oxide)	620 V	2.7A (Tc)	10V	2.5Ohm @ 1.4A, 10V	4.5V @ 50µA	13 nC @ 10 V	±30V	385 pF @ 25 V	-	45W (Tc)	150°C (TJ)	Through Hole
