| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STN4NF03LMOSFET N-CH 30V 6.5A SOT223 |
2,587 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Tc) | 5V, 10V | 50mOhm @ 2A, 10V | 1V @ 250µA | 9 nC @ 10 V | ±16V | 330 pF @ 25 V | - | 3.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STL9P3LLH6MOSFET P-CH 30V 9A POWERFLAT |
2,685 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ H6 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Tc) | 4.5V, 10V | 15mOhm @ 4.5A, 10V | 1V @ 250µA | 24 nC @ 4.5 V | ±20V | 2615 pF @ 25 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
;;2.jpg)
|
STD5N20LT4MOSFET N-CH 200V 5A DPAK |
2,258 | 1.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 5A (Tc) | 5V | 700mOhm @ 2.5A, 5V | 2.5V @ 50µA | 6 nC @ 5 V | ±20V | 242 pF @ 25 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD86N3LH5MOSFET N-CH 30V 80A DPAK |
2,470 | 1.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ V | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 5V, 10V | 5mOhm @ 40A, 10V | 2.5V @ 250µA | 14 nC @ 5 V | ±20V | 1850 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Surface Mount |
|
|
STD35P6LLF6MOSFET P-CH 60V 35A DPAK |
2,538 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ F6 | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 35A (Tc) | 4.5V, 10V | 28mOhm @ 17.5A, 10V | 2.5V @ 250µA | 30 nC @ 4.5 V | ±20V | 3780 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Surface Mount |
|
|
STD17NF25MOSFET N-CH 250V 17A DPAK |
2,501 | 1.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 17A (Tc) | 10V | 165mOhm @ 8.5A, 10V | 4V @ 250µA | 29.5 nC @ 10 V | ±20V | 1000 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD16N60M2MOSFET N-CH 600V 12A DPAK |
3,861 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±25V | 700 pF @ 100 V | - | 110W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STD18NF25MOSFET N-CH 250V 17A DPAK |
3,627 | 2.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 17A (Tc) | 10V | 165mOhm @ 8.5A, 10V | 4V @ 250µA | 29.5 nC @ 10 V | ±20V | 1000 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STD70N10F4MOSFET N-CH 100V 60A DPAK |
2,987 | 2.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 60A (Tc) | 10V | 19.5mOhm @ 30A, 10V | 4V @ 250µA | 85 nC @ 10 V | ±20V | 5800 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STS7NF60LMOSFET N-CH 60V 7.5A 8SO |
3,148 | 2.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.5A (Tc) | 5V, 10V | 19.5mOhm @ 3.5A, 10V | 1V @ 250µA | 34 nC @ 4.5 V | ±16V | 1700 pF @ 25 V | - | 2.5W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STD25NF20MOSFET N-CH 200V 18A DPAK |
3,676 | 2.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 18A (Tc) | 10V | 125mOhm @ 10A, 10V | 4V @ 250µA | 39 nC @ 10 V | ±20V | 940 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

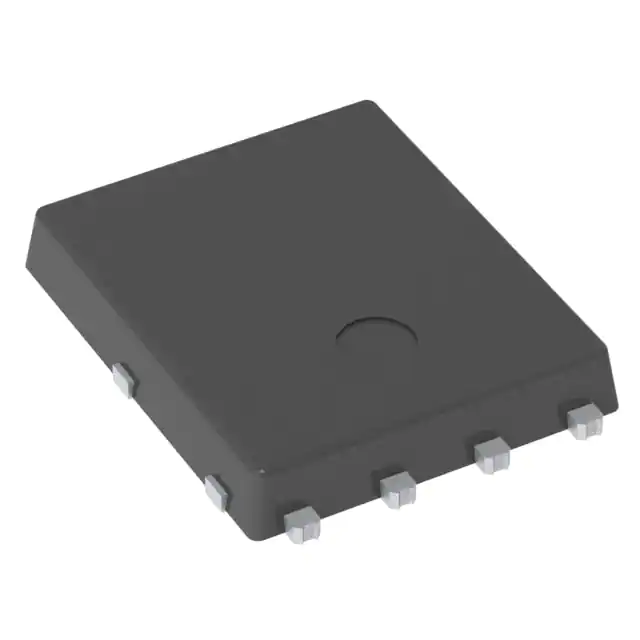

STL115N10F7AGMOSFET N-CH 100V 107A POWERFLAT |
2,985 | 2.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 107A (Tc) | 10V | 6mOhm @ 53A, 10V | 4.5V @ 250µA | 72.5 nC @ 10 V | ±20V | 5600 pF @ 50 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
|
|
STL8P4LLF6MOSFET P-CH 40V POWERFLAT |
2,009 | 1.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ F6 | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 8A (Tj) | 4.5V, 10V | 20.5mOhm @ 4A, 10V | 2.5V @ 250µA | 22 nC @ 4.5 V | ±20V | 2850 pF @ 25 V | - | 2.9W (Ta) | 150°C (TJ) | Surface Mount |
|
STB28N65M2MOSFET N-CH 650V 20A D2PAK |
2,033 | 3.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 180mOhm @ 10A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±25V | 1440 pF @ 100 V | - | 170W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STB28N60DM2MOSFET N-CH 600V 21A D2PAK |
3,278 | 4.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | 5V @ 250µA | 34 nC @ 10 V | ±25V | 1500 pF @ 100 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STB270N4F3MOSFET N-CH 40V 160A D2PAK |
3,803 | 4.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ III | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 2.5mOhm @ 80A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 7400 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STB120NF10T4MOSFET N-CH 100V 110A D2PAK |
3,809 | 5.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 10.5mOhm @ 60A, 10V | 4V @ 250µA | 233 nC @ 10 V | ±20V | 5200 pF @ 25 V | - | 312W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

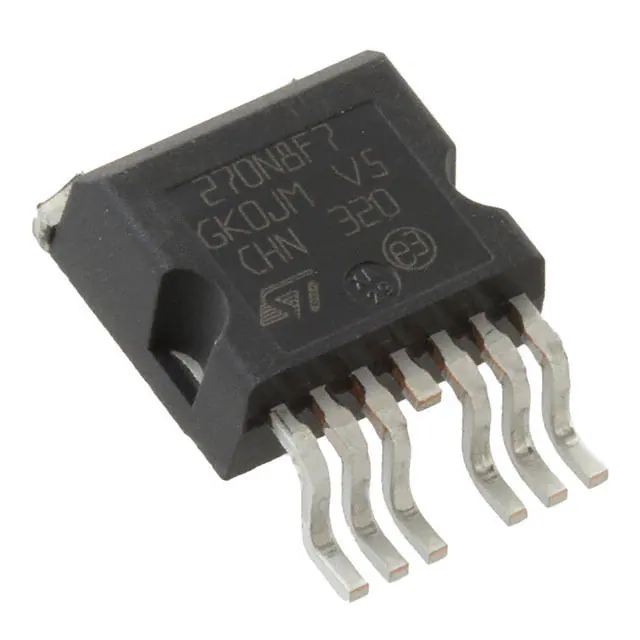

STH270N8F7-6MOSFET N-CH 80V 180A H2PAK |
2,906 | 5.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VII | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 180A (Tc) | 10V | 2.1mOhm @ 90A, 10V | 4V @ 250µA | 193 nC @ 10 V | ±20V | 13600 pF @ 50 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STL38N65M5MOSFET N-CH 650V PWRFLAT HV |
2,760 | 6.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 3.5A (Ta), 22.5A (Tc) | 10V | 105mOhm @ 12.5A, 10V | 5V @ 250µA | 71 nC @ 10 V | ±25V | 3000 pF @ 100 V | - | 2.8W (Ta), 150W (Tc) | 150°C (TJ) | Surface Mount |
|
STF5NK100ZMOSFET N-CH 1000V 3.5A TO220FP |
2,850 | 4.63 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 3.5A (Tc) | 10V | 3.7Ohm @ 1.75A, 10V | 4.5V @ 100µA | 59 nC @ 10 V | ±30V | 1154 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
