Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FETType	Technology	DraintoSourceVoltage(Vdss)	Current-ContinuousDrain(Id)@25°C	DriveVoltage(MaxRdsOnMinRdsOn)	RdsOn(Max)@IdVgs	Vgs(th)(Max)@Id	GateCharge(Qg)(Max)@Vgs	Vgs(Max)	InputCapacitance(Ciss)(Max)@Vds	FETFeature	PowerDissipation(Max)	OperatingTemperature	MountingType
STL140N4LLF5 MOSFET N-CH 40V 140A POWERFLAT STMicroelectronics	3,209	4.38	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	STripFET™ V	Active	N-Channel	MOSFET (Metal Oxide)	40 V	140A (Tc)	4.5V, 10V	2.75mOhm @ 16A, 10V	1V @ 250µA	45 nC @ 4.5 V	±22V	5900 pF @ 25 V	-	80W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
STP7N80K5 MOSFET N-CH 800V 6A TO220 STMicroelectronics	3,501	2.68	RFQ	Datasheet	Tube	SuperMESH5™	Active	N-Channel	MOSFET (Metal Oxide)	800 V	6A (Tc)	10V	1.2Ohm @ 3A, 10V	5V @ 100µA	13.4 nC @ 10 V	±30V	360 pF @ 100 V	-	110W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STP40NF10 MOSFET N-CH 100V 50A TO220AB STMicroelectronics	2,594	2.70	RFQ	Datasheet	Tube	STripFET™ II	Active	N-Channel	MOSFET (Metal Oxide)	100 V	50A (Tc)	10V	28mOhm @ 25A, 10V	4V @ 250µA	62 nC @ 10 V	±20V	2180 pF @ 25 V	-	150W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
STH10N80K5-2AG MOSFET N-CH 800V 8A H2PAK-2 STMicroelectronics	3,159	4.62	RFQ		Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	N-Channel	MOSFET (Metal Oxide)	800 V	8A (Tc)	10V	680mOhm @ 4A, 10V	5V @ 100µA	17.3 nC @ 10 V	±30V	426 pF @ 100 V	-	121W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
STH240N10F7-2 MOSFET N-CH 100V 180A H2PAK-2 STMicroelectronics	2,457	4.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	STripFET™	Active	N-Channel	MOSFET (Metal Oxide)	100 V	180A (Tc)	10V	2.5mOhm @ 60A, 10V	4.5V @ 250µA	160 nC @ 10 V	±20V	11550 pF @ 25 V	-	300W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
STB11NM60T4 MOSFET N-CH 650V 11A D2PAK STMicroelectronics	3,592	4.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MDmesh™	Not For New Designs	N-Channel	MOSFET (Metal Oxide)	650 V	11A (Tc)	10V	450mOhm @ 5.5A, 10V	5V @ 250µA	30 nC @ 10 V	±30V	1000 pF @ 25 V	-	160W (Tc)	-65°C ~ 150°C (TJ)	Surface Mount
STB14NK50ZT4 MOSFET N-CH 500V 14A D2PAK STMicroelectronics	2,663	4.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SuperMESH™	Active	N-Channel	MOSFET (Metal Oxide)	500 V	14A (Tc)	10V	380mOhm @ 6A, 10V	4.5V @ 100µA	92 nC @ 10 V	±30V	2000 pF @ 25 V	-	150W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
STF13NK50Z MOSFET N-CH 500V 11A TO220FP STMicroelectronics	910	2.84	RFQ	Datasheet	Tube	SuperMESH™	Active	N-Channel	MOSFET (Metal Oxide)	500 V	11A (Tc)	10V	480mOhm @ 6.5A, 10V	4.5V @ 100µA	47 nC @ 10 V	±30V	1600 pF @ 25 V	-	30W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STP7NK80Z MOSFET N-CH 800V 5.2A TO220AB STMicroelectronics	3,833	2.96	RFQ	Datasheet	Tube	SuperMESH™	Active	N-Channel	MOSFET (Metal Oxide)	800 V	5.2A (Tc)	10V	1.8Ohm @ 2.6A, 10V	4.5V @ 100µA	56 nC @ 10 V	±30V	1138 pF @ 25 V	-	125W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STU5N95K3 MOSFET N-CH 950V 4A IPAK STMicroelectronics	2,540	3.00	RFQ	Datasheet	Tube	SuperMESH3™	Active	N-Channel	MOSFET (Metal Oxide)	950 V	4A (Tc)	10V	3.5Ohm @ 2A, 10V	5V @ 100µA	19 nC @ 10 V	±30V	460 pF @ 25 V	-	90W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STF9N80K5 MOSFET N-CH 800V 7A TO220FP STMicroelectronics	2,213	3.00	RFQ	Datasheet	Tube	MDmesh™	Active	N-Channel	MOSFET (Metal Oxide)	800 V	7A (Tc)	10V	900mOhm @ 3.5A, 10V	5V @ 100µA	12 nC @ 10 V	±30V	340 pF @ 100 V	-	25W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STF18NM60N MOSFET N-CH 600V 13A TO220FP STMicroelectronics	3,227	3.05	RFQ	Datasheet	Tube	MDmesh™ II	Active	N-Channel	MOSFET (Metal Oxide)	600 V	13A (Tc)	10V	285mOhm @ 6.5A, 10V	4V @ 250µA	35 nC @ 10 V	±25V	1000 pF @ 50 V	-	30W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STP12N65M5 MOSFET N-CH 650V 8.5A TO220AB STMicroelectronics	948	3.06	RFQ	Datasheet	Tube	MDmesh™ V	Active	N-Channel	MOSFET (Metal Oxide)	650 V	8.5A (Tc)	10V	430mOhm @ 4.3A, 10V	5V @ 250µA	22 nC @ 10 V	±25V	900 pF @ 100 V	-	70W (Tc)	150°C (TJ)	Through Hole
STW6N95K5 MOSFET N-CH 950V 9A TO247-3 STMicroelectronics	2,970	3.07	RFQ	Datasheet	Tube	SuperMESH5™	Active	N-Channel	MOSFET (Metal Oxide)	950 V	9A (Tc)	10V	1.25Ohm @ 3A, 10V	5V @ 100µA	13 nC @ 10 V	±30V	450 pF @ 100 V	-	90W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STFU24N60M2 MOSFET N-CH 600V 18A TO220FP STMicroelectronics	2,422	3.13	RFQ	Datasheet	Tube	MDmesh™ M2	Active	N-Channel	MOSFET (Metal Oxide)	600 V	18A (Tc)	10V	190mOhm @ 9A, 10V	4V @ 250µA	29 nC @ 10 V	±25V	1060 pF @ 100 V	-	30W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STF8N65M5 MOSFET N-CH 650V 7A TO220FP STMicroelectronics	3,620	3.18	RFQ	Datasheet	Tube	MDmesh™ V	Active	N-Channel	MOSFET (Metal Oxide)	650 V	7A (Tc)	10V	600mOhm @ 3.5A, 10V	5V @ 250µA	15 nC @ 10 V	±25V	690 pF @ 100 V	-	25W (Tc)	150°C (TJ)	Through Hole
STP100N10F7 MOSFET N CH 100V 80A TO-220 STMicroelectronics	2,052	3.19	RFQ	Datasheet	Tube	DeepGATE™, STripFET™ VII	Active	N-Channel	MOSFET (Metal Oxide)	100 V	80A (Tc)	10V	8mOhm @ 40A, 10V	4.5V @ 250µA	61 nC @ 10 V	±20V	4369 pF @ 50 V	-	150W (Tc)	-55°C ~ 175°C (TJ)	Through Hole
STFU16N65M2 MOSFET N-CH 650V 11A TO220FP STMicroelectronics	3,127	3.20	RFQ	Datasheet	Tube	MDmesh™ M2	Active	N-Channel	MOSFET (Metal Oxide)	650 V	11A (Tc)	10V	360mOhm @ 5.5A, 10V	4V @ 250µA	19.5 nC @ 10 V	±25V	718 pF @ 100 V	-	25W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STB34N50DM2AG MOSFET N-CH 500V 26A D2PAK STMicroelectronics	3,466	5.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, MDmesh™ DM2	Active	N-Channel	MOSFET (Metal Oxide)	500 V	26A (Tc)	10V	120mOhm @ 12.5A, 10V	5V @ 250µA	44 nC @ 10 V	±25V	1850 pF @ 100 V	-	190W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount

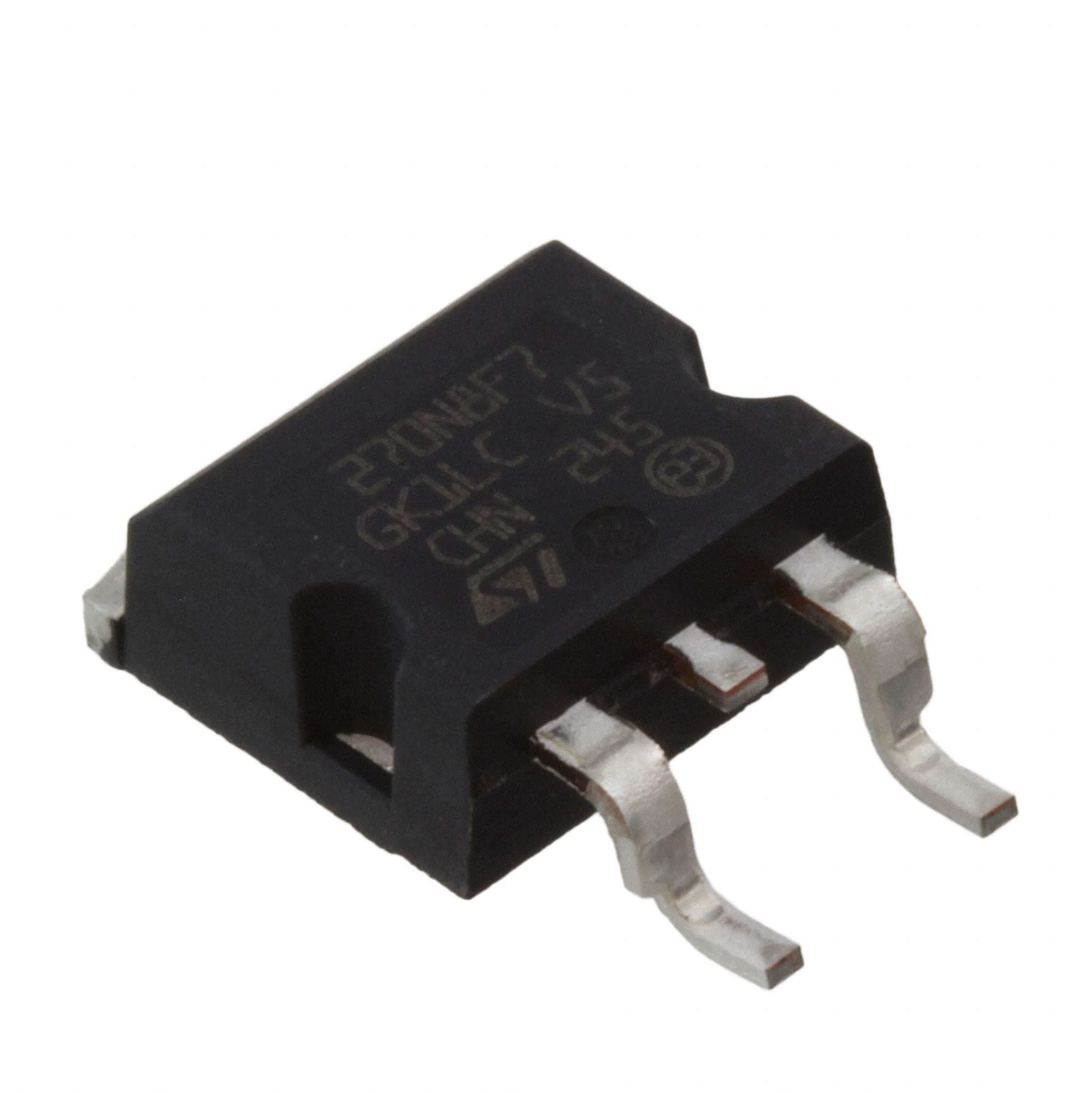

STH270N8F7-2 MOSFET N-CH 80V 180A H2PAK STMicroelectronics	3,877	5.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DeepGATE™, STripFET™ VII	Active	N-Channel	MOSFET (Metal Oxide)	80 V	180A (Tc)	10V	2.1mOhm @ 90A, 10V	4V @ 250µA	193 nC @ 10 V	±20V	13600 pF @ 50 V	-	315W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
