Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FETType	Technology	DraintoSourceVoltage(Vdss)	Current-ContinuousDrain(Id)@25°C	DriveVoltage(MaxRdsOnMinRdsOn)	RdsOn(Max)@IdVgs	Vgs(th)(Max)@Id	GateCharge(Qg)(Max)@Vgs	Vgs(Max)	InputCapacitance(Ciss)(Max)@Vds	FETFeature	PowerDissipation(Max)	OperatingTemperature	MountingType
STP23N80K5 MOSFET N-CH 800V 16A TO220-3 STMicroelectronics	2,625	5.94	RFQ	Datasheet	Tube	MDmesh™ K5	Active	N-Channel	MOSFET (Metal Oxide)	800 V	16A (Tc)	10V	280mOhm @ 8A, 10V	5V @ 100µA	33 nC @ 10 V	±30V	1000 pF @ 100 V	-	190W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STP80N240K6 N-CHANNEL 800 V, 197 MOHM TYP. STMicroelectronics	2,428	20.00	RFQ	Datasheet	Tube	MDmesh™ K6	Active	N-Channel	MOSFET (Metal Oxide)	800 V	16A (Tc)	10V	220mOhm @ 7A, 10V	4V @ 100µA	25.9 nC @ 10 V	±30V	1350 pF @ 100 V	-	140W (Tc)	-55°C ~ 150°C (TJ)
STWA30N65DM6AG MOSFET N-CH 650V 28A TO247 STMicroelectronics	2,906	6.65	RFQ		Tube	Automotive, AEC-Q101	Active	N-Channel	MOSFET (Metal Oxide)	650 V	28A (Tc)	10V	110mOhm @ 14A, 10V	4.75V @ 250µA	46 nC @ 10 V	±25V	2000 pF @ 100 V	-	284W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STO68N65DM6 N-CHANNEL 650 V, 53 MOHM TYP., 5 STMicroelectronics	300	10.14	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	N-Channel	MOSFET (Metal Oxide)	650 V	55A (Tc)	10V	65mOhm @ 27.5A, 10V	4.75V @ 250µA	80 nC @ 10 V	±25V	3528 pF @ 100 V	-	240W (Tc)	-55°C ~ 150°C (TJ)	Surface Mount
STF42N60M2-EP MOSFET N-CH 600V 34A TO220FP STMicroelectronics	3,560	7.44	RFQ	Datasheet	Tube	MDmesh™ M2-EP	Active	N-Channel	MOSFET (Metal Oxide)	600 V	34A (Tc)	10V	87mOhm @ 17A, 10V	4.75V @ 250µA	55 nC @ 10 V	±25V	2370 pF @ 100 V	-	40W (Tc)	150°C (TJ)	Through Hole
STW23N85K5 MOSFET N-CH 850V 19A TO247 STMicroelectronics	2,971	7.67	RFQ	Datasheet	Tube	SuperMESH5™	Active	N-Channel	MOSFET (Metal Oxide)	850 V	19A (Tc)	10V	275mOhm @ 9.5A, 10V	5V @ 100µA	38 nC @ 10 V	±30V	1650 pF @ 100 V	-	250W (Tc)	150°C (TJ)	Through Hole
STW42N60M2-EP MOSFET N-CH 600V 34A TO247 STMicroelectronics	3,140	9.16	RFQ	Datasheet	Tube	MDmesh™ M2-EP	Active	N-Channel	MOSFET (Metal Oxide)	600 V	34A (Tc)	10V	87mOhm @ 17A, 10V	4.75V @ 250µA	55 nC @ 10 V	±25V	2370 pF @ 100 V	-	250W (Tc)	150°C (TJ)	Through Hole
STWA75N65DM6 N-CHANNEL 650 V, 33 MOHM TYP., 7 STMicroelectronics	3,484	14.32	RFQ		Tube	-	Active	N-Channel	MOSFET (Metal Oxide)	650 V	75A (Tc)	10V	36mOhm @ 37.5A, 10V	4.75V @ 250µA	118 nC @ 10 V	±25V	5700 pF @ 100 V	-	480W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STWA65N65DM2AG MOSFET N-CH 650V 60A TO247 STMicroelectronics	3,330	11.80	RFQ	Datasheet	Tube	MDmesh™ DM2	Active	N-Channel	MOSFET (Metal Oxide)	650 V	60A (Tc)	10V	50mOhm @ 30A, 10V	5V @ 250µA	120 nC @ 10 V	±25V	5500 pF @ 100 V	-	446W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STP12N120K5 MOSFET N-CH 1200V 12A TO220 STMicroelectronics	2,721	12.43	RFQ	Datasheet	Tube	MDmesh™ K5	Active	N-Channel	MOSFET (Metal Oxide)	1200 V	12A (Tc)	10V	690mOhm @ 6A, 10V	5V @ 100µA	44.2 nC @ 10 V	±30V	1370 pF @ 100 V	-	250W (Tc)	-55°C ~ 150°C (TJ)	Through Hole

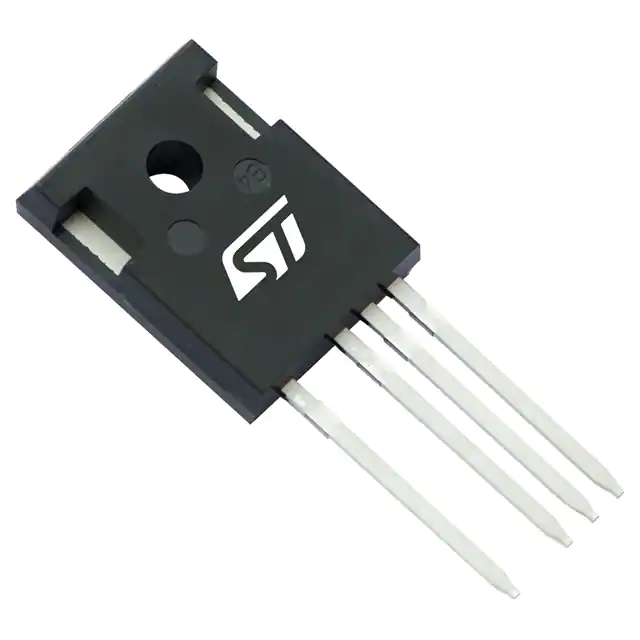

STW68N65DM6-4AG MOSFET N-CH 650V 72A TO247-4 STMicroelectronics	3,614	12.90	RFQ	Datasheet	Tube	Automotive, AEC-Q101, MDmesh™	Active	N-Channel	MOSFET (Metal Oxide)	650 V	72A (Tc)	-	39mOhm @ 36A, 10V	4.75V @ 250µA	118 nC @ 10 V	±25V	5900 pF @ 100 V	-	480W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STFW12N120K5 MOSFET N-CH 1200V 12A ISOWATT STMicroelectronics	2,042	13.50	RFQ	Datasheet	Tube	MDmesh™ K5	Active	N-Channel	MOSFET (Metal Oxide)	1200 V	12A (Tc)	10V	690mOhm @ 6A, 10V	5V @ 100µA	44.2 nC @ 10 V	±30V	1370 pF @ 100 V	-	63W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STW75N65DM6-4 N-CHANNEL 650 V, 33 MOHM TYP., 7 STMicroelectronics	100	14.57	RFQ		Tube	-	Active	N-Channel	MOSFET (Metal Oxide)	650 V	75A (Tc)	10V	36mOhm @ 37.5A, 10V	4.75V @ 250µA	118 nC @ 10 V	±25V	5700 pF @ 100 V	-	480W (Tc)	-55°C ~ 150°C (TJ)	Through Hole
STFW69N65M5 MOSFET N-CH 650V 58A ISOWATT STMicroelectronics	3,724	14.75	RFQ	Datasheet	Tube	MDmesh™ V	Active	N-Channel	MOSFET (Metal Oxide)	650 V	58A (Tc)	10V	45mOhm @ 29A, 10V	5V @ 250µA	143 nC @ 10 V	±25V	6420 pF @ 100 V	-	79W (Tc)	150°C (TJ)	Through Hole
SCT1000N170 HIP247 IN LINE STMicroelectronics	3,521	15.09	RFQ	Datasheet	Tube	-	Active	N-Channel	SiCFET (Silicon Carbide)	1700 V	7A (Tc)	20V	1.3Ohm @ 3A, 20V	3.5V @ 1mA	13.3 nC @ 20 V	+22V, -10V	133 pF @ 1000 V	-	96W (Tc)	-55°C ~ 200°C (TJ)	Through Hole
SCTH40N120G2V-7 SILICON CARBIDE POWER MOSFET 120 STMicroelectronics	2,793	21.24	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
STW48NM60N MOSFET N-CH 600V 44A TO247 STMicroelectronics	2,446	16.35	RFQ	Datasheet	Tube	MDmesh™ II	Active	N-Channel	MOSFET (Metal Oxide)	600 V	44A (Tc)	10V	70mOhm @ 20A, 10V	4V @ 250µA	124 nC @ 10 V	±25V	4285 pF @ 50 V	-	330W (Tc)	150°C (TJ)	Through Hole
SCTL35N65G2V TRANS SJT N-CH 650V PWRFLAT HV STMicroelectronics	2,317	22.08	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	N-Channel	SiCFET (Silicon Carbide)	650 V	40A (Tc)	-	67mOhm @ 20A, 20V	5V @ 1mA	73 nC @ 20 V	+22V, -10V	1370 pF @ 400 V	-	417W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
SCTW40N120G2V SILICON CARBIDE POWER MOSFET 120 STMicroelectronics	3,332	22.64	RFQ	Datasheet	Tube	-	Active	N-Channel	SiCFET (Silicon Carbide)	1200 V	36A (Tc)	18V	100mOhm @ 20A, 18V	4.9V @ 1mA	61 nC @ 18 V	+22V, -10V	1233 pF @ 800 V	-	278W (Tc)	-55°C ~ 200°C (TJ)	Through Hole
SCTL90N65G2V SILICON CARBIDE POWER MOSFET 650 STMicroelectronics	2,902	39.05	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	N-Channel	SiCFET (Silicon Carbide)	650 V	40A (Tc)	18V	24mOhm @ 40A, 18V	5V @ 1mA	157 nC @ 18 V	+22V, -10V	3380 pF @ 400 V	-	935W (Tc)	-55°C ~ 175°C (TJ)	Surface Mount
