| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TK35N65W,S1FMOSFET N-CH 650V 35A TO247 |
3,081 | 7.49 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Ta) | 10V | 80mOhm @ 17.5A, 10V | 3.5V @ 2.1mA | 100 nC @ 10 V | ±30V | 4100 pF @ 300 V | - | 270W (Tc) | 150°C (TJ) | Through Hole |
|
SSM3K16FV,L3FPB-F VESM S-MOS (LF) TRANSISTOR |
3,439 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 3Ohm @ 10mA, 4V | 1.1V @ 100µA | - | ±10V | 9.3 pF @ 3 V | - | 150mW (Ta) | 150°C | Surface Mount |
|

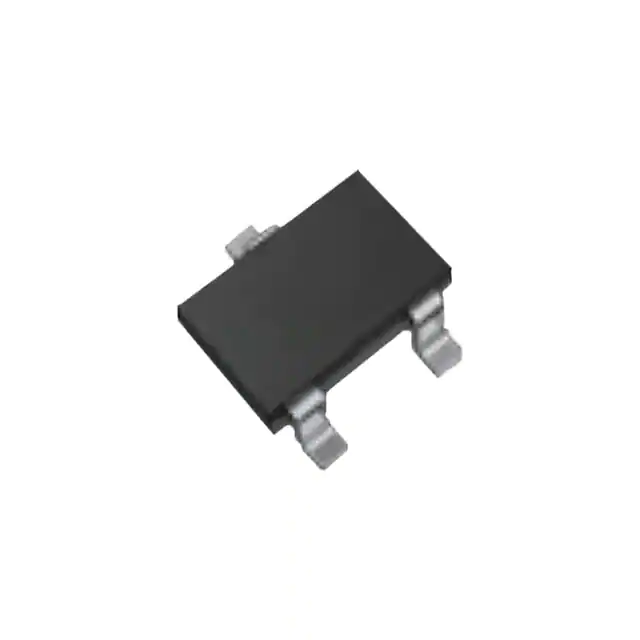

SSM3K7002KFU,LXHSMOS LOW RON NCH IO: 0.4A VDSS: |
2,609 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 400mA (Ta) | 4.5V, 10V | 1.5Ohm @ 100mA, 10V | 2.1V @ 250µA | 0.6 nC @ 4.5 V | ±20V | 40 pF @ 10 V | - | 150mW (Ta) | 150°C | Surface Mount |
|
SSM3J168F,LXHFSMOS LOW RON VDS:-60V VGSS:+10/- |
3,692 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 400mA (Ta) | 4V, 10V | 1.55Ohm @ 200mA, 10V | 2V @ 1mA | 3 nC @ 10 V | +10V, -20V | 82 pF @ 10 V | - | 600mW (Ta) | 150°C | Surface Mount |
|
SSM3K376R,LXHFSMOS LOW RON NCH ID: 4A VDSS: 30 |
3,537 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 1.8V, 4.5V | 56mOhm @ 2A, 4.5V | 1V @ 1mA | 2.2 nC @ 4.5 V | +12V, -8V | 200 pF @ 10 V | - | 1W (Ta) | 150°C | Surface Mount |
|
SSM6K810R,LXHFAUTO AEC-Q SS MOS N-CH LOGIC-LEV |
2,793 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.5A (Ta) | 4.5V, 10V | 69mOhm @ 2A, 10V | 2.5V @ 100µA | 3.2 nC @ 4.5 V | ±20V | 430 pF @ 15 V | - | 1.5W (Ta) | 175°C | Surface Mount |
|
|
SSM6K809R,LXHFAUTO AEC-Q SS MOS N-CH LOGIC-LEV |
2,954 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta) | 4V, 10V | 36mOhm @ 5A, 10V | 2.5V @ 100µA | 9.3 nC @ 10 V | ±20V | 550 pF @ 10 V | - | 1.5W (Ta) | 175°C | Surface Mount |
|
|
SSM6J808R,LXHFAUTO AEC-Q SS MOS P-CH LOGIC-LEV |
3,683 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 7A (Ta) | 4V, 10V | 35mOhm @ 2.5A, 10V | 2V @ 100µA | 24.2 nC @ 10 V | +10V, -20V | 1020 pF @ 10 V | - | 1.5W (Ta) | 150°C | Surface Mount |
|
|
TPCP8107,LFMOSFET P-CH 40V 8A PS-8 |
2,746 | 0.69 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 8A (Ta) | 6V, 10V | 18mOhm @ 4A, 10V | 3V @ 1mA | 44.6 nC @ 10 V | +10V, -20V | 2160 pF @ 10 V | - | 1W (Ta) | 175°C | Surface Mount | |
|
|
TPN1200APL,L1QPB-F POWER MOSFET TRANSISTOR TSO |
3,330 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 4.5V, 10V | 11.5mOhm @ 20A, 10V | 2.5V @ 300µA | 24 nC @ 10 V | ±20V | 1855 pF @ 50 V | - | 630mW (Ta), 104W (Tc) | 175°C | Surface Mount |
|
TPC8132,LQ(SMOSFET P-CH 40V 7A 8SOP |
3,292 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 7A (Ta) | 4.5V, 10V | 25mOhm @ 3.5A, 10V | 2V @ 200µA | 34 nC @ 10 V | +20V, -25V | 1580 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
TPH4R50ANH1,LQMOSFET 100V 4.5MOHM SOP-ADV(N) |
3,035 | 1.72 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 92A (Tc) | 10V | 4.5mOhm @ 46A, 10V | 4V @ 1mA | 58 nC @ 10 V | ±20V | 5200 pF @ 50 V | - | 800mW (Ta) | 150°C | Surface Mount | |
|
TPH4R10ANL,L1QMOSFET N-CH 100V 92A/70A 8SOP |
2,410 | 1.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 92A (Ta), 70A (Tc) | 4.5V, 10V | 4.1mOhm @ 35A, 10V | 2.5V @ 1mA | 75 nC @ 10 V | ±20V | 6300 pF @ 50 V | - | 2.5W (Ta), 67W (Tc) | 150°C | Surface Mount |
|
|
TPHR6503PL,L1QMOSFET N-CH 30V 150A 8SOP |
3,116 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 150A (Tc) | 4.5V, 10V | 0.65mOhm @ 50A, 10V | 2.1V @ 1mA | 110 nC @ 10 V | ±20V | 10000 pF @ 15 V | - | 960mW (Ta), 170W (Tc) | 175°C | Surface Mount |
|
|
TPHR6503PL1,LQUMOS9 SOP-ADV(N) PD=210W F=1MHZ |
2,513 | 2.09 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 150A (Tc) | 4.5V, 10V | 0.65mOhm @ 50A, 10V | 2.1V @ 1mA | 110 nC @ 10 V | ±20V | 10000 pF @ 15 V | - | 960mW (Ta), 210W (Tc) | 175°C | Surface Mount | |
|

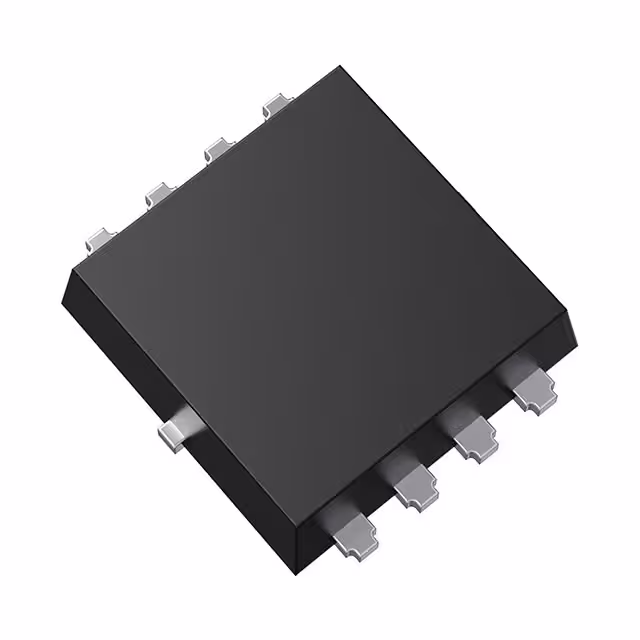

XPH2R106NC,L1XHQMOSFET N-CH 60V 110A 8SOP |
2,303 | 2.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 110A (Ta) | - | 2.1mOhm @ 55A, 10V | 2.5V @ 1mA | 104 nC @ 10 V | ±20V | 6900 pF @ 10 V | - | 960mW (Ta), 170W (Tc) | 175°C | Surface Mount |
|
TK6R8A08QM,S4XUMOS10 TO-220SIS 80V 6.8MOHM |
3,155 | 1.31 |
RFQ |
Datasheet |
Tube | U-MOSX-H | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 58A (Tc) | 6V, 10V | 6.8mOhm @ 29A, 10V | 3.5V @ 500µA | 39 nC @ 10 V | ±20V | 2700 pF @ 40 V | - | 41W (Tc) | 175°C | Through Hole |
|
|
TPH1R306PL1,LQUMOS9 SOP-ADV(N) PD=170W F=1MHZ |
2,347 | 2.30 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 4.5V, 10V | 1.34mOhm @ 50A, 10V | 2.5V @ 1mA | 91 nC @ 10 V | ±20V | 8100 pF @ 30 V | - | 960mW (Ta), 210W (Tc) | 175°C | Surface Mount | |
|
TK5R3E08QM,S1XUMOS10 TO-220AB 80V 5.3MOHM |
3,056 | 1.67 |
RFQ |
Datasheet |
Tube | U-MOSX-H | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 6V, 10V | 5.3mOhm @ 50A, 10V | 3.5V @ 700µA | 55 nC @ 10 V | ±20V | 3980 pF @ 40 V | - | 150W (Tc) | 175°C | Through Hole |
|
|
TK3R2A08QM,S4XUMOS10 TO-220SIS 80V 3.2MOHM |
2,904 | 2.27 |
RFQ |
Datasheet |
Tube | U-MOSX-H | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 92A (Tc) | 6V, 10V | 3.2mOhm @ 46A, 10V | 3.5V @ 1.3mA | 102 nC @ 10 V | ±20V | 7670 pF @ 40 V | - | 45W (Tc) | 175°C | Through Hole |
