| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPC8042(TE12L,Q,M)MOSFET N-CH 30V 18A 8SOP |
3,584 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIV | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 3.4mOhm @ 9A, 10V | 2.5V @ 1mA | 56 nC @ 10 V | ±20V | 2900 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
|
TPC8048-H(TE12L,Q)MOSFET N-CH 60V 16A 8SOP |
3,687 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 16A (Ta) | 4.5V, 10V | 6.9mOhm @ 8A, 10V | 2.3V @ 1mA | 87 nC @ 10 V | ±20V | 7540 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
TPCA8045-H(T2L1,VMMOSFET N-CH 40V 46A 8SOP |
3,685 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 46A (Ta) | 4.5V, 10V | 3.6mOhm @ 23A, 10V | 2.3V @ 1mA | 90 nC @ 10 V | ±20V | 7540 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCA8051-H(T2L1,VMMOSFET N-CH 80V 28A 8SOP |
3,361 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 28A (Ta) | 4.5V, 10V | 9.4mOhm @ 14A, 10V | 2.3V @ 1mA | 91 nC @ 10 V | ±20V | 7540 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | Surface Mount |
|

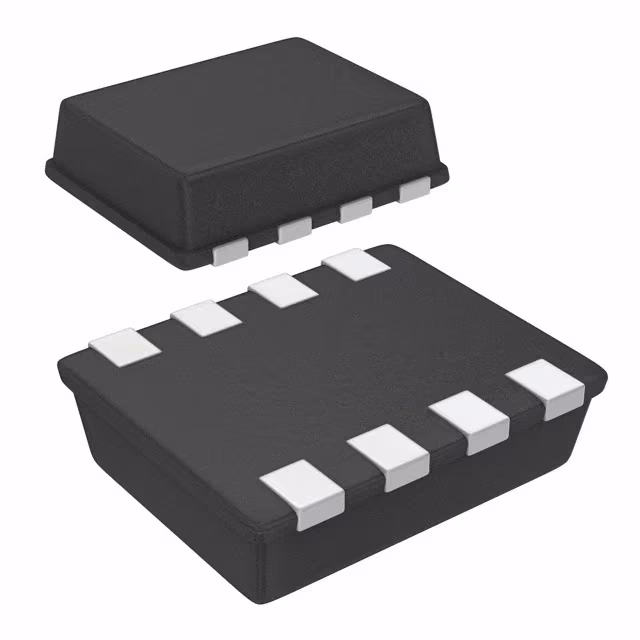

TPCP8005-H(TE85L,FMOSFET N-CH 30V 11A PS-8 |
3,753 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSV-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 12.9mOhm @ 5.5A, 10V | 2.5V @ 1mA | 20 nC @ 10 V | ±20V | 2150 pF @ 10 V | - | 840mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
TPC8035-H(TE12L,QMMOSFET N-CH 30V 18A 8SOP |
3,272 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 3.2mOhm @ 9A, 10V | 2.3V @ 1mA | 82 nC @ 10 V | ±20V | 7800 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
TPCA8028-H(TE12LQMMOSFET N-CH 30V 50A 8SOP |
2,239 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | U-MOSIV-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Ta) | 4.5V, 10V | 2.8mOhm @ 25A, 10V | 2.3V @ 1mA | 88 nC @ 10 V | ±20V | 7800 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | Surface Mount |
|
SSM3J114TU(T5L,T)MOSFET P-CH 20V 1.8A UFM |
2,313 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.8A (Ta) | 1.5V, 4V | 149mOhm @ 600mA, 4V | 1V @ 1mA | 7.7 nC @ 4 V | ±8V | 331 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3J120TU,LFMOSFET P-CH 20V 4A UFM |
2,030 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIV | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4V | 38mOhm @ 3A, 4V | 1V @ 1mA | 22.3 nC @ 4 V | ±8V | 1484 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3J129TU(TE85L)MOSFET P-CH 20V 4.6A UFM |
3,211 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSV | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.6A (Ta) | 1.5V, 4.5V | 46mOhm @ 3A, 4.5V | 1V @ 1mA | 8.1 nC @ 4.5 V | ±8V | 640 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3J307T(TE85L,F)MOSFET P-CH 20V 5A TSM |
3,964 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSV | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5A (Ta) | 1.5V, 4.5V | 31mOhm @ 4A, 4.5V | 1V @ 1mA | 19 nC @ 4.5 V | ±8V | 1170 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3J321T(TE85L,F)MOSFET P-CH 20V 5.2A TSM |
2,189 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSV | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.2A (Ta) | 1.5V, 4.5V | 46mOhm @ 3A, 4.5V | 1V @ 1mA | 8.1 nC @ 4.5 V | ±8V | 640 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3K315T(TE85L,F)MOSFET N-CH 30V 6A TSM |
3,054 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIV | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 27.6mOhm @ 4A, 10V | 2.5V @ 1mA | 10.1 nC @ 10 V | ±20V | 450 pF @ 15 V | - | 700mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3K316T(TE85L,F)MOSFET N-CH 30V 4A TSM |
2,701 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 1.8V, 10V | 53mOhm @ 3A, 10V | 1V @ 1mA | 4.3 nC @ 4 V | ±12V | 270 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3K7002BSU,LFMOSFET N-CH 60V 200MA USM |
2,345 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 2.1Ohm @ 500mA, 10V | 3.1V @ 250µA | - | ±20V | 17 pF @ 25 V | - | 150mW (Ta) | 150°C (TJ) | Surface Mount |
|

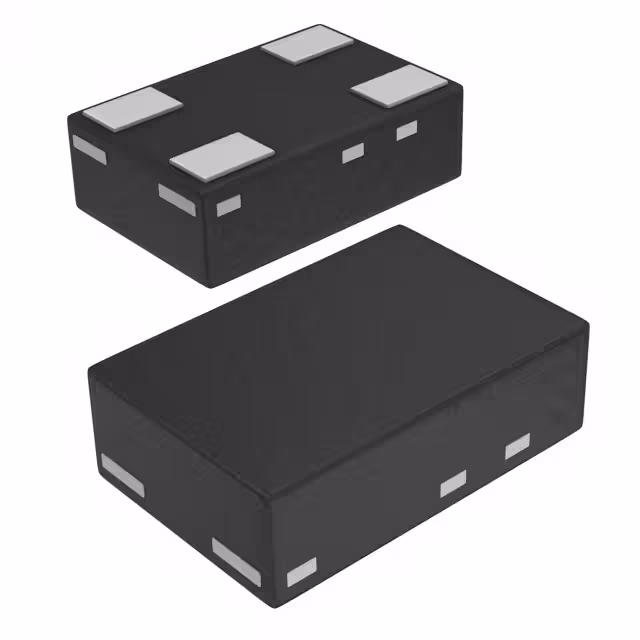

SSM4K27CTTPL3MOSFET N-CH 20V 500MA CST4 |
3,619 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.8V, 4V | 205mOhm @ 250mA, 4V | 1.1V @ 1mA | - | ±12V | 174 pF @ 10 V | - | 400mW (Ta) | 150°C (TJ) | Surface Mount |
|

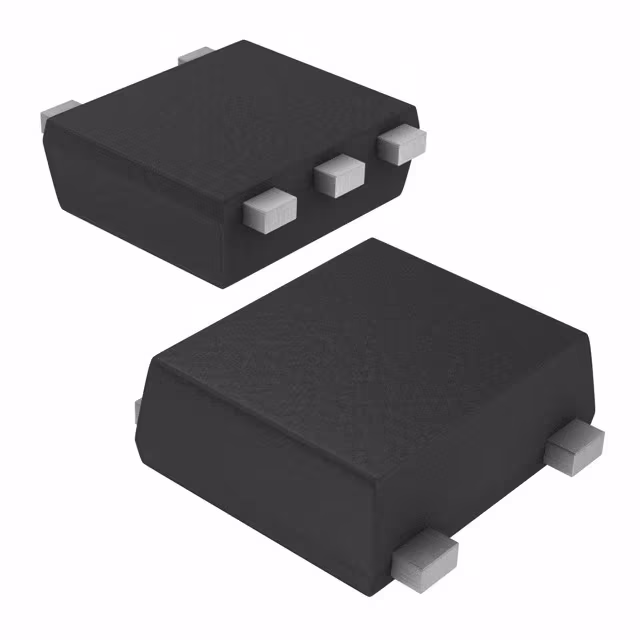

SSM5H12TU(TE85L,F)MOSFET N-CH 30V 1.9A UFV |
3,063 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.9A (Ta) | 1.8V, 4V | 133mOhm @ 1A, 4V | 1V @ 1mA | 1.9 nC @ 4 V | ±12V | 123 pF @ 15 V | Schottky Diode (Isolated) | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM6J409TU(TE85L,FMOSFET P-CH 20V 9.5A UF6 |
2,456 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSV | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 9.5A (Ta) | 1.5V, 4.5V | 22.1mOhm @ 3A, 4.5V | 1V @ 1mA | 15 nC @ 4.5 V | ±8V | 1100 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
SSM6J53FE(TE85L,F)MOSFET P-CH 20V 1.8A ES6 |
3,093 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.8A (Ta) | 1.5V, 2.5V | 136mOhm @ 1A, 2.5V | 1V @ 1mA | 10.6 nC @ 4 V | ±8V | 568 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
TK13A65U(STA4,Q,M)MOSFET N-CH 650V 13A TO220SIS |
3,101 | 0.00 |
RFQ |
Datasheet |
Tube | DTMOSII | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 13A (Ta) | 10V | 380mOhm @ 6.5A, 10V | 5V @ 1mA | 17 nC @ 10 V | ±30V | 950 pF @ 10 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
