| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

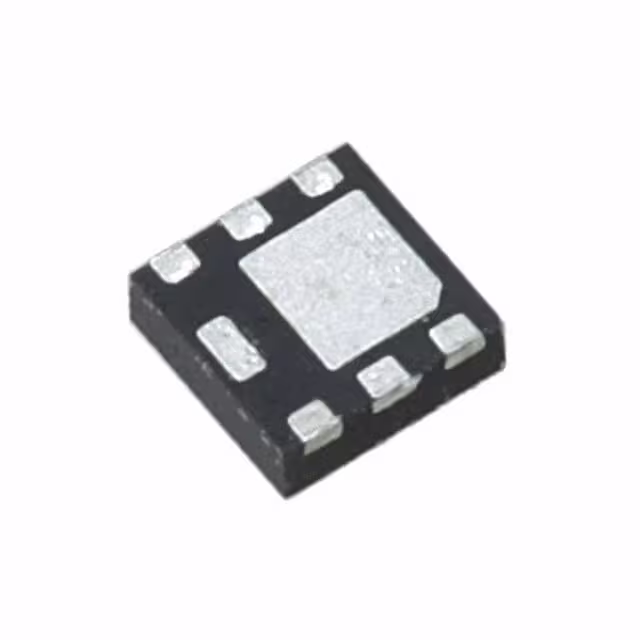

PMPB16XN,115MOSFET N-CH 30V 7.2A 6DFN |
108,000 | 0.08 |
RFQ |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.2A (Ta) | 2.5V, 4.5V | 21mOhm @ 7.2A, 4.5V | 1.5V @ 250µA | 10.8 nC @ 4.5 V | ±12V | 775 pF @ 15 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
BSS84AKT,115MOSFET P-CH 50V 150MA SC75 |
3,906 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 150mA (Ta) | 10V | 7.5Ohm @ 100mA, 10V | 2.1V @ 250µA | 0.35 nC @ 5 V | ±20V | 36 pF @ 25 V | - | 250mW (Ta), 770mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NX3008NBKT,115MOSFET N-CH 30V 350MA SC75 |
2,250 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 350mA (Ta) | 1.8V, 4.5V | 1.4Ohm @ 350mA, 4.5V | 1.1V @ 250µA | 0.68 nC @ 4.5 V | ±8V | 50 pF @ 15 V | - | 250mW (Ta), 770mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NX3008PBKT,115MOSFET P-CH 30V 200MA SC75 |
3,532 | 1.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 200mA (Ta) | 2.5V, 4.5V | 4.1Ohm @ 200mA, 4.5V | 1.1V @ 250µA | 0.72 nC @ 4.5 V | ±8V | 46 pF @ 15 V | - | 250mW (Ta), 770mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
NX3020NAKT,115MOSFET N-CH 30V 180MA SC75 |
2,911 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 180mA (Ta) | 2.5V, 10V | 4.5Ohm @ 100mA, 10V | 1.5V @ 250µA | 0.44 nC @ 4.5 V | ±20V | 13 pF @ 10 V | - | 230mW (Ta), 1.06W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
PMF250XN,115MOSFET N-CH 30V 900MA SOT323-3 |
5,520 | 0.08 |
RFQ |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 900mA (Ta) | 2.5V, 4.5V | 300mOhm @ 900mA, 4.5V | 1.5V @ 250µA | 1.1 nC @ 4.5 V | ±12V | 50 pF @ 15 V | - | 275mW (Ta), 1.065W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
PMF63UN,115MOSFET N-CH 20V 1.8A SOT323-3 |
32,725 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.8A (Ta) | 1.8V, 4.5V | 74mOhm @ 1.8A, 4.5V | 1V @ 250µA | 3.3 nC @ 4.5 V | ±8V | 185 pF @ 10 V | - | 275mW (Ta), 1.785W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMF77XN,115MOSFET N-CH 30V 1.5A SOT323-3 |
3,957 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 2.5V, 4.5V | 97mOhm @ 1.5A, 4.5V | 1.5V @ 250µA | 2.9 nC @ 4.5 V | ±12V | 170 pF @ 15 V | - | 270mW (Ta), 1.92W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMF87EN,115MOSFET N-CH 30V 1.7A SOT323-3 |
106,874 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.7A (Ta) | 4.5V, 10V | 80mOhm @ 1.7A, 10V | 2.5V @ 250µA | 4.7 nC @ 10 V | ±20V | 135 pF @ 15 V | - | 275mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMG45UN,115MOSFET N-CH 20V 3A 6TSSOP |
9,000 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | - | 55mOhm @ 3A, 4.5V | 1V @ 250µA | 3.3 nC @ 4.5 V | - | 184 pF @ 10 V | - | 375mW (Ta), 4.35W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMN15UN,115MOSFET N-CH 30V 8A 6TSOP |
3,385 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Tc) | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
PMN22XN,115MOSFET N-CH 30V 5.7A 6TSOP |
3,774 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.7A (Ta) | 2.5V, 4.5V | 27mOhm @ 5.7A, 4.5V | 1.5V @ 250µA | 10 nC @ 4.5 V | ±12V | 585 pF @ 15 V | - | 545mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMPB20UN,115MOSFET N-CH 20V 6.6A 6DFN |
3,160 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.6A (Ta) | 1.8V, 4.5V | 25mOhm @ 6.6A, 4.5V | 1V @ 250µA | 7.1 nC @ 4.5 V | ±8V | 460 pF @ 10 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMR670UPE,115MOSFET P-CH 20V 480MA SC75 |
3,363 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 480mA (Ta) | 1.8V, 4.5V | 850mOhm @ 400mA, 4.5V | 1.3V @ 250µA | 1.14 nC @ 4.5 V | ±8V | 87 pF @ 10 V | - | 250mW (Ta), 770mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMT200EN,135MOSFET N-CH 100V 1.8A SOT223 |
16,000 | 0.07 |
RFQ |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.8A (Ta) | 4.5V, 10V | 235mOhm @ 1.5A, 10V | 2.5V @ 250µA | 10 nC @ 10 V | ±20V | 475 pF @ 80 V | - | 800mW (Ta), 8.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
PMT21EN,135MOSFET N-CH 30V 7.4A SOT223 |
3,335 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.4A (Ta) | 4.5V, 10V | 21mOhm @ 7.4A, 10V | 2.5V @ 250µA | 14.4 nC @ 10 V | ±20V | 588 pF @ 15 V | - | 820mW (Ta), 8.33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMT29EN,115MOSFET N-CH 30V 6A SOT223 |
2,587 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 29mOhm @ 6A, 10V | 2.5V @ 250µA | 11 nC @ 10 V | ±20V | 492 pF @ 15 V | - | 820mW (Ta), 8.33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMT760EN,135MOSFET N-CH 100V 900MA SOT223 |
26,824 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 900mA (Ta) | 4.5V, 10V | 950mOhm @ 800mA, 10V | 2.5V @ 250µA | 3 nC @ 10 V | ±20V | 160 pF @ 80 V | - | 800mW (Ta), 6.2W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
PMV170UN,215MOSFET N-CH 20V 1A TO236AB |
33,000 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 1.8V, 4.5V | 165mOhm @ 1A, 4.5V | 1V @ 250µA | 1.65 nC @ 4.5 V | ±8V | 83 pF @ 10 V | - | 325mW (Ta), 1.14W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PMV185XN,215MOSFET N-CH 30V 1.1A TO236AB |
263,243 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.1A (Ta) | 2.5V, 4.5V | 250mOhm @ 1.1A, 4.5V | 1.5V @ 250µA | 1.3 nC @ 4.5 V | ±12V | 76 pF @ 15 V | - | 325mW (Ta), 1.275W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
