| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

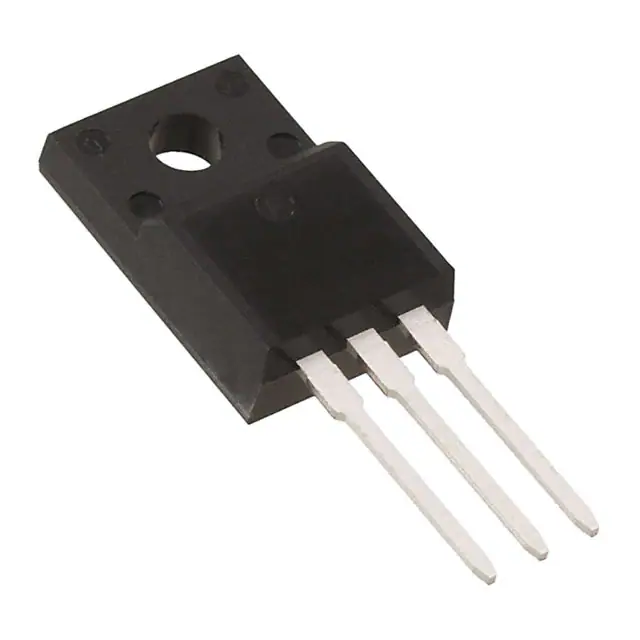

NDFPD1N150CGMOSFET N-CH 1500V 100MA TO220-3 |
2,751 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 100mA (Ta) | 10V | 150Ohm @ 50mA, 10V | - | 4.2 nC @ 10 V | ±30V | 80 pF @ 30 V | - | 2W (Ta), 20W (Tc) | 150°C (TJ) | Through Hole |
|
FDB8160-F085MOSFET N-CH 30V 80A TO263AB |
3,815 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 10V | 1.8mOhm @ 80A, 10V | 4V @ 250µA | 243 nC @ 10 V | ±20V | 11825 pF @ 15 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
FDB8441-F085MOSFET N-CH 40V 28A/80A TO263AB |
4,400 | 1.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101, PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 28A (Ta), 80A (Tc) | 10V | 2.5mOhm @ 80A, 10V | 4V @ 250µA | 280 nC @ 10 V | ±20V | 15000 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDB8445-F085MOSFET N-CH 40V 70A TO263AB |
3,914 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Tc) | 10V | 9mOhm @ 70A, 10V | 4V @ 250µA | 62 nC @ 10 V | ±20V | 3805 pF @ 25 V | - | 92W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDB8870-F085MOSFET N-CH 30V 23A/160A TO263AB |
2,123 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 23A (Ta), 160A (Tc) | 4.5V, 10V | 3.9mOhm @ 35A, 10V | 2.5V @ 250µA | 132 nC @ 10 V | ±20V | 5200 pF @ 15 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDD3682-F085MOSFET N-CH 100V 5.5/32A TO252AA |
2,876 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 5.5A (Ta), 32A (Tc) | 6V, 10V | 36mOhm @ 32A, 10V | 4V @ 250µA | 28 nC @ 10 V | ±20V | 1250 pF @ 25 V | - | 95W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDD6688MOSFET N-CH 30V 84A DPAK |
2,010 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 84A (Ta) | 4.5V, 10V | 5mOhm @ 18A, 10V | 3V @ 250µA | 56 nC @ 10 V | ±20V | 3845 pF @ 15 V | - | 83W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDS6673BZ-F085MOSFET P-CH 30V 14.5A 8SOIC |
3,423 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101, PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 14.5A (Ta) | 4.5V, 10V | 7.8mOhm @ 14.5A, 10V | 3V @ 250µA | 124 nC @ 10 V | ±25V | 4700 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQB7N60TM-WSMOSFET N-CH 600V 7.4A D2PAK |
3,083 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.4A (Tc) | 10V | 1Ohm @ 3.7A, 10V | 5V @ 250µA | 38 nC @ 10 V | ±30V | 1430 pF @ 25 V | - | 3.13W (Ta), 142W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
FQD9N25TM-F080MOSFET N-CH 250V 7.4A DPAK |
3,147 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 7.4A (Tc) | 10V | 420mOhm @ 3.7A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±30V | 700 pF @ 25 V | - | 2.5W (Ta), 55W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FCPF11N65MOSFET N-CH 650V 11A TO220F |
2,575 | 0.00 |
RFQ |
Datasheet |
Tube | SuperFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | - | 380mOhm @ 5.5A, 10V | 5V @ 250µA | 52 nC @ 10 V | - | 1490 pF @ 25 V | - | 36W (Tc) | - | Through Hole |
|
FQA13N50C-F109MOSFET N-CH 500V 13.5A TO3P |
2,127 | 0.00 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 13.5A (Tc) | 10V | 480mOhm @ 6.75A, 10V | 4V @ 250µA | 56 nC @ 10 V | ±30V | 2055 pF @ 25 V | - | 218W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQPF4N90CTMOSFET N-CH 900V 4A TO220F |
2,911 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 4A (Tc) | 10V | 4.2Ohm @ 2A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±30V | 960 pF @ 25 V | - | 47W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FQU5N50CTU-WSMOSFET N-CH 500V 4A IPAK |
2,173 | 0.00 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 4A (Tc) | 10V | 1.4Ohm @ 2A, 10V | 4V @ 250µA | 24 nC @ 10 V | ±30V | 625 pF @ 25 V | - | 2.5W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDMS5360L-F085MOSFET N-CH 60V 60A POWER56 |
2,133 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 4.5V, 10V | 8.5mOhm @ 60A, 10V | 3V @ 250µA | 72 nC @ 10 V | ±20V | 3695 pF @ 30 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDMS5362L-F085MOSFET N-CH 60V 17.6A POWER56 |
2,144 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 17.6A (Tc) | 4.5V, 10V | 33mOhm @ 17.6A, 10V | 3V @ 250µA | 21 nC @ 10 V | ±20V | 878 pF @ 25 V | - | 41.7W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMC4435BZ-F126MOSFET P-CH 30V 8.5A/18A 8MLP |
2,322 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 8.5A (Ta), 18A (Tc) | 4.5V, 10V | 20mOhm @ 8.5A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±25V | 2045 pF @ 15 V | - | 2.3W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

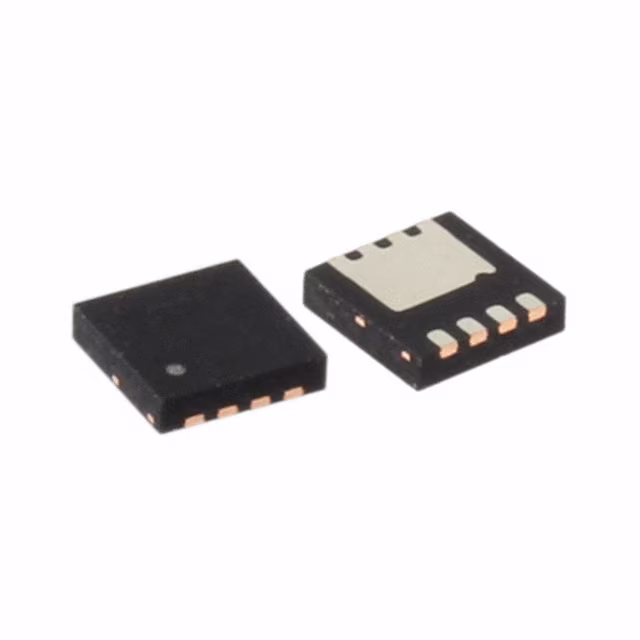

FDMC7672S-F126MOSFET N-CH 30V 14.8A 8MLP |
3,179 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench®, SyncFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 14.8A (Ta) | 4.5V, 10V | 6mOhm @ 14.8A, 10V | 3V @ 1mA | 42 nC @ 10 V | ±20V | 2520 pF @ 15 V | - | 2.3W (Ta), 36W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDMC7692S-F126MOSFET N-CH 30V 12.5A/18A 8MLP |
2,928 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12.5A (Ta), 18A (Tc) | 4.5V, 10V | 9.3mOhm @ 12.5A, 10V | 3V @ 1mA | 23 nC @ 10 V | ±20V | 1385 pF @ 15 V | - | 2.3W (Ta), 27W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMC7692S-F127MOSFET N-CH 30V 12.5A/18A 8MLP |
3,104 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12.5A (Ta), 18A (Tc) | 4.5V, 10V | 9.3mOhm @ 12.5A, 10V | 3V @ 1mA | 23 nC @ 10 V | ±20V | 1385 pF @ 15 V | - | 2.3W (Ta), 27W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
