| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|

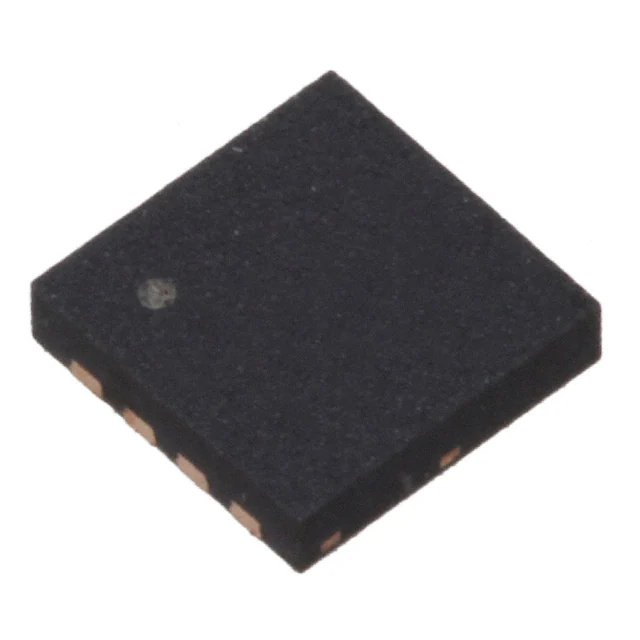

FDMC8878MOSFET N-CH 30V 9.6A/16.5A 8MLP |
2,162 | 1.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.6A (Ta), 16.5A (Tc) | 4.5V, 10V | 14mOhm @ 9.6A, 10V | 3V @ 250µA | 26 nC @ 10 V | ±20V | 1230 pF @ 15 V | - | 2.1W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMFS4C06NT1GMOSFET N-CH 30V 11A/69A 5DFN |
3,830 | 1.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 69A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | 2.1V @ 250µA | 26 nC @ 10 V | ±20V | 1683 pF @ 15 V | - | 770mW (Ta), 30.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NVTFS5C673NLTAGMOSFET N-CH 60V 13A/50A 8WDFN |
2,312 | 1.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 13A (Ta), 50A (Tc) | 4.5V, 10V | 9.8mOhm @ 25A, 10V | 2V @ 250µA | 9.5 nC @ 10 V | ±20V | 880 pF @ 25 V | - | 3.1W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS4C05NT1GMOSFET N-CH 30V 11.9A 5DFN |
3,368 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.9A (Ta) | 4.5V, 10V | 3.4mOhm @ 30A, 10V | 2.2V @ 250µA | 14 nC @ 4.5 V | ±20V | 1972 pF @ 15 V | - | 770mW (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVTFS5C466NLTAGMOSFET N-CH 40V 51A 8WDFN |
3,134 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 51A (Tc) | 4.5V, 10V | 7.3mOhm @ 10A, 10V | 2.2V @ 250µA | 7 nC @ 4.5 V | ±20V | 880 pF @ 25 V | - | 38W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVLUS4C12NTAGMOSFET N-CH 30V 6.8A 6UDFN |
2,963 | 1.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.8A (Ta) | 3.3V, 10V | 9mOhm @ 9A, 10V | 2.1V @ 250µA | 18 nC @ 10 V | ±20V | 1172 pF @ 15 V | - | 630mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NVMFD6H852NLWFT1GMOSFET N-CH 80V 7A/25A 8DFN DL |
3,732 | 1.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 7A (Ta), 25A (Tc) | 4.5V, 10V | 25.5mOhm @ 10A, 10V | 2V @ 26µA | 10 nC @ 10 V | ±20V | 521 pF @ 40 V | - | 3.2W (Ta), 38W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FCD900N60ZMOSFET N-CH 600V 4.5A TO252 |
3,275 | 1.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.5A (Tc) | 10V | 900mOhm @ 2.3A, 10V | 3.5V @ 250µA | 17 nC @ 10 V | ±20V | 720 pF @ 25 V | - | 52W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMC7660SMOSFET N-CH 30V 20A/40A POWER33 |
2,731 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench®, SyncFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta), 40A (Tc) | 4.5V, 10V | 2.2mOhm @ 20A, 10V | 2.5V @ 1mA | 66 nC @ 10 V | ±20V | 4325 pF @ 15 V | - | 2.3W (Ta), 41W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDS8870MOSFET N-CH 30V 18A 8SOIC |
2,774 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 4.2mOhm @ 18A, 10V | 2.5V @ 250µA | 112 nC @ 10 V | ±20V | 4615 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS015N10MCLT1GMOSFET N-CH 100V 10.5A/54A 5DFN |
3,535 | 1.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 10.5A (Ta), 54A (Tc) | 4.5V, 10V | 12.2mOhm @ 14A, 10V | 2.2V @ 282µA | 19 nC @ 10 V | ±20V | 13380 pF @ 50 V | - | 3W (Ta), 79W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDS8813NZMOSFET N-CH 30V 18.5A 8SOIC |
2,274 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18.5A (Ta) | 4.5V, 10V | 4.5mOhm @ 18.5A, 10V | 3V @ 250µA | 76 nC @ 10 V | ±20V | 4145 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDD5353MOSFET N-CH 60V 11.5A/50A DPAK |
2,528 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 11.5A (Ta), 50A (Tc) | 4.5V, 10V | 12.3mOhm @ 10.7A, 10V | 3V @ 250µA | 65 nC @ 10 V | ±20V | 3215 pF @ 30 V | - | 3.1W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMC8554MOSFET N-CH 20V 16.5A 8MLP |
2,061 | 1.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 16.5A (Tc) | 4.5V, 10V | 5mOhm @ 16.5A, 10V | 3V @ 250µA | 62 nC @ 10 V | ±20V | 3380 pF @ 10 V | - | 2W (Ta), 41W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTTFS4C06NTAGMOSFET N-CH 30V 11A/67A 8WDFN |
2,620 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 67A (Tc) | 4.5V, 10V | 4.2mOhm @ 30A, 10V | 2.2V @ 250µA | 36 nC @ 10 V | ±20V | 3366 pF @ 15 V | - | 810mW (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMC86324MOSFET N-CH 80V 7A/20A POWER33 |
3,290 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 7A (Ta), 20A (Tc) | 6V, 10V | 23mOhm @ 7A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 965 pF @ 50 V | - | 2.3W (Ta), 41W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NVF6P02T3GMOSFET P-CH 20V 10A SOT-223 |
1,890 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 20 V | 10A (Ta) | 2.5V, 4.5V | 50mOhm @ 6A, 4.5V | 1V @ 250µA | 20 nC @ 4.5 V | ±8V | 1200 pF @ 16 V | - | 8.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDFS2P106AMOSFET P-CH 60V 3A 8SOIC |
2,724 | 1.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 3A (Ta) | 4.5V, 10V | 110mOhm @ 3A, 10V | 3V @ 250µA | 21 nC @ 10 V | ±20V | 714 pF @ 30 V | Schottky Diode (Isolated) | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDS3572MOSFET N-CH 80V 8.9A 8SOIC |
2,764 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 8.9A (Ta) | 6V, 10V | 16mOhm @ 8.9A, 10V | 4V @ 250µA | 41 nC @ 10 V | ±20V | 1990 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVTFS5C471NLWFTAGMOSFET N-CHANNEL 40V 41A 8WDFN |
3,792 | 1.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 41A (Tc) | 4.5V, 10V | 9mOhm @ 10A, 10V | 2.2V @ 20µA | 5.5 nC @ 4.5 V | ±20V | 660 pF @ 25 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
