Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
MID550-12A4 IGBT MOD 1200V 670A 2750W Y3DCB IXYS	3,210	196.41	RFQ	Datasheet	Box	-	Active	NPT	Single	1200 V	670 A	2750 W	2.8V @ 15V, 400A	21 mA	26 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
MII300-12A4 IGBT MOD 1200V 330A 1380W Y3DCB IXYS	3,074	197.78	RFQ	Datasheet	Box	-	Active	NPT	Half Bridge	1200 V	330 A	1380 W	2.7V @ 15V, 200A	13 mA	13 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
MIXG490PF1200PTSF IGBT MODULE - PHASELEG SIMBUS F- IXYS	3,740	198.84	RFQ		Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
MUBW75-17T8 IGBT MODULE 1700V 113A 450W E3 IXYS	3,815	203.04	RFQ	Datasheet	Box	-	Active	Trench	Three Phase Inverter with Brake	1700 V	113 A	450 W	2.4V @ 15V, 75A	800 µA	6.6 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
MIXG450PF1700TSF IGBT MODULE - PHASELEG SIMBUS F- IXYS	3,144	210.47	RFQ		Box	-	Active	PT	Single	-	-	-	-	-	-	Standard	No	-	Chassis Mount
MWI100-12A8 IGBT MODULE 1200V 160A 640W E3 IXYS	2,053	211.53	RFQ	Datasheet	Box	-	Active	NPT	Three Phase Inverter	1200 V	160 A	640 W	2.6V @ 15V, 100A	6.3 mA	6.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
MIXG240W1200PTEH IGBT MODULE - SIXPACK E3-PACK-PF IXYS	2,691	212.81	RFQ		Box	-	Active	PT	Three Phase Inverter	1200 V	312 A	938 W	2V @ 15V, 200A	150 µA	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MIXG240W1200TEH IGBT MODULE - SIXPACK E3-PACK-PF IXYS	2,798	213.55	RFQ		Box	-	Active	PT	Three Phase Inverter	1200 V	370 A	1250 W	2V @ 15V, 200A	200 µA	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MIXG240W1200PT-PC IGBT MODULE MIXG240W1200PTEH-PC IXYS	2,937	217.11	RFQ	Datasheet	Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
MIXG240W1200PZTEH IGBT MODULE - SIXPACK E3-PACK-PF IXYS	2,871	228.26	RFQ		Box	-	Active	PT	Three Phase Inverter	1200 V	312 A	938 W	2V @ 15V, 200A	150 µA	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MIXG240W1200PZ-PC IGBT MOD MIXG240W1200PZTEH-PC IXYS	2,659	232.53	RFQ		Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
MWI150-12T8T IGBT MODULE 1200V 215A 690W E3 IXYS	2,906	243.83	RFQ	Datasheet	Box	-	Active	Trench	Three Phase Inverter	1200 V	215 A	690 W	2.1V @ 15V, 150A	6 mA	10.77 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount

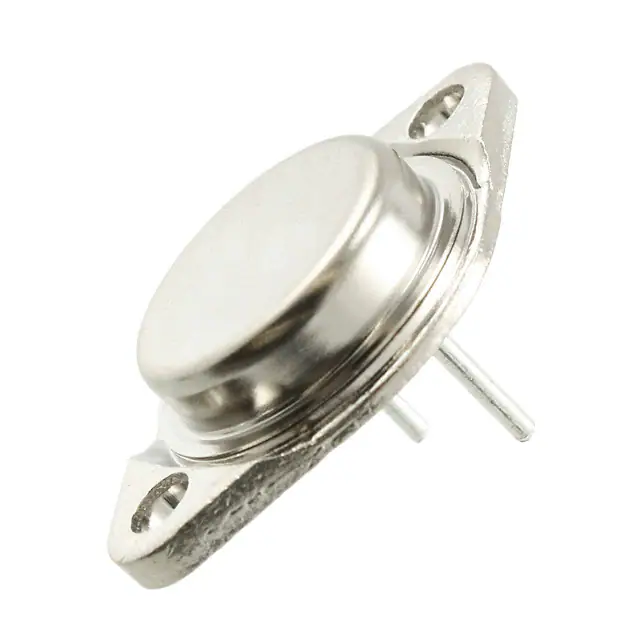

IXGM40N60A IGBT MODULE 600V 75A 250W TO204 IXYS	3,930	0.00	RFQ	Datasheet	-	-	Obsolete	-	Single	600 V	75 A	250 W	3V @ 15V, 40A	200 µA	4.5 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
IXGN60N60 IGBT MOD 600V 100A 250W SOT227B IXYS	3,890	0.00	RFQ	Datasheet	Bulk	-	Obsolete	PT	Single	600 V	100 A	250 W	1.7V @ 15V, 60A	200 µA	4 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
MWI150-06A8 IGBT MODULE 600V 170A 515W E3 IXYS	3,241	0.00	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Phase Inverter	600 V	170 A	515 W	2.5V @ 15V, 150A	1.5 mA	6.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
MWI200-06A8 IGBT MODULE 600V 225A 675W E3 IXYS	2,668	0.00	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Phase Inverter	600 V	225 A	675 W	2.5V @ 15V, 200A	1.8 mA	9 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
MII400-12E4 IGBT MOD 1200V 420A 1700W Y3LI IXYS	2,231	0.00	RFQ	Datasheet	-	-	Obsolete	NPT	Half Bridge	1200 V	420 A	1700 W	2.8V @ 15V, 300A	3.3 mA	17 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
IXEN60N120 IGBT MOD 1200V 100A 445W SOT227B IXYS	3,773	0.00	RFQ	Datasheet	Tube	-	Obsolete	NPT	Single	1200 V	100 A	445 W	2.7V @ 15V, 60A	800 µA	3.8 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

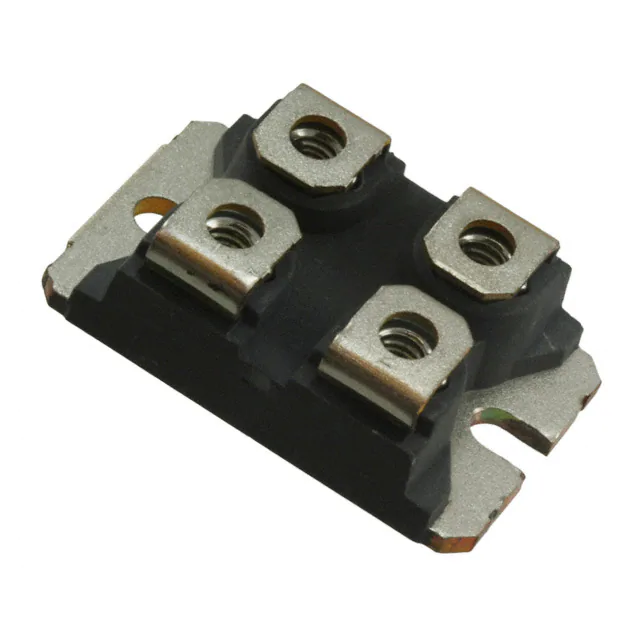

IXEN60N120D1 IGBT MOD 1200V 100A 445W SOT227B IXYS	2,174	0.00	RFQ	Datasheet	Tube	-	Obsolete	NPT	Single	1200 V	100 A	445 W	2.7V @ 15V, 60A	800 µA	3.8 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
IXGE200N60B IGBT MOD 600V 160A ISOPLUS227 IXYS	3,549	0.00	RFQ	Datasheet	Tube	HiPerFAST™	Active	-	Single	600 V	160 A	416 W	2.3V @ 15V, 120A	200 µA	11 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
