| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2LS20017E42W34854NOSA1IGBT MODULE 1700V 20A |
3,814 | 0.00 |
RFQ |
Datasheet |
Bulk | ModSTACK™ C | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - |
|
2LS20017E42W36702NOSA1IGBT MODULE 1700V 20A |
2,061 | 0.00 |
RFQ |
Datasheet |
Bulk | ModSTACK™ | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2LS20017E42W40403NOSA1IGBT MODULE 1700V 20A |
2,864 | 0.00 |
RFQ |
Datasheet |
Bulk | ModSTACK™ C | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6PS03012E33G34160NOSA1IGBT MODULE 300V 234A 2100W |
2,139 | 0.00 |
RFQ |
Bulk | PrimeSTACK™ | Obsolete | - | Three Phase Inverter | - | - | 2100 W | 2V @ 15V, 300A | - | - | Standard | No | -25°C ~ 55°C | Chassis Mount | |
|
|
6PS04512E43G37986NOSA1IGBT MODULE 1200V 217A |
2,101 | 0.00 |
RFQ |
Bulk | PrimeSTACK™ | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount | |
|
|
6PS18012E4FG35689NWSA1IGBT MODULE 1200V 729A |
2,089 | 0.00 |
RFQ |
Datasheet |
Bulk | PrimeSTACK™ | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount |
|
|
2PS13512E43W39689NOSA1IGBT MODULE 1200V 900A |
2,143 | 0.00 |
RFQ |
Datasheet |
Bulk | PrimeSTACK™ | Obsolete | Trench Field Stop | Three Phase Inverter | 1200 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount |
|
|
6PS04512E43W39693NOSA1IGBT MODULE 500V 300A |
2,448 | 0.00 |
RFQ |
Datasheet |
Bulk | PrimeSTACK™ | Obsolete | - | Three Phase Inverter | - | - | - | - | - | - | Standard | No | -25°C ~ 55°C | Chassis Mount |
|
BSM75GB60DLCHOSA1IGBT MOD 600V 100A 355W |
3,810 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Single | 600 V | 100 A | 355 W | 2.45V @ 15V, 75A | 500 µA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|

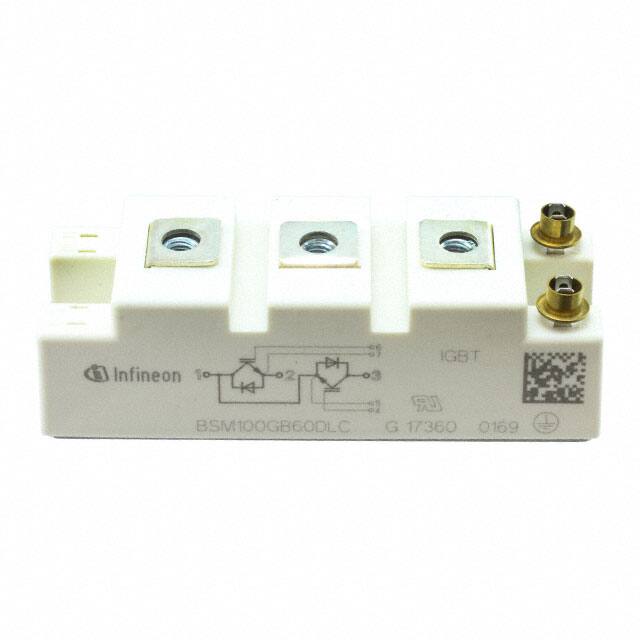

BSM100GB60DLCHOSA1IGBT MOD 600V 130A 445W |
3,705 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Single | 600 V | 130 A | 445 W | 2.45V @ 15V, 100A | 500 µA | - | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
BSM150GB60DLCHOSA1IGBT MOD 600V 180A 595W |
3,097 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Single | 600 V | 180 A | 595 W | 2.45V @ 15V, 150A | 500 µA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
BSM200GB60DLCHOSA1IGBT MOD 600V 230A 730W |
2,368 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Single | 600 V | 230 A | 730 W | 2.45V @ 15V, 200A | 500 µA | 9 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
BSM50GB60DLCHOSA1IGBT MODULE 600V 75A 280W |
2,550 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Single | 600 V | 75 A | 280 W | 2.45V @ 15V, 50A | 500 µA | 2.2 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
6MS20017E43W37032NOSA1IGBT MODULE 1700V 1200A |
3,645 | 0.00 |
RFQ |
Datasheet |
Bulk | ModSTACK™ HD | Obsolete | - | Three Phase Inverter | 1700 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount |
|
|
6MS20017E43W38170NOSA1IGBT MODULE 1700V 1200A |
2,577 | 0.00 |
RFQ |
Datasheet |
Bulk | ModSTACK™ HD | Obsolete | - | Three Phase Inverter | 1700 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount |
|
|
6MS30017E43W38169NOSA1IGBT MODULE 1700V 1800A |
3,950 | 0.00 |
RFQ |
Datasheet |
Bulk | ModSTACK™ HD | Obsolete | - | Three Phase Inverter | 1700 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount |
|
|
2PS12017E44G35911NOSA1IGBT MODULE 690V 574A 2160W |
2,016 | 0.00 |
RFQ |
Datasheet |
Bulk | PrimeSTACK™ | Obsolete | - | Three Phase Inverter | - | - | 2160 W | 2.45V @ 15V, 300A | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount |
|
|
6MS10017E41W36460BOSA1IGBT MODULE 1700V 600A |
2,233 | 0.00 |
RFQ |
Datasheet |
Bulk | ModSTACK™ | Obsolete | - | Three Phase Inverter | 1700 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount |
|
|
6MS16017P43W40382NOSA1IGBT MODULE 1700V 880A |
3,116 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Three Phase Inverter | 1700 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount |
|
|
6MS16017P43W40383NOSA1IGBT MODULE 1700V 880A |
2,879 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Three Phase Inverter | 1700 V | - | - | - | - | - | Standard | Yes | -25°C ~ 55°C | Chassis Mount |
