| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSM75GP60BOSA1IGBT MOD 600V 100A 310W |
2,921 | 0.00 |
RFQ |
Tray | - | Obsolete | - | Three Phase Inverter | 600 V | 100 A | 310 W | 2.45V @ 15V, 75A | 500 µA | 3.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C | Chassis Mount | |
|
BYM300B170DN2HOSA1IGBT MOD 650V 40A 20MW |
2,107 | 185.30 |
RFQ |
Datasheet |
Bulk,Tray | - | Obsolete | Trench Field Stop | 2 Independent | 650 V | 40 A | 20 mW | 1.55V @ 15V, 25A | 40 µA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|

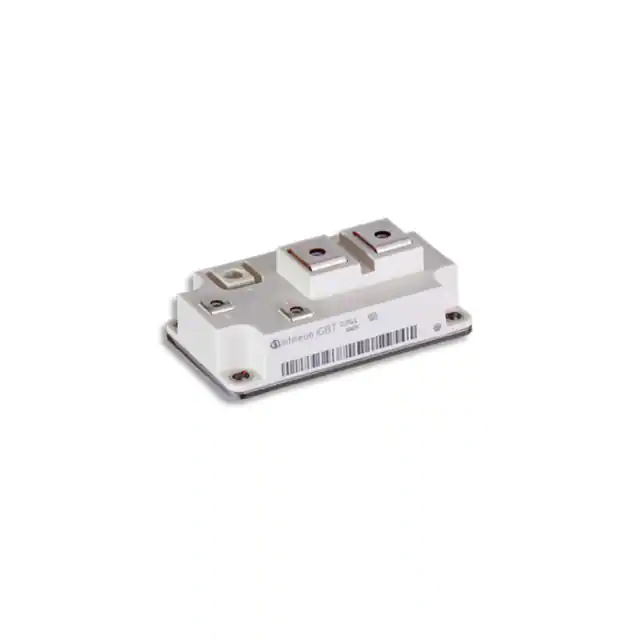

BYM600A170DN2HOSA1IGBT MODULE 1400W MED PWR 62MM-2 |
2,758 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | - | Obsolete | - | Single | - | - | 1400 W | - | - | - | Standard | No | 150°C (TJ) | Chassis Mount |
|
DDB6U100N16RRBOSA1IGBT MOD 1200V 50A 350W |
3,027 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | - | Discontinued at Mosen | - | Single Chopper | 1200 V | 50 A | 350 W | 3.2V @ 20V, 50A | 1 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
F4100R06KL4BOSA1IGBT MOD 600V 130A 430W |
2,860 | 0.00 |
RFQ |
Tray | - | Obsolete | - | Half Bridge | 600 V | 130 A | 430 W | 2.55V @ 15V, 100A | 5 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | |
|
|
F4100R17ME4B11BPSA1IGBT MODULE 1700V 155A |
2,759 | 100.76 |
RFQ |
Datasheet |
Bulk,Tray | EconoDUAL™ 3 | Discontinued at Mosen | Trench Field Stop | Full Bridge | 1700 V | 155 A | - | 2.3V @ 15V, 100A | 3 mA | 9 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
F4150R06KL4BOSA1IGBT MOD 600V 180A 570W |
3,218 | 0.00 |
RFQ |
Tray | - | Obsolete | - | Full Bridge | 600 V | 180 A | 570 W | 2.55V @ 15V, 150A | 5 mA | 6.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | |
|
F4150R17ME4B11BPSA1IGBT MODULE 1700V 230A |
3,511 | 0.00 |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Discontinued at Mosen | Trench Field Stop | Full Bridge | 1700 V | 230 A | - | 2.3V @ 15V, 150A | 3 mA | 12 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
|
F4200R06KL4BOSA1IGBT MOD 600V 225A 695W |
3,903 | 0.00 |
RFQ |
Tray | - | Obsolete | - | Full Bridge | 600 V | 225 A | 695 W | 2.55V @ 15V, 200A | 5 mA | 9 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | |
|
|
F4250R17MP4B11BPSA1IGBT MODULE 1700V 370A |
462 | 181.62 |
RFQ |
Datasheet |
Bulk,Tray | EconoDUAL™ 3 | Discontinued at Mosen | Trench Field Stop | Full Bridge Inverter | 1700 V | 370 A | - | 2.3V @ 15V, 250A | 3 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
|
F575R06KE3B5BOSA1IGBT MODULE 600V 75A 250W |
2,980 | 0.00 |
RFQ |
Datasheet |
Tray | EconoPACK™ 3 | Obsolete | Trench Field Stop | Three Phase Inverter | 600 V | 75 A | 250 W | 1.9V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FB10R06KL4BOMA1MOD IGBT LOW PWR EASY1-1 |
760 | 31.20 |
RFQ |
Bulk,Tray | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FB10R06KL4GB1BOMA1MOD IGBT LOW PWR EASY2-1 |
3,192 | 0.00 |
RFQ |
Tray | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FB10R06KL4GBOMA1MOD IGBT LOW PWR EASY2-1 |
3,021 | 0.00 |
RFQ |
Tray | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FB15R06KL4B1BOMA1MOD IGBT LOW PWR EASY2-1 |
120 | 40.14 |
RFQ |
Bulk,Tray | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FB20R06KL4B1BOMA1IGBT MODULE LOW PWR EASY2-1 |
3,528 | 0.00 |
RFQ |
Tray | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FD1000R17IE4DB2BOSA1IGBT MOD 1700V 1390A 6250W |
2,504 | 581.67 |
RFQ |
Datasheet |
Bulk,Tray | PrimePACK™3 | Obsolete | - | Single | 1700 V | 1390 A | 6250 W | 2.45V @ 15V, 1000A | 5 mA | 81 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FF150R12KE3B8BOSA1MOD IGBT LOW PWR ECONO2-6 |
2,577 | 0.00 |
RFQ |
Tray | - | Discontinued at Mosen | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FF600R12ME4B73BPSA1IGBT MOD 1200V 1200A 20MW |
2,300 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | EconoDUAL™ 3 | Discontinued at Mosen | Trench Field Stop | Half Bridge | 1200 V | 1200 A | 20 mW | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FP10R06KL4BOMA1IGBT MODULE LOW PWR EASY2-1 |
3,771 | 0.00 |
RFQ |
Tray | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - |
